Category appearance

Blockly provides a default categories UI, and with it some basic options for styling. If you want information about how to do more advanced styling/configuration of the UI check out the Customizing a Blockly toolbox codelab and the 2021 Toolbox APIs talk.

A category toolbox with six categories. The Variables category is open and
contains variable getter and setter blocks. The color of the blocks matches the
color of the vertical bar to the left of the Variables category
name.

Category CSS

You can use CSS to style category toolboxes. The entry for each category is broken into multiple parts, such as its icon, its label, and the row containing the icon and the label. You can style each part individually.

By default, all parts of the same type (e.g. all labels) are assigned the same CSS class. Use this class if you want to style all parts of the same type in the same way. For example, you want all labels to have the same color.

You can also assign each individual part its own CSS class. Use this method if you want to style individual parts differently. For example, you want each label to have its own color.

The following table lists the types, descriptions, and default CSS classes of each part of a category toolbox. If you're having trouble visualizing this, open the developer tools in your browser and inspect the toolbox.

Part type Description Default CSS class
contents The div that contains all categories. blocklyToolboxCategoryGroup
container The div that contains a single category and its subcategories. blocklyToolboxCategoryContainer
row The div that contains the category. blocklyToolboxCategory
rowcontentcontainer The div that contains the label and the icon. blocklyTreeRowContentContainer
icon The span that contains the icon. blocklyToolboxCategoryIcon
label The span that contains the label. blocklyToolboxCategoryLabel
selected Added to the "row" div when the category is selected. blocklyToolboxSelected
openicon Added to the "icon" span when a category with subcategories is open. blocklyToolboxCategoryIconOpen
closedicon Added to the "icon" span when a category with subcategories is closed. blocklyToolboxCategoryIconClosed

As an example, suppose you want all of your labels to be white but each category's row to have its own background color. To do this, you need custom CSS classes for each row. You can use the default class for the labels.

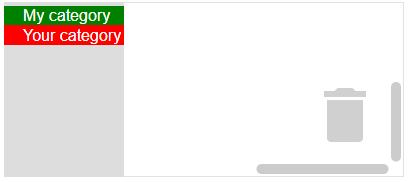

A toolbox with two categories. The category labels are both white, but their
background colors are different.

First, assign custom CSS classes in the JSON or XML that defines your categories:

JSON

Set custom CSS classes using the cssConfig property.

{
  "kind": "category",
  "name": "My category",
  "cssConfig": {
    "row": "myRow"  // Use the part type ("row") as a key.
  },
  "contents": [...],
},
{
  "kind": "category",
  "name": "Your category",
  "cssConfig": {
    "row": "yourRow"
  },
  "contents": [...],
},

XML

Set custom CSS classes using an attribute whose name is the part type with css- prepended to it.

<category name="My category" css-row="myRow">
  ...
</category>
<category name="Your category" css-row="yourRow">
  ...
</category>

In your CSS file, use the custom classes to assign row colors and the default class to assign the label color:

.myRow {background-color: green}
.yourRow {background-color: red}
.blocklyToolboxCategoryLabel {color: white}

Themes

Themes allow you to specify all of the colours of your workspace at once, including the colours of your categories.

To use them, you have to associate your category with a particular category style:

JSON

{
  "kind": "category",
  "name": "Logic",
  "categorystyle": "logic_category"
}

XML

<category name="Logic" categorystyle="logic_category"></category>

Colours

You can also specify the colour directly, but this is not recommended. The colour is a stringified number (0-360) specifying the hue. Note the British spelling.

JSON

{
  "contents": [
    {
      "kind": "category",
      "name": "Logic",
      "colour": "210"
    },
    {
      "kind": "category",
      "name": "Loops",
      "colour": "120"
    }
  ]
}

XML

<xml id="toolbox" style="display: none">
  <category name="Logic" colour="210">...</category>
  <category name="Loops" colour="120">...</category>
  <category name="Math" colour="230">...</category>
  <category name="Colour" colour="20">...</category>
  <category name="Variables" colour="330" custom="VARIABLE"></category>
  <category name="Functions" colour="290" custom="PROCEDURE"></category>
</xml>

Note that we also support using localizable colour references.
