Control the position of the camera

The map view is modeled as a camera looking down on a flat plane. The position of the camera (and hence the rendering of the map) is specified by the following properties: latitude, longitude, altitude, heading, tilt, range, and fov.

The camera target is the location of the center of the map, specified as latitude and longitude coordinates. You can specify the camera's position in two ways:

• By target point: Use the center property to specify a coordinate on the map that the camera should face. This is best when you want to ensure a landmark or area is in focus.
• By camera coordinates: Use the cameraPosition property to place the camera at specific latitude, longitude, and altitude coordinates. This is ideal for defining a precise viewpoint.

Logically, center and cameraPosition are linked. When you set one, the other is automatically calculated based on the camera's orientation and distance. Properties like tilt, heading, and roll control how the camera is aimed, regardless of which positioning method you use.

The following example lets you toggle between center (camera looking at the map center) and cameraPosition (camera positioned at the map center).

See the complete example source code

TypeScript

async function init(): Promise<void> {
    // Import the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d')!;
    const btn = document.getElementById('switch-mode-btn') as HTMLButtonElement;

    const initialCenter = { lat: 40.7860524, lng: -73.9634983, altitude: 0 };
    let isCenterMode = true;

    btn.addEventListener('click', () => {
        if (isCenterMode) {
            // Switch to Camera Position Mode.
            // Place the camera at the marker's location, but 50m up in the air
            map3DElement.cameraPosition = { ...initialCenter, altitude: 50 };
            map3DElement.tilt = 80;

            btn.textContent = 'Switch to Center Mode';
            isCenterMode = false;
        } else {
            // Revert back to Center Mode (looking AT the marker)
            map3DElement.center = initialCenter;
            map3DElement.tilt = 70;
            map3DElement.range = 1500; // Restore the original range value.

            btn.textContent = 'Switch to Camera Position';
            isCenterMode = true;
        }
    });
}

void init();
index.ts

Note: Read the guide on using TypeScript and Google Maps.

JavaScript

async function init() {
    // Import the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d');
    const btn = document.getElementById('switch-mode-btn');

    const initialCenter = { lat: 40.7860524, lng: -73.9634983, altitude: 0 };
    let isCenterMode = true;

    btn.addEventListener('click', () => {
        if (isCenterMode) {
            // Switch to Camera Position Mode.
            // Place the camera at the marker's location, but 50m up in the air
            map3DElement.cameraPosition = { ...initialCenter, altitude: 50 };
            map3DElement.tilt = 80;

            btn.textContent = 'Switch to Center Mode';
            isCenterMode = false;
        } else {
            // Revert back to Center Mode (looking AT the marker)
            map3DElement.center = initialCenter;
            map3DElement.tilt = 70;
            map3DElement.range = 1500; // Restore the original range value.

            btn.textContent = 'Switch to Camera Position';
            isCenterMode = true;
        }
    });
}

void init();
index.js

CSS

html,
body {
    height: 100%;
    margin: 0;
    padding: 0;
}

#ui-container {
    position: absolute;
    top: 20px;
    left: 20px;
    z-index: 10;
}

button {
    background: rgba(15, 23, 42, 0.75);
    backdrop-filter: blur(12px);
    -webkit-backdrop-filter: blur(12px);
    border: 1px solid rgba(255, 255, 255, 0.1);
    color: #f8fafc;
    padding: 12px 20px;
    border-radius: 8px;
    cursor: pointer;
    font-size: 0.9rem;
    font-weight: 600;
    transition: all 0.2s ease;
    box-shadow: 0 8px 32px 0 rgba(0, 0, 0, 0.37);
}

button:hover {
    background: rgba(56, 189, 248, 0.2);
    border-color: rgba(56, 189, 248, 0.4);
    transform: translateY(-1px);
}

button:active {
    transform: translateY(0);
}
style.css

HTML

<html>
    <head>
        <title>3D Camera Position</title>

        <link rel="stylesheet" type="text/css" href="./style.css" />
        <script type="module" src="./index.js"></script>
        <script>
            // prettier-ignore
            (g=>{var h,a,k,p="The Google Maps JavaScript API",c="google",l="importLibrary",q="__ib__",m=document,b=window;b=b[c]||(b[c]={});var d=b.maps||(b.maps={}),r=new Set,e=new URLSearchParams,u=()=>h||(h=new Promise(async(f,n)=>{await (a=m.createElement("script"));e.set("libraries",[...r]+"");for(k in g)e.set(k.replace(/[A-Z]/g,t=>"_"+t[0].toLowerCase()),g[k]);e.set("callback",c+".maps."+q);a.src=`https://maps.${c}apis.com/maps/api/js?`+e;d[q]=f;a.onerror=()=>h=n(Error(p+" could not load."));a.nonce=m.querySelector("script[nonce]")?.nonce||"";m.head.append(a)}));d[l]?console.warn(p+" only loads once. Ignoring:",g):d[l]=(f,...n)=>r.add(f)&&u().then(()=>d[l](f,...n))})({
                key: "AIzaSyA6myHzS10YXdcazAFalmXvDkrYCp5cLc8"
            });
        </script>
    </head>

    <body>
        <gmp-map-3d
            center="40.7860524,-73.9634983"
            range="1500"
            tilt="70"
            heading="-150"
            mode="satellite">
            <gmp-marker
                position="40.7860524,-73.9634983"
                altitude-mode="clamp-to-ground"></gmp-marker>
        </gmp-map-3d>

        <div id="ui-container">
            <button id="switch-mode-btn" type="button">
                Switch to Camera Position
            </button>
        </div>
    </body>
</html>
index.html

Try Sample

JSFiddle.net

Field of view and range

In a 3D environment, the concept of "zoom" is controlled by two distinct parameters: range and fov (field of view). While both affect how large objects appear on the map, they do so using different mechanics:

• range: The physical distance between the camera and its center point. Adjusting the range is like moving a camera closer to or further away from a subject.

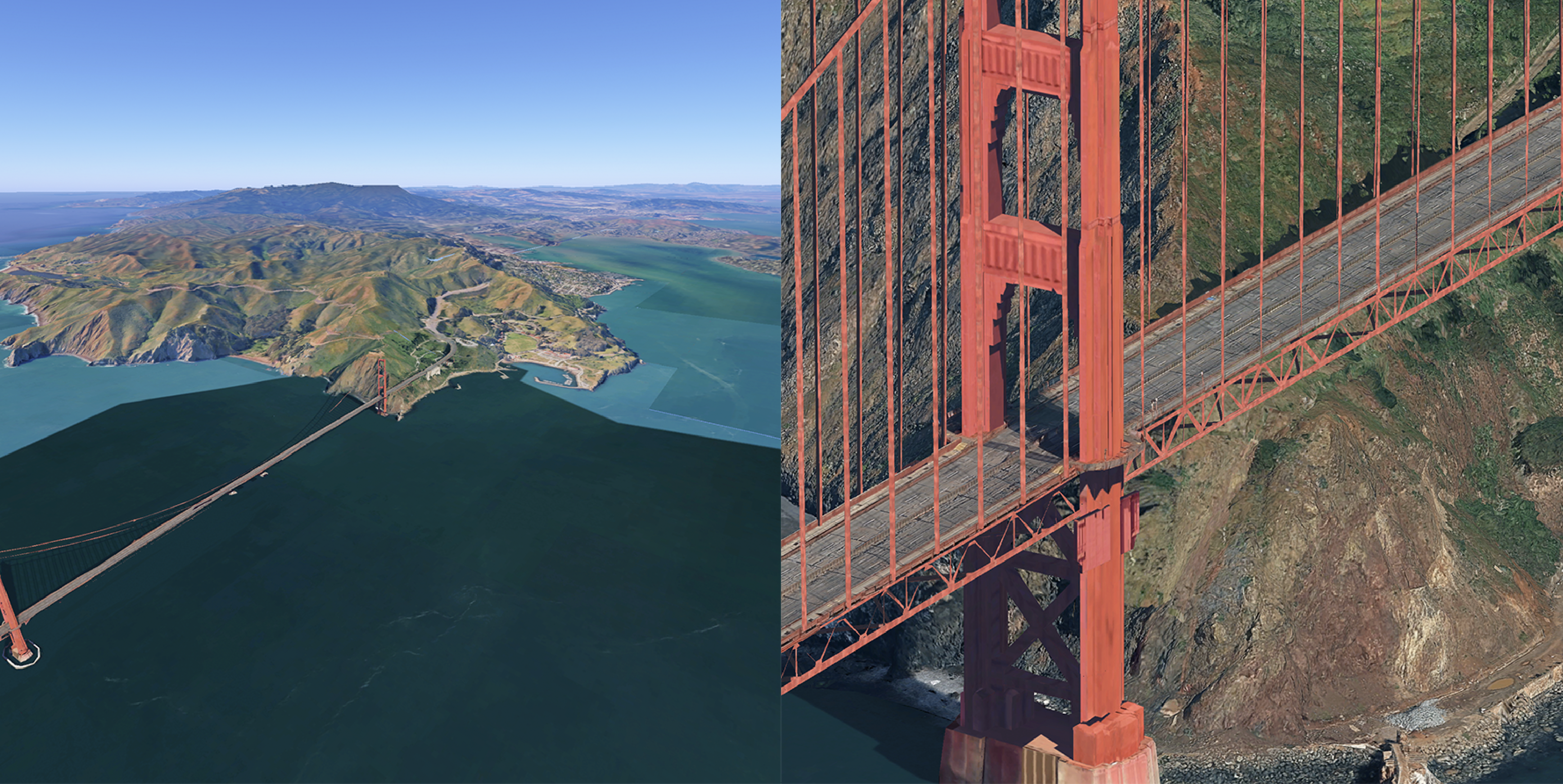

• fov: The vertical angle of the camera lens, measured in degrees. Adjusting the field of view is equivalent to changing the lens on a camera. A higher value (up to 80 degrees) acts like a wide-angle lens, showing more of the periphery, while a lower value (down to 5 degrees) acts like a telephoto lens and narrows the focus.

Note: Think of range as controlling the distance and fov as controlling the perspective. Both parameters are optional and can be used independently or in tandem to achieve the needed framing.

The following example lets you experiment to see how the various map and camera positioning options work together. Set parameters using the UI sliders, or interact directly with the map and map controls. The resulting parameters are added to a gmp-map-3d element that you can copy and reuse.

See the complete example source code

TypeScript

async function initMap(): Promise<void> {
    // Declare the needed libraries.
    await google.maps.importLibrary('maps3d');

    const map3DElement = document.querySelector('gmp-map-3d')!;

    // Elements from HTML
    const headingSlider = document.getElementById(
        'heading'
    ) as HTMLInputElement;
    const tiltSlider = document.getElementById('tilt') as HTMLInputElement;
    const rangeSlider = document.getElementById('range') as HTMLInputElement;
    const latSlider = document.getElementById('lat') as HTMLInputElement;
    const lngSlider = document.getElementById('lng') as HTMLInputElement;
    const fovSlider = document.getElementById('fov') as HTMLInputElement;
    const rollSlider = document.getElementById('roll') as HTMLInputElement;

    const headingVal = document.getElementById('heading-val')!;
    const tiltVal = document.getElementById('tilt-val')!;
    const rangeVal = document.getElementById('range-val')!;
    const altitudeVal = document.getElementById('altitude-val')!;
    const fovVal = document.getElementById('fov-val')!;
    const rollVal = document.getElementById('roll-val')!;
    const codeElem = document.getElementById('generated-code')!;
    const copyBtn = document.getElementById('copy-btn') as HTMLButtonElement;

    let currentAltitude = 30;
    let isUserInteracting = false;

    // Update values on UI when the map changes.
    const updateUI = () => {
        const heading = map3DElement.heading?.toFixed(0) ?? '0';
        const tilt = map3DElement.tilt?.toFixed(0) ?? '0';
        const range = map3DElement.range?.toFixed(0) ?? '0';
        const rawFov = parseFloat(map3DElement.fov?.toFixed(0) ?? '45');
        const fovClamped = Math.min(80, Math.max(5, rawFov));
        const fov = fovClamped.toString();
        const roll = map3DElement.roll?.toFixed(0) ?? '0';
        const center = map3DElement.center;
        const mode = map3DElement.mode;

        headingVal.textContent = heading;
        tiltVal.textContent = tilt;
        rangeVal.textContent = range;
        fovVal.textContent = fov;
        rollVal.textContent = roll;

        if (!isUserInteracting) {
            fovSlider.value = fov;
            headingSlider.value = heading;
            tiltSlider.value = tilt;
            rangeSlider.value = Math.min(10000, parseFloat(range)).toString();
            rollSlider.value = roll;
        }

        if (center) {
            const lat = center.lat.toFixed(4);
            const lng = center.lng.toFixed(4);
            const alt = currentAltitude.toFixed(0);

            latSlider.value = lat;
            lngSlider.value = lng;
            altitudeVal.textContent = alt;

            codeElem.textContent = `<gmp-map-3d center="${lat},${lng},${alt}" mode="${mode}" tilt="${tilt}" range="${range}" heading="${heading}" fov="${fov}" roll="${roll}"></gmp-map-3d>`;
        }
    };

    // Copy generated HTML to clipboard.
    copyBtn.addEventListener('click', () => {
        void navigator.clipboard.writeText(codeElem.textContent || '');
        copyBtn.textContent = 'Copied!';
        setTimeout(() => {
            copyBtn.textContent = 'Copy HTML';
        }, 2000);
    });

    // Listen to slider changes using event delegation.
    const panel = document.querySelector('.panel')!;

    panel.addEventListener('input', (e) => {
        const target = e.target as HTMLInputElement;
        if (target.tagName !== 'INPUT') return;

        isUserInteracting = true;
        const prop = target.name;
        const val = parseFloat(target.value);

        if (prop === 'lat') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: val,
                    lng: currentCenter.lng,
                    altitude: currentCenter.altitude,
                };
            }
        } else if (prop === 'lng') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: val,
                    altitude: currentCenter.altitude,
                };
            }
        } else if (prop === 'altitude') {
            currentAltitude = val;
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: currentCenter.lng,
                    altitude: val,
                };
            }
        } else {
            // eslint-disable-next-line @typescript-eslint/no-explicit-any
            (map3DElement as any)[prop] = val;
        }
        updateUI();
    });

    panel.addEventListener('change', (e) => {
        const target = e.target as HTMLInputElement;
        if (target.tagName === 'INPUT') {
            isUserInteracting = false;
        }
    });

    // Update UI on camera change events.
    map3DElement.addEventListener('gmp-headingchange', updateUI);
    map3DElement.addEventListener('gmp-tiltchange', updateUI);
    map3DElement.addEventListener('gmp-rangechange', updateUI);
    map3DElement.addEventListener('gmp-fovchange', updateUI);

    // Initial UI sync
    setTimeout(updateUI, 500);
}

void initMap();
index.ts

Note: Read the guide on using TypeScript and Google Maps.

JavaScript

async function initMap() {
    // Declare the needed libraries.
    await google.maps.importLibrary('maps3d');
    const map3DElement = document.querySelector('gmp-map-3d');
    // Elements from HTML
    const headingSlider = document.getElementById('heading');
    const tiltSlider = document.getElementById('tilt');
    const rangeSlider = document.getElementById('range');
    const latSlider = document.getElementById('lat');
    const lngSlider = document.getElementById('lng');
    const fovSlider = document.getElementById('fov');
    const rollSlider = document.getElementById('roll');
    const headingVal = document.getElementById('heading-val');
    const tiltVal = document.getElementById('tilt-val');
    const rangeVal = document.getElementById('range-val');
    const altitudeVal = document.getElementById('altitude-val');
    const fovVal = document.getElementById('fov-val');
    const rollVal = document.getElementById('roll-val');
    const codeElem = document.getElementById('generated-code');
    const copyBtn = document.getElementById('copy-btn');
    let currentAltitude = 30;
    let isUserInteracting = false;
    // Update values on UI when the map changes.
    const updateUI = () => {
        const heading = map3DElement.heading?.toFixed(0) ?? '0';
        const tilt = map3DElement.tilt?.toFixed(0) ?? '0';
        const range = map3DElement.range?.toFixed(0) ?? '0';
        const rawFov = parseFloat(map3DElement.fov?.toFixed(0) ?? '45');
        const fovClamped = Math.min(80, Math.max(5, rawFov));
        const fov = fovClamped.toString();
        const roll = map3DElement.roll?.toFixed(0) ?? '0';
        const center = map3DElement.center;
        const mode = map3DElement.mode;
        headingVal.textContent = heading;
        tiltVal.textContent = tilt;
        rangeVal.textContent = range;
        fovVal.textContent = fov;
        rollVal.textContent = roll;
        if (!isUserInteracting) {
            fovSlider.value = fov;
            headingSlider.value = heading;
            tiltSlider.value = tilt;
            rangeSlider.value = Math.min(10000, parseFloat(range)).toString();
            rollSlider.value = roll;
        }
        if (center) {
            const lat = center.lat.toFixed(4);
            const lng = center.lng.toFixed(4);
            const alt = currentAltitude.toFixed(0);
            latSlider.value = lat;
            lngSlider.value = lng;
            altitudeVal.textContent = alt;
            codeElem.textContent = `<gmp-map-3d center="${lat},${lng},${alt}" mode="${mode}" tilt="${tilt}" range="${range}" heading="${heading}" fov="${fov}" roll="${roll}"></gmp-map-3d>`;
        }
    };
    // Copy generated HTML to clipboard.
    copyBtn.addEventListener('click', () => {
        void navigator.clipboard.writeText(codeElem.textContent || '');
        copyBtn.textContent = 'Copied!';
        setTimeout(() => {
            copyBtn.textContent = 'Copy HTML';
        }, 2000);
    });
    // Listen to slider changes using event delegation.
    const panel = document.querySelector('.panel');
    panel.addEventListener('input', (e) => {
        const target = e.target;
        if (target.tagName !== 'INPUT')
            return;
        isUserInteracting = true;
        const prop = target.name;
        const val = parseFloat(target.value);
        if (prop === 'lat') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: val,
                    lng: currentCenter.lng,
                    altitude: currentCenter.altitude,
                };
            }
        }
        else if (prop === 'lng') {
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: val,
                    altitude: currentCenter.altitude,
                };
            }
        }
        else if (prop === 'altitude') {
            currentAltitude = val;
            const currentCenter = map3DElement.center;
            if (currentCenter) {
                map3DElement.center = {
                    lat: currentCenter.lat,
                    lng: currentCenter.lng,
                    altitude: val,
                };
            }
        }
        else {
            // eslint-disable-next-line @typescript-eslint/no-explicit-any
            map3DElement[prop] = val;
        }
        updateUI();
    });
    panel.addEventListener('change', (e) => {
        const target = e.target;
        if (target.tagName === 'INPUT') {
            isUserInteracting = false;
        }
    });
    // Update UI on camera change events.
    map3DElement.addEventListener('gmp-headingchange', updateUI);
    map3DElement.addEventListener('gmp-tiltchange', updateUI);
    map3DElement.addEventListener('gmp-rangechange', updateUI);
    map3DElement.addEventListener('gmp-fovchange', updateUI);
    // Initial UI sync
    setTimeout(updateUI, 500);
}
void initMap();
index.js

CSS

html,
body {
    height: 100%;
    margin: 0;
    padding: 0;
    font-family:
        'Inter',
        -apple-system,
        BlinkMacSystemFont,
        'Segoe UI',
        Roboto,
        Oxygen,
        Ubuntu,
        Cantarell,
        'Open Sans',
        'Helvetica Neue',
        sans-serif;
    background-color: #0f172a;
    color: #e2e8f0;
}

gmp-map-3d {
    height: 100%;
    width: 100%;
}

/* Glassmorphism UI Overlay */
#ui-container {
    position: absolute;
    top: 20px;
    left: 20px;
    width: 320px;
    z-index: 10;
}

.panel {
    background: rgba(15, 23, 42, 0.75);
    backdrop-filter: blur(12px);
    -webkit-backdrop-filter: blur(12px);
    border: 1px solid rgba(255, 255, 255, 0.1);
    border-radius: 16px;
    padding: 24px;
    margin-top: 10px;
    box-shadow: 0 8px 32px 0 rgba(0, 0, 0, 0.37);
}

h1 {
    font-size: 1.25rem;
    font-weight: 700;
    margin: 0 0 4px 0;
    background: linear-gradient(to right, #38bdf8, #818cf8);
    -webkit-background-clip: text;
    -webkit-text-fill-color: transparent;
}

.sub-title {
    font-size: 0.85rem;
    color: #94a3b8;
    margin: 0 0 20px 0;
}

h2 {
    font-size: 0.95rem;
    font-weight: 600;
    margin: 16px 0 8px 0;
    color: #f8fafc;
}

.control-group {
    margin-bottom: 16px;
}

label {
    display: block;
    font-size: 0.85rem;
    margin-bottom: 6px;
    color: #cbd5e1;
}

span {
    font-weight: 600;
    color: #38bdf8;
}

.row {
    display: flex;
    gap: 12px;
}

.col {
    flex: 1;
}

input[type='number'] {
    font-family: 'Fira Code', monospace;
    background: rgba(15, 23, 42, 0.5);
    border: 1px solid rgba(255, 255, 255, 0.1);
    color: #f8fafc;
    padding: 4px 8px;
    border-radius: 6px;
    outline: none;
}

input[type='range'] {
    width: 100%;
    height: 4px;
    background: #334155;
    border-radius: 2px;
    outline: none;
    -webkit-appearance: none;
}

input[type='range']::-webkit-slider-thumb {
    -webkit-appearance: none;
    width: 16px;
    height: 16px;
    border-radius: 50%;
    background: #38bdf8;
    cursor: pointer;
    box-shadow: 0 0 8px rgba(56, 189, 248, 0.5);
    transition: all 0.2s ease;
}

input[type='range']::-webkit-slider-thumb:hover {
    transform: scale(1.2);
    background: #60a5fa;
}

.buttons {
    display: flex;
    flex-direction: column;
    gap: 8px;
}

button {
    background: rgba(51, 65, 85, 0.5);
    border: 1px solid rgba(255, 255, 255, 0.05);
    color: #f8fafc;
    padding: 10px 16px;
    border-radius: 8px;
    cursor: pointer;
    font-size: 0.85rem;
    font-weight: 500;
    transition: all 0.2s ease;
    text-align: left;
}

button:hover {
    background: rgba(56, 189, 248, 0.2);
    border-color: rgba(56, 189, 248, 0.4);
    transform: translateY(-1px);
}

button:active {
    transform: translateY(0);
}

.status-group p {
    font-size: 0.8rem;
    color: #94a3b8;
    margin: 4px 0;
    background: rgba(30, 41, 59, 0.5);
    padding: 6px 10px;
    border-radius: 6px;
    font-family: monospace;
}

.code-box {
    position: relative;
    background: rgba(15, 23, 42, 0.9);
    border-radius: 8px;
    border: 1px solid rgba(255, 255, 255, 0.05);
    margin-top: 8px;
}

pre {
    margin: 0;
    padding: 12px;
    overflow-x: auto;
}

code {
    font-family: 'Fira Code', monospace;
    font-size: 0.75rem;
    color: #38bdf8;
}

#copy-btn {
    display: block;
    width: 100%;
    margin-top: 8px;
    padding: 8px;
    font-size: 0.85rem;
    font-weight: 600;
    background: #334155;
    color: #f8fafc;
    border: none;
    border-radius: 6px;
    text-align: center;
    cursor: pointer;
    transition: all 0.2s ease;
}

#copy-btn:hover {
    background: #38bdf8;
    color: #0f172a;
}
style.css

HTML

<html>
    <head>
        <title>Google Maps 3D - Camera Position Controller</title>
        <link rel="stylesheet" type="text/css" href="./style.css" />
        <script type="module" src="./index.js"></script>
        <!-- prettier-ignore -->
        <script>(g => { var h, a, k, p = "The Google Maps JavaScript API", c = "google", l = "importLibrary", q = "__ib__", m = document, b = window; b = b[c] || (b[c] = {}); var d = b.maps || (b.maps = {}), r = new Set, e = new URLSearchParams, u = () => h || (h = new Promise(async (f, n) => { await (a = m.createElement("script")); e.set("libraries", [...r] + ""); for (k in g) e.set(k.replace(/[A-Z]/g, t => "_" + t[0].toLowerCase()), g[k]); e.set("callback", c + ".maps." + q); a.src = `https://maps.${c}apis.com/maps/api/js?` + e; d[q] = f; a.onerror = () => h = n(Error(p + " could not load.")); a.nonce = m.querySelector("script[nonce]")?.nonce || ""; m.head.append(a) })); d[l] ? console.warn(p + " only loads once. Ignoring:", g) : d[l] = (f, ...n) => r.add(f) && u().then(() => d[l](f, ...n)) })
            ({ key: "AIzaSyA6myHzS10YXdcazAFalmXvDkrYCp5cLc8"});</script>
    </head>

    <body>
        <gmp-map-3d
            center="40.7811,-73.9599,0"
            mode="HYBRID"
            tilt="76"
            range="3270"
            heading="-154"></gmp-map-3d>
        <div id="ui-container">
            <div class="panel">
                <div class="control-group">
                    <label for="heading"
                        >Heading: <span id="heading-val">0</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="heading"
                        name="heading"
                        min="-180"
                        max="180"
                        value="0"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="tilt"
                        >Tilt: <span id="tilt-val">45</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="tilt"
                        name="tilt"
                        min="0"
                        max="90"
                        value="45"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="range"
                        >Range: <span id="range-val">1000</span>m</label
                    >
                    <input
                        type="range"
                        id="range"
                        name="range"
                        min="100"
                        max="10000"
                        value="1000"
                        step="100" />
                </div>

                <div class="control-group row">
                    <div class="col">
                        <label for="lat">Latitude</label>
                        <input
                            type="number"
                            id="lat"
                            name="lat"
                            min="-90"
                            max="90"
                            value="40.7040"
                            step="0.0001" />
                    </div>
                    <div class="col">
                        <label for="lng">Longitude</label>
                        <input
                            type="number"
                            id="lng"
                            name="lng"
                            min="-180"
                            max="180"
                            value="-74.0180"
                            step="0.0001" />
                    </div>
                </div>

                <div class="control-group">
                    <label for="altitude"
                        >Altitude: <span id="altitude-val">30</span>m</label
                    >
                    <input
                        type="range"
                        id="altitude"
                        name="altitude"
                        min="0"
                        max="5000"
                        value="30"
                        step="10" />
                </div>

                <div class="control-group">
                    <label for="fov"
                        >FOV: <span id="fov-val">35</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="fov"
                        name="fov"
                        min="5"
                        max="80"
                        value="35"
                        step="1" />
                </div>

                <div class="control-group">
                    <label for="roll"
                        >Roll: <span id="roll-val">0</span>&deg;</label
                    >
                    <input
                        type="range"
                        id="roll"
                        name="roll"
                        min="-180"
                        max="180"
                        value="0"
                        step="1" />
                </div>

                <div class="status-group">
                    <div class="code-box">
                        <pre><code id="generated-code"></code></pre>
                    </div>
                    <button id="copy-btn">Copy HTML</button>
                </div>
            </div>
        </div>
    </body>
</html>
index.html

Try Sample

JSFiddle.net
