Integrate i-mobile with Mediation

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from i-mobile using mediation, covering waterfall integrations. It covers how to add i-mobile to an ad unit's mediation configuration, and how to integrate the i-mobile SDK and adapter into an Android app.

The dashboard interface for i-mobile uses Japanese text for its labels, buttons, and descriptions. The screenshots in this guide have not been translated. In this guide's descriptions and instructions however, labels and buttons are translated with their English language equivalents in parentheses.

Supported integrations and ad formats

The Ad Manager mediation adapter for i-mobile has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Native

Requirements

• Android API level 21 or higher

• Latest Google Mobile Ads SDK

• Complete the mediation Get started guide

Step 1: Set up configurations in i-mobile UI

Sign up or log in to your i-mobile account.

Add your app to the i-mobile dashboard by clicking the サイト／アプリ管理 (Site/Application Management) tab and the button for your app's platform.

Fill out the form and click the 新規登録 (Sign up) button.

Note: i-mobile has to approve your registration. Once you are approved, you can create an Advertising Spot.

To create a new Advertising Spot, select your app under the サイト／アプリ管理 (Site/Application Management) tab.

Navigate to the 広告スポット管理 (Ad Spot Management) tab and click the 新規広告スポット (New Ad Spot) button.

Next, fill out the form by providing the 広告スポット名 (Ad Spot name), 広告スポットサイズ (Ad Spot size) and other details. Then, click the 新規登録 (Sign up) button.

Your new Ad spot is ready. To view its integration details, click the アプリ設定取得 (Get App settings) button.

Take note of the パブリッシャーID (Publisher ID), メディアID (Media ID), and スポットID (Spot ID). You'll need these parameters later when configuring i-mobile for mediation in the Ad Manager UI.

Step 2: Set up i-mobile demand in Ad Manager UI

Configure mediation settings for your ad unit

Sign in to your Ad Manager account.

Navigate to Delivery > Yield groups and click the New yield group button.

Enter a unique Name for your yield group, set the Status to Active, select your Ad Format, and set the Inventory type to Mobile App. Under the Targeting > Inventory section, select the ad unit under Inventory and Mobile application to which you want to add mediation.

Next, click the Add yield partner button.

If you already have a Yield partner for i-mobile, you can select it. Otherwise, select Create a new yield partner.

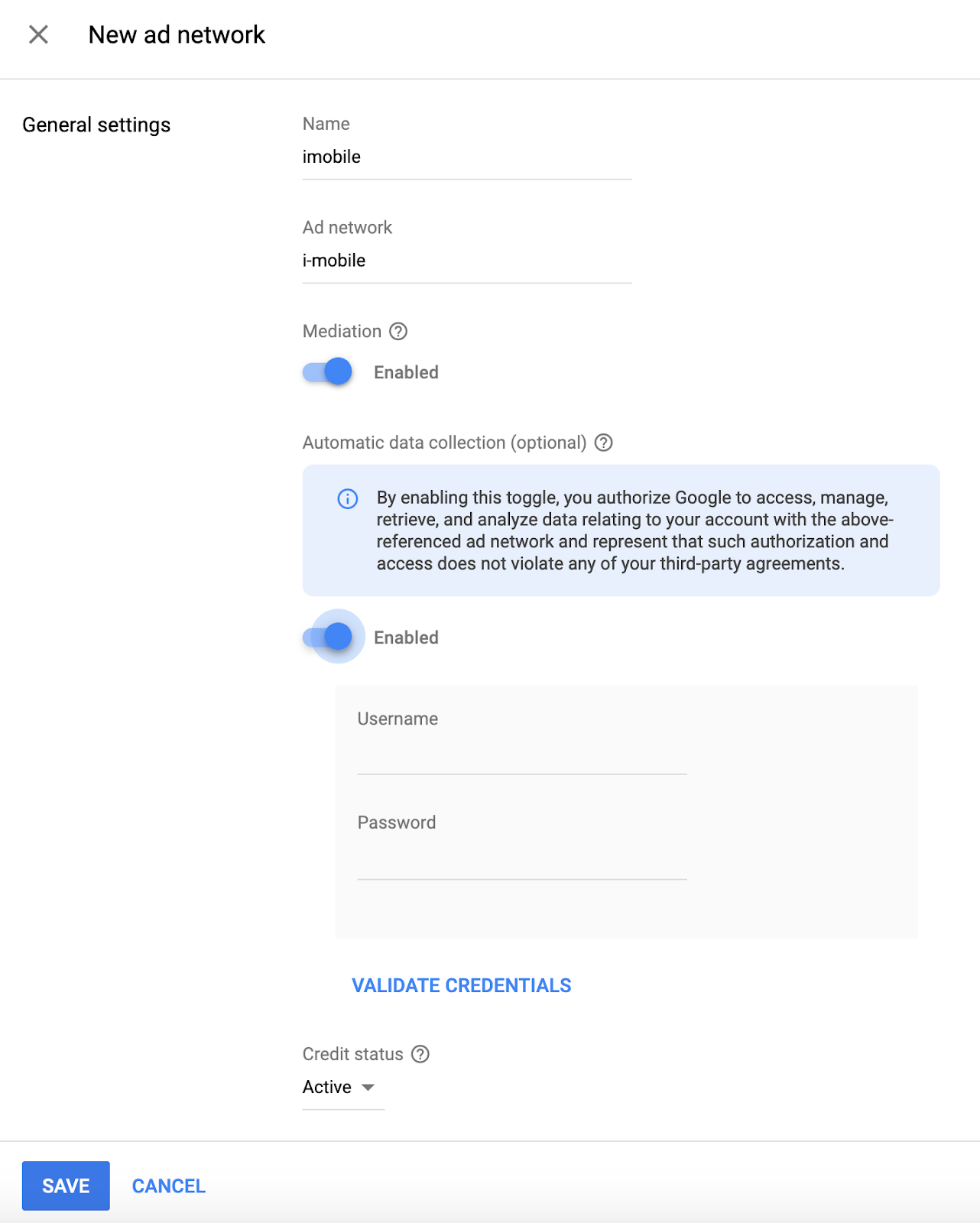

Select i-mobile as the Ad network, enter a unique Name and enable Mediation.

Turn on Automatic data collection, and enter the Login name and API Password

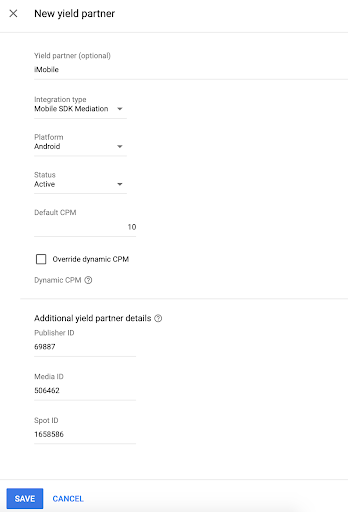

Once the Yield partner is selected, choose Mobile SDK Mediation as the Integration type, Android as the Platform, and Active as the Status. Enter the Publisher ID, Media ID and Spot ID obtained in the previous section. Then, enter a Default CPM value.

Click Save at the bottom of the page when done.

Note: Automatic data collection takes a few days to gather data before it can accurately calculate a Dynamic CPM value for a mediation network. Once the eCPM can be calculated, it will be automatically updated on your behalf.

Step 3: Import the i-mobile SDK and Adapter

Note: Failure to integrate the compatible i-mobile and Google Mobile Ads SDK versions might lead to build issues.

Android Studio integration (recommended)

In your project-level settings.gradle.kts file, add the following repositories:

dependencyResolutionManagement {
  repositories {
    google()
    mavenCentral()
    maven {
      url = uri("https://imobile.github.io/adnw-sdk-android")
    }
  }
}

Then, in your app-level build.gradle.kts file, add the following implementation dependencies and configurations. Use the latest versions of the i-mobile SDK and adapter:

dependencies {
    implementation("com.google.android.gms:play-services-ads:23.0.0")
    implementation("com.google.ads.mediation:imobile:2.3.1.2")
}

Manual integration

1. Download the latest version of the i-mobile SDK and extract the android-ad-sdk.aar under the sdk folder and add it to your project.

2. Navigate to the i-mobile adapter artifacts on Google's Maven Repository. Select the latest version, download the i-mobile adapter's .aar file, and add it to your project.

Step 4: Add required code

No additional code is required for i-mobile integration.

Step 5: Test your implementation

Enable test ads

Make sure you register your test device for Ad Manager. i-mobile provides test Spot ID, Media ID, and Publisher ID for testing, you can find them here.

Important: Disable test mode for Ad Manager and i-mobile before releasing your app.

Verify test ads

To verify that you are receiving test ads from i-mobile, enable single ad source testing in ad inspector using the i-mobile (Waterfall) ad source(s).

Optional steps

Using native ads

Ad rendering

The i-mobile adapter populates the following fields for a NativeAd.

Field	Assets always included by i-mobile adapter
Headline
Body
App icon	^1
Call to action
Star rating
Store
Price

¹ For native ads, the i-mobile SDK does not provide an app icon asset. Instead, the i-mobile adapter populates the app icon with a transparent image.

Error codes

If the adapter fails to receive an ad from i-mobile, publishers can check the underlying error from the ad response using ResponseInfo.getAdapterResponse() under the following classes:

Format	Class name
Banner	com.google.ads.mediation.imobile.IMobileAdapter
Interstitial	com.google.ads.mediation.imobile.IMobileAdapter
Native	com.google.ads.mediation.imobile.IMobileMediationAdapter

Here are the codes and accompanying messages thrown by the i-mobile adapter when an ad fails to load:

Error code	Reason
0-99	i-mobile SDK returned an error. See code for more details.
101	i-mobile requires an Activity context to load ads.
102	i-mobile server parameters configured in the Ad Manager UI are missing/invalid.
103	The requested ad size does not match an i-mobile supported banner size.
104	i-mobile's native ad load success callback returned an empty native ads list.

i-mobile Android Mediation Adapter Changelog

Version 2.3.1.2

• Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
• Verified compatibility with i-mobile SDK v2.3.1.

Built and tested with:

• Google Mobile Ads SDK version 23.0.0.
• IMobile SDK version 2.3.1.

Version 2.3.1.1

• Updated adapter to use new VersionInfo class.
• Updated the minimum required Google Mobile Ads SDK version to 22.0.0.

Built and tested with:

• Google Mobile Ads SDK version 22.0.0.
• IMobile SDK version 2.3.1.

Version 2.3.1.0

• Verified compatibility with i-mobile SDK v2.3.1.
• Updated the minimum required Google Mobile Ads SDK version to 21.5.0.

Built and tested with:

• Google Mobile Ads SDK version 21.5.0.
• IMobile SDK version 2.3.1.

Version 2.3.0.0

• Verified compatibility with i-mobile SDK v2.3.0.
• Updated the minimum required Google Mobile Ads SDK version to 21.3.0.

Built and tested with:

• Google Mobile Ads SDK version 21.3.0.
• IMobile SDK version 2.3.0.

Version 2.0.23.1

• Updated compileSdkVersion and targetSdkVersion to API 31.
• Updated the minimum required Google Mobile Ads SDK version to 21.0.0.
• Updated the minimum required Android API level to 19.

Built and tested with:

• Google Mobile Ads SDK version 21.0.0.
• IMobile SDK version 2.0.23.

Version 2.0.23.0

• Verified compatibility with i-mobile SDK v2.0.23.
• Updated the minimum required Google Mobile Ads SDK version to 20.5.0.

Built and tested with

• Google Mobile Ads SDK version 20.5.0.
• IMobile SDK version 2.0.23.

Version 2.0.22.2

• Added standardized adapter error codes and messages.
• Updated the minimum required Google Mobile Ads SDK version to 20.1.0.

Built and tested with

• Google Mobile Ads SDK version 20.1.0.
• IMobile SDK version 2.0.22.

Version 2.0.22.1

• Updated the minimum required Google Mobile Ads SDK version to 20.0.0.

Built and tested with

• Google Mobile Ads SDK version 20.0.0.
• IMobile SDK version 2.0.22.

Version 2.0.22.0

• Verified compatibility with i-mobile SDK v2.0.22.
• Updated the adapter to support inline adaptive banner requests.

Built and tested with

• Google Mobile Ads SDK version 19.1.0.
• IMobile SDK version 2.0.22.

Version 2.0.21.0

• Verified compatibility with i-mobile SDK v2.0.21.
• Updated the minimum required Google Mobile Ads SDK version to 19.1.0.
• Added support for scaling adaptive banner ads.

Built and tested with

• Google Mobile Ads SDK version 19.1.0.
• IMobile SDK version 2.0.21.

Version 2.0.20.2

• Added support for flexible banner ad sizes.
• Updated the minimum required Google Mobile Ads SDK version to 18.3.0.

Built and tested with

• Google Mobile Ads SDK version 18.3.0.
• IMobile SDK version 2.0.20.

Version 2.0.20.1

• Adapter now returns a non-zero mediaContent aspect ratio.

Built and tested with

• Google Mobile Ads SDK version 18.2.0.
• IMobile SDK version 2.0.20.

Version 2.0.20.0

• Initial release!
• Added support for banner, interstitial, and native ads.
