RBM エージェントは、メッセージを送受信することでユーザーと通信します。ユーザーにメッセージを送信するために、エージェントは RCS Business Messaging API にメッセージ リクエストを送信します。1 つのリクエストには、テキスト、リッチカード、画像、動画のほか、返信文の候補やおすすめのアクションを含めることができます。
RCS をサポートしていないデバイスまたは RCS が有効になっていないデバイスにメッセージを送信すると、RBM プラットフォームは 404 エラーを返します。この場合、インフラストラクチャで定義されているフォールバック メソッドを介してユーザーへの到達を試行できます。
エージェントがまだ起動されていないネットワークまたは RCS トラフィックを有効にしていないネットワーク上で RCS ユーザーにメッセージを送信すると、RBM プラットフォームは 403 エラーを返します。
ユーザーのデバイスがサポートしていない機能を含むメッセージを送信すると、RBM プラットフォームはエラーを返し、メッセージは配信されません。
文字列化された AgentMessage 全体の最大サイズは 250 KB です。
オフライン ユーザーに送信する
受信者がオフラインの場合、RBM プラットフォームは配信対象のメッセージを受け入れます。200 OK レスポンスが返されます。RBM プラットフォームはメッセージを保留し、30 日間再配信を試みます。RBM にメッセージの再送を依頼する必要はありません。
未配信のメールは送信から 30 日後に RBM によってすべて削除されます。
エージェントのユースケースによっては、この 30 日間のタイムアウトの前に未配信のメッセージを取り消すことが必要になる場合があります。取り消しを行うと、オフライン ユーザーがオンラインに戻ったときに古いメッセージを受信するのを防ぐことができます。メッセージを取り消す方法は複数あります。
- 取り消しリクエストを送信して取り消しをトリガーします。
- メッセージの有効期限を設定して、適切なタイミングでメッセージを自動的に取り消す。
メッセージに有効期限を設定する
エージェントのメッセージに時間的制約はありますか?たとえば、OTP は短い期間のみ有効です。期間限定特典には有効期限があります。予約のリマインダーは予約日以降は関係ありませんタイムリーで関連性の高いメッセージが表示されるようにするには、メッセージに有効期限を設定します。これにより、オフライン ユーザーがオンラインに戻ったときに古いコンテンツを受け取ることを防止できます。期限切れは、ユーザーが必要な情報を時間どおりに取得できるように、フォールバック メッセージ戦略を呼び出すための優れた手がかりにもなります。
メッセージの有効期限を設定するには、エージェント メッセージで次のいずれかのフィールドを指定します。
expireTime
: メッセージの有効期限が切れる正確な時刻(UTC)。ttl
(有効期間): メッセージの有効期限が切れるまでの時間。
書式設定と値のオプションについては、AgentMessage
をご覧ください。
メッセージの有効期限が切れると、RBM プラットフォームはメッセージの配信を停止し、自動的に取り消されます。ただし、失敗することがまれにあります。たとえば、RBM プラットフォームがメッセージの配信中に、API が取り消しをトリガーできます。期限切れのメッセージが正常に取り消されたかどうかを確認するため、RBM は Webhook に通知イベントを送信します。
テキスト
最も単純なメッセージはテキストでできています。テキスト メッセージは、ビジュアル、複雑な操作、レスポンスを必要とせずに情報を伝える場合に最適です。
例
次のコードは、単純なテキスト メッセージを送信します。形式と値のオプションについては、phones.agentMessages.create
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!' } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); let params = { messageText: 'Hello, world!', msisdn: '+12223334444', }; // Send a simple message to the device rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Send simple text message to user rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444" ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create a simple RBM text message message_text = messages.TextMessage('Hello, world!') # Send text message to the device messages.MessageCluster().append_message(message_text).send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", );このコードは、RBM サンプル エージェントからの抜粋です。
メッセージの基本的なコンテンツ - SMS の変換
携帯通信会社は、SMS メッセージの RBM への移行をサポートするために課金モデルを導入しました。最大 160 文字までの UTF-8 文字を含む RBM メッセージは基本メッセージと呼ばれます。
基本メッセージを送信するリクエストを作成するときは、文字が 1 バイト(UTF-8)としてカウントされることに注意してください。絵文字やマルチバイト文字セットなどの特殊文字を含むメッセージを送信する場合、1 文字は 2 つの UTF-8 文字としてカウントされます。
テキストを入力して長さを確認します。
ユーザー確認用のワンタイム パスワード
SMS Retriever API を使用すると、RBM を使用してワンタイム パスワード(OTP)を送信し、ユーザーの自動確認を行うことができます。SMS Retriever と関連 API の詳細については、SMS Retriever のドキュメントをご覧ください。SMS Retriever API に登録されたアプリでの自動ユーザー確認の詳細については、こちらのフロー図をご覧ください。
検証プロセス中に、SMS Retriever API は RBM メッセージをリッスンします。このメッセージには、OTP とアプリを識別するハッシュが含まれている必要があります。ハッシュがアプリと一致すると、OTP が抽出され、自動ユーザー確認のためにアプリに転送されます。
以下は、ユーザー確認用の RBM テキスト メッセージの例です。お客様のコードは <OTP> <app hash> です。
例: Your code is 123456 M8tue43FGT.
メディア ファイルと PDF ファイル
画像、動画、または PDF ファイルを含むメッセージを送信する場合、エージェントはコンテンツの一般公開 URL を提供するか、ファイルを直接アップロードする必要があります。メディア ファイルの場合は、ユーザーがコンテンツをクリックする前にプレビューできるサムネイル画像を指定することもできます。
RBM プラットフォームはファイルを 60 日間キャッシュに保存します。API は、エージェントがユーザーへのメッセージに含めることができるファイル ID を返します。60 日が経過すると、RBM はキャッシュからファイルを削除します。
ファイルサイズの推奨事項と上限については、ベスト プラクティスをご覧ください。
ファイルの URL の例
次のコードは画像を送信します。形式と値のオプションについては、AgentContentMessage
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'contentInfo': { 'fileUrl': 'http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif', 'forceRefresh': 'false' } } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); let params = { fileUrl: 'http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif', msisdn: '+12223334444', }; // Send an image/video to a device rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.AgentContentMessage; import com.google.api.services.rcsbusinessmessaging.v1.model.AgentMessage; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); String fileUrl = "http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif"; // create media only message AgentContentMessage agentContentMessage = new AgentContentMessage(); agentContentMessage.setContentInfo(new ContentInfo().setFileUrl(fileUrl)); // attach content to message AgentMessage agentMessage = new AgentMessage(); agentMessage.setContentMessage(agentContentMessage); rbmApiHelper.sendAgentMessage(agentMessage, "+12223334444"); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create media file attachment file_message = messages.FileMessage('http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif') messages.MessageCluster().append_message(file_message).send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); string fileUrl = "http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif"; // Create content info with the file url ContentInfo contentInfo = new ContentInfo { FileUrl = fileUrl }; // Attach content info to a message AgentContentMessage agentContentMessage = new AgentContentMessage { ContentInfo = contentInfo, }; // Attach content to message AgentMessage agentMessage = new AgentMessage { ContentMessage = agentContentMessage }; rbmApiHelper.SendAgentMessage(agentMessage, "+12223334444");このコードは、RBM サンプル エージェントからの抜粋です。
または、files.create
を使用して、メッセージでメディアを送信する前にアップロードすることもできます。
ファイルのアップロードの例
次のコードは、動画ファイルとサムネイル ファイルをアップロードし、両方のファイルをメッセージで送信します。書式設定と値のオプションについては、files.create
と AgentContentMessage
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/upload/v1/files?agentId=AGENT_ID" \ -H "Content-Type: video/mp4" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ --upload-file "FULL_PATH_TO_VIDEO_MEDIA_FILE"
# Capture server-specified video file name from response body JSON
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/upload/v1/files?agentId=AGENT_ID" \ -H "Content-Type: image/jpeg" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ --upload-file "FULL_PATH_TO_THUMBNAIL_MEDIA_FILE"
# Capture server-specified image file name from response body JSON
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'uploadedRbmFile': { 'fileName': 'SERVER-SPECIFIED_VIDEO_FILE_NAME' 'thumbnailName': 'SERVER-SPECIFIED_THUMBNAIL_FILE_NAME' } } }"
サポートされているメディアタイプ
RBM は、次のメディアタイプをサポートしています。
メディアタイプ | ドキュメントの種類 | 延長 | リッチカードに対応 |
---|---|---|---|
application/pdf | × | ||
image/jpeg | JPEG | .jpeg、.jpg | ○ |
image/gif | GIF | .gif | ○ |
image/png | PNG | .png | ○ |
動画/h263 | H263 動画 | .h263 | ○ |
動画/m4v | M4V 動画 | .m4v | ○ |
video/mp4 | MP4 動画 | .mp4 | ○ |
動画/mpeg4 | MPEG-4 動画 | .mp4、.m4p | ○ |
video/mpeg | MPEG 動画 | .mpeg | ○ |
動画/WebM | WEBM 動画 | .webm | ○ |
返信文の候補
定型返信文は、エージェントが認識しているレスポンスを提供することで、会話の中でユーザーをガイドします。エージェントが、候補チップリストまたはリッチカードで返信の候補を送信します。
ユーザーが返信の候補をタップすると、エージェントは返信のテキストとポストバック データを含むイベントを受け取ります。
定型返信文は半角 25 文字(全角 12 文字)まで入力できます。
例
次のコードは、2 つの定型返信文を含むテキストを送信します。形式と値のオプションについては、SuggestedReply
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'reply': { 'text': 'Suggestion #1', 'postbackData': 'suggestion_1' } }, { 'reply': { 'text': 'Suggestion #2', 'postbackData': 'suggestion_2' } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); let suggestions = [ { reply: { 'text': 'Suggestion #1', 'postbackData': 'suggestion_1', }, }, { reply: { 'text': 'Suggestion #2', 'postbackData': 'suggestion_2', }, }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with suggestion chips to the device rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; import com.google.rbm.SuggestionHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); suggestions.add( new SuggestionHelper("Suggestion #1", "suggestion_1").getSuggestedReply()); suggestions.add( new SuggestionHelper("Suggestion #2", "suggestion_2").getSuggestedReply()); // Send simple text message to user rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggested replies for the message to send to the user cluster.append_suggestion_chip(messages.SuggestedReply('Suggestion #1', 'reply:suggestion_1')) cluster.append_suggestion_chip(messages.SuggestedReply('Suggestion #2', 'reply:suggestion_2')) # Send a simple message with suggestion chips to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); List<Suggestion> suggestions = new List<Suggestion> { // Create suggestion chips new SuggestionHelper("Suggestion #1", "suggestion_1").SuggestedReply(), new SuggestionHelper("Suggestion #2", "suggestion_2").SuggestedReply() }; // Send simple text message with suggestions to user rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
推奨される措置
推奨アクションは、デバイスのネイティブ機能を離れて、会話をスムーズに進められるようにします。エージェントは、電話番号へのダイヤル、地図上の場所を開く、場所を共有する、URL を開く、カレンダー イベントを作成するといったことをユーザーに提案できます。エージェントは、候補チップリストまたはリッチカードで、推奨されるアクションを送信します。
ユーザーがアクションの候補をタップすると、エージェントはアクションのポストバック データを含むイベントを受け取ります。
操作の候補は半角 25 文字(全角 12 文字)まで入力できます。
形式と値のオプションについては、SuggestedAction
をご覧ください。
電話番号をダイヤルする
ダイヤル アクションは、エージェントが指定した電話番号に発信するようにユーザーに案内します。電話番号には、先頭の +
、国コード、市外局番を含める必要がありますが、区切り記号は含めないでください。例: +14155555555
例
次のコードは、ダイヤル アクションを送信します。形式と値のオプションについては、DialAction
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'action': { 'text': 'Call', 'postbackData': 'postback_data_1234', 'fallbackUrl': 'https://www.google.com/contact/', 'dialAction': { 'phoneNumber': '+15556667777' } } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Define a dial suggested action let suggestions = [ { action: { text: 'Call', postbackData: 'postback_data_1234', dialAction: { phoneNumber: '+15556667777' } } }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with a dial suggested action rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.DialAction; import com.google.api.services.rcsbusinessmessaging.v1.model.SuggestedAction; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); // creating a dial suggested action DialAction dialAction = new DialAction(); dialAction.setPhoneNumber("+15556667777"); // creating a suggested action based on a dial action SuggestedAction suggestedAction = new SuggestedAction(); suggestedAction.setText("Call"); suggestedAction.setPostbackData("postback_data_1234"); suggestedAction.setDialAction(dialAction); // attaching action to a suggestion Suggestion suggestion = new Suggestion(); suggestion.setAction(suggestedAction); suggestions.add(suggestion); // Send simple text message with the suggestion action rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create a dial suggested action suggestions = [ messages.DialAction('Call', 'reply:postback_data_1234', '+15556667777') ] # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggestions for the message to send to the user for suggestion in suggestions: cluster.append_suggestion_chip(suggestion) # Send a simple message with suggested action to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // Create a dial an agent suggested action DialAction dialAction = new DialAction { PhoneNumber = "+15556667777" }; // Creating a suggested action based on a dial action SuggestedAction suggestedAction = new SuggestedAction { Text = "Call", PostbackData = "postback_data_1234", DialAction = dialAction }; // Attach action to a suggestion Suggestion suggestion = new Suggestion { Action = suggestedAction }; List<Suggestion> suggestions = new List<Suggestion> { suggestion }; rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
ビジネス情報を表示する
View location アクションは、ユーザーのデフォルトの地図アプリに場所を表示します。位置は、緯度と経度で指定するか、ユーザーの現在地に基づくクエリを使って指定できます。地図アプリに表示されるピンにカスタムラベルを設定することもできます。
例
次のコードは、位置情報の表示アクションを送信します。形式と値のオプションについては、ViewLocationAction
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'action': { 'text': 'View map', 'postbackData': 'postback_data_1234', 'fallbackUrl': 'https://www.google.com/maps/@37.4220188,-122.0844786,15z', 'viewLocationAction': { 'latLong': { 'latitude': "37.4220188', 'longitude': "-122.0844786' }, 'label': 'Googleplex' } } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Define a view location suggested action let suggestions = [ { action: { text: 'View map', postbackData: 'postback_data_1234', viewLocationAction: { latLong: { latitude: 37.4220188, longitude: -122.0844786 }, label: 'Googleplex' } } }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with a view location suggested action rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.ViewLocationAction; import com.google.api.services.rcsbusinessmessaging.v1.model.SuggestedAction; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); // creating a view location suggested action ViewLocationAction viewLocationAction = new ViewLocationAction(); viewLocationAction.setQuery("Googleplex, Mountain View, CA"); // creating a suggested action based on a view location action SuggestedAction suggestedAction = new SuggestedAction(); suggestedAction.setText("View map"); suggestedAction.setPostbackData("postback_data_1234"); suggestedAction.setViewLocationAction(viewLocationAction); // attaching action to a suggestion Suggestion suggestion = new Suggestion(); suggestion.setAction(suggestedAction); suggestions.add(suggestion); // Send simple text message with the suggestion action rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create a view location suggested action suggestions = [ messages.ViewLocationAction('View map', 'reply:postback_data_1234', query='Googleplex, Mountain View, CA') ] # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggestions for the message to send to the user for suggestion in suggestions: cluster.append_suggestion_chip(suggestion) # Send a simple message with suggested action to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // create an view location action ViewLocationAction viewLocationAction = new ViewLocationAction { Query = "Googleplex Mountain View, CA" }; // Attach the view location action to a suggested action SuggestedAction suggestedAction = new SuggestedAction { ViewLocationAction = viewLocationAction, Text = "View map", PostbackData = "postback_data_1234" }; // Attach the action to a suggestion object Suggestion suggestion = new Suggestion { Action = suggestedAction }; List<Suggestion> suggestions = new List<Suggestion> { suggestion }; rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
場所の共有
[Share location] アクションを使用すると、ユーザーはエージェントに現在地を送信できます。ユーザーが指定した場所は、必ずしもユーザーの場所とは限りません。
例
次のコードは、位置情報の共有アクションを送信します。形式と値のオプションについては、ShareLocationAction
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'action': { 'text': 'Share your location', 'postbackData': 'postback_data_1234', 'shareLocationAction': {} } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Define a share location suggested action let suggestions = [ { action: { text: 'Share your location', postbackData: 'postback_data_1234', shareLocationAction: { } } }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with a share location suggested action rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.ShareLocationAction; import com.google.api.services.rcsbusinessmessaging.v1.model.SuggestedAction; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); // creating a share location suggested action ShareLocationAction shareLocationAction = new ShareLocationAction(); // creating a suggested action based on a share location action SuggestedAction suggestedAction = new SuggestedAction(); suggestedAction.setText("Share location"); suggestedAction.setPostbackData("postback_data_1234"); suggestedAction.setShareLocationAction(shareLocationAction); // attaching action to a suggestion Suggestion suggestion = new Suggestion(); suggestion.setAction(suggestedAction); suggestions.add(suggestion); // Send simple text message with the suggestion action rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create a share location suggested action suggestions = [ messages.ShareLocationAction('Share location', 'reply:postback_data_1234') ] # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggestions for the message to send to the user for suggestion in suggestions: cluster.append_suggestion_chip(suggestion) # Send a simple message with suggested action to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // Create a share location action ShareLocationAction shareLocationAction = new ShareLocationAction(); // Attach the share location action to a suggested action SuggestedAction suggestedAction = new SuggestedAction { ShareLocationAction = shareLocationAction, Text = "Share location", PostbackData = "postback_data_1234" }; // Attach the action to a suggestion object Suggestion suggestion = new Suggestion { Action = suggestedAction }; List<Suggestion> suggestions = new List<Suggestion> { suggestion }; rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
URL を開く
「URL を開く」アクションは、ユーザーのウェブブラウザを開き、指定された URL に移動します。アプリが URL のデフォルト ハンドラとして登録されている場合は、代わりにアプリが開き、アクションのアイコンがアプリのアイコンになります。
例
次のコードは、URL を開くアクションを送信します。書式設定と値のオプションについては、OpenUrlAction
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'action': { 'text': 'Open Google', 'postbackData': 'postback_data_1234', 'openUrlAction': { 'url': 'https://www.google.com' } } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Define an open URL suggested action let suggestions = [ { action: { text: 'Open Google', postbackData: 'postback_data_1234', openUrlAction: { url: 'https://www.google.com' } } }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with an open URL suggested action rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.OpenUrlAction; import com.google.api.services.rcsbusinessmessaging.v1.model.SuggestedAction; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); // creating an open url suggested action OpenUrlAction openUrlAction = new OpenUrlAction(); openUrlAction.setUrl("https://www.google.com"); // creating a suggested action based on an open url action SuggestedAction suggestedAction = new SuggestedAction(); suggestedAction.setText("Open Google"); suggestedAction.setPostbackData("postback_data_1234"); suggestedAction.setOpenUrlAction(openUrlAction); // attaching action to a suggestion Suggestion suggestion = new Suggestion(); suggestion.setAction(suggestedAction); suggestions.add(suggestion); // Send simple text message with the suggestion action rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create an open url suggested action suggestions = [ messages.OpenUrlAction('Open Google', 'reply:postback_data_1234', 'https://www.google.com') ] # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggestions for the message to send to the user for suggestion in suggestions: cluster.append_suggestion_chip(suggestion) # Send a simple message with suggested action to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // Create an open url action OpenUrlAction openUrlAction = new OpenUrlAction { Url = "https://www.google.com" }; // Attach the open url action to a suggested action SuggestedAction suggestedAction = new SuggestedAction { OpenUrlAction = openUrlAction, Text = "Open Google", PostbackData = "postback_data_1234" }; // Attach the action to a suggestion object Suggestion suggestion = new Suggestion { Action = suggestedAction }; List<Suggestion> suggestions = new List<Suggestion> { suggestion }; rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
カレンダーの予定を作成する
「カレンダーの予定を作成する」アクションは、ユーザーのカレンダー アプリを開き、指定された情報で新しい予定の作成を開始します。
例
次のコードは、カレンダーの予定の作成アクションを送信します。形式と値のオプションについては、CreateCalendarEventAction
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'text': 'Hello, world!', 'suggestions': [ { 'action': { 'text': 'Save to calendar', 'postbackData': 'postback_data_1234', 'fallbackUrl': 'https://www.google.com/calendar', 'createCalendarEventAction': { 'startTime': '2020-06-30T19:00:00Z', 'endTime': '2020-06-30T20:00:00Z', 'title': 'My calendar event', 'description': 'Description of the calendar event' } } } ] } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Define a create calendar event suggested action let suggestions = [ { action: { text: 'Save to calendar', postbackData: 'postback_data_1234', createCalendarEventAction: { startTime: '2020-06-30T19:00:00Z', endTime: '2020-06-30T20:00:00Z', title: 'My calendar event', description: 'Description of the calendar event', }, } }, ]; let params = { messageText: 'Hello, world!', msisdn: '+12223334444', suggestions: suggestions, }; // Send a simple message with a create calendar event suggested action rbmApiHelper.sendMessage(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.CreateCalendarEventAction; import com.google.api.services.rcsbusinessmessaging.v1.model.SuggestedAction; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.RbmApiHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); // creating a create calendar event suggested action CreateCalendarEventAction createCalendarEventAction = new CreateCalendarEventAction(); calendarEventAction.setTitle("My calendar event"); calendarEventAction.setDescription("Description of the calendar event"); calendarEventAction.setStartTime("2020-06-30T19:00:00Z"); calendarEventAction.setEndTime("2020-06-30T20:00:00Z"); // creating a suggested action based on a create calendar event action SuggestedAction suggestedAction = new SuggestedAction(); suggestedAction.setText("Save to calendar"); suggestedAction.setPostbackData("postback_data_1234"); suggestedAction.setCreateCalendarEventAction(createCalendarEventAction); // attaching action to a suggestion Suggestion suggestion = new Suggestion(); suggestion.setAction(suggestedAction); suggestions.add(suggestion); // Send simple text message with the suggestion action rbmApiHelper.sendTextMessage( "Hello, world!", "+12223334444", suggestions ); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Create a calendar event suggested action suggestions = [ messages.CreateCalendarEventAction('Save to Calendar', 'reply:postback_data_1234', '2020-06-30T19:00:00Z', '2020-06-30T20:00:00Z', 'My calendar event', 'Description of the calendar event') ] # Create text message to send to user text_msg = messages.TextMessage('Hello, world!') cluster = messages.MessageCluster().append_message(text_msg) # Append suggestions for the message to send to the user for suggestion in suggestions: cluster.append_suggestion_chip(suggestion) # Send a simple message with suggested action to the device cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // Create a calendar event action CreateCalendarEventAction calendarEventAction = new CreateCalendarEventAction { Title = "My calendar event", Description = "Description of the calendar event", StartTime = "2020-06-30T19:00:00Z", EndTime = "2020-06-30T20:00:00Z" }; // Attach the calendar event action to a suggested action SuggestedAction suggestedAction = new SuggestedAction { CreateCalendarEventAction = calendarEventAction, Text = "Save to calendar", PostbackData = "postback_data_1234" }; // Attach the action to a suggestion object Suggestion suggestion = new Suggestion { Action = suggestedAction }; List<Suggestion> suggestions = new List<Suggestion> { suggestion }; rbmApiHelper.SendTextMessage( "Hello, world!", "+12223334444", suggestions );このコードは、RBM サンプル エージェントからの抜粋です。
候補ワードのリスト
エージェントは、ユーザーのその後の操作をガイドするためのメッセージを含む候補ワードのリストを送信します。チップリストは、関連するメッセージが会話の一番下にある場合にのみ表示されます。会話内の後続のメッセージ(ユーザーまたはエージェントからのメッセージ)は、チップリストを上書きします。
チップリストには最大 11 個の候補ワードを含め、各チップラベルは最大 25 文字まで使用できます。
形式と値のオプションについては、AgentContentMessage
をご覧ください。

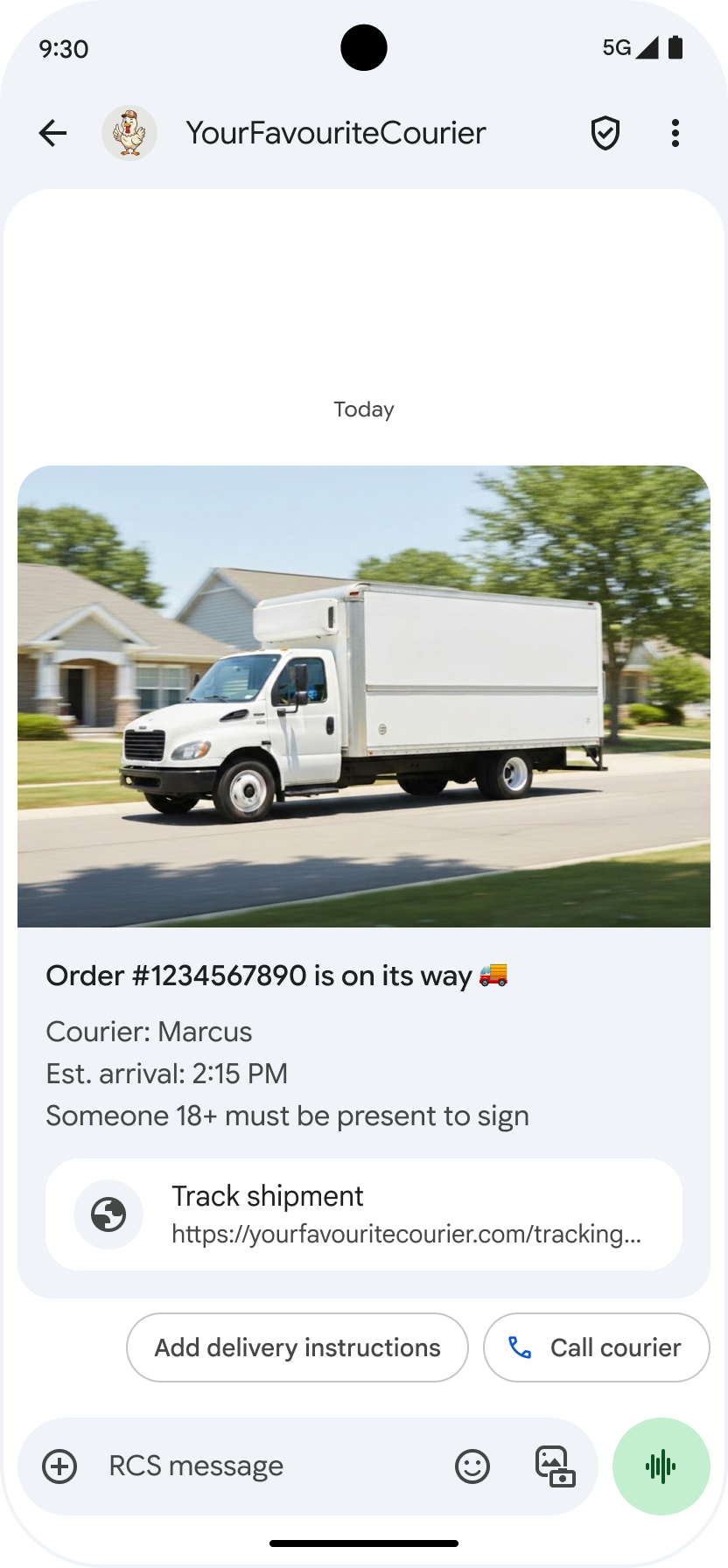

リッチカード
関連する情報、メディア、候補のまとまりを送信する必要がある場合は、リッチカードを送信する必要があります。リッチカードを使用すると、エージェントは複数の情報を 1 つのメッセージで送信できます。
リッチカードには次の項目を含めることができます。
- 画像/動画
- タイトルのテキスト
- 説明テキスト
- 返信文の候補と操作の候補のリスト(最大 4 個)
リッチカードには上記の項目をすべて含めることができますが、カードを有効にするには少なくとも画像、動画、またはタイトルが含まれている必要があります。リッチカードには、最大 4 つの推奨アクションまたは定型返信文を含めることができます。1 つのカードに、操作の候補と返信文の候補を組み合わせて表示することはできません。
エージェントは、リッチカード カルーセルで複数のリッチカードをまとめて送信できます。
カードの高さ
カードはコンテンツに合わせて縦方向に展開されます。リッチカードの最小の高さは 112 DP、最大の高さは 344 DP です。カードのコンテンツの大きさがカードの最小の高さに収まらない場合、カードは展開され、余分な高さは空白で埋められます。
リッチカードのメディアは、次の 3 つの高さのいずれかに収まる必要があります。
- ショート: 112 DP
- 中: 168 DP
- トール: 264 DP
選択した高さでメディアのサイズがカード内に収まらない場合、メディア プレビューはメディアのズームと切り抜きによって選択されます。
例
次のコードは、画像と返信文の候補を含むリッチカードを送信します。形式と値のオプションについては、RichCard
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'richCard': { 'standaloneCard': { 'thumbnailImageAlignment': 'RIGHT', 'cardOrientation': 'VERTICAL', 'cardContent': { 'title': 'Hello, world!', 'description': 'RBM is awesome!', 'media': { 'height': 'TALL', 'contentInfo':{ 'fileUrl': 'http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif', 'forceRefresh': 'false' } }, 'suggestions': [ { 'reply': { 'text': 'Suggestion #1', 'postbackData': 'suggestion_1' } }, { 'reply': { 'text': 'Suggestion #2', 'postbackData': 'suggestion_2' } } ] } } } } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Suggested replies to be used in the card let suggestions = [ { reply: { 'text': 'Suggestion #1', 'postbackData': 'suggestion_1', }, }, { reply: { 'text': 'Suggestion #2', 'postbackData': 'suggestion_2', }, }, ]; // Image to be displayed by the card let imageUrl = 'http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif'; // Definition of the card parameters let params = { messageText: 'Hello, world!', messageDescription: 'RBM is awesome!', msisdn: '+12223334444', suggestions: suggestions, imageUrl: imageUrl, height: 'TALL', }; // Send rich card to device rbmApiHelper.sendRichCard(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.StandaloneCard; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.cards.CardOrientation; import com.google.rbm.cards.MediaHeight; import com.google.rbm.RbmApiHelper; import com.google.rbm.SuggestionHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); // Create suggestions for chip list List<Suggestion> suggestions = new ArrayList<Suggestion>(); suggestions.add( new SuggestionHelper("Suggestion #1", "suggestion_1").getSuggestedReply()); suggestions.add( new SuggestionHelper("Suggestion #2", "suggestion_2").getSuggestedReply()); String imageUrl = "http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif"; // Create a standalone rich card to send to the user StandaloneCard standaloneCard = rbmApiHelper.createStandaloneCard( "Hello, world!", "RBM is awesome!", imageUrl, MediaHeight.MEDIUM, CardOrientation.VERTICAL, suggestions ); rbmApiHelper.sendStandaloneCard(standaloneCard, "+12223334444"); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Suggested replies to be used in the card suggestions = [ messages.SuggestedReply('Suggestion #1', 'reply:suggestion_1'), messages.SuggestedReply('Suggestion #2', 'reply:suggestion_2') ] # Image to be displayed by the card image_url = 'http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif'; # Define rich card structure rich_card = messages.StandaloneCard('VERTICAL', 'Hello, world!', 'RBM is awesome!', suggestions, image_url, None, None, 'MEDIUM') # Append rich card and send to the user cluster = messages.MessageCluster().append_message(rich_card) cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; using RCSBusinessMessaging.Cards; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); List<Suggestion> suggestions = new List<Suggestion> { // Create suggestion chips new SuggestionHelper("Suggestion #1", "suggestion_1").SuggestedReply(), new SuggestionHelper("Suggestion #2", "suggestion_2").SuggestedReply() }; string imageUrl = "http://www.google.com/logos/doodles/2015/googles-new-logo-5078286822539264.3-hp2x.gif"; // Create rich card with suggestions StandaloneCard standaloneCard = rbmApiHelper.CreateStandaloneCard( "Hello, world!", "RBM is awesome", imageUrl, MediaHeight.TALL, CardOrientation.VERTICAL, suggestions ); // Send rich card to user rbmApiHelper.SendStandaloneCard(standaloneCard, "+12223334444");このコードは、RBM サンプル エージェントからの抜粋です。
リッチカード カルーセル
複数の選択肢を提示する必要がある場合は、リッチカード カルーセルを使用します。カルーセルは複数のリッチカードをつなぎ合わせ、ユーザーがアイテムを比較して個別に対応できるようにします。
カルーセルには、最低 2 枚から最大 10 枚のリッチカードを含めることができます。カルーセル内のリッチカードは、コンテンツと高さに関する一般的なリッチカード要件を満たす必要があります。
切り捨て
リッチカードと同様に、エンドユーザーへのカードの表示は多くの要因(画面の解像度、ピクセル密度、ユーザー設定など)が影響します。ただし、カルーセルでは、最初の数枚のカードの高さによってカルーセル内のすべてのカードの高さが定義され、カードの高さはタイトル、説明、候補の切り捨てに影響します。
表示の制約やカードの高さが原因でデバイスがカードのすべての要素を表示できない場合、RBM は次のロジックを使用して、デバイス上に表示できるようになるまでカードを切り捨てます。
- 説明文は 1 行にまとめてください。
- タイトルを 1 行に減らします。
- カードに収まらない候補は、定義されたリストの末尾から省略します。
- 説明は省略します。
- タイトルは省略します。
途中で切れないように、タイトルと説明はできるだけ短くしてください。縦長のメディアの場合は、タイトルと説明、または 1 つの候補のいずれかを使用します。中程度のメディアの場合は、最大 2 つの候補を使用します。短いメディアの場合は、最大 3 つの候補を使用できます。 4 つの候補に収まるように、カードにはメディアを含めないでください。
コンテンツのサイズと長さの点でカードはほぼ同じにし、必要に応じて、後続のカードで切り捨てられないように、より大きなカードでカルーセルをフロントローディングします。
例
次のコードは、リッチカード カルーセルを送信します。書式設定と値のオプションについては、RichCard
をご覧ください。
cURL
curl -X POST "https://REGION-rcsbusinessmessaging.googleapis.com/v1/phones/PHONE_NUMBER/agentMessages?messageId=MESSAGE_ID&agentId=AGENT_ID" \ -H "Content-Type: application/json" \ -H "User-Agent: curl/rcs-business-messaging" \ -H "`oauth2l header --json PATH_TO_SERVICE_ACCOUNT_KEY rcsbusinessmessaging`" \ -d "{ 'contentMessage': { 'richCard': { 'carouselCard': { 'cardWidth':'MEDIUM', 'cardContents': [ { 'title':'Card #1', 'description':'The description for card #1', 'suggestions': [ { 'reply': { 'text':'Card #1', 'postbackData':'card_1' } } ], 'media': { 'height':'MEDIUM', 'contentInfo': { 'fileUrl':'https://storage.googleapis.com/kitchen-sink-sample-images/cute-dog.jpg', 'forceRefresh':'false' } } }, { 'title':'Card #2', 'description':'The description for card #2', 'suggestions': [ { 'reply': { 'text':'Card #2', 'postbackData':'card_2' } } ], 'media': { 'height':'MEDIUM', 'contentInfo': { 'fileUrl':'https://storage.googleapis.com/kitchen-sink-sample-images/elephant.jpg', 'forceRefresh': 'false' } } } ] } } } }"
Node.js
// Reference to RBM API helper const rbmApiHelper = require('@google/rcsbusinessmessaging'); // Images for the carousel cards let card1Image = 'https://storage.googleapis.com/kitchen-sink-sample-images/cute-dog.jpg'; let card2Image = 'https://storage.googleapis.com/kitchen-sink-sample-images/elephant.jpg'; // Define the card contents for a carousel with two cards, each with one suggested reply let cardContents = [ { title: 'Card #1', description: 'The description for card #1', suggestions: [ { reply: { text: 'Card #1', postbackData: 'card_1', } } ], media: { height: 'MEDIUM', contentInfo: { fileUrl: card1Image, forceRefresh: false, }, }, }, { title: 'Card #2', description: 'The description for card #2', suggestions: [ { reply: { text: 'Card #2', postbackData: 'card_2', } } ], media: { height: 'MEDIUM', contentInfo: { fileUrl: card2Image, forceRefresh: false, }, }, }, ]; // Definition of carousel card let params = { msisdn: '+12223334444', cardContents: cardContents, }; // Send the device the carousel card defined above rbmApiHelper.sendCarouselCard(params, function(response) { console.log(response); });このコードは、RBM サンプル エージェントからの抜粋です。
Java
import com.google.api.services.rcsbusinessmessaging.v1.model.CardContent; import com.google.api.services.rcsbusinessmessaging.v1.model.Suggestion; import com.google.rbm.cards.CardOrientation; import com.google.rbm.cards.CardWidth; import com.google.rbm.cards.MediaHeight; import com.google.rbm.RbmApiHelper; import com.google.rbm.SuggestionHelper; … try { // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(); List cardContents = new ArrayList(); // Images for the carousel cards String card1Image = "https://storage.googleapis.com/kitchen-sink-sample-images/cute-dog.jpg"; // Create suggestions for first carousel card List card1Suggestions = new ArrayList(); card1Suggestions.add( new SuggestionHelper("Card #1", "card_1")); cardContents.add( new StandaloneCardHelper( "Card #1", "The description for card #1", card1Image, card1Suggestions) .getCardContent(MediaHeight.SHORT) ); // Images for the carousel cards String card2Image = "https://storage.googleapis.com/kitchen-sink-sample-images/elephant.jpg"; // Create suggestions for second carousel card List card2Suggestions = new ArrayList(); card2Suggestions.add( new SuggestionHelper("Card #2", "card_2")); cardContents.add( new StandaloneCardHelper( "Card #2", "The description for card #2", card2Image, card2Suggestions) .getCardContent(MediaHeight.SHORT) ); // Send the carousel to the user rbmApiHelper.sendCarouselCards(cardContents, CardWidth.MEDIUM, "+12223334444"); } catch(Exception e) { e.printStackTrace(); }このコードは、RBM サンプル エージェントからの抜粋です。
Python
# Reference to RBM Python client helper and messaging object structure from rcs_business_messaging import rbm_service from rcs_business_messaging import messages # Images for the carousel cards card_image_1 = 'https://storage.googleapis.com/kitchen-sink-sample-images/cute-dog.jpg'; card_image_2 = 'https://storage.googleapis.com/kitchen-sink-sample-images/elephant.jpg'; # Suggested replies to be used in the cards suggestions1 = [ messages.SuggestedReply('Card #1', 'reply:card_1') ] suggestions2 = [ messages.SuggestedReply('Card #2', 'reply:card_2') ] # Define the card contents for a carousel with two cards, # each with one suggested reply card_contents = [] card_contents.append(messages.CardContent('Card #1', 'The description for card #1', card_image_1, 'MEDIUM', suggestions1)) card_contents.append(messages.CardContent('Card #2', 'The description for card #2', card_image_2, 'MEDIUM', suggestions2)) # Send the device the carousel card defined above carousel_card = messages.CarouselCard('MEDIUM', card_contents) cluster = messages.MessageCluster().append_message(carousel_card) cluster.send_to_msisdn('+12223334444')このコードは、RBM サンプル エージェントからの抜粋です。
C#
using Google.Apis.RCSBusinessMessaging.v1.Data; using RCSBusinessMessaging; using RCSBusinessMessaging.Cards; … // Create an instance of the RBM API helper RbmApiHelper rbmApiHelper = new RbmApiHelper(credentialsFileLocation, projectId); // Image references to be used in the carousel cards string card1Image = "https://storage.googleapis.com/kitchen-sink-sample-images/cute-dog.jpg"; string card2Image = "https://storage.googleapis.com/kitchen-sink-sample-images/elephant.jpg"; // Suggestion chip lists to be used in carousel cards List<Suggestion> suggestions1 = new List<Suggestion> { new SuggestionHelper("Card #1", "card_1").SuggestedReply() }; List<Suggestion> suggestions2 = new List<Suggestion> { new SuggestionHelper("Card #2", "card_2").SuggestedReply() }; // Create the card content for the carousel List<CardContent> cardContents = new List<CardContent> { // Add items as card content new StandaloneCardHelper( "Card #1", "The description for card #1", card1Image, suggestions1).GetCardContent(), new StandaloneCardHelper( "Card #2", "The description for card #2", card2Image, suggestions2).GetCardContent() }; // Send the carousel to the user rbmApiHelper.SendCarouselCards(cardContents, CardWidth.MEDIUM, msisdn);このコードは、RBM サンプル エージェントからの抜粋です。
