This guide shows you how to use the Google Mobile Ads SDK to load and display ads from ironSource using mediation, covering waterfall integrations. It covers how to add ironSource to an ad unit's mediation configuration, how to set up ad source optimization, and how to integrate the ironSource SDK and adapter into your iOS app.
Supported integrations and ad formats
The Ad Manager mediation adapter for ironSource has the following capabilities:
Integration | |
---|---|
Bidding | |
Waterfall | |
Formats | |
Banner | |
Interstitial | |
Rewarded | |
Rewarded Interstitial | |
Native |
Requirements
- iOS deployment target of 10.0 or higher
- Latest Google Mobile Ads SDK
Step 1: Set up ironSource
Sign up and sign in to your ironSource account.
To add your application to the ironSource dashboard, click the New App button.
Enter app details
Select Mobile App, enter the Apple Store URL of your app, and click Import App Info. Once your app information is displayed, click the Add App button.
If your app is not available, select App Not Live in the Application Store and provide a Temporary Name for your app. Select iOS as platform and click Add App.
Take note of your new App Key, which is displayed after the app has been added. You will need this value for setting up your Ad Manager ad unit ID. Select the ad formats your app supports in the appropriate Live tabs. Then click Done.
Instance ID
Next, configure a network instance for the app you added; ironSource supports multiple network instances for rewarded and interstitial ads.
Navigate to the Ad Units & Placements page from the left nav, select your app in the APPLICATIONS list and click the Edit button.
Select the Add Network Instance link, enter an Instance Name, and click Save.
Once the instance is created, the Instance ID is listed in the Instance Id field.
In addition to the App Key and Instance ID, you'll also need your ironSource Secret Key and Refresh Token to set up your Ad Manager ad unit ID.
Navigate to My Account in your ironSource publisher dashboard then click the API tab. Take note of your Secret Key and Refresh Token.
Step 2: Configure mediation settings for your Ad Manager ad unit
Sign in to your Ad Manager account. Navigate to Delivery > Yield groups and click the New yield group button.
Enter a unique Name for your yield group, set the Status to Active, select your Ad Format, and set the Inventory type to Mobile App. Under the Targeting > Inventory section, select the Ad Unit ID to which you want to add mediation.
Next, click the Add yield partner button.
If you already have a Yield partner for ironSource, you can simply select it. Otherwise, select Create a new yield partner.
Select ironSource as the Ad network and enter a unique Name. Enable Mediation and turn on Automatic data collection, and enter the Secret Key and Refresh Token obtained in the previous section. Click Save when done.

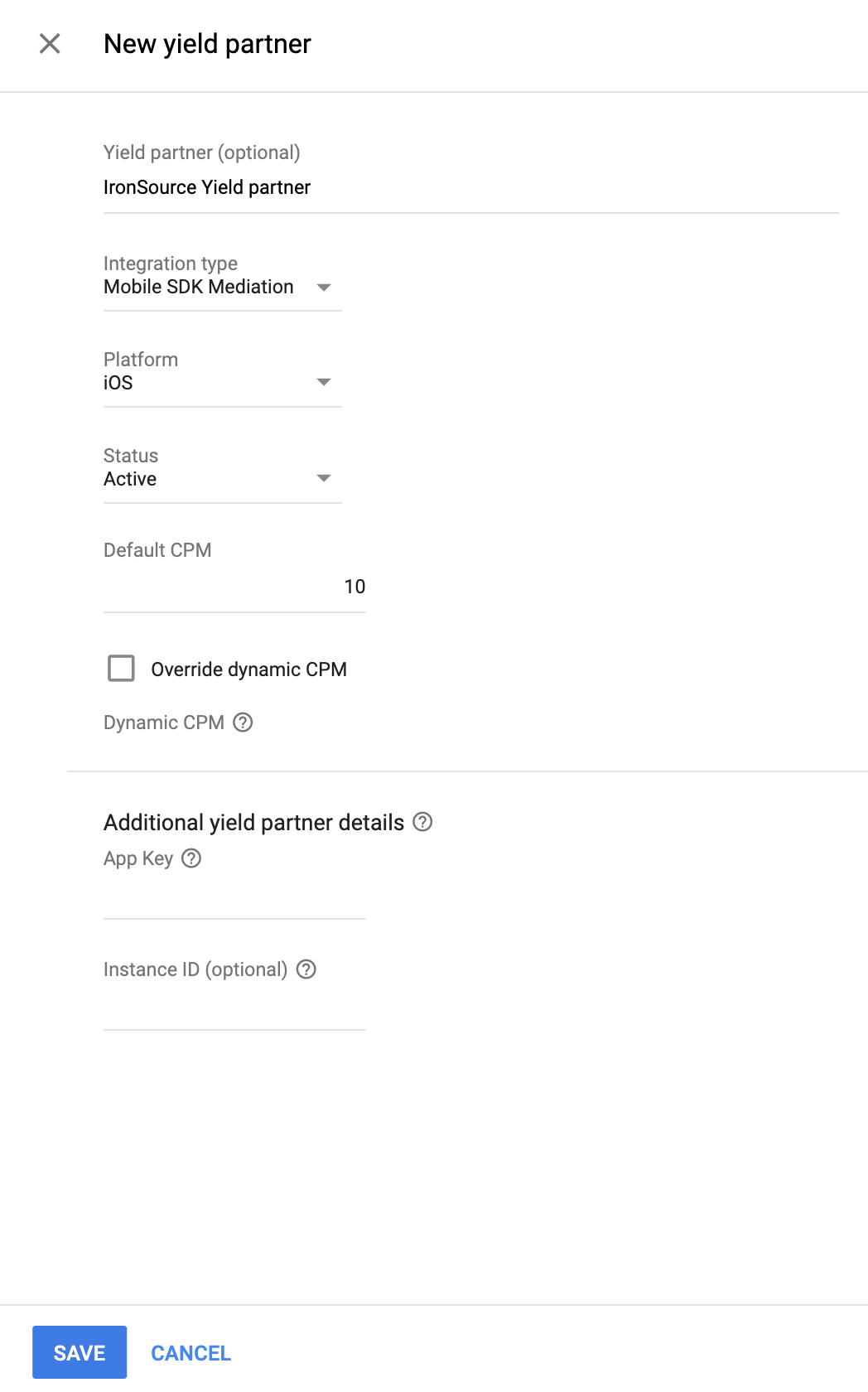

Once the Yield partner is selected, choose Mobile SDK mediation as the Integration type, iOS as the Platform, and Active as the Status. Enter the App Key and the Instance ID obtained in the previous section and a Default CPM value.
Click Save at the bottom of the page when done.
Rewarded ads
In the settings for your rewarded ad unit, provide values for the reward amount and reward type. Then, to ensure you provide the same reward to the user no matter which ad network is served, check the Override reward settings from third-party ad networks when using mediation box.
If you don't apply this setting, the ironSource adapter passes back the reward specified in the ironSource dashboard when creating the placement.
Step 3: Import the ironSource SDK and adapter
Using CocoaPods (recommended)
Add the following line to your project's Podfile:
pod 'GoogleMobileAdsMediationIronSource'
From the command line run:
pod install --repo-update
Manual integration
Download the latest version of the ironSource iOS SDK and link
IronSource.framework
in your project.Download the latest version of the ironSource adapter from the download link in Changelog and link
IronSourceAdapter.framework
in your project.
Step 4: Additional code required
No additional code is required for ironSource iOS integration.
Step 5: Test your implementation
To enable test ads on ironSource, run your ads integrated app and check the logs for a message that looks like this:
This is the Advertising ID of your test device. Copy it to the clipboard.
Navigate to the MONETIZE tab and click the Testing button. Next, click the New Test Device button.
Enter the Device Name and Advertising ID (from the previous step). Then click Save.
The newly added test device is listed under TEST DEVICES. You can activate or deactivate Test Ads in this module as required.
Optional steps
EU consent and GDPR
Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.
In SDK version 6.7.9, ironSource added a consent API. The following sample code shows how to pass this consent information to the ironSource SDK. If you choose to call this method, it is recommended that you do so prior to requesting ads through the Google Mobile Ads SDK.
Swift
// For Swift integration, you need to import the ironSource SDK in your Bridging Header.
// For more details, see https://developers.is.com/ironsource-mobile/ios/ironsource-ios-sdk-integration-swift/
// ...
IronSource.setConsent(true)
Objective-C
#import <IronSource/IronSource.h>
// ...
[IronSource setConsent:YES];
See ironSource's documentation on Regulation Advanced Settings for more details and the values that can be provided in the method.
Add ironSource to GDPR ad partners list
Follow the steps in GDPR settings to add ironSource Mobile to the GDPR ad partners list in the Ad Manager UI.
CCPA
The California Consumer Privacy Act (CCPA) requires giving California state residents the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The CCPA preparation guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance with CCPA.
In SDK version 6.14.0, ironSource added an API to support CCPA regulations. The following sample code shows how to pass this consent information to the ironSource SDK. These options must be set before you initialize the Google Mobile Ads SDK to ensure they get forwarded properly to the ironSource SDK.
Swift
// For Swift integration, you need to import the ironSource SDK in your Bridging Header.
// For more details, see https://developers.is.com/ironsource-mobile/ios/ironsource-ios-sdk-integration-swift/
// ...
IronSource.setMetaDataWithKey("do_not_sell", value: "YES")
Objective-C
#import <IronSource/IronSource.h>
// ...
[IronSource setMetaDataWithKey:@"do_not_sell" value:@"YES"];
See ironSource's documentation on Regulation Advanced Settings for more details and the values that can be provided in the method.
Error codes
If the adapter fails to receive an ad from ironSource, you can check the underlying error from the ad response using
GADResponseInfo.adNetworkInfoArray
under the following classes:
GADMAdapterIronSource
GADMAdapterIronSourceRewarded
Here are the codes and accompanying messages thrown by the ironSource adapter when an ad fails to load:
Error code | Reason |
---|---|
101 | ironSource server parameters configured in the Ad Manager UI are missing/invalid. |
102 | ironSource Adapter does not support the ad format being requested. |
103 | An ironSource ad is already loaded for this network configuration. |
508-1037 | ironSource SDK Errors. See documentation for more details. |
IronSource iOS Mediation Adapter Changelog
Version 7.3.0.0.0 (In Progress)
- Verified compatibility with IronSource SDK version 7.3.0.0.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- IronSource SDK version 7.3.0.0.
Version 7.2.7.0.1
- Now requires Google Mobile Ads SDK version 10.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 10.0.0.
- IronSource SDK version 7.2.7.0.
Version 7.2.7.0.0
- Verified compatibility with ironSource SDK version 7.2.7.0.
- Added support for arm64 simulator architecture.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- IronSource SDK version 7.2.7.0.
Version 7.2.6.0.0
- Verified compatibility with ironSource SDK version 7.2.6.0.
Built and tested with:
- Google Mobile Ads SDK version 9.14.0.
- IronSource SDK version 7.2.6.0.
Version 7.2.5.1.0
- Verified compatibility with ironSource SDK version 7.2.5.1.
Built and tested with:
- Google Mobile Ads SDK version 9.11.0.
- IronSource SDK version 7.2.5.1.
Version 7.2.4.0
- Verified compatibility with ironSource SDK version 7.2.4.
- Updated the adapter to use the
didRewardUser
API. - Now requires Google Mobile Ads SDK version 9.8.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.9.0.
- IronSource SDK version 7.2.4.
Version 7.2.3.1.0
- Verified compatibility with ironSource SDK version 7.2.3.1.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- IronSource SDK version 7.2.3.1.
Version 7.2.3.0.0
- Verified compatibility with ironSource SDK version 7.2.3.0.
Built and tested with:
- Google Mobile Ads SDK version 9.6.0.
- IronSource SDK version 7.2.3.0.
Version 7.2.2.1.0
- Verified compatibility with ironSource SDK version 7.2.2.1.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- IronSource SDK version 7.2.2.1.
Version 7.2.2.0.0
- Verified compatibility with ironSource SDK version 7.2.2.0.
Built and tested with:
- Google Mobile Ads SDK version 9.5.0.
- IronSource SDK version 7.2.2.0.
Version 7.2.1.2.0
- Verified compatibility with ironSource SDK version 7.2.1.2.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- IronSource SDK version 7.2.1.2.
Version 7.2.1.1.0
- Verified compatibility with ironSource SDK version 7.2.1.1.
Built and tested with:
- Google Mobile Ads SDK version 9.2.0.
- IronSource SDK version 7.2.1.1.
Version 7.2.1.0
- Verified compatibility with ironSource SDK version 7.2.1.
Built and tested with:
- Google Mobile Ads SDK version 9.1.0.
- IronSource SDK version 7.2.1.
Version 7.2.0.0
- Verified compatibility with ironSource SDK version 7.2.0.
Built and tested with:
- Google Mobile Ads SDK version 9.0.0.
- IronSource SDK version 7.2.0.
Version 7.1.14.1
- Verified compatibility with Google Mobile Ads SDK version 9.0.0.
- Now requires Google Mobile Ads SDK version 9.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 9.0.0.
- IronSource SDK version 7.1.14.
Version 7.1.14.0
- Verified compatibility with ironSource SDK version 7.1.14.
Built and tested with:
- Google Mobile Ads SDK version 8.13.0.
- IronSource SDK version 7.1.14.
Version 7.1.13.0
- Verified compatibility with ironSource SDK version 7.1.13.
Built and tested with:
- Google Mobile Ads SDK version 8.13.0.
- IronSource SDK version 7.1.13.
Version 7.1.12.0
- Verified compatibility with ironSource SDK version 7.1.12.
Built and tested with:
- Google Mobile Ads SDK version 8.12.0.
- IronSource SDK version 7.1.12.
Version 7.1.11.1.0
- Verified compatibility with ironSource SDK version 7.1.11.1.
Built and tested with:
- Google Mobile Ads SDK version 8.12.0.
- IronSource SDK version 7.1.11.1.
Version 7.1.11.0
- Verified compatibility with ironSource SDK version 7.1.11.
- Now requires minimum iOS version 10.0.
Built and tested with:
- Google Mobile Ads SDK version 8.11.0.
- IronSource SDK version 7.1.11.
Version 7.1.10.0
- Verified compatibility with ironSource SDK version 7.1.10.
Built and tested with:
- Google Mobile Ads SDK version 8.9.0.
- IronSource SDK version 7.1.10.
Version 7.1.9.0
- Verified compatibility with ironSource SDK version 7.1.9.
Built and tested with:
- Google Mobile Ads SDK version 8.9.0.
- IronSource SDK version 7.1.9.
Version 7.1.8.0
- Verified compatibility with ironSource SDK version 7.1.8.
Built and tested with:
- Google Mobile Ads SDK version 8.8.0.
- IronSource SDK version 7.1.8.
Version 7.1.7.0
- Verified compatibility with ironSource SDK version 7.1.7.
Built and tested with:
- Google Mobile Ads SDK version 8.7.0.
- IronSource SDK version 7.1.7.
Version 7.1.6.1.0
- Verified compatibility with ironSource SDK version 7.1.6.1.
Built and tested with:
- Google Mobile Ads SDK version 8.5.0.
- IronSource SDK version 7.1.6.1.
Version 7.1.6.0
- Verified compatibility with ironSource SDK version 7.1.6.
Built and tested with:
- Google Mobile Ads SDK version 8.5.0.
- IronSource SDK version 7.1.6.
Version 7.1.5.1.0
- Verified compatibility with ironSource SDK version 7.1.5.1.
- Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.5.0.
- IronSource SDK version 7.1.5.1.
Version 7.1.5.0
- Verified compatibility with ironSource SDK version 7.1.5.
Built and tested with:
- Google Mobile Ads SDK version 8.3.0.
- IronSource SDK version 7.1.5.
Version 7.1.4.0
- Verified compatibility with ironSource SDK version 7.1.4.
- Now requires Google Mobile Ads SDK version 8.3.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.3.0.
- IronSource SDK version 7.1.4.
Version 7.1.3.0
- Added support for rewarded interstitial ads.
- Verified compatibility with ironSource SDK version 7.1.3.
- Now requires Google Mobile Ads SDK version 8.2.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.2.0.
- IronSource SDK version 7.1.3.
Version 7.1.2.0
- Verified compatibility with ironSource SDK version 7.1.2.
Built and tested with:
- Google Mobile Ads SDK version 8.1.0.
- IronSource SDK version 7.1.2.
Version 7.1.1.0
- Verified compatibility with ironSource SDK version 7.1.1.
- Now requires Google Mobile Ads SDK version 8.1.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.1.0.
- IronSource SDK version 7.1.1.
Version 7.1.0.1
- Updated the adapter to use the
.xcframework
format. - Now requires Google Mobile Ads SDK version 8.0.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 8.0.0.
- IronSource SDK version 7.1.0.
Version 7.1.0.0
- Verified compatibility with ironSource SDK version 7.1.0.
- Now requires Google Mobile Ads SDK version 7.69.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.69.0.
- IronSource SDK version 7.1.0.
Version 7.0.4.0
- Verified compatibility with ironSource SDK version 7.0.4.
- Now requires Google Mobile Ads SDK version 7.68.0 or higher.
- Added standardized adapter error codes and messages.
Built and tested with:
- Google Mobile Ads SDK version 7.68.0.
- IronSource SDK version 7.0.4.
Version 7.0.3.0
- Verified compatibility with ironSource SDK version 7.0.3.
Built and tested with:
- Google Mobile Ads SDK version 7.66.0.
- IronSource SDK version 7.0.3.
Version 7.0.2.0
- Verified compatibility with ironSource SDK version 7.0.2.
- Now requires Google Mobile Ads SDK version 7.66.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.66.0.
- IronSource SDK version 7.0.2.
Version 7.0.1.0
- Verified compatibility with ironSource SDK version 7.0.1.
Built and tested with:
- Google Mobile Ads SDK version 7.64.0.
- IronSource SDK version 7.0.1.
Version 7.0.0.0
- Verified compatibility with ironSource SDK version 7.0.0.
- Now requires Google Mobile Ads SDK version 7.64.0 or higher.
- Now requires minimum iOS version of 9.0.
Built and tested with:
- Google Mobile Ads SDK version 7.64.0.
- IronSource SDK version 7.0.0.
Version 6.18.0.2.0
- Verified compatibility with ironSource SDK version 6.18.0.2.
Built and tested with:
- Google Mobile Ads SDK version 7.63.0.
- IronSource SDK version 6.18.0.2.
Version 6.18.0.1.0
- Verified compatibility with ironSource SDK version 6.18.0.1.
- Now requires Google Mobile Ads SDK version 7.63.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.63.0.
- IronSource SDK version 6.18.0.1.
Version 6.18.0.0
- Verified compatibility with ironSource SDK version 6.18.0.
- Now requires Google Mobile Ads SDK version 7.63.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.63.0.
- IronSource SDK version 6.18.0.
Version 6.17.0.1.0
- Verified compatibility with ironSource SDK version 6.17.0.1.
- Now requires Google Mobile Ads SDK version 7.62.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.62.0.
- IronSource SDK version 6.17.0.1.
Version 6.17.0.0
- Verified compatibility with ironSource SDK version 6.17.0.
- Now requires Google Mobile Ads SDK version 7.61.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.61.0.
- IronSource SDK version 6.17.0.
Version 6.16.3.0
- Verified compatibility with ironSource SDK version 6.16.3.
Built and tested with:
- Google Mobile Ads SDK version 7.60.0.
- IronSource SDK version 6.16.3.
Version 6.16.2.0
- Verified compatibility with ironSource SDK version 6.16.2.
- Now requires Google Mobile Ads SDK version 7.60.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.60.0.
- IronSource SDK version 6.16.2.
Version 6.16.1.0
- Verified compatibility with ironSource SDK version 6.16.1.
Built and tested with:
- Google Mobile Ads SDK version 7.58.0.
- IronSource SDK version 6.16.1.
Version 6.16.0.0
- Verified compatibility with ironSource SDK version 6.16.0.
- Now requires Google Mobile Ads SDK version 7.58.0 or higher.
Built and tested with:
- Google Mobile Ads SDK version 7.58.0.
- IronSource SDK version 6.16.0.
Version 6.15.0.1.0
- Verified compatibility with ironSource SDK version 6.15.0.1.
Built and tested with:
- Google Mobile Ads SDK version 7.57.0.
- IronSource SDK version 6.15.0.1.
Version 6.15.0.0
- Verified compatibility with ironSource SDK version 6.15.0.
Built and tested with:
- Google Mobile Ads SDK version 7.57.0.
- IronSource SDK version 6.15.0.
Version 6.14.0.0
- Verified compatibility with ironSource SDK version 6.14.0.
- Removed support for the i386 architecture.
Built and tested with:
- Google Mobile Ads SDK version 7.56.0.
- IronSource SDK version 6.14.0.
Version 6.13.0.1.0
- Verified compatibility with ironSource SDK version 6.13.0.1.
Built and tested with:
- Google Mobile Ads SDK version 7.53.1.
- IronSource SDK version 6.13.0.1.
Version 6.12.0.0
- Verified compatibility with ironSource SDK version 6.12.0.
Built and tested with:
- Google Mobile Ads SDK version 7.53.1.
- IronSource SDK version 6.12.0.
Version 6.11.0.0
- Verified compatibility with ironSource SDK version 6.11.0.
Built and tested with:
- Google Mobile Ads SDK version 7.52.0.
- IronSource SDK version 6.11.0.
Version 6.8.7.0
- Verified compatibility with ironSource SDK version 6.8.7.
Version 6.8.6.0
- Verified compatibility with ironSource SDK version 6.8.6.
Version 6.8.5.0
- Verified compatibility with ironSource SDK version 6.8.5.
Version 6.8.4.1.0
- Verified compatibility with ironSource SDK version 6.8.4.1.
Version 6.8.4.1
- Added code to send correct version number to ironSource SDK.
Version 6.8.4.0
- Verified compatibility with ironSource SDK version 6.8.4.
Version 6.8.3.0
- Verified compatibility with ironSource SDK 6.8.3.
- Added support to request multiple interstitial ads.
- Fix crashes when loading rewarded ads.
- This version of the adapter requires a Google Mobile Ads SDK of version 7.42.2 or above.
Version 6.8.0.1
- Updated the adapter to use new rewarded API
- This version of the adapter requires a Google Mobile Ads SDK of version 7.41.0 or above
Version 6.8.0.0
- Verified compatibility with ironSource SDK 6.8.0
Version 6.7.12.0
- Verified compatibility with ironSource SDK 6.7.12
Version 6.7.11.0
- Verified compatibility with ironSource SDK 6.7.11
Version 6.7.10.0
- Verified compatibility with ironSource SDK 6.7.10
Version 6.7.9.3.1
- Added
adapterDidCompletePlayingRewardBasedVideoAd:
callback to the adapter.
Version 6.7.9.3.0
- Verified compatibility with ironSource SDK 6.7.9.3
Version 6.7.9.2.0
- Verified compatibility with ironSource SDK 6.7.9.2
Version 6.7.9.1.0
- Verified compatibility with ironSource SDK 6.7.9.1
Version 6.7.8.0
- Verified compatibility with ironSource SDK 6.7.8
Version 6.7.7.0
- Initiate IronSource SDK once per ad unit.
Version 6.7.5.0
- Initial release!
- Supports interstitial and rewarded video ads.
