自訂原生廣告格式
除了系統定義的原生格式以外,Ad Manager 發布商也可以定義自訂的素材資源清單,自行建立原生廣告格式。這類廣告稱為自訂原生廣告格式,可搭配預訂廣告使用。此 API 可讓發布者將任意結構化資料傳遞至應用程式。這些廣告會以 NativeCustomFormatAd
物件表示。
載入自訂原生廣告格式
本指南說明如何載入及顯示自訂原生廣告格式。
建構 AdLoader
和原生廣告一樣,系統會使用 AdLoader
類別載入自訂原生廣告格式:
Java
AdLoader adLoader = new AdLoader.Builder(context, "/6499/example/native") .forCustomFormatAd("10063170", new NativeCustomFormatAd.OnCustomFormatAdLoadedListener() { @Override public void onCustomFormatAdLoaded(NativeCustomFormatAd ad) { // Show the custom format and record an impression. } }, new NativeCustomFormatAd.OnCustomClickListener() { @Override public void onCustomClick(NativeCustomFormatAd ad, String s) { // Handle the click action } }) .withAdListener( ... ) .withNativeAdOptions( ... ) .build();
Kotlin
val adLoader = AdLoader.Builder(this, "/6499/example/native") .forCustomFormatAd("10063170", { ad -> // Show the custom format and record an impression. }, { ad, s -> // Handle the click action }) .withAdListener( ... ) .withNativeAdOptions( ... ) .build()
forCustomFormatAd
方法會設定 AdLoader
,以便要求自訂原生廣告格式。目前有三個參數傳遞至方法:
AdLoader
應要求的自訂原生廣告格式 ID。每個自訂原生廣告格式都有相關聯的 ID。此參數代表應用程式想要AdLoader
要求的格式。- 廣告成功載入時可叫用的
OnCustomFormatAdLoadedListener
。 - 使用者輕觸或點選廣告時,要叫用的
OnCustomClickListener
選用項目。如要進一步瞭解這個事件監聽器,請參閱下方的「處理點擊和曝光次數」一節。
由於單一廣告單元可放送多種廣告格式,因此可使用不重複的格式 ID 多次呼叫 forCustomFormatAd
,以便為多種可能的自訂原生廣告格式準備廣告載入器。
自訂原生廣告格式 ID

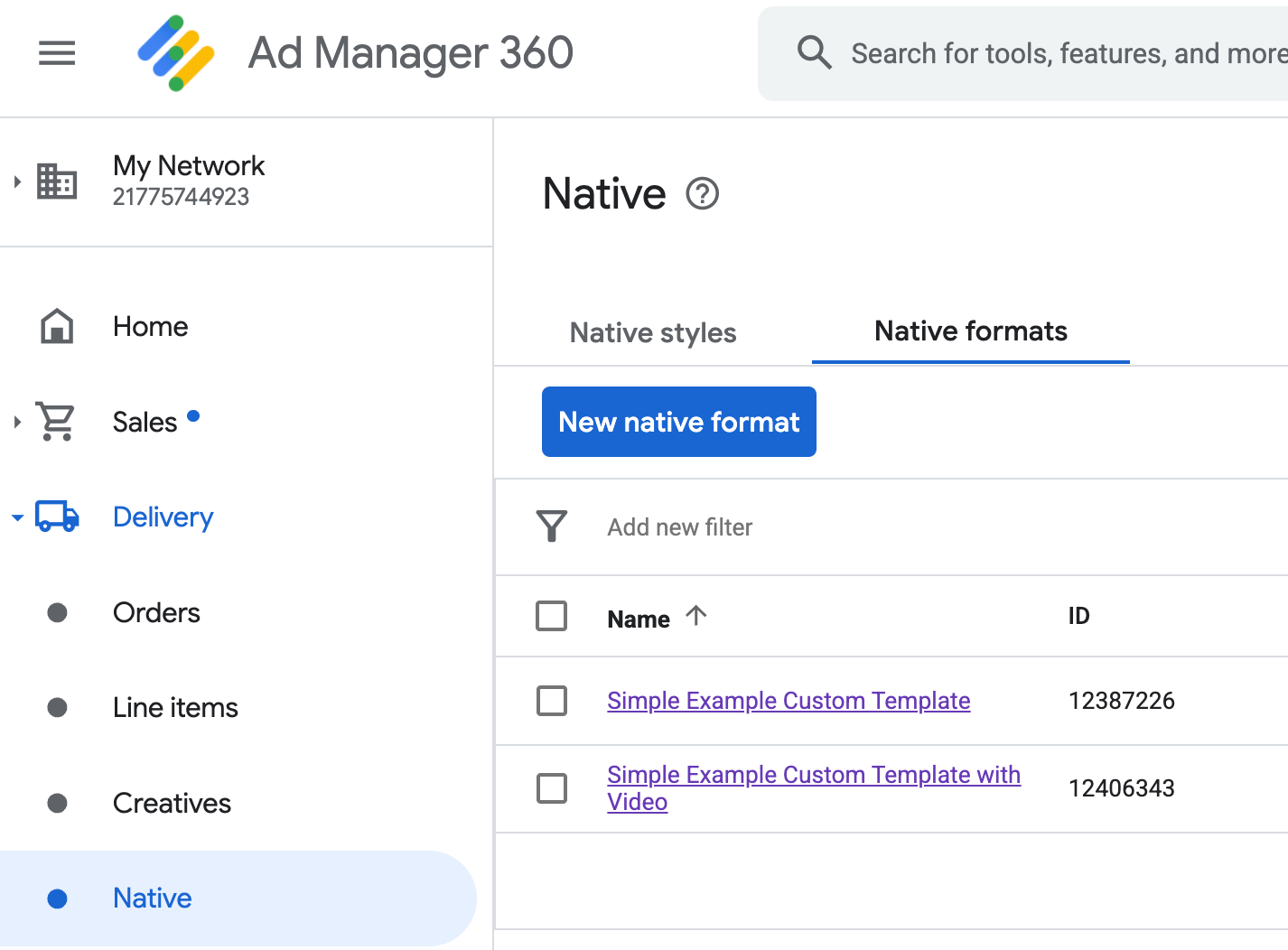

您可以在 Ad Manager UI 的「廣告放送」下拉式選單的「原生」部分,找到用於辨識自訂原生廣告格式的格式 ID:

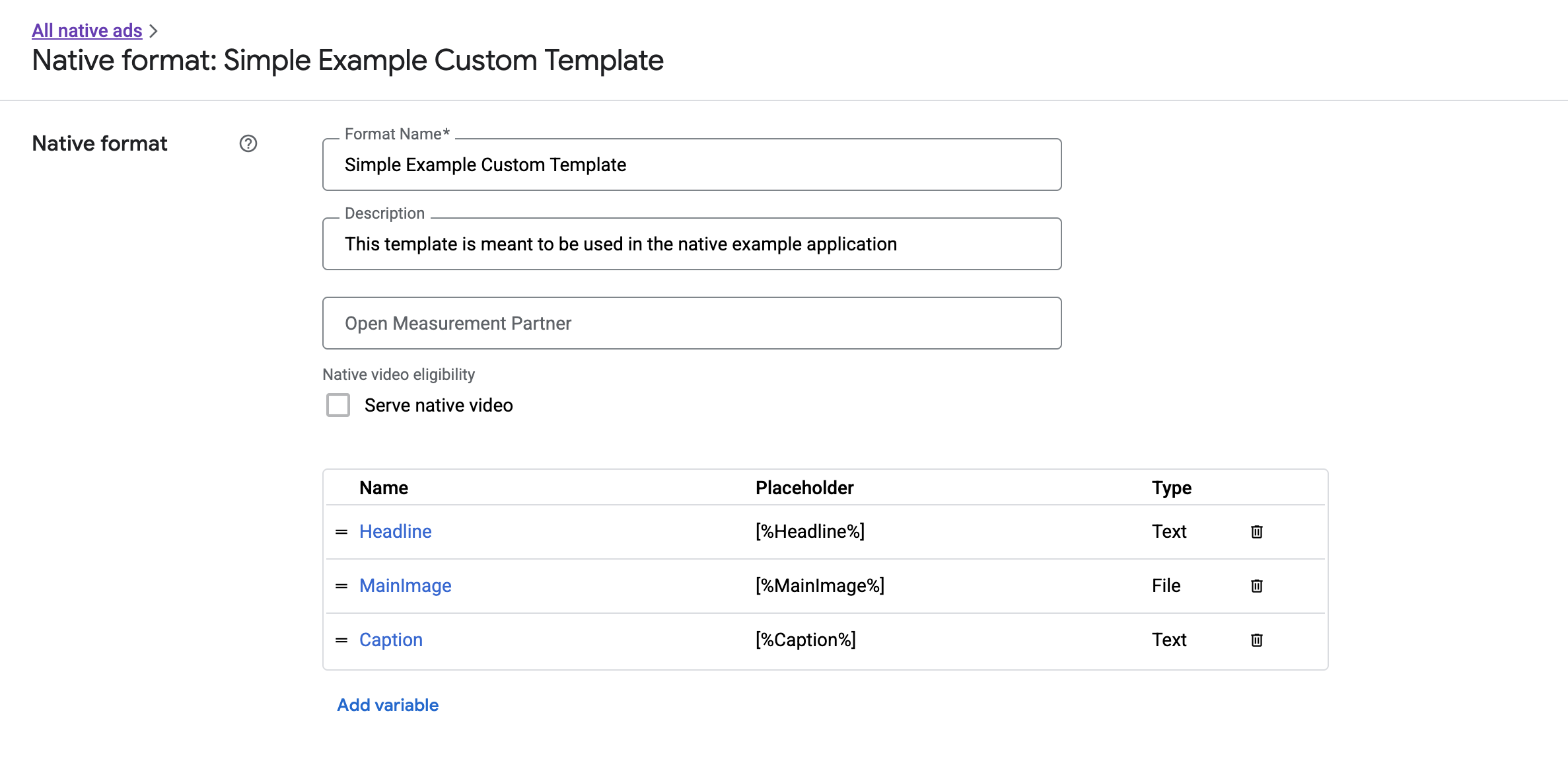

每個自訂原生廣告格式 ID 都會顯示在名稱旁邊。按一下其中一個名稱,即可前往詳細資料畫面,顯示格式欄位的相關資訊:
您可以在這裡新增、編輯及移除個別欄位。記下每個資產的名稱。名稱是在顯示自訂原生廣告格式時,用來取得每個素材資源資料的鍵。
多媒體自訂原生廣告格式
自訂原生廣告格式與系統定義的廣告格式不同,發布商有權定義自己的廣告素材資源清單。因此,顯示格式的程序與系統定義的格式有下列幾種不同:
NativeCustomFormatAd
類別是用來處理您在 Ad Manager 中定義的任何自訂原生廣告格式,因此資產並未使用「getter」名稱。而是提供getText
和getImage
等方法,並將欄位名稱做為參數使用。- 目前沒有可與
NativeCustomFormatAd
搭配使用的專屬廣告檢視畫面類別 (例如NativeAdView
)。您可以自由使用任何適合使用者體驗的版面配置, - 由於沒有專屬的
ViewGroup
類別,因此您不必註冊任何用來顯示廣告素材資源的檢視畫面。這樣一來,顯示廣告時就少了幾行程式碼,但您之後必須再完成一些工作來處理點擊。
以下是顯示 NativeCustomFormatAd
的函式範例:
Java
public void displayCustomFormatAd (ViewGroup parent, NativeCustomFormatAd customFormatAd) { // Inflate a layout and add it to the parent ViewGroup. LayoutInflater inflater = (LayoutInflater) parent.getContext() .getSystemService(Context.LAYOUT_INFLATER_SERVICE); View adView = inflater.inflate(R.layout.custom_format_ad, parent); // Locate the TextView that will hold the value for "Headline" and // set its text. TextView myHeadlineView = (TextView) adView.findViewById(R.id.headline); myHeadlineView.setText(customFormatAd.getText("Headline")); // Locate the ImageView that will hold the value for "MainImage" and // set its drawable. Button myMainImageView = (ImageView) adView.findViewById(R.id.main_image); myMainImageView.setImageDrawable( customFormatAd.getImage("MainImage").getDrawable()); ... // Continue locating views and displaying assets until finished. ... }
Kotlin
public fun displayCustomFormatAd (parent: ViewGroup, customFormatAd: NativeCustomFormatAd) { val adView = layoutInflater .inflate(R.layout.ad_simple_custom_format, null) val myHeadlineView = adView.findViewById<TextView>(R.id.headline) myHeadlineView.setText(customFormatAd.getText("Headline")); // Locate the ImageView that will hold the value for "MainImage" and // set its drawable. val myMainImageView = adView.findViewById(R.id.main_image); myMainImageView.setImageDrawable( customFormatAd.getImage("MainImage").drawable; ... // Continue locating views and displaying assets until finished. ... }
自訂原生廣告格式的原生影片
建立自訂格式時,您可以選擇將該格式用於影片。
在應用程式實作中,您可以使用 NativeCustomFormatAd.getMediaContent()
取得媒體內容。然後呼叫 setMediaContent()
,將媒體檢視畫面上的媒體內容設為媒體檢視畫面。如果廣告沒有影片內容,請制定替代計畫,以便在沒有影片的情況下放送廣告。
以下範例會檢查廣告是否包含影片內容,並在沒有影片時,顯示原位圖片:
Java
// Called when a custom native ad loads. @Override public void onCustomFormatAdLoaded(final NativeCustomFormatAd ad) { MediaContent mediaContent = ad.getMediaContent(); // Assumes you have a FrameLayout in your view hierarchy with the id media_placeholder. FrameLayout mediaPlaceholder = (FrameLayout) findViewById(R.id.media_placeholder); // Apps can check the MediaContent's hasVideoContent property to determine if the // NativeCustomFormatAd has a video asset. if (mediaContent != null && mediaContent.hasVideoContent()) { MediaView mediaView = new MediaView(mediaPlaceholder.getContext()); mediaView.setMediaContent(mediaContent); mediaPlaceholder.addView(mediaView); // Create a new VideoLifecycleCallbacks object and pass it to the VideoController. The // VideoController will call methods on this object when events occur in the video // lifecycle. VideoController vc = mediaContent.getVideoController(); vc.setVideoLifecycleCallbacks( new VideoController.VideoLifecycleCallbacks() { @Override public void onVideoEnd() { // Publishers should allow native ads to complete video playback before // refreshing or replacing them with another ad in the same UI location. super.onVideoEnd(); } }); } else { ImageView mainImage = new ImageView(this); mainImage.setAdjustViewBounds(true); mainImage.setImageDrawable(ad.getImage("MainImage").getDrawable()); mediaPlaceholder.addView(mainImage); mainImage.setOnClickListener( new View.OnClickListener() { @Override public void onClick(View view) { ad.performClick("MainImage"); } }); } }
Kotlin
// Called when a custom native ad loads. NativeCustomFormatAd.OnCustomFormatAdLoadedListener { ad -> val mediaContent = ad.mediaContent // Apps can check the MediaContent's hasVideoContent property to determine if the // NativeCustomFormatAd has a video asset. if (mediaContent != null && mediaContent.hasVideoContent()) { val mediaView = MediaView(mediaPlaceholder.getContest()) mediaView.mediaContent = mediaContent val videoController = mediaContent.videoController // Create a new VideoLifecycleCallbacks object and pass it to the VideoController. The // VideoController will call methods on this object when events occur in the video // lifecycle. if (videoController != null) { videoController.videoLifecycleCallbacks = object : VideoController.VideoLifecycleCallbacks() { override fun onVideoEnd() { // Publishers should allow native ads to complete video playback before refreshing // or replacing them with another ad in the same UI location. super.onVideoEnd() } } } } else { val mainImage = ImageView(this) mainImage.adjustViewBounds = true mainImage.setImageDrawable(ad.getImage("MainImage")?.drawable) mainImage.setOnClickListener { ad.performClick("MainImage") } customTemplateBinding.simplecustomMediaPlaceholder.addView(mainImage) } }
如要進一步瞭解如何自訂自訂原生廣告的影片體驗,請參閱 MediaContent。
下載 Ad Manager 自訂顯示範例,查看原生影片廣告的實際應用範例。
自訂原生廣告格式點擊和曝光
使用自訂原生廣告格式時,您的應用程式會負責記錄曝光,並向 Google Mobile Ads SDK 回報點擊事件。
記錄曝光次數
如要記錄自訂格式廣告的曝光,請在對應的 NativeCustomFormatAd
上呼叫 recordImpression
方法:
myCustomFormatAd.recordImpression();
如果您的應用程式不小心針對同一廣告呼叫該方法兩次,SDK 會自動防止針對單一請求重複記錄重複曝光。
回報點擊次數
如要向 SDK 回報素材資源檢視畫面發生點擊事件,請對對應的 NativeCustomFormatAd
呼叫 performClick
方法,並傳入點選的資產名稱。舉例來說,如果您的自訂格式含有名為「MainImage」的素材資源,想回報與該資產對應的 ImageView
發生點擊,程式碼會如下所示:
myCustomFormatAd.performClick("MainImage");
請注意,您不需要針對每個與廣告相關的檢視畫面呼叫這個方法。如果您的應用程式有另一個名為「Caption」的欄位,而這些欄位可讓使用者點選或輕觸,則應用程式無須針對該資產的檢視畫面呼叫 performClick
。
回應自訂點擊動作
使用者點選自訂格式廣告時,SDK 會嘗試下列三種可能的回應,依序嘗試:
- 從
AdLoader
叫用OnCustomClickListener
(如有提供)。 - 針對每則廣告的深層連結網址,嘗試找出內容解析器,並啟動第一個可解析的網址。
- 開啟瀏覽器,前往廣告的傳統到達網頁網址。
forCustomFormatAd
方法接受 OnCustomClickListener
。如果您傳入事件監聽器物件,SDK 會改為叫用其 onCustomClick
方法,而不採取進一步動作。但是,如果將空值當做事件監聽器傳遞,SDK 就會改回採用廣告註冊的深層連結和/或到達網頁網址。
應用程式可透過自訂點擊事件監聽器,判斷回應點擊的最佳動作,包括更新 UI、啟動新活動,或僅記錄點擊。以下舉例單純記錄點擊發生的情況:
Java
AdLoader adLoader = new AdLoader.Builder(context, "/6499/example/native") .forCustomFormatAd("10063170", new NativeCustomFormatAd.OnCustomFormatAdLoadedListener() { // Display the ad. }, new NativeCustomFormatAd.OnCustomClickListener() { @Override public void onCustomClick(NativeCustomFormatAd ad, String assetName) { Log.i("MyApp", "A custom click just happened for " + assetName + "!"); } }).build();
Kotlin
val adLoader = AdLoader.Builder(this, "/6499/example/native") .forCustomFormatAd("10063170", { ad -> // Display the ad. }, { ad, assetName -> Log.i("MyApp", "A custom click just happened for $assetName!") }).build()
起初,自訂點擊事件監聽器看起來好像奇怪。畢竟,您的應用程式只是告知 SDK 發生了點擊,所以為何 SDK 要轉彎,並將該事件回報給應用程式?
這項資訊流程有幾個優點,但最重要的是讓 SDK 保有對點擊回應的控制權。這項功能可自動對為廣告素材設定的第三方追蹤網址進行連線偵測 (ping),並在背景處理其他工作,完全不需要任何其他程式碼。
