Style a boundary polygon

  • This documentation explains how to style the fill and stroke of boundary polygons using a styling closure that takes a GMSPlaceFeature and returns a GMSFeatureStyle.

  • The styling closure defines the style attributes for the polygon, such as fill color, stroke color, and stroke width.

  • Styling Places data might require integrating the Places SDK for iOS, although it's not always mandatory.

  • Code examples in Swift and Objective-C demonstrate how to apply a purple style to a specific boundary polygon using its place ID.
Select platform: Android iOS JavaScript

To style the fill and stroke for a boundary polygon, use a styling closure that accepts a GMSPlaceFeature and returns a GMSFeatureStyle to define style attributes. Then set the style property to a styling closure, which contains styling logic.

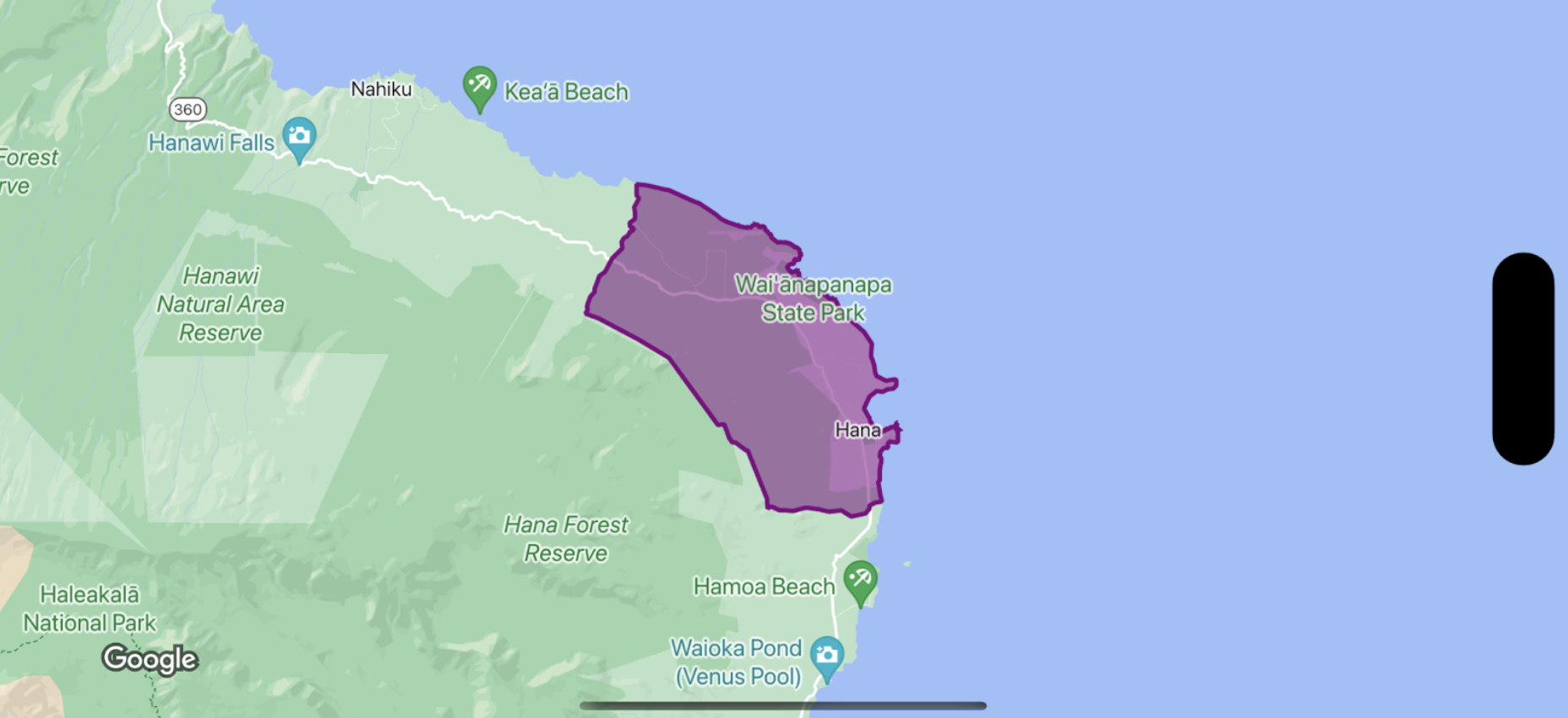

A diagram showing a boundary polygon feature

Swift

let mapView = GMSMapView(frame: .zero, mapID: GMSMapID(identifier: "YOUR_MAP_ID"), camera: GMSCameraPosition(latitude: 20.773, longitude: -156.01, zoom: 12))

let layer = mapView.featureLayer(of: .locality)

// Define a style with purple
let style = FeatureStyle(fill: .purple.withAlphaComponent(0.5), stroke: .purple, strokeWidth: 3.0)

// Apply the style to a single boundary.
layer.style = { ($0.placeID == "ChIJ0zQtYiWsVHkRk8lRoB1RNPo"/* Hana, HI */) ? style : nil }

Objective-C

GMSMapView *mapView = [GMSMapView mapWithFrame:CGRectZero mapID:[GMSMapID mapIDWithIdentifier:@"MAP_ID"] camera:[GMSCameraPosition cameraWithLatitude: 20.773 longitude: -156.01 zoom:12]];

GMSFeatureLayer<GMSPlaceFeature *> *layer = [mapView featureLayerOfFeatureType:GMSFeatureTypeLocality];

// Define a style with purple fill and border.
GMSFeatureStyle *style = [GMSFeatureStyle styleWithFillColor:[[UIColor purpleColor] colorWithAlphaComponent:0.5] strokeColor:[UIColor purpleColor] strokeWidth:3.0];

// Apply the style to a single boundary.
layer.style = ^(GMSPlaceFeature *feature) {
  return [feature.placeID isEqual:@"ChIJ0zQtYiWsVHkRk8lRoB1RNPo"/* Hana, HI */] ? style : nil;
};
