Integra ironSource con Mediation

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from ironSource using mediation, covering waterfall integrations. It covers how to add ironSource to an ad unit's mediation configuration, how to set up ad source optimization, and how to integrate the ironSource SDK and adapter into your iOS app.

Supported integrations and ad formats

The AdMob mediation adapter for ironSource has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Rewarded Interstitial
Native

Requirements

  • iOS deployment target of 11.0 or higher

Step 1: Set up configurations in ironSource UI

Sign up and sign in to your ironSource account.

To add your application to the ironSource dashboard, click the New App button.

Enter app details

Select Mobile App, enter the App Store URL of your app, and click Import App Info. Once your app information is displayed, click the Add App button.

If your app is not available, select App Not Live in the Application Store and provide a Temporary Name for your app. Select iOS as platform and click Add App.

Take note of your new App Key, which is displayed after the app has been added. You will need this value for setting up your AdMob ad unit ID. Select the ad formats your app supports in the appropriate Live tabs. Then click Done.

Instance ID

Next, configure a network instance for the app you added; ironSource supports multiple network instances for rewarded and interstitial ads.

Navigate to the Ad Units & Placements page from the left nav, select your app in the APPLICATIONS list and click the Edit button.

Select the Add Network Instance link, enter an Instance Name, and click Save.

Once the instance is created, the Instance ID is listed in the Instance Id field.

In addition to the App Key and Instance ID, you'll also need your ironSource Secret Key and Refresh Token to set up your AdMob ad unit ID.

Navigate to My Account in your ironSource publisher dashboard then click the API tab. Take note of your Secret Key and Refresh Token.

Turn on test mode

To enable test ads on ironSource, run your ads integrated app and check the logs for a message that looks like this:

This is the Advertising ID of your test device. Copy it to the clipboard.

Navigate to the MONETIZE tab and click the Testing button. Next, click the New Test Device button.

Enter the Device Name and Advertising ID (from the previous step). Then click Save.

The newly added test device is listed under TEST DEVICES. You can activate or deactivate Test Ads in this module as required.

Step 2: Set up ironSource demand in AdMob UI

Configure mediation settings for your ad unit

To add ironSource to the mediation configuration for your ad unit, first sign in to your AdMob account.

Next, navigate to the Mediation tab. If you have an existing mediation group you'd like to modify, click the name of that mediation group to edit it, and skip ahead to Add ironSource as an ad source.

To create a new mediation group, select Create Mediation Group.

Enter your ad format and platform, then click Continue.

Give your mediation group a name and select locations to target. Next, set the mediation group status to Enabled and click Add Ad Units.

Associate this mediation group with one or more of your existing AdMob ad units. Then click Done.

You should now see the ad units card populated with the ad units you selected as shown below:

Add ironSource as an ad source

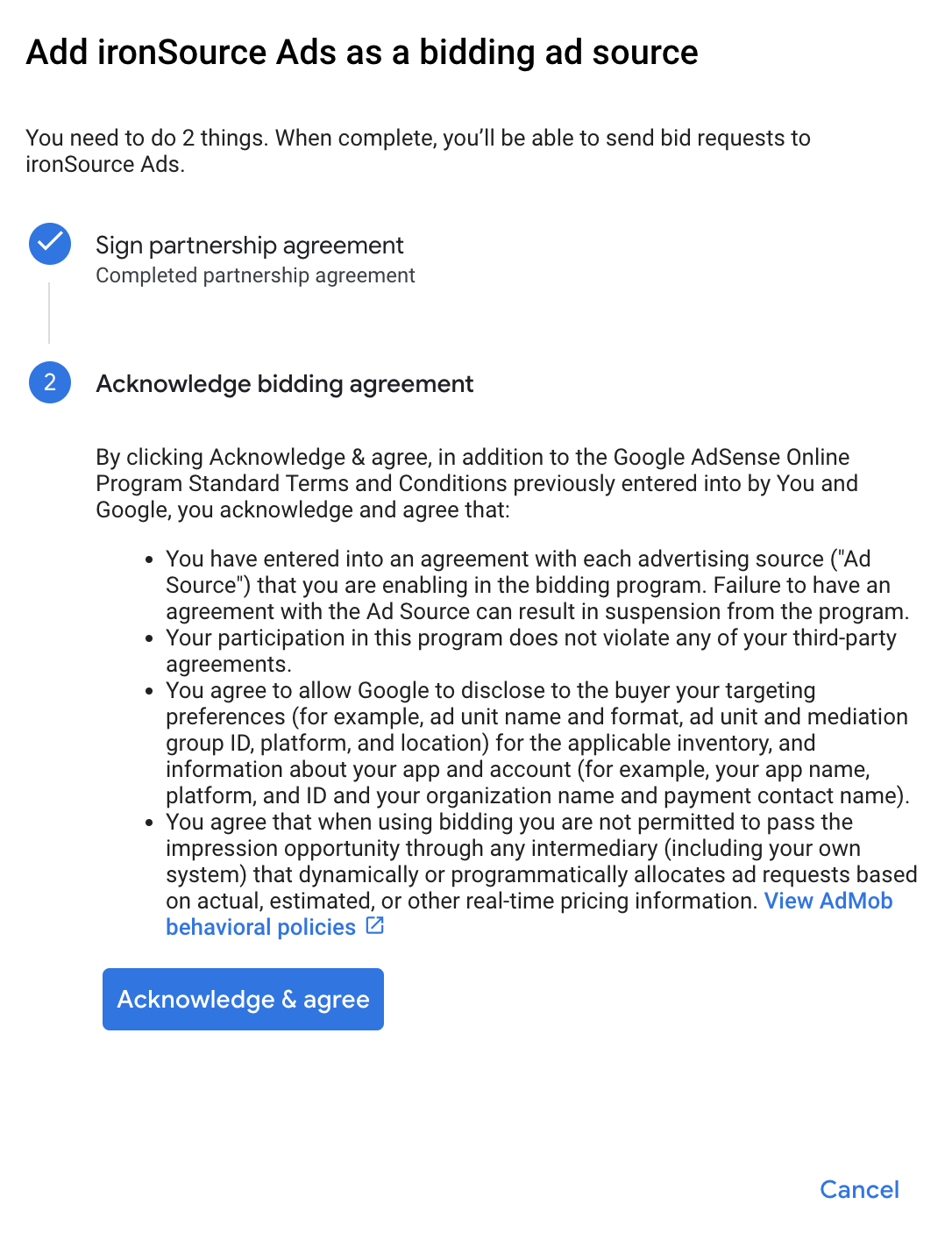

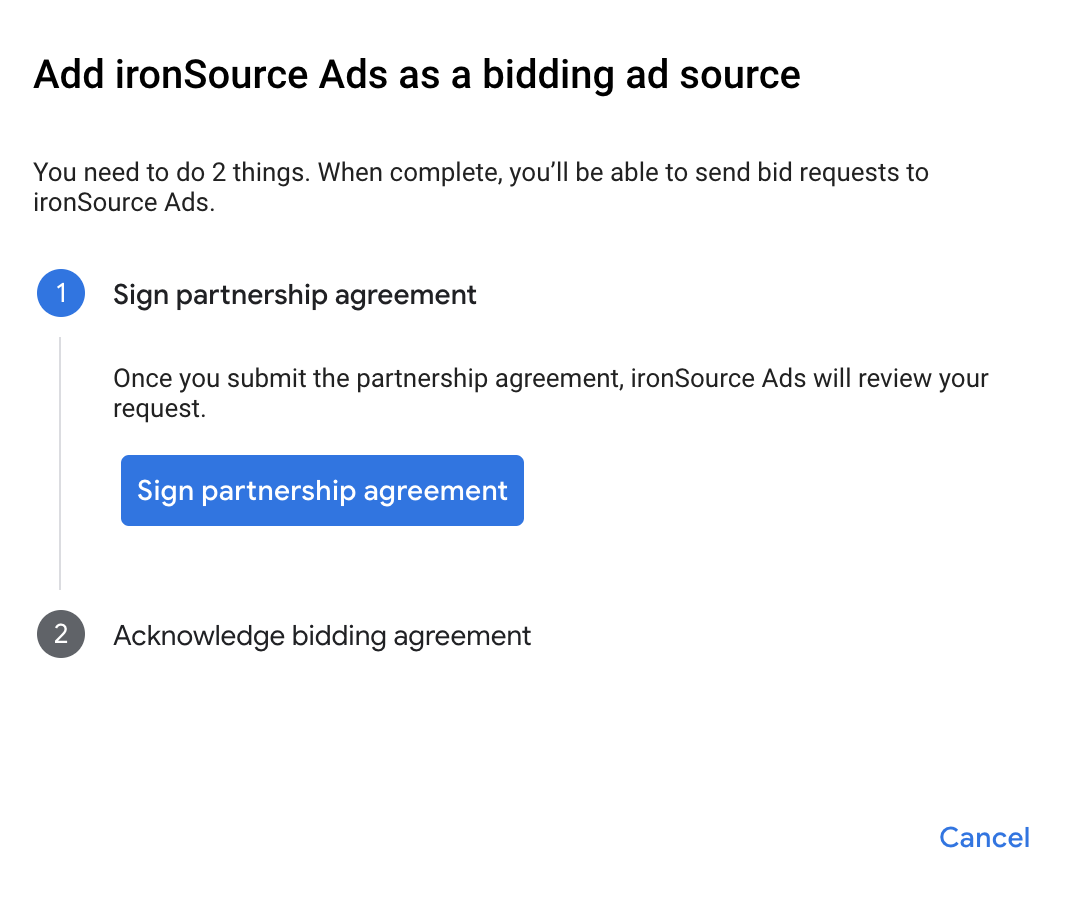

In the Ad Sources card, select Add Ad Network. Then select ironSource.

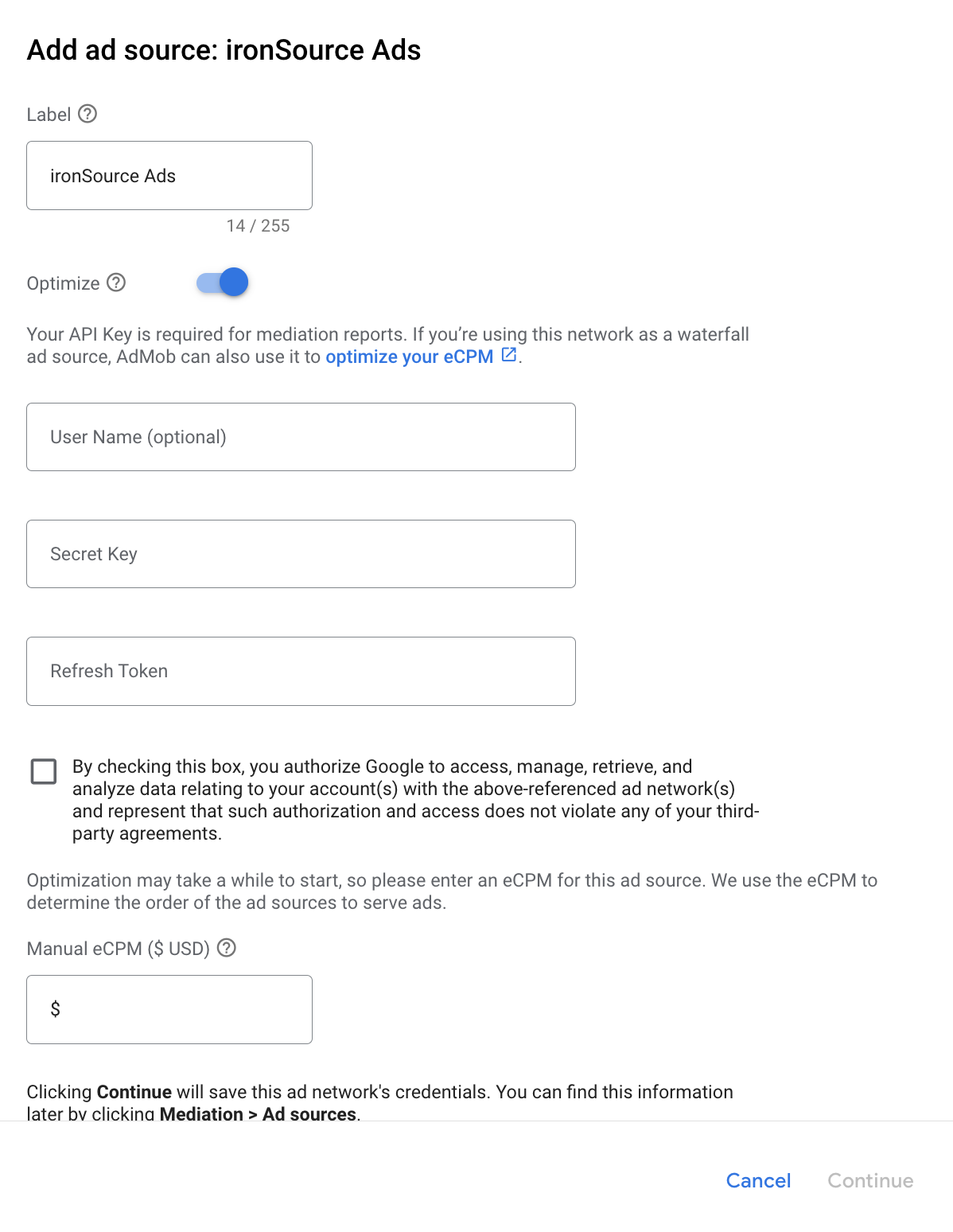

Next, enable the Optimize feature, then enter the Secret Key and Refresh Token obtained in previous section to set up ad source optimization for ironSource. Then enter an eCPM value and click Continue.

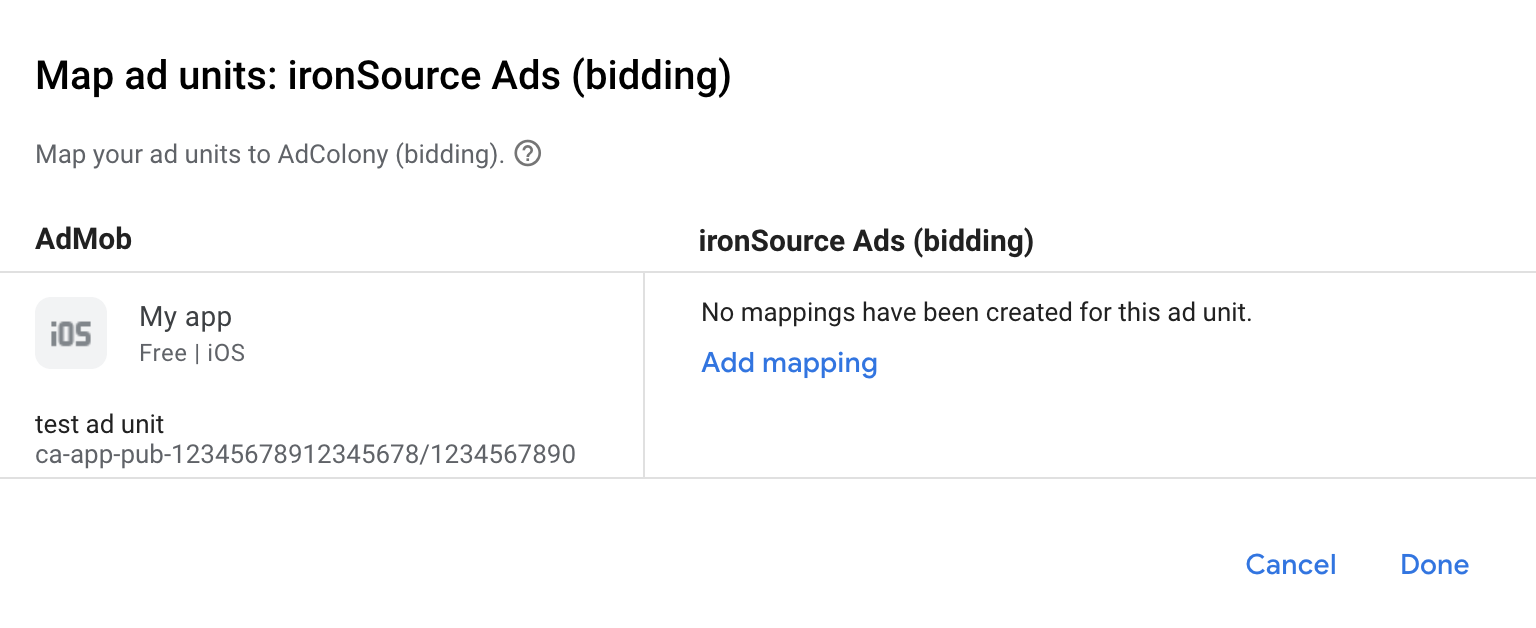

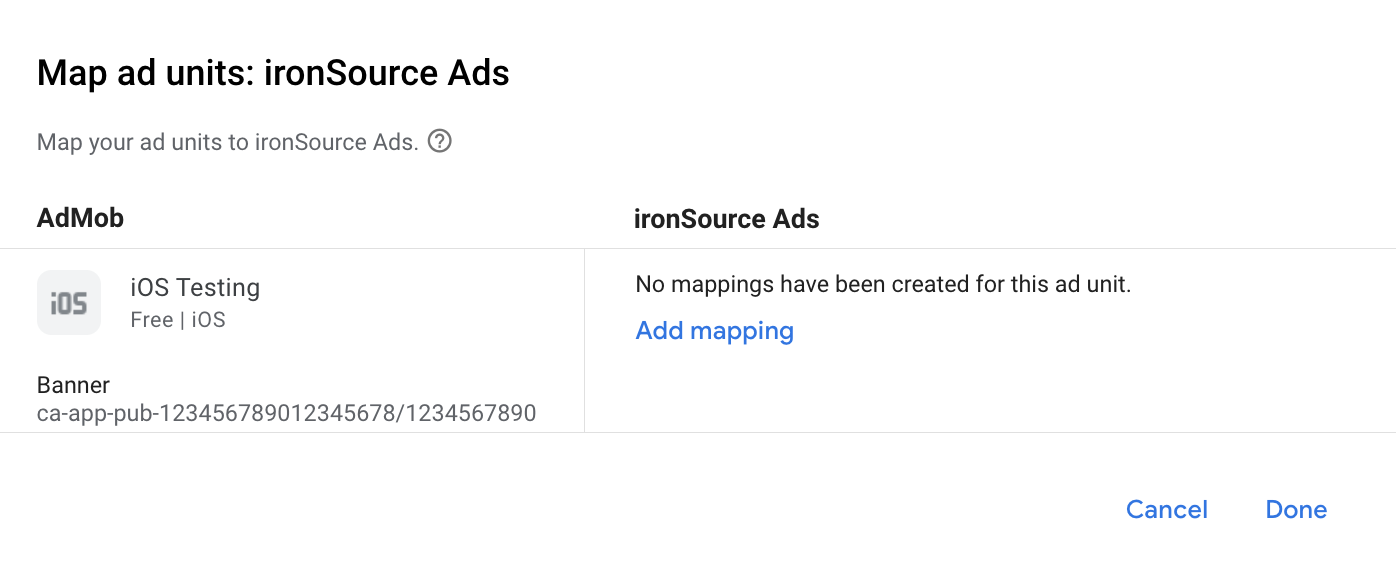

If you already have a mapping for ironSource, you can simply select it. Otherwise, click Add mapping.

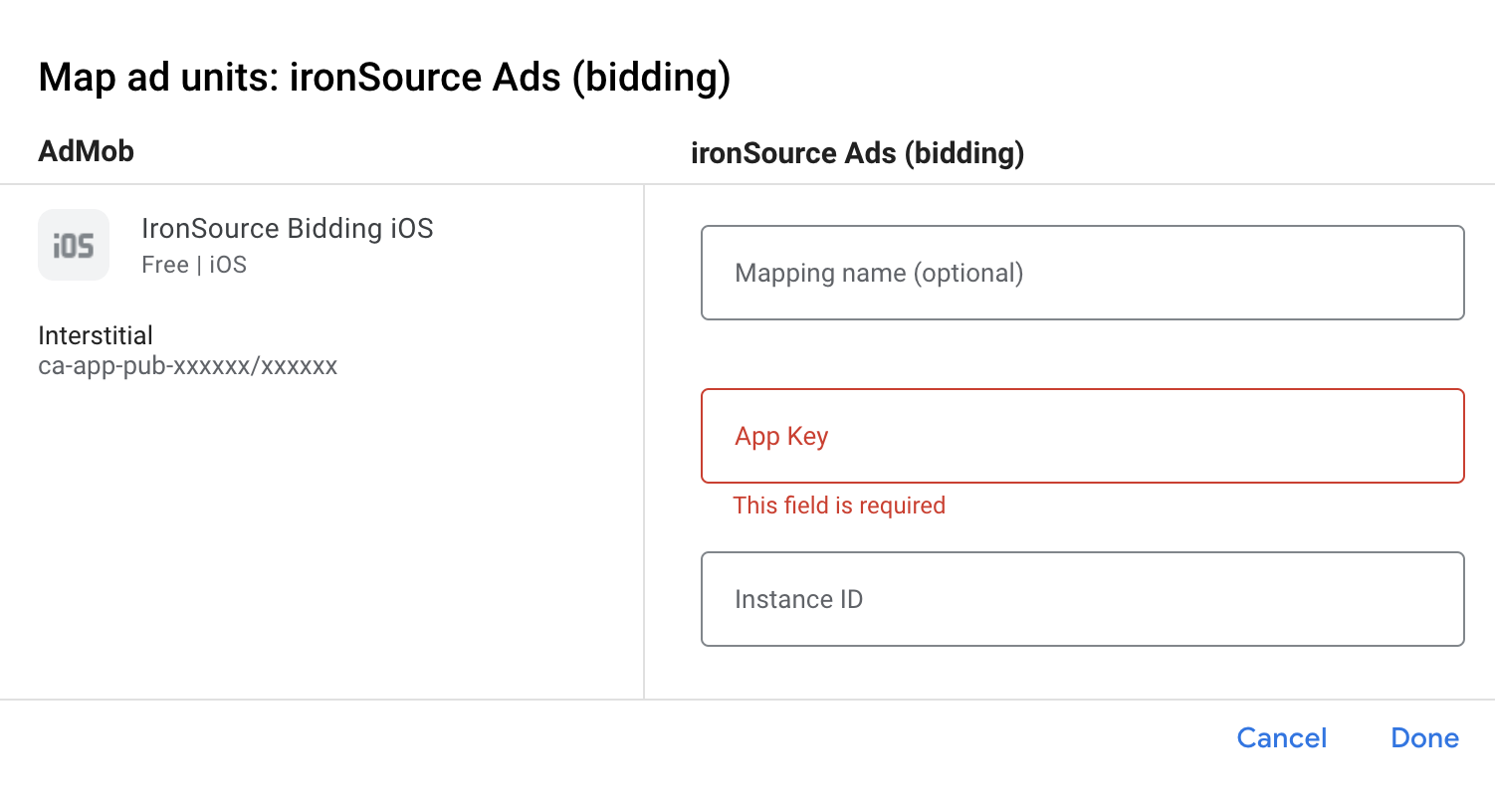

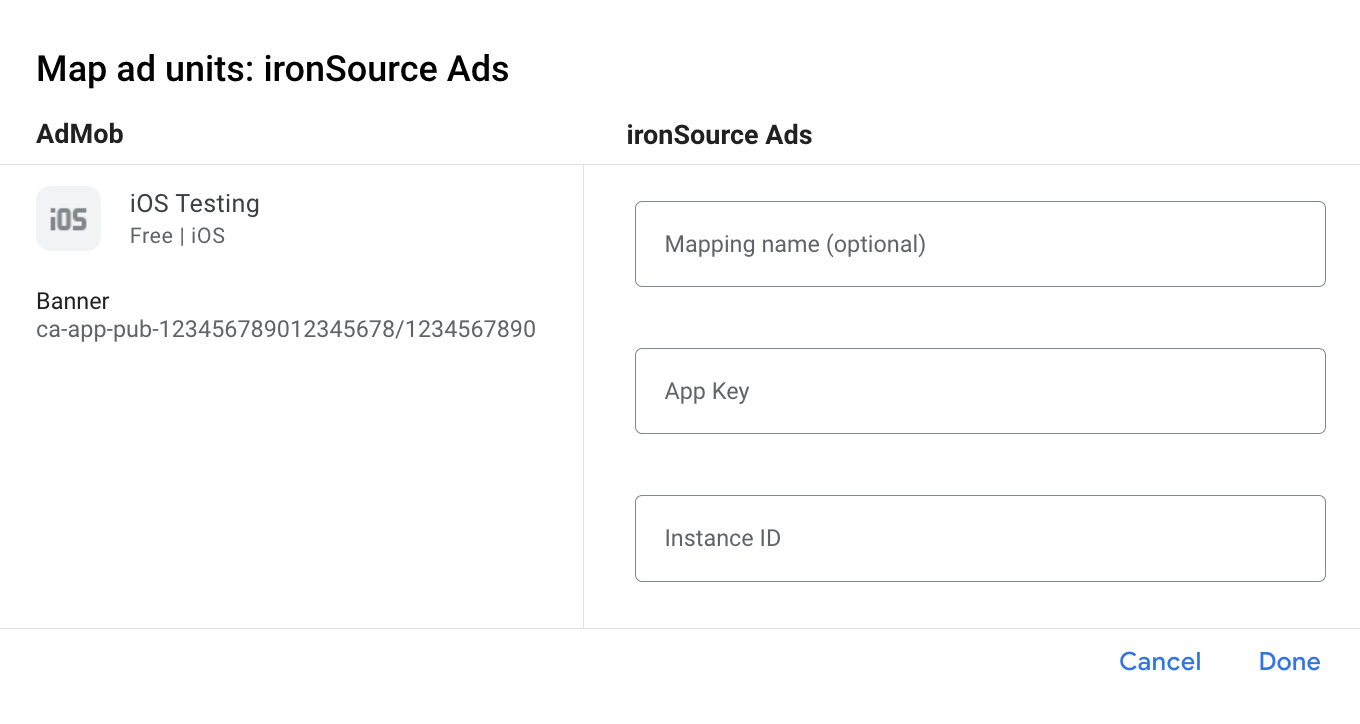

Next, enter the App Key and Instance ID obtained in the previous section. Then click Done.

Add ironSource Mobile to GDPR and US state regulations ad partners list

Sigue los pasos que se indican en Configuración del GDPR y Configuración de las reglamentaciones estatales de EE.UU. para agregar ironSource Mobile a la lista de socios publicitarios de las reglamentaciones estatales de EE.UU. y el GDPR en la AdMob IU.

Step 3: Import the ironSource SDK and adapter

  • Add the following line to your project's Podfile:

    pod 'GoogleMobileAdsMediationIronSource'

  • From the command line run:

    pod install --repo-update

Manual integration

  • Download the latest version of the ironSource iOS SDK and link IronSource.framework in your project.

  • Download the latest version of the ironSource adapter from the download link in Changelog and link IronSourceAdapter.framework in your project.

Step 4: Implement privacy settings on ironSource SDK

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

In SDK version 6.7.9, ironSource added a consent API. The following sample code shows how to pass this consent information to the ironSource SDK. If you choose to call this method, it is recommended that you do so prior to requesting ads through the Google Mobile Ads SDK.

Swift

// For Swift integration, you need to import the ironSource SDK in your Bridging Header.
// For more details, see https://developers.is.com/ironsource-mobile/ios/ironsource-ios-sdk-integration-swift/
// ...

IronSource.setConsent(true)

Objective-C

#import <IronSource/IronSource.h>
// ...

[IronSource setConsent:YES];

See ironSource's documentation on Regulation Advanced Settings for more details and the values that can be provided in the method.

US states privacy laws

U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

In SDK version 6.14.0, ironSource added an API to support CCPA regulations. The following sample code shows how to pass this consent information to the ironSource SDK. These options must be set before you initialize the Google Mobile Ads SDK to ensure they get forwarded properly to the ironSource SDK.

Swift

// For Swift integration, you need to import the ironSource SDK in your Bridging Header.
// For more details, see https://developers.is.com/ironsource-mobile/ios/ironsource-ios-sdk-integration-swift/
// ...

IronSource.setMetaDataWithKey("do_not_sell", value: "YES")

Objective-C

#import <IronSource/IronSource.h>
// ...

[IronSource setMetaDataWithKey:@"do_not_sell" value:@"YES"];

See ironSource's documentation on Regulation Advanced Settings for more details and the values that can be provided in the method.

Step 5: Add required code

SKAdNetwork integration

Follow ironSource's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 6: Test your implementation

Habilitar anuncios de prueba

Asegúrate de registrar tu dispositivo de prueba en AdMob y habilitar el modo de prueba en la ironSource IU.

Cómo verificar los anuncios de prueba

Para verificar que recibes anuncios de prueba deironSource, habilita las pruebas de fuentes de anuncios individuales en el inspector de anuncios mediante la ironSource (Waterfall) fuente de anuncios.

Error codes

If the adapter fails to receive an ad from ironSource, you can check the underlying error from the ad response using

GADResponseInfo.adNetworkInfoArray under the following classes:

GADMAdapterIronSource
GADMAdapterIronSourceRewarded

Here are the codes and accompanying messages thrown by the ironSource adapter when an ad fails to load:

Error code Reason
101 ironSource server parameters configured in the AdMob UI are missing/invalid.
102 ironSource Adapter does not support the ad format being requested.
103 An ironSource ad is already loaded for this network configuration.
104 The requested banner ad size is not supported by ironSource.
508-1037 ironSource SDK Errors. See documentation for more details.

IronSource iOS Mediation Adapter Changelog

Version 7.5.1.0

  • Verified compatibility with IronSource SDK version 7.5.1.

Built and tested with:

  • Google Mobile Ads SDK version 10.12.0.
  • IronSource SDK version 7.5.1.

Version 7.5.0.0.0

  • Added waterfall support for banner (includes MREC) ad format.
  • Verified compatibility with IronSource SDK version 7.5.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.10.0.
  • IronSource SDK version 7.5.0.0.

Version 7.4.0.0.0

  • Verified compatibility with IronSource SDK version 7.4.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.9.0.
  • IronSource SDK version 7.4.0.0.

Version 7.3.1.0.0

  • Verified compatibility with IronSource SDK version 7.3.1.0.
  • Removed support of the armv7 architecture.
  • Now requires minimum iOS version 11.0.
  • Now requires Google Mobile Ads SDK version 10.4.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.4.0.
  • IronSource SDK version 7.3.1.0.

Version 7.3.0.0.0

  • Verified compatibility with IronSource SDK version 7.3.0.0.

Built and tested with:

  • Google Mobile Ads SDK version 10.0.0.
  • IronSource SDK version 7.3.0.0.

Version 7.2.7.0.1

  • Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 10.0.0.
  • IronSource SDK version 7.2.7.0.

Version 7.2.7.0.0

  • Verified compatibility with ironSource SDK version 7.2.7.0.
  • Added support for arm64 simulator architecture.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • IronSource SDK version 7.2.7.0.

Version 7.2.6.0.0

  • Verified compatibility with ironSource SDK version 7.2.6.0.

Built and tested with:

  • Google Mobile Ads SDK version 9.14.0.
  • IronSource SDK version 7.2.6.0.

Version 7.2.5.1.0

  • Verified compatibility with ironSource SDK version 7.2.5.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.11.0.
  • IronSource SDK version 7.2.5.1.

Version 7.2.4.0

  • Verified compatibility with ironSource SDK version 7.2.4.
  • Updated the adapter to use the didRewardUser API.
  • Now requires Google Mobile Ads SDK version 9.8.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.9.0.
  • IronSource SDK version 7.2.4.

Version 7.2.3.1.0

  • Verified compatibility with ironSource SDK version 7.2.3.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.6.0.
  • IronSource SDK version 7.2.3.1.

Version 7.2.3.0.0

  • Verified compatibility with ironSource SDK version 7.2.3.0.

Built and tested with:

  • Google Mobile Ads SDK version 9.6.0.
  • IronSource SDK version 7.2.3.0.

Version 7.2.2.1.0

  • Verified compatibility with ironSource SDK version 7.2.2.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.5.0.
  • IronSource SDK version 7.2.2.1.

Version 7.2.2.0.0

  • Verified compatibility with ironSource SDK version 7.2.2.0.

Built and tested with:

  • Google Mobile Ads SDK version 9.5.0.
  • IronSource SDK version 7.2.2.0.

Version 7.2.1.2.0

  • Verified compatibility with ironSource SDK version 7.2.1.2.

Built and tested with:

  • Google Mobile Ads SDK version 9.2.0.
  • IronSource SDK version 7.2.1.2.

Version 7.2.1.1.0

  • Verified compatibility with ironSource SDK version 7.2.1.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.2.0.
  • IronSource SDK version 7.2.1.1.

Version 7.2.1.0

  • Verified compatibility with ironSource SDK version 7.2.1.

Built and tested with:

  • Google Mobile Ads SDK version 9.1.0.
  • IronSource SDK version 7.2.1.

Version 7.2.0.0

  • Verified compatibility with ironSource SDK version 7.2.0.

Built and tested with:

  • Google Mobile Ads SDK version 9.0.0.
  • IronSource SDK version 7.2.0.

Version 7.1.14.1

  • Verified compatibility with Google Mobile Ads SDK version 9.0.0.
  • Now requires Google Mobile Ads SDK version 9.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 9.0.0.
  • IronSource SDK version 7.1.14.

Version 7.1.14.0

  • Verified compatibility with ironSource SDK version 7.1.14.

Built and tested with:

  • Google Mobile Ads SDK version 8.13.0.
  • IronSource SDK version 7.1.14.

Version 7.1.13.0

  • Verified compatibility with ironSource SDK version 7.1.13.

Built and tested with:

  • Google Mobile Ads SDK version 8.13.0.
  • IronSource SDK version 7.1.13.

Version 7.1.12.0

  • Verified compatibility with ironSource SDK version 7.1.12.

Built and tested with:

  • Google Mobile Ads SDK version 8.12.0.
  • IronSource SDK version 7.1.12.

Version 7.1.11.1.0

  • Verified compatibility with ironSource SDK version 7.1.11.1.

Built and tested with:

  • Google Mobile Ads SDK version 8.12.0.
  • IronSource SDK version 7.1.11.1.

Version 7.1.11.0

  • Verified compatibility with ironSource SDK version 7.1.11.
  • Now requires minimum iOS version 10.0.

Built and tested with:

  • Google Mobile Ads SDK version 8.11.0.
  • IronSource SDK version 7.1.11.

Version 7.1.10.0

  • Verified compatibility with ironSource SDK version 7.1.10.

Built and tested with:

  • Google Mobile Ads SDK version 8.9.0.
  • IronSource SDK version 7.1.10.

Version 7.1.9.0

  • Verified compatibility with ironSource SDK version 7.1.9.

Built and tested with:

  • Google Mobile Ads SDK version 8.9.0.
  • IronSource SDK version 7.1.9.

Version 7.1.8.0

  • Verified compatibility with ironSource SDK version 7.1.8.

Built and tested with:

  • Google Mobile Ads SDK version 8.8.0.
  • IronSource SDK version 7.1.8.

Version 7.1.7.0

  • Verified compatibility with ironSource SDK version 7.1.7.

Built and tested with:

  • Google Mobile Ads SDK version 8.7.0.
  • IronSource SDK version 7.1.7.

Version 7.1.6.1.0

  • Verified compatibility with ironSource SDK version 7.1.6.1.

Built and tested with:

  • Google Mobile Ads SDK version 8.5.0.
  • IronSource SDK version 7.1.6.1.

Version 7.1.6.0

  • Verified compatibility with ironSource SDK version 7.1.6.

Built and tested with:

  • Google Mobile Ads SDK version 8.5.0.
  • IronSource SDK version 7.1.6.

Version 7.1.5.1.0

  • Verified compatibility with ironSource SDK version 7.1.5.1.
  • Relaxed dependency to Google Mobile Ads SDK version 8.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.5.0.
  • IronSource SDK version 7.1.5.1.

Version 7.1.5.0

  • Verified compatibility with ironSource SDK version 7.1.5.

Built and tested with:

  • Google Mobile Ads SDK version 8.3.0.
  • IronSource SDK version 7.1.5.

Version 7.1.4.0

  • Verified compatibility with ironSource SDK version 7.1.4.
  • Now requires Google Mobile Ads SDK version 8.3.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.3.0.
  • IronSource SDK version 7.1.4.

Version 7.1.3.0

  • Added support for rewarded interstitial ads.
  • Verified compatibility with ironSource SDK version 7.1.3.
  • Now requires Google Mobile Ads SDK version 8.2.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.2.0.
  • IronSource SDK version 7.1.3.

Version 7.1.2.0

  • Verified compatibility with ironSource SDK version 7.1.2.

Built and tested with:

  • Google Mobile Ads SDK version 8.1.0.
  • IronSource SDK version 7.1.2.

Version 7.1.1.0

  • Verified compatibility with ironSource SDK version 7.1.1.
  • Now requires Google Mobile Ads SDK version 8.1.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.1.0.
  • IronSource SDK version 7.1.1.

Version 7.1.0.1

  • Updated the adapter to use the .xcframework format.
  • Now requires Google Mobile Ads SDK version 8.0.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 8.0.0.
  • IronSource SDK version 7.1.0.

Version 7.1.0.0

  • Verified compatibility with ironSource SDK version 7.1.0.
  • Now requires Google Mobile Ads SDK version 7.69.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.69.0.
  • IronSource SDK version 7.1.0.

Version 7.0.4.0

  • Verified compatibility with ironSource SDK version 7.0.4.
  • Now requires Google Mobile Ads SDK version 7.68.0 or higher.
  • Added standardized adapter error codes and messages.

Built and tested with:

  • Google Mobile Ads SDK version 7.68.0.
  • IronSource SDK version 7.0.4.

Version 7.0.3.0

  • Verified compatibility with ironSource SDK version 7.0.3.

Built and tested with:

  • Google Mobile Ads SDK version 7.66.0.
  • IronSource SDK version 7.0.3.

Version 7.0.2.0

  • Verified compatibility with ironSource SDK version 7.0.2.
  • Now requires Google Mobile Ads SDK version 7.66.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.66.0.
  • IronSource SDK version 7.0.2.

Version 7.0.1.0

  • Verified compatibility with ironSource SDK version 7.0.1.

Built and tested with:

  • Google Mobile Ads SDK version 7.64.0.
  • IronSource SDK version 7.0.1.

Version 7.0.0.0

  • Verified compatibility with ironSource SDK version 7.0.0.
  • Now requires Google Mobile Ads SDK version 7.64.0 or higher.
  • Now requires minimum iOS version of 9.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.64.0.
  • IronSource SDK version 7.0.0.

Version 6.18.0.2.0

  • Verified compatibility with ironSource SDK version 6.18.0.2.

Built and tested with:

  • Google Mobile Ads SDK version 7.63.0.
  • IronSource SDK version 6.18.0.2.

Version 6.18.0.1.0

  • Verified compatibility with ironSource SDK version 6.18.0.1.
  • Now requires Google Mobile Ads SDK version 7.63.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.63.0.
  • IronSource SDK version 6.18.0.1.

Version 6.18.0.0

  • Verified compatibility with ironSource SDK version 6.18.0.
  • Now requires Google Mobile Ads SDK version 7.63.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.63.0.
  • IronSource SDK version 6.18.0.

Version 6.17.0.1.0

  • Verified compatibility with ironSource SDK version 6.17.0.1.
  • Now requires Google Mobile Ads SDK version 7.62.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.62.0.
  • IronSource SDK version 6.17.0.1.

Version 6.17.0.0

  • Verified compatibility with ironSource SDK version 6.17.0.
  • Now requires Google Mobile Ads SDK version 7.61.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.61.0.
  • IronSource SDK version 6.17.0.

Version 6.16.3.0

  • Verified compatibility with ironSource SDK version 6.16.3.

Built and tested with:

  • Google Mobile Ads SDK version 7.60.0.
  • IronSource SDK version 6.16.3.

Version 6.16.2.0

  • Verified compatibility with ironSource SDK version 6.16.2.
  • Now requires Google Mobile Ads SDK version 7.60.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.60.0.
  • IronSource SDK version 6.16.2.

Version 6.16.1.0

  • Verified compatibility with ironSource SDK version 6.16.1.

Built and tested with:

  • Google Mobile Ads SDK version 7.58.0.
  • IronSource SDK version 6.16.1.

Version 6.16.0.0

  • Verified compatibility with ironSource SDK version 6.16.0.
  • Now requires Google Mobile Ads SDK version 7.58.0 or higher.

Built and tested with:

  • Google Mobile Ads SDK version 7.58.0.
  • IronSource SDK version 6.16.0.

Version 6.15.0.1.0

  • Verified compatibility with ironSource SDK version 6.15.0.1.

Built and tested with:

  • Google Mobile Ads SDK version 7.57.0.
  • IronSource SDK version 6.15.0.1.

Version 6.15.0.0

  • Verified compatibility with ironSource SDK version 6.15.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.57.0.
  • IronSource SDK version 6.15.0.

Version 6.14.0.0

  • Verified compatibility with ironSource SDK version 6.14.0.
  • Removed support for the i386 architecture.

Built and tested with:

  • Google Mobile Ads SDK version 7.56.0.
  • IronSource SDK version 6.14.0.

Version 6.13.0.1.0

  • Verified compatibility with ironSource SDK version 6.13.0.1.

Built and tested with:

  • Google Mobile Ads SDK version 7.53.1.
  • IronSource SDK version 6.13.0.1.

Version 6.12.0.0

  • Verified compatibility with ironSource SDK version 6.12.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.53.1.
  • IronSource SDK version 6.12.0.

Version 6.11.0.0

  • Verified compatibility with ironSource SDK version 6.11.0.

Built and tested with:

  • Google Mobile Ads SDK version 7.52.0.
  • IronSource SDK version 6.11.0.

Version 6.8.7.0

  • Verified compatibility with ironSource SDK version 6.8.7.

Version 6.8.6.0

  • Verified compatibility with ironSource SDK version 6.8.6.

Version 6.8.5.0

  • Verified compatibility with ironSource SDK version 6.8.5.

Version 6.8.4.1.0

  • Verified compatibility with ironSource SDK version 6.8.4.1.

Version 6.8.4.1

  • Added code to send correct version number to ironSource SDK.

Version 6.8.4.0

  • Verified compatibility with ironSource SDK version 6.8.4.

Version 6.8.3.0

  • Verified compatibility with ironSource SDK 6.8.3.
  • Added support to request multiple interstitial ads.
  • Fix crashes when loading rewarded ads.
  • This version of the adapter requires a Google Mobile Ads SDK of version 7.42.2 or above.

Version 6.8.0.1

  • Updated the adapter to use new rewarded API
  • This version of the adapter requires a Google Mobile Ads SDK of version 7.41.0 or above

Version 6.8.0.0

  • Verified compatibility with ironSource SDK 6.8.0

Version 6.7.12.0

  • Verified compatibility with ironSource SDK 6.7.12

Version 6.7.11.0

  • Verified compatibility with ironSource SDK 6.7.11

Version 6.7.10.0

  • Verified compatibility with ironSource SDK 6.7.10

Version 6.7.9.3.1

  • Added adapterDidCompletePlayingRewardBasedVideoAd: callback to the adapter.

Version 6.7.9.3.0

  • Verified compatibility with ironSource SDK 6.7.9.3

Version 6.7.9.2.0

  • Verified compatibility with ironSource SDK 6.7.9.2

Version 6.7.9.1.0

  • Verified compatibility with ironSource SDK 6.7.9.1

Version 6.7.8.0

  • Verified compatibility with ironSource SDK 6.7.8

Version 6.7.7.0

  • Initiate IronSource SDK once per ad unit.

Version 6.7.5.0

  • Initial release!
  • Supports interstitial and rewarded video ads.
