Component: ConceptProperty

Stay organized with collections Save and categorize content based on your preferences.

Element: ConceptProperty / info

Namespace http://schemas.google.com/dspl/2010
Annotations Textual information about the concept property.

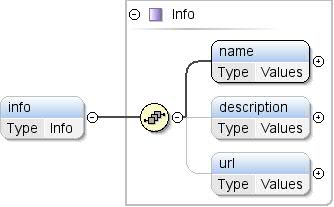

Diagram Diagram dspl4.tmp#id7 dspl4.tmp#id14 dspl4.tmp#id15 dspl4.tmp#id6
Type Info
Properties
content: complex
minOccurs: 0
Model name , description{0,1} , url{0,1}
Children description, name, url
Instance
<info>
  <name>{1,1}</name>
  <description>{0,1}</description>
  <url>{0,1}</url>
</info>
Source
<xs:element name="info" type="Info" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Textual information about the concept property.</xs:documentation>
  </xs:annotation>
</xs:element>

Element: ConceptProperty / type

Namespace http://schemas.google.com/dspl/2010
Annotations The data type of the concept property.
Diagram Diagram dspl8.tmp#id52
Properties
content: complex
minOccurs: 0
Attributes
QName Type Fixed Default Use Annotation
ref DataType required
Source
<xs:element name="type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The data type of the concept property.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="ref" type="DataType" use="required"/>
  </xs:complexType>
</xs:element>

Complex Type: ConceptProperty

Namespace http://schemas.google.com/dspl/2010
Annotations A property of a concept (e.g., the country of a city).
Diagram Diagram dspl8.tmp#id53 dspl8.tmp#id54 dspl8.tmp#id55 dspl8.tmp#id56 dspl8.tmp#id50 dspl8.tmp#id51
Used by
Element Concept/property
Model info{0,1} , type{0,1}
Children info, type
Attributes
QName Type Fixed Default Use Annotation
concept xs:QName optional A reference to a concept that corresponds to the values of the property. If the property specifies a type, then the type must match the type of the referenced concept. A reference to an external concept must be of the form "prefix:other_concept_id", where "prefix" is the prefix used for the namespace of the external dataset (see XML namespaces).
id LocalId optional The id of the concept property. This identifier must be unique within the concept (across attributes and properties). The id may be omitted if the concept property is specified. In that case, an id is implicitly created with value the local name of the referenced concept. For instance <property concept="geo:country"/> is equivalent to <property id="country" concept="geo:country"/>
isMapping xs:boolean false optional If true, then this property must reference a concept, and this property denotes a mapping (1-to-1) relationship between this concept and the referenced concept. Each instance of the referenced concept is referenced by at most one instance of this concept.
isParent xs:boolean false optional If true, then this property must reference a concept, and this property denotes a hierarchical relationship between this concept and the referenced concept (e.g., the continent of a country).
Source
<xs:complexType name="ConceptProperty">
  <xs:annotation>
    <xs:documentation>A property of a concept (e.g., the country of a city).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="info" type="Info" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Textual information about the concept property.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The data type of the concept property.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="ref" type="DataType" use="required"/>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
  <xs:attribute name="id" type="LocalId" use="optional">
    <xs:annotation>
      <xs:documentation>The id of the concept property. This identifier must be unique within the concept
          (across attributes and properties).

          The id may be omitted if the concept property is specified. In that case, an id is
          implicitly created with value the local name of the referenced concept. For instance

          <property concept="geo:country"/>

          is equivalent to

          <property id="country" concept="geo:country"/></xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="concept" type="xs:QName" use="optional">
    <xs:annotation>
      <xs:documentation>A reference to a concept that corresponds to the values of the property.

          If the property specifies a type, then the type must match the type of the
          referenced concept.

          A reference to an external concept must be of the form "prefix:other_concept_id",
          where "prefix" is the prefix used for the namespace of the external dataset
          (see XML namespaces).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="isParent" type="xs:boolean" use="optional" default="false">
    <xs:annotation>
      <xs:documentation>If true, then this property must reference a
          concept, and this property denotes a hierarchical
          relationship between this concept and the referenced
          concept (e.g., the continent of a country).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="isMapping" type="xs:boolean" use="optional" default="false">
    <xs:annotation>
      <xs:documentation>If true, then this property must reference a
          concept, and this property denotes a mapping
          (1-to-1) relationship between this concept and the
          referenced concept. Each instance of the referenced
          concept is referenced by at most one instance of
          this concept.</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

Attribute: ConceptProperty / type / @ref

Namespace No namespace
Type DataType
Properties
use: required
Facets
enumeration string
enumeration float
enumeration integer
enumeration boolean
enumeration date
enumeration concept
Used by
Element ConceptProperty/type
Source
<xs:attribute name="ref" type="DataType" use="required"/>

Attribute: ConceptProperty / @id

Namespace No namespace
Annotations The id of the concept property. This identifier must be unique within the concept (across attributes and properties). The id may be omitted if the concept property is specified. In that case, an id is implicitly created with value the local name of the referenced concept. For instance <property concept="geo:country"/> is equivalent to <property id="country" concept="geo:country"/>
Type LocalId
Properties
use: optional
Facets
maxLength 64
Used by
Complex Type ConceptProperty
Source
<xs:attribute name="id" type="LocalId" use="optional">
  <xs:annotation>
    <xs:documentation>The id of the concept property. This identifier must be unique within the concept
          (across attributes and properties).

          The id may be omitted if the concept property is specified. In that case, an id is
          implicitly created with value the local name of the referenced concept. For instance

          <property concept="geo:country"/>

          is equivalent to

          <property id="country" concept="geo:country"/></xs:documentation>
  </xs:annotation>
</xs:attribute>

Attribute: ConceptProperty / @concept

Namespace No namespace
Annotations A reference to a concept that corresponds to the values of the property. If the property specifies a type, then the type must match the type of the referenced concept. A reference to an external concept must be of the form "prefix:other_concept_id", where "prefix" is the prefix used for the namespace of the external dataset (see XML namespaces).
Type xs:QName
Properties
use: optional
Used by
Complex Type ConceptProperty
Source
<xs:attribute name="concept" type="xs:QName" use="optional">
  <xs:annotation>
    <xs:documentation>A reference to a concept that corresponds to the values of the property.

          If the property specifies a type, then the type must match the type of the
          referenced concept.

          A reference to an external concept must be of the form "prefix:other_concept_id",
          where "prefix" is the prefix used for the namespace of the external dataset
          (see XML namespaces).</xs:documentation>
  </xs:annotation>
</xs:attribute>

Attribute: ConceptProperty / @isParent

Namespace No namespace
Annotations If true, then this property must reference a concept, and this property denotes a hierarchical relationship between this concept and the referenced concept (e.g., the continent of a country).
Type xs:boolean
Properties
use: optional
default: false
Used by
Complex Type ConceptProperty
Source
<xs:attribute name="isParent" type="xs:boolean" use="optional" default="false">
  <xs:annotation>
    <xs:documentation>If true, then this property must reference a
          concept, and this property denotes a hierarchical
          relationship between this concept and the referenced
          concept (e.g., the continent of a country).</xs:documentation>
  </xs:annotation>
</xs:attribute>

Attribute: ConceptProperty / @isMapping

Namespace No namespace
Annotations If true, then this property must reference a concept, and this property denotes a mapping (1-to-1) relationship between this concept and the referenced concept. Each instance of the referenced concept is referenced by at most one instance of this concept.
Type xs:boolean
Properties
use: optional
default: false
Used by
Complex Type ConceptProperty
Source
<xs:attribute name="isMapping" type="xs:boolean" use="optional" default="false">
  <xs:annotation>
    <xs:documentation>If true, then this property must reference a
          concept, and this property denotes a mapping
          (1-to-1) relationship between this concept and the
          referenced concept. Each instance of the referenced
          concept is referenced by at most one instance of
          this concept.</xs:documentation>
  </xs:annotation>
</xs:attribute>
