Component: Data

  • The "Data" element is an extension of the xs:string type and is used to represent data for a table.

  • Data is formatted as a "file" element which has optional "format" and "encoding" attributes.

  • By default, the "format" attribute is set to "csv", and "encoding" is set to "utf-8".

  • While other formats may be specified for the "format" attribute, the Google importer currently only supports CSV.

Element: Data / file

Namespace http://schemas.google.com/dspl/2010

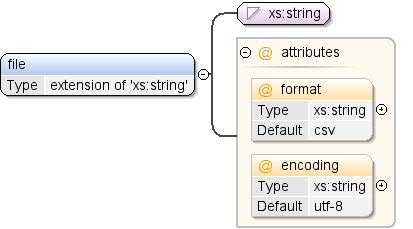

Diagram Diagram dspl11.tmp#id100 dspl11.tmp#id101
Type extension of xs:string
Properties
content: complex
Attributes
QName Type Fixed Default Use Annotation
encoding xs:string utf-8 optional The encoding of data in the file.
format xs:string csv optional The format of the data in the file. Implementation note: CSV is the only format currently supported by the Google importer.
Source
<xs:element name="file">
  <xs:complexType>
    <xs:simpleContent>
      <xs:extension base="xs:string">
        <xs:attribute name="format" type="xs:string" use="optional" default="csv">
          <xs:annotation>
            <xs:documentation>The format of the data in the file.

                    Implementation note: CSV is the only format
                    currently supported by the Google importer.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
        <xs:attribute name="encoding" type="xs:string" use="optional" default="utf-8">
          <xs:annotation>
            <xs:documentation>The encoding of data in the file.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
</xs:element>

Complex Type: Data

Namespace http://schemas.google.com/dspl/2010
Annotations Data for a table.
Diagram Diagram dspl11.tmp#id99
Used by
Element Table/data
Model file
Children file
Source
<xs:complexType name="Data">
  <xs:annotation>
    <xs:documentation>Data for a table.</xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="file">
      <xs:complexType>
        <xs:simpleContent>
          <xs:extension base="xs:string">
            <xs:attribute name="format" type="xs:string" use="optional" default="csv">
              <xs:annotation>
                <xs:documentation>The format of the data in the file.

                    Implementation note: CSV is the only format
                    currently supported by the Google importer.</xs:documentation>
              </xs:annotation>
            </xs:attribute>
            <xs:attribute name="encoding" type="xs:string" use="optional" default="utf-8">
              <xs:annotation>
                <xs:documentation>The encoding of data in the file.</xs:documentation>
              </xs:annotation>
            </xs:attribute>
          </xs:extension>
        </xs:simpleContent>
      </xs:complexType>
    </xs:element>
  </xs:choice>
</xs:complexType>

Attribute: Data / file / @format

Namespace No namespace
Annotations The format of the data in the file. Implementation note: CSV is the only format currently supported by the Google importer.
Type xs:string
Properties
use: optional
default: csv
Used by
Element Data/file
Source
<xs:attribute name="format" type="xs:string" use="optional" default="csv">
  <xs:annotation>
    <xs:documentation>The format of the data in the file.

                    Implementation note: CSV is the only format
                    currently supported by the Google importer.</xs:documentation>
  </xs:annotation>
</xs:attribute>

Attribute: Data / file / @encoding

Namespace No namespace
Annotations The encoding of data in the file.
Type xs:string
Properties
use: optional
default: utf-8
Used by
Element Data/file
Source
<xs:attribute name="encoding" type="xs:string" use="optional" default="utf-8">
  <xs:annotation>
    <xs:documentation>The encoding of data in the file.</xs:documentation>
  </xs:annotation>
</xs:attribute>
