DSPL 스키마

이 페이지와 연결된 하위 페이지에서는 DSPL XML 스키마를 설명합니다. 이 자료는 고급 사용자를 대상으로 하며, 언어에 대한 하위 수준 세부정보 대부분의 사용자에게는 <ph type="x-smartling-placeholder"></ph>에 콘텐츠를 만들고 수정하려면 개발자 가이드면 충분해야 합니다. DSPL 데이터 세트

전체 XML 스키마는 DSPL 코드 사이트에서 XSD 형식으로 다운로드할 수 있습니다.

요소: dspl

네임스페이스 http://schemas.google.com/dspl/2010
주석 DSPL 사양은 데이터 세트를 설명합니다. 데이터 세트는 네임스페이스로 식별됩니다 데이터 세트는 다음으로 구성됩니다. 요소: - 테이블: 데이터 세트 - 개념: 데이터 세트에서 사용되는 사용자 지정 정의 및 구조 데이터세트 - 슬라이스: 데이터 세트 - 주제: 개념 정리에 사용되는 계층적 라벨 데이터 세트
다이어그램 다이어그램 dspl9.tmp#id103 dspl9.tmp#id2 dspl9.tmp#id5 dspl9.tmp#id16 dspl9.tmp#id17 dspl9.tmp#id27 dspl9.tmp#id35 dspl9.tmp#id68 dspl9.tmp#id86
속성
콘텐츠: 복잡함
모델 import* , info , provider , attribute* , topics{0,1} , concepts{0,1} , slices{0,1} , tables{0,1}
어린이 속성, 개념, 가져오기, 정보, 제공업체, 슬라이스, , 주제
인스턴스
<dspl targetNamespace="">
  <import location="" namespace="">{0,unbounded}</import>
  <info>{1,1}</info>
  <provider>{1,1}</provider>
  <attribute concept="" id="">{0,unbounded}</attribute>
  <topics>{0,1}</topics>
  <concepts>{0,1}</concepts>
  <slices>{0,1}</slices>
  <tables>{0,1}</tables>
</dspl>
속성
QName 유형 고정 기본값 사용 Annotation
targetNamespace xs:anyURI 선택사항 각 데이터 세트는 대상 네임스페이스를 제공할 수 있습니다. 타겟 네임스페이스는 데이터 세트를 고유하게 식별하는 URI입니다. XML에서 네임스페이스를 사용하는 방법에 관한 자세한 내용은 http://www.w3.org/TR/REC-xml-names/를 참고하세요. targetNamespace가 제공되지 않으면 데이터 세트를 가져올 때 네임스페이스가 생성됩니다.
소스
<xs:element name="dspl">
  <xs:annotation>
    <xs:documentation>A DSPL specification describes a dataset. A dataset is
        identified by its namespace. A dataset is comprised of the
        following elements:

        - Tables: Data for the concepts and slices defined in the
        dataset

        - Concepts: User-specified definitions and structures used in
        the dataset

        - Slices: Combinations of dimensions and metrics present in
        the dataset

        - Topics: Hierarchical labels used to organise the concepts of
        the dataset</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="import" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Import directive for external datasets -- modeled after
              the XML Schema import directive.  In order to use
              elements defined in an external dataset, the external
              dataset must be referenced using an import directive.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:attribute name="namespace" use="required">
            <xs:annotation>
              <xs:documentation>The namespace of the imported dataset, specified as
                  a URI. A prefix must be associated with this
                  namespace before its contents can be referenced. See
                  [XML Namespaces] for more information about the use
                  of namespaces and prefixes in XML.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
          <xs:attribute name="location" use="optional">
            <xs:annotation>
              <xs:documentation>An optional location where the definition of the
                  imported dataset can be found, specified as a
                  URL. If the location is omitted, the system
                  processing this DSPL dataset must already know the
                  imported dataset.

                  Implementation note: The Google dataset importer
                  ignores the location attribute. Any imported dataset
                  must be known by the Google importer beforehand.</xs:documentation>
            </xs:annotation>
          </xs:attribute>
        </xs:complexType>
      </xs:element>
      <xs:element name="info" type="Info" minOccurs="1">
        <xs:annotation>
          <xs:documentation>General information about the dataset.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="provider" type="Info">
        <xs:annotation>
          <xs:documentation>General information about the dataset provider.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="attribute" type="Attribute" minOccurs="0" maxOccurs="unbounded">
        <xs:annotation>
          <xs:documentation>Attribute associated with the dataset.</xs:documentation>
        </xs:annotation>
      </xs:element>
      <xs:element name="topics" minOccurs="0">
        <xs:annotation>
          <xs:documentation>A hierarchy of topics used to organize the contents of
              the dataset. The order in which topics are given is
              meaningful and should be respected by visualizations
              that displays these topics.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="topic" type="Topic" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="concepts" minOccurs="0">
        <xs:annotation>
          <xs:documentation>A list of concepts defined in this dataset.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="concept" type="Concept" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="slices" minOccurs="0">
        <xs:annotation>
          <xs:documentation>A list of slices defined in this dataset.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="slice" type="Slice" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
      <xs:element name="tables" minOccurs="0">
        <xs:annotation>
          <xs:documentation>A list of tables defined in this dataset.</xs:documentation>
        </xs:annotation>
        <xs:complexType>
          <xs:sequence>
            <xs:element name="table" type="Table" maxOccurs="unbounded"/>
          </xs:sequence>
        </xs:complexType>
      </xs:element>
    </xs:sequence>
    <xs:attribute name="targetNamespace" type="xs:anyURI" use="optional">
      <xs:annotation>
        <xs:documentation>Each dataset may provide a target namespace. The
              target namespace is a URI that uniquely identifies the
              dataset. For more information about the use of namespaces in XML,
              see:

              http://www.w3.org/TR/REC-xml-names/

              If no targetNamespace is provided,  then a namespace will be
              generated when the dataset is imported.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

요소: dspl / 가져오기

네임스페이스 http://schemas.google.com/dspl/2010
주석 외부 데이터 세트 가져오기 디렉티브: XML 스키마 가져오기 디렉티브를 모델로 합니다. 외부 데이터 세트인 경우 가져오기를 사용하여 외부 데이터 세트를 참조해야 합니다. 지시어.
다이어그램 다이어그램 dspl9.tmp#id3 dspl9.tmp#id4
속성
콘텐츠: 복잡함
minOccurs: 0
maxOccurs: unbounded
속성
QName 유형 고정 기본값 사용 Annotation
location 선택사항 가져온 데이터 세트를 찾을 수 있으며 URL로 지정합니다. 위치가 생략된 경우 이 DSPL 데이터 세트를 처리하는 시스템은 데이터 세트입니다. 구현 메모: Google 데이터 세트 가져오기는 위치 속성을 무시합니다. 가져온 데이터 세트는 Google 수입업체가 사전에 알 수 있어야 합니다.
namespace 필수 가져온 데이터 세트의 네임스페이스로, URI로 지정됩니다. 네임스페이스에서 접두사를 연결하면 접두사가 참조될 수 있습니다 자세한 내용은 [XML 네임스페이스] 를 참고하세요. 네임스페이스 및 접두사 사용에 대한 정보는 XML입니다.
소스
<xs:element name="import" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Import directive for external datasets -- modeled after
              the XML Schema import directive.  In order to use
              elements defined in an external dataset, the external
              dataset must be referenced using an import directive.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="namespace" use="required">
      <xs:annotation>
        <xs:documentation>The namespace of the imported dataset, specified as
                  a URI. A prefix must be associated with this
                  namespace before its contents can be referenced. See
                  [XML Namespaces] for more information about the use
                  of namespaces and prefixes in XML.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
    <xs:attribute name="location" use="optional">
      <xs:annotation>
        <xs:documentation>An optional location where the definition of the
                  imported dataset can be found, specified as a
                  URL. If the location is omitted, the system
                  processing this DSPL dataset must already know the
                  imported dataset.

                  Implementation note: The Google dataset importer
                  ignores the location attribute. Any imported dataset
                  must be known by the Google importer beforehand.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

요소: dspl/정보

네임스페이스 http://schemas.google.com/dspl/2010
주석 데이터 세트에 대한 일반 정보.

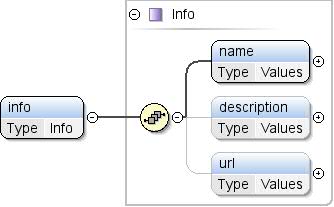

다이어그램 다이어그램 dspl4.tmp#id7 dspl4.tmp#id14 dspl4.tmp#id15 dspl4.tmp#id6
유형 정보
속성
콘텐츠: 복잡함
minOccurs: 1
모델 이름 , 설명{0,1} , url{0,1}
어린이 설명, 이름, URL
인스턴스
<info>
  <name>{1,1}</name>
  <description>{0,1}</description>
  <url>{0,1}</url>
</info>
소스
<xs:element name="info" type="Info" minOccurs="1">
  <xs:annotation>
    <xs:documentation>General information about the dataset.</xs:documentation>
  </xs:annotation>
</xs:element>

요소: dspl / provider

네임스페이스 http://schemas.google.com/dspl/2010
주석 데이터 세트 제공업체에 대한 일반 정보
다이어그램 다이어그램 dspl4.tmp#id7 dspl4.tmp#id14 dspl4.tmp#id15 dspl4.tmp#id6
유형 정보
속성
콘텐츠: 복잡함
모델 이름 , 설명{0,1} , url{0,1}
어린이 설명, 이름, URL
인스턴스
<provider>
  <name>{1,1}</name>
  <description>{0,1}</description>
  <url>{0,1}</url>
</provider>
소스
<xs:element name="provider" type="Info">
  <xs:annotation>
    <xs:documentation>General information about the dataset provider.</xs:documentation>
  </xs:annotation>
</xs:element>

요소: dspl / 속성

네임스페이스 http://schemas.google.com/dspl/2010
주석 데이터 세트와 연결된 속성입니다.
다이어그램 다이어그램 dspl14.tmp#id24 dspl14.tmp#id26 dspl14.tmp#id19 dspl14.tmp#id20 dspl0.tmp#id10 dspl0.tmp#id12 dspl0.tmp#id9 dspl14.tmp#id18
유형 속성
속성
콘텐츠: 복잡함
minOccurs: 0
maxOccurs: unbounded
모델 info{0,1} , type{0,1} , (값* | conceptValue{0,1})
어린이 conceptValue, info, type,
인스턴스
<attribute concept="" id="">
  <info>{0,1}</info>
  <type format="" ref="">{0,1}</type>
</attribute>
속성
QName 유형 고정 기본값 사용 Annotation
개념 xs:QName 선택사항 값에 해당하는 개념에 대한 참조입니다. 속성입니다. 속성이 유형을 지정하는 경우 유형은 참조된 개념의 유형과 일치해야 합니다. 참조는 외부 개념은 'prefix:other_concept_id', 여기서 'prefix' 은 외부 데이터 세트의 네임스페이스에 사용되는 프리픽스입니다 (XML 참조). 네임스페이스)
id LocalId 선택사항 개념 속성의 ID입니다. 이 식별자는 개념 내에서 고유해야 합니다(속성 및 속성 전체). 개념 속성이 지정된 경우 ID를 생략할 수 있습니다. 이 경우 참조된 개념의 로컬 이름을 값으로 사용하여 ID가 암시적으로 생성됩니다. 예: <attribute concept=&quot;unit:currency&quot;/&gt; 위 항목은 다음과 동일합니다. <attribute id="currency" concept=&quot;unit:currency&quot;/&gt;
소스
<xs:element name="attribute" type="Attribute" minOccurs="0" maxOccurs="unbounded">
  <xs:annotation>
    <xs:documentation>Attribute associated with the dataset.</xs:documentation>
  </xs:annotation>
</xs:element>

요소: dspl / topics

네임스페이스 http://schemas.google.com/dspl/2010
주석 주제의 계층 구조는 뉴스 기사의 콘텐츠를 데이터 세트로 그룹화됩니다. 주제가 주어지는 순서는 의미가 있으므로 이러한 주제를 표시하는 시각화로 존중하는 것을 볼 수 있습니다.
다이어그램 다이어그램 dspl9.tmp#id28
속성
콘텐츠: 복잡함
minOccurs: 0
모델 주제+
어린이 주제
인스턴스
<topics>
  <topic id="" parentTopic="">{1,unbounded}</topic>
</topics>
소스
<xs:element name="topics" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A hierarchy of topics used to organize the contents of
              the dataset. The order in which topics are given is
              meaningful and should be respected by visualizations
              that displays these topics.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="topic" type="Topic" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

요소: dspl / topics / 주제

네임스페이스 http://schemas.google.com/dspl/2010
다이어그램 다이어그램 dspl15.tmp#id32 dspl15.tmp#id34 dspl15.tmp#id30 dspl15.tmp#id31 dspl15.tmp#id29
유형 주제
속성
콘텐츠: 복잡한
maxOccurs: unbounded
모델 정보 , 주제*
어린이 정보, 주제
인스턴스
<topic id="" parentTopic="">
  <info>{1,1}</info>
  <topic id="" parentTopic="">{0,unbounded}</topic>
</topic>
속성
QName 유형 고정 기본값 사용 Annotation
id ID 필수 데이터 세트입니다
parentTopic xs:QName 선택사항 이 주제에 상위 주제가 있는 경우, 이 ID의 ID입니다. 내부에 인라인된 주제에는 parentTopic을 지정할 수 없습니다. 다른 주제도 살펴보세요.
소스
<xs:element name="topic" type="Topic" maxOccurs="unbounded"/>

요소: dspl/개념

네임스페이스 http://schemas.google.com/dspl/2010
주석 이 데이터 세트에 정의된 개념 목록입니다.
다이어그램 다이어그램 dspl9.tmp#id36
속성
콘텐츠: 복잡함
minOccurs: 0
모델 개념+
어린이 개념
인스턴스
<concepts>
  <concept extends="" id="">{1,unbounded}</concept>
</concepts>
소스
<xs:element name="concepts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A list of concepts defined in this dataset.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="concept" type="Concept" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

요소: dspl / concepts / concept

네임스페이스 http://schemas.google.com/dspl/2010
다이어그램 다이어그램 dspl6.tmp#id66 dspl6.tmp#id67 dspl6.tmp#id38 dspl6.tmp#id43 dspl6.tmp#id45 dspl6.tmp#id47 dspl6.tmp#id48 dspl6.tmp#id57 dspl6.tmp#id58 dspl6.tmp#id37
유형 개념
속성
콘텐츠: 복잡한
maxOccurs: unbounded
모델 info , topic* , type{0,1} , attribute* , property* , defaultValue{0,1} , table{0,1}
어린이 attribute, defaultValue, info, 속성, , 주제, 유형
인스턴스
<concept extends="" id="">
  <info>{1,1}</info>
  <topic ref="">{0,unbounded}</topic>
  <type ref="">{0,1}</type>
  <attribute concept="" id="">{0,unbounded}</attribute>
  <property concept="" id="" isMapping="false" isParent="false">{0,unbounded}</property>
  <defaultValue>{0,1}</defaultValue>
  <table ref="">{0,1}</table>
</concept>
속성
QName 유형 고정 기본값 사용 Annotation
확장 xs:QName 선택사항 이 개념이 제공하는 개념의 고유 식별자입니다. 확장됩니다. 참조된 개념이 동일한 데이터 세트에 정의될 수 있습니다. 데이터를 공유할 수 있습니다 외부 개념은 'prefix:other_concept_id' 형식이어야 합니다. 여기서 'prefix' 는 외부 데이터 세트 (XML 네임스페이스 참고)
id ID 필수 개념의 고유 식별자로서 데이터 세트 내에서 전역적으로 고유합니다.
소스
<xs:element name="concept" type="Concept" maxOccurs="unbounded"/>

요소: dspl / 슬라이스

네임스페이스 http://schemas.google.com/dspl/2010
주석 이 데이터 세트에 정의된 슬라이스 목록입니다.
다이어그램 다이어그램 dspl9.tmp#id69
속성
콘텐츠: 복잡함
minOccurs: 0
모델 슬라이스+
어린이 slice
인스턴스
<slices>
  <slice id="">{1,unbounded}</slice>
</slices>
소스
<xs:element name="slices" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A list of slices defined in this dataset.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="slice" type="Slice" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

요소: dspl / slices / 슬라이스

네임스페이스 http://schemas.google.com/dspl/2010
다이어그램 다이어그램 dspl2.tmp#id85 dspl2.tmp#id71 dspl2.tmp#id72 dspl2.tmp#id75 dspl2.tmp#id76 dspl2.tmp#id70
유형 슬라이스
속성
콘텐츠: 복잡한
maxOccurs: unbounded
모델 info{0,1} , 측정기준+ , 측정항목+ ,
어린이 측정기준, 정보, 측정항목
인스턴스
<slice id="">
  <info>{0,1}</info>
  <dimension concept="">{1,unbounded}</dimension>
  <metric concept="">{1,unbounded}</metric>
  <table ref="">{1,1}</table>
</slice>
속성
QName 유형 고정 기본값 사용 Annotation
id ID 필수 슬라이스의 고유 식별자입니다.
소스
<xs:element name="slice" type="Slice" maxOccurs="unbounded"/>

요소: dspl / 테이블

네임스페이스 http://schemas.google.com/dspl/2010
주석 이 데이터 세트에 정의된 테이블 목록입니다.
다이어그램 다이어그램 dspl9.tmp#id87
속성
콘텐츠: 복잡함
minOccurs: 0
모델 table+
어린이
인스턴스
<tables>
  <table id="">{1,unbounded}</table>
</tables>
소스
<xs:element name="tables" minOccurs="0">
  <xs:annotation>
    <xs:documentation>A list of tables defined in this dataset.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="table" type="Table" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

요소: dspl / 테이블 / 테이블

네임스페이스 http://schemas.google.com/dspl/2010
다이어그램 다이어그램 dspl10.tmp#id102 dspl10.tmp#id89 dspl10.tmp#id90 dspl10.tmp#id97 dspl10.tmp#id88
유형
속성
콘텐츠: 복잡한
maxOccurs: unbounded
모델 info{0,1} , column+ , data{0,1}
어린이 , 데이터, 정보
인스턴스
<table id="">
  <info>{0,1}</info>
  <column format="" id="" type="">{1,unbounded}</column>
  <data>{0,1}</data>
</table>
속성
QName 유형 고정 기본값 사용 Annotation
id ID 필수 데이터 세트입니다
소스
<xs:element name="table" type="Table" maxOccurs="unbounded"/>

속성: dspl / import / @namespace

네임스페이스 네임스페이스 없음
주석 URI로 지정된 가져온 데이터 세트의 네임스페이스입니다. 가 접두사를 이 네임스페이스와 연결해야 내용을 편집할 수 있습니다. 참조됩니다. 다음 항목의 사용에 대한 자세한 내용은 [XML 네임스페이스] 를 참조하세요. 네임스페이스와 접두사를 모두 지원합니다.
속성
대신 다음을 사용합니다. 필수
사용 주체
요소 dspl/import
소스
<xs:attribute name="namespace" use="required">
  <xs:annotation>
    <xs:documentation>The namespace of the imported dataset, specified as
                  a URI. A prefix must be associated with this
                  namespace before its contents can be referenced. See
                  [XML Namespaces] for more information about the use
                  of namespaces and prefixes in XML.</xs:documentation>
  </xs:annotation>
</xs:attribute>

속성: dspl / import / @location

네임스페이스 네임스페이스 없음
주석 가져온 데이터 세트를 찾을 수 있으며 URL로 지정합니다. 위치가 생략된 경우 이 DSPL 데이터 세트를 처리하는 시스템은 가져온 데이터 세트로 그룹화됩니다. 구현 참고사항: Google 데이터 세트 가져오기 도구는 location 속성입니다. 가져온 모든 데이터 세트는 Google 사전에 가져오는 것이 좋습니다.
속성
대신 다음을 사용합니다. 선택사항
사용 주체
요소 dspl/import
소스
<xs:attribute name="location" use="optional">
  <xs:annotation>
    <xs:documentation>An optional location where the definition of the
                  imported dataset can be found, specified as a
                  URL. If the location is omitted, the system
                  processing this DSPL dataset must already know the
                  imported dataset.

                  Implementation note: The Google dataset importer
                  ignores the location attribute. Any imported dataset
                  must be known by the Google importer beforehand.</xs:documentation>
  </xs:annotation>
</xs:attribute>

속성: dspl / @targetNamespace

네임스페이스 네임스페이스 없음
주석 각 데이터 세트는 대상 네임스페이스를 제공할 수 있습니다. 타겟 네임스페이스는 데이터 세트를 고유하게 식별하는 URI입니다. 자세한 내용은 XML에서 네임스페이스 사용에 대한 자세한 내용은 다음을 참조하세요. http://www.w3.org/TR/REC-xml-names/ targetNamespace를 입력하지 않은 경우 데이터세트가 생성될 때 네임스페이스가 생성됩니다. 있습니다.
유형 xs:anyURI
속성
대신 다음을 사용합니다. 선택사항
사용 주체
요소 dspl
소스
<xs:attribute name="targetNamespace" type="xs:anyURI" use="optional">
  <xs:annotation>
    <xs:documentation>Each dataset may provide a target namespace. The
              target namespace is a URI that uniquely identifies the
              dataset. For more information about the use of namespaces in XML,
              see:

              http://www.w3.org/TR/REC-xml-names/

              If no targetNamespace is provided,  then a namespace will be
              generated when the dataset is imported.</xs:documentation>
  </xs:annotation>
</xs:attribute>

다음을 사용하여 생성: oXygen XML 편집기.
