Bileşen: Özellik

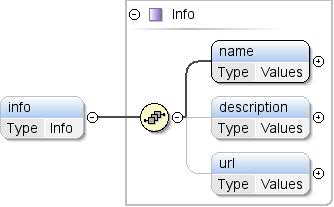

Öğe: Özellik / bilgi

Ad alanı http://schemas.google.com/dspl/2010
Ek açıklamalar Özellik hakkında metinsel bilgiler.
Şema Şema dspl4.tmp#id7 dspl4.tmp#id14 dspl4.tmp#id15 dspl4.tmp#id6
Tür Bilgi
Özellikler
içerik: karmaşık
MinOccurs: 0
Model ad , açıklama{0,1} , url{0,1}
Çocuklar description, ad, url
Örnek
<info>
  <name>{1,1}</name>
  <description>{0,1}</description>
  <url>{0,1}</url>
</info>
Kaynak
<xs:element name="info" type="Info" minOccurs="0">
  <xs:annotation>
    <xs:documentation>Textual information about the attribute.</xs:documentation>
  </xs:annotation>
</xs:element>

Öğe: Özellik / tür

Ad alanı http://schemas.google.com/dspl/2010
Ek açıklamalar Özelliğin veri türü.
Şema Şema dspl14.tmp#id21 dspl14.tmp#id23
Özellikler
içerik: karmaşık
MinOccurs: 0
Özellikler
QName Tür Düzeltildi Varsayılan Kullan Ek Açıklama
biçim xs:string isteğe bağlı Metin verilerini ayrıştırmak için kullanılan değer biçimi temsil eder. Ayrıntılı bilgi için [Tarih biçimleri spesifikasyonu] seçin.
başvuru DataType zorunlu
Kaynak
<xs:element name="type" minOccurs="0">
  <xs:annotation>
    <xs:documentation>The data type of the attribute.</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:attribute name="ref" type="DataType" use="required"/>
    <xs:attribute name="format" type="xs:string" use="optional">
      <xs:annotation>
        <xs:documentation>A format for the value, used to parse a textual
                representation of the values. See [Date formats spec]
                for dates.</xs:documentation>
      </xs:annotation>
    </xs:attribute>
  </xs:complexType>
</xs:element>

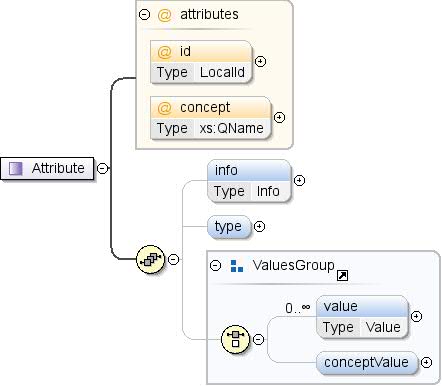

Karmaşık Tür: Özellik

Ad alanı http://schemas.google.com/dspl/2010
Ek açıklamalar Veri kümesi veya kavram özelliği.
Şema Şema dspl14.tmp#id24 dspl14.tmp#id26 dspl14.tmp#id19 dspl14.tmp#id20 dspl0.tmp#id10 dspl0.tmp#id12 dspl0.tmp#id9
Kullanan reklam sayısı
Öğeler Kavram/özellik, dspl/attribute
Model info{0,1} , type{0,1} , (değer* | conceptValue{0,1})
Çocuklar conceptValue, bilgi, tür, değer
Özellikler
QName Tür Düzeltildi Varsayılan Kullan Ek Açıklama
kavram xs:QName isteğe bağlı Değerlere karşılık gelen bir kavrama yapılan referans içerir. Özellik bir tür belirtiyorsa tür, başvuruda bulunulan kavramın türüyle eşleşmelidir. Bir dış kavram şu biçimde olmalıdır: "prefix:other_concept_id"; burada "ön ek" : harici veri kümesinin ad alanı için kullanılan ön ek (bkz. XML) ad alanları) ayırmanızı sağlar.
id LocalId isteğe bağlı Konsept özelliğinin kimliği. Bu tanımlayıcı Kavram dahilinde benzersiz (özellikler ve özellikler genelinde) İlgili içeriği oluşturmak için kullanılan Kavram özelliği belirtilirse id atlanabilir. Bu durumda, kimlik, dizenin yerel adının değeri ile referans verilen bir kavramdır. Örneğin, <attribute concept=&quot;unit:currency&quot;/&gt; eşdeğerdir <attribute id="currency" concept=&quot;unit:currency&quot;/&gt;
Kaynak
<xs:complexType name="Attribute">
  <xs:annotation>
    <xs:documentation>An attribute of a dataset or a concept.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="info" type="Info" minOccurs="0">
      <xs:annotation>
        <xs:documentation>Textual information about the attribute.</xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="type" minOccurs="0">
      <xs:annotation>
        <xs:documentation>The data type of the attribute.</xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:attribute name="ref" type="DataType" use="required"/>
        <xs:attribute name="format" type="xs:string" use="optional">
          <xs:annotation>
            <xs:documentation>A format for the value, used to parse a textual
                representation of the values. See [Date formats spec]
                for dates.</xs:documentation>
          </xs:annotation>
        </xs:attribute>
      </xs:complexType>
    </xs:element>
    <xs:group ref="ValuesGroup" minOccurs="0"/>
  </xs:sequence>
  <xs:attribute name="id" type="LocalId" use="optional">
    <xs:annotation>
      <xs:documentation>The id of the concept attribute. This identifier must be unique within the concept
          (across attributes and properties).

          The id may be omitted if the concept attribute is specified. In that case, an id is
          implicity created with value the local name of the referenced concept. For instance

          <attribute concept="unit:currency"/>

          is equivalent to

          <attribute id="currency" concept="unit:currency"/></xs:documentation>
    </xs:annotation>
  </xs:attribute>
  <xs:attribute name="concept" type="xs:QName" use="optional">
    <xs:annotation>
      <xs:documentation>A reference to a concept that corresponds to the values of the attribute.

          If the attribute specifies a type, then the type must match the type of
          the referenced concept.

          A reference to an external concept must be of the form "prefix:other_concept_id",
          where "prefix" is the prefix used for the namespace of the external dataset
          (see XML namespaces).</xs:documentation>
    </xs:annotation>
  </xs:attribute>
</xs:complexType>

Özellik: Özellik / tür / @ref

Ad alanı Ad alanı yok
Tür DataType
Özellikler
kullanın: zorunlu
Özellikler
numaralandırma dize
numaralandırma kayan noktalı
numaralandırma tam sayı
numaralandırma boolean
numaralandırma tarih
numaralandırma kavram
Kullanan reklam sayısı
Öğe Özellik/tür
Kaynak
<xs:attribute name="ref" type="DataType" use="required"/>

Özellik: Özellik / tür / @format

Ad alanı Ad alanı yok
Ek açıklamalar Metin gösterimini ayrıştırmak için kullanılan değer biçimi değerleridir. Tarihler için [Tarih biçimleri spesifikasyonu] bölümüne bakın.
Tür xs:string
Özellikler
kullanın: isteğe bağlı
Kullanan reklam sayısı
Öğe Özellik/tür
Kaynak
<xs:attribute name="format" type="xs:string" use="optional">
  <xs:annotation>
    <xs:documentation>A format for the value, used to parse a textual
                representation of the values. See [Date formats spec]
                for dates.</xs:documentation>
  </xs:annotation>
</xs:attribute>

Özellik: Özellik / @id

Ad alanı Ad alanı yok
Ek açıklamalar Konsept özelliğinin kimliği. Bu tanımlayıcı benzersiz olmalıdır (özellikler ve özellikler genelinde) göstermek. Kimlik şöyle olabilir: Kavram özelliği belirtilirse atlanır. Bu durumda, kimlik referans verilen kavramın yerel adının değeriyle oluşturulan basitlik. Örneğin <attribute concept="unit:currency"/> : <attribute id="currency" ile eşdeğerdir concept=&quot;unit:currency&quot;/&gt;
Tür LocalId
Özellikler
kullanın: isteğe bağlı
Özellikler
maxLength 64
Kullanan reklam sayısı
Karmaşık Tür Özellik
Kaynak
<xs:attribute name="id" type="LocalId" use="optional">
  <xs:annotation>
    <xs:documentation>The id of the concept attribute. This identifier must be unique within the concept
          (across attributes and properties).

          The id may be omitted if the concept attribute is specified. In that case, an id is
          implicity created with value the local name of the referenced concept. For instance

          <attribute concept="unit:currency"/>

          is equivalent to

          <attribute id="currency" concept="unit:currency"/></xs:documentation>
  </xs:annotation>
</xs:attribute>

Özellik: Özellik / @kavram

Ad alanı Ad alanı yok
Ek açıklamalar Bir kavrama atıfta bulunan ve özelliğini gönderin. Özellik bir tür belirtiyorsa tür, referans verilen kavramın türünü belirtir. Harici bir kavrama referans "prefix:other_concept_id" biçiminde olmalıdır. "ön ek" harici (XML ad alanlarına bakın).
Tür xs:QName
Özellikler
kullanın: isteğe bağlı
Kullanan reklam sayısı
Karmaşık Tür Özellik
Kaynak
<xs:attribute name="concept" type="xs:QName" use="optional">
  <xs:annotation>
    <xs:documentation>A reference to a concept that corresponds to the values of the attribute.

          If the attribute specifies a type, then the type must match the type of
          the referenced concept.

          A reference to an external concept must be of the form "prefix:other_concept_id",
          where "prefix" is the prefix used for the namespace of the external dataset
          (see XML namespaces).</xs:documentation>
  </xs:annotation>
</xs:attribute>

Oluşturulma: oXygen XML Düzenleyici.
