The receiver plays content and reflects its state to the user. The receiver must respond immediately to actions in the sender app . For example, when content is paused on the receiver, it displays a pause icon and when the user presses play on the sender app, the receiver starts playing the content and removes the pause icon.
Examples of receiver UI feedback:
- Playing
- Paused
- Playback position / seeking
- Buffering
Receiver UI
Required

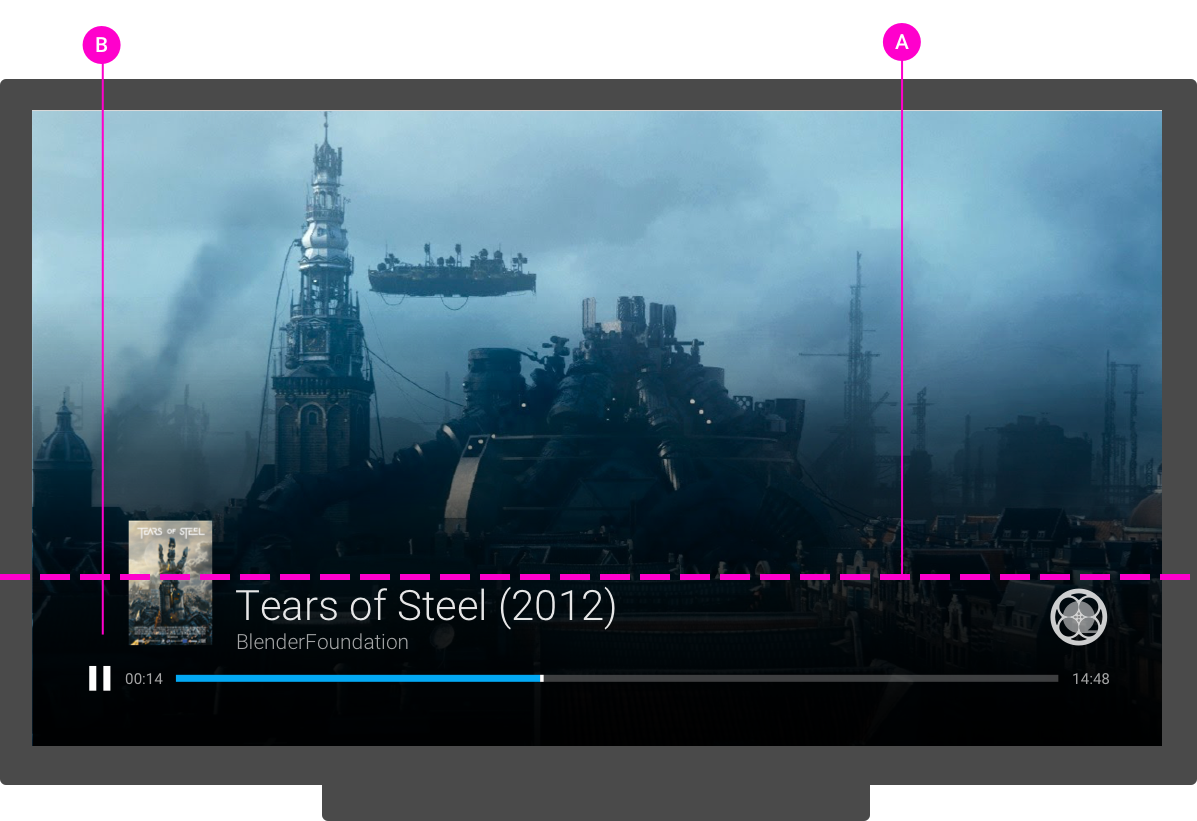

A Place most UI elements within the lower 1/4 of the screen
and keep it consistent with your other UX's.
B Do not present elements as interactive controls. For
example, do not reproduce the sender UI on the receiver UI.
Best practices
- Use transition (fade), transparency, and nuance to soften the visual effect.
- Consider the fact that users want to see as much of the content as possible. Users will often pause content to examine it, so fade away unnecessary UI when possible.
Android
Sender UI
Receiver UI
iOS
Sender UI
Receiver UI
Chrome
Sender UI
Receiver UI
Receiver app idle
An idle screen is displayed on the receiver, when the receiver is connected to a sender but not casting.
Required
A Identify which receiver app is loaded
Best practices
- Use the idle screen to promote content or features from the sender app.
- Change the content every 30-60 seconds to display more and prevent screen burn.
- Disconnect from the receiver app and stop it from running if idle for 5 minutes. When stopped, the receiver home screen appears and will help prevent screen burn.
Android
Cast dialog, connected but not casting
Receiver app loaded / idle
iOS
Cast dialog, connected but not casting
Receiver app loaded / idle
Receiver app loading
When a user connects to a receiver, the receiver app must first load before it can display the app idle state or begin playing content.
Required
A Identify which receiver app is loading by displaying the
app logo
B Identify that the receiver app is loading by displaying
the animated loading spinner
Android
Sender connecting
Receiver app loading
iOS
Sender connecting
Receiver app loading
Chrome
Sender connecting
Receiver app loading
Receiver content loading
Once the receiver app has loaded, content can begin streaming to the receiver.
Required
A Identify what content is being loaded by displaying the
content title or artwork
B Identify that content is loading by displaying an
animated loading spinner
Best practices
When resuming paused content, rewind playback 5-10 seconds so the viewer doesn't miss anything
during the transition from sender to receiver.
Android
Sender content loading
Receiver content loading
iOS
Sender content loading
Receiver content loading
Chrome
Sender content loading
Receiver content loading
Receiver playback
Required
A Identify what is playing when content starts
B Identify playback position when position is adjusted
C Identify that the receiver is seeking content when the
playback position is changed, but not yet playing
Android
Sender adjusting play position
Receiver content seeking
iOS
Sender adjusting play position
Receiver content seeking
Chrome
Sender adjusting play position
Receiver content seeking
Receiver paused
Required
A Identify that content is paused by displaying a paused
icon and playback position
B Identify what content is paused by displaying content
title or artwork
C Identify which receiver app is loaded by displaying an
app logo
Best practices
- Users will often pause content to examine it, so have unnecessary UI fade away when paused for a few seconds by displaying a pause icon.
- The receiver app should not continue content playback unless there is an explicit request from the user to begin playback such as resume, or skipping an item on the queue.
- Disconnect from the receiver app and stop it from running if idle for 20 minutes. When stopped, the receiver home screen appears and will help prevent screen burn. Store the paused location so that the user can resume playback from that point at a later time.
Android
Sender paused
Receiver content paused
Sender paused
Receiver paused, after 5 seconds
iOS
Sender paused
Receiver content paused
Sender paused
Receiver paused, after 5 seconds
Chrome
Sender paused
Receiver content paused
Sender paused
Receiver paused, after 5 seconds
Receiver buffering
Buffering on the receiver happens when network latency or other factors cause a delay in playback.
Required
A Identify that the receiver is buffering after a few
seconds by displaying a buffering spinner. Waiting a few seconds to indicate buffering will
prevent the buffering spinner from appearing too frequently under bad network conditions
Best practices
Identify what content is buffering if buffering continues after 5 seconds.
Android
Sender indicates receiver buffering
Receiver content buffering
iOS
Sender indicates receiver buffering
Receiver content buffering
Chrome
Sender indicates receiver buffering
Receiver content buffering
Receiver stops cast
When playback stops or times out, the receiver UI should promote other content or features available in the sender app.
Required
A Identify which receiver app is loaded or idle by
displaying an app logo
Best practices
- Use the idle screen after playback to recommend content or features from the sender app, based on what was just cast
- Change the idle screen content every 30-60 seconds to prevent screen burn
- Disconnect from the receiver app and stop it from running if idle for 5 minutes. When stopped, the receiver home screen appears and will help prevent screen burn.
Android
Sender app idle
Receiver app idle
Sender disconnected
Cast home screen
iOS
Sender app idle
Receiver app idle
Sender disconnected
Cast home screen
Chrome
Sender app idle
Receiver app idle
Sender disconnected
Cast home screen
