Integra Pangle con mediación

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Pangle using mediation, covering both waterfall and bidding integrations. It covers how to add Pangle to an ad unit's mediation configuration, and how to integrate the Pangle SDK and adapter into an iOS app.

Supported integrations and ad formats

The AdMob mediation adapter for Pangle has the following capabilities:

Integration
Bidding
Waterfall
Formats
App open	¹
Banner
Interstitial
Rewarded
Rewarded Interstitial
Native

¹ Bidding integration for this format is in closed beta.

Requirements

iOS deployment target of 10.0 or higher

Latest Google Mobile Ads SDK
Complete the mediation Get started guide

Step 1: Set up configurations in Pangle UI

Add a new application

Navigate to the Applications tab and click the Add App button.

Select the Operating System you wish to create an application for and fill out the rest of the form. Then, click Submit.

Take note of your application's App ID.

Create an ad placement

Once your application has been created, click the Add button to create your ad placement.

Bidding

Select your Ad Format and Ad Placement Name, and select In-App Bidding as the Pricing Type. Fill out the rest of the form and click Submit.

Once your ad placement is created, take note of the Ad Placement ID.

Waterfall

Select your Ad Format and Ad Placement Name, and Global CPM as the Pricing Type. Fill out the rest of the form and click Submit.

Once your ad placement is created, take note of the Ad Placement ID.

Locate Pangle Reporting API key

Bidding

This step isn't required for bidding integrations.

Waterfall

Take note of the User ID at the bottom left corner of the page.

Click Integrations > SDK & API > Pangle Reporting API 2.0. Take note of Role ID and Security Key.

Turn on test mode

Follow the instructions in Pangle's How to add a Test Ad guide on how to enable Pangle test ads.

Step 2: Set up Pangle demand in AdMob UI

Cómo configurar la mediación para tu unidad de anuncios

Debes agregar Pangle a la configuración de mediación para tu unidad de anuncios.

Primero, accede a tu cuenta de AdMob. A continuación, ve a la pestaña Mediación. Si tienes un grupo de mediación existente que deseas modificar, haz clic en el nombre de ese grupo para editarlo y ve a Agregar Pangle como fuente del anuncio.

Para crear un grupo de mediación nuevo, selecciona Crear grupo de mediación.

Ingresa el formato del anuncio y la plataforma y, luego, haz clic en Continuar.

Asígnale un nombre a tu grupo de mediación y selecciona las ubicaciones para la que deseas segmentar tus anuncios. A continuación, establece el estado del grupo de mediación en Habilitado y haz clic en Agregar bloques de anuncios.

Asocia este grupo de mediación a una o más de tusAdMob unidades de anuncios existentes. Luego, haga clic en Listo.

Ahora deberías ver la tarjeta Bloques de anuncios propagada con las unidades de anuncios que seleccionaste:

Agregar Pangle como fuente del anuncio

Ofertas

En la tarjeta Ofertas de la sección Fuentes del anuncio, selecciona Agregar fuente del anuncio. Luego, selecciona Pangle.

Haz clic en Cómo firmar un acuerdo de asociación y configura una asociación de licitación conPangle.

Haz clic en Confirmar y aceptar y, luego, en Continuar.

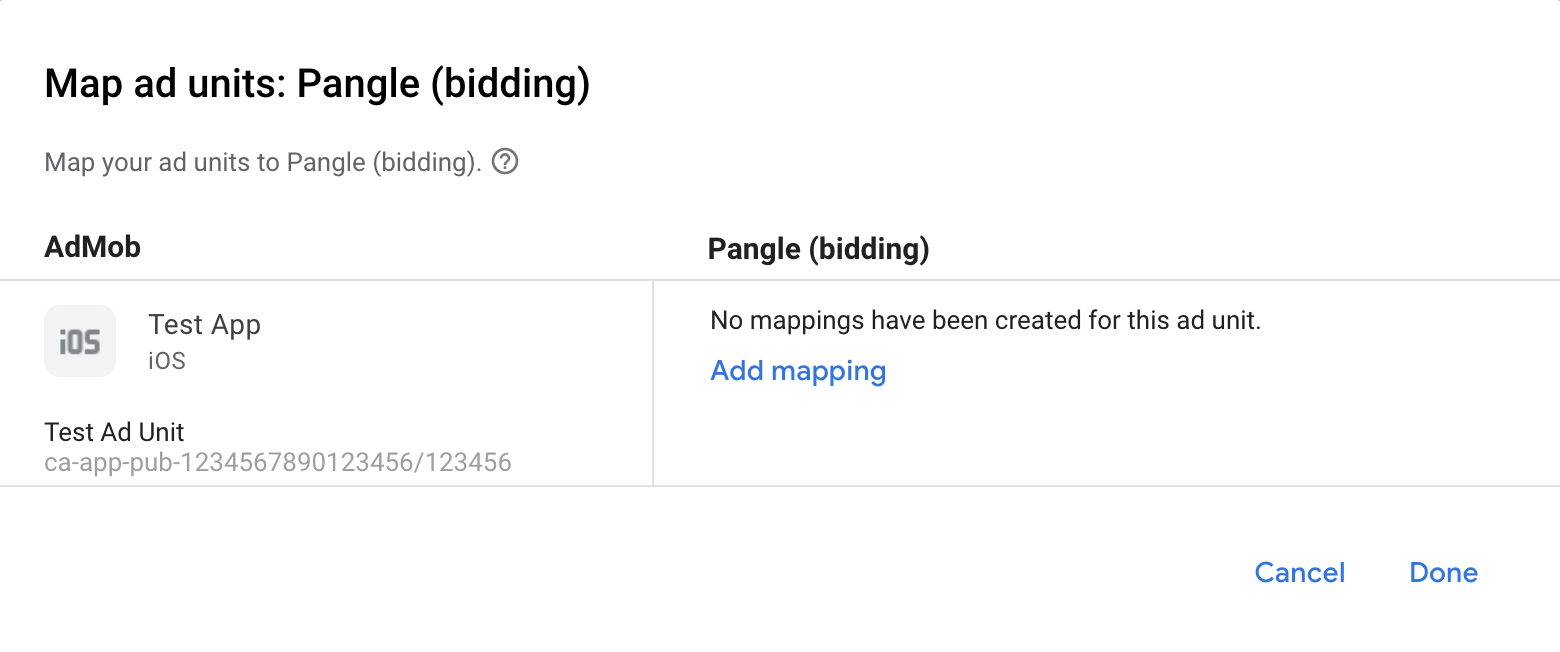

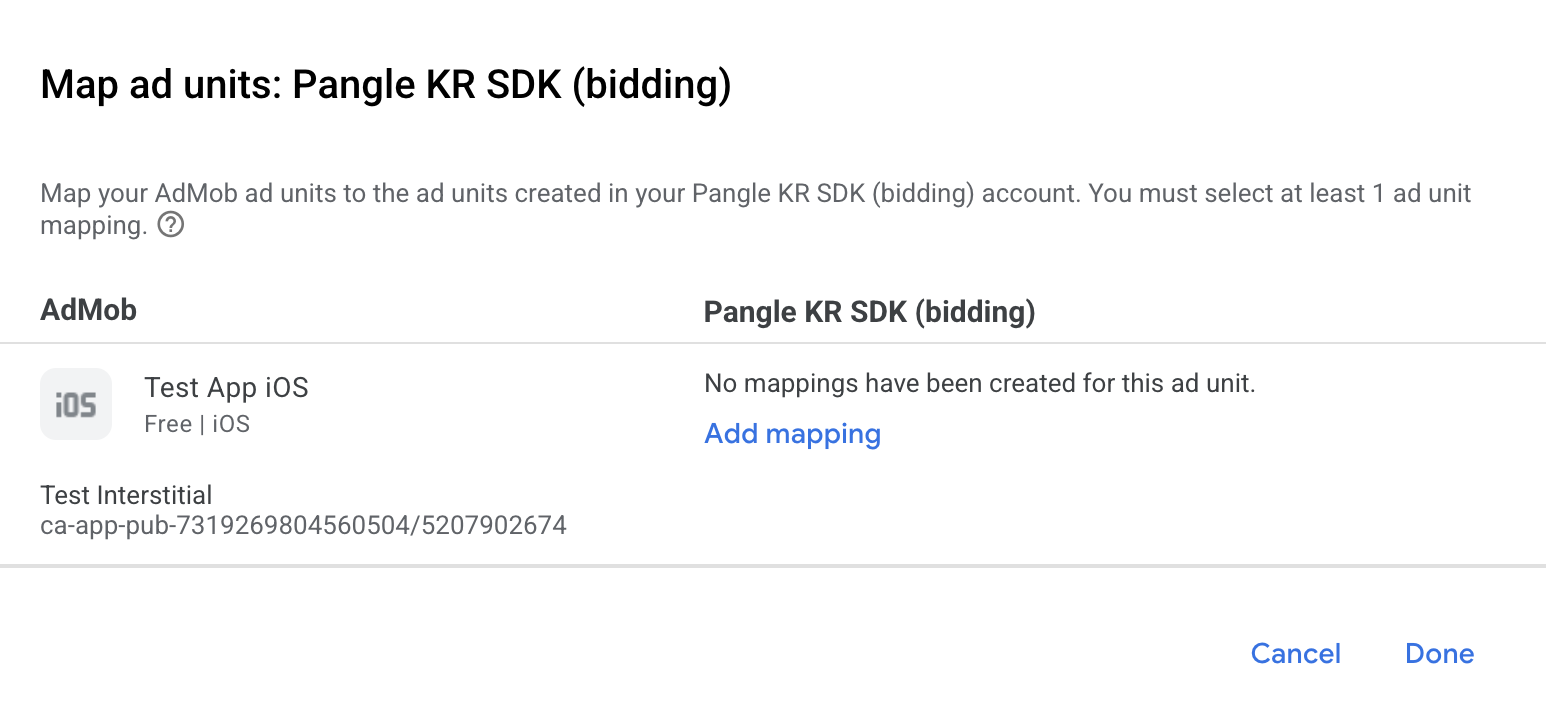

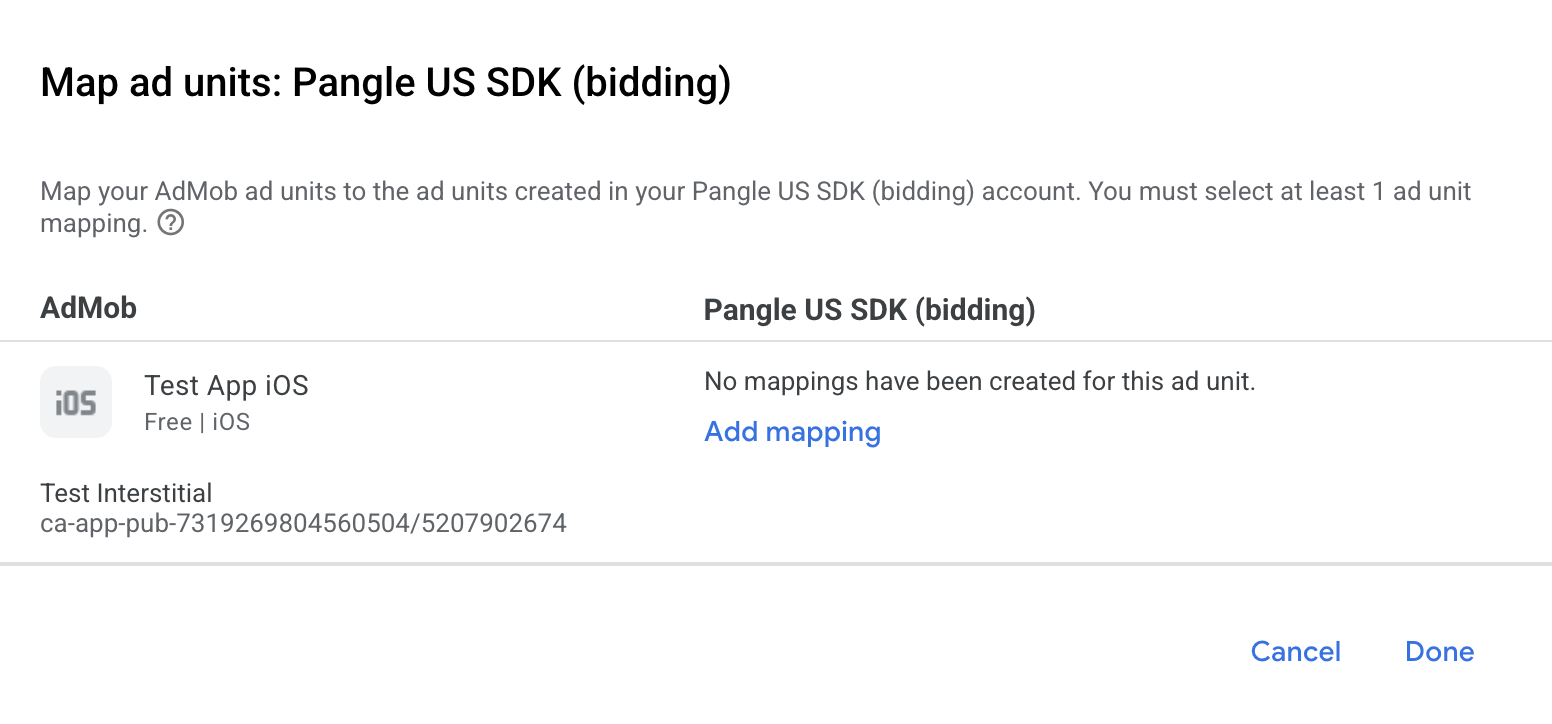

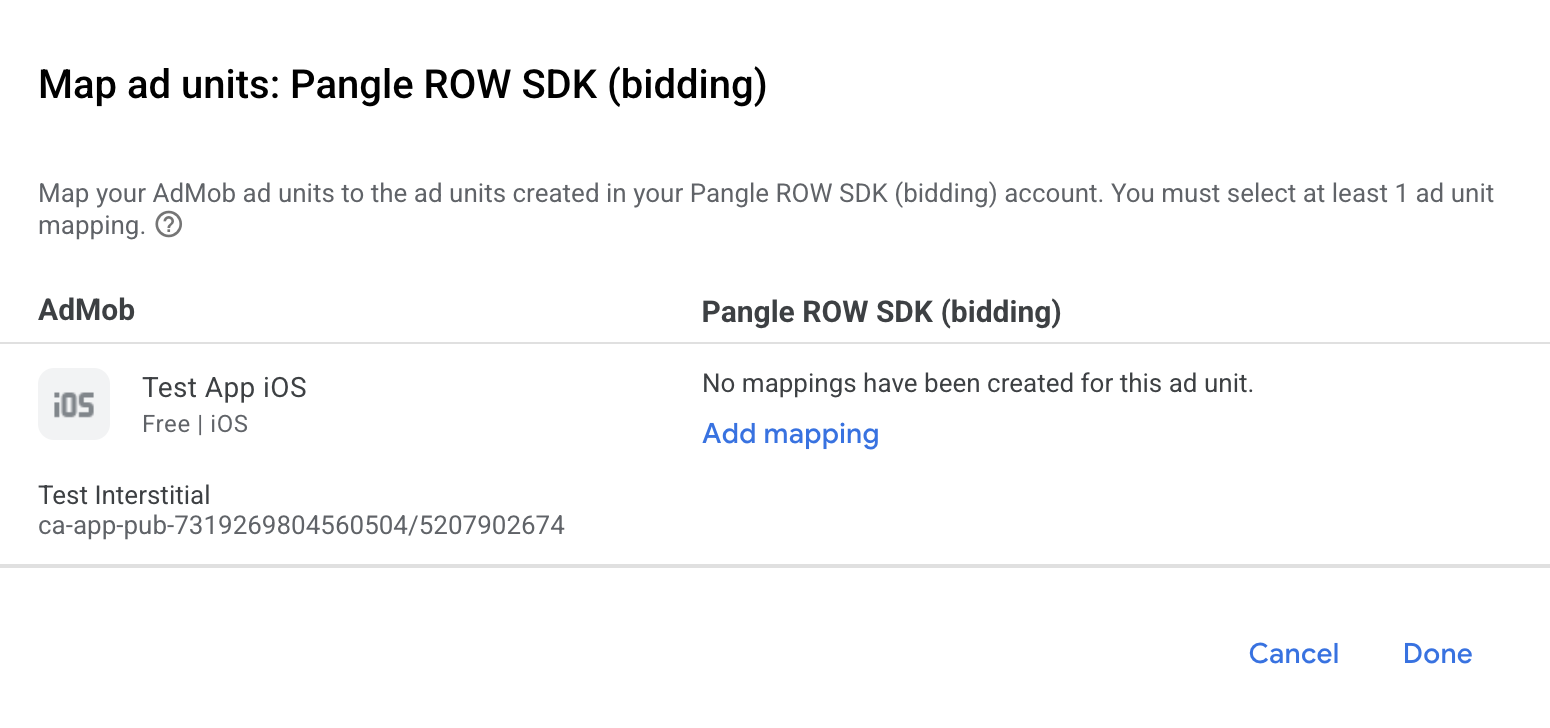

Si ya tienes una asignación para Pangle, puedes seleccionarla. De lo contrario, haz clic en Agregar asignación.

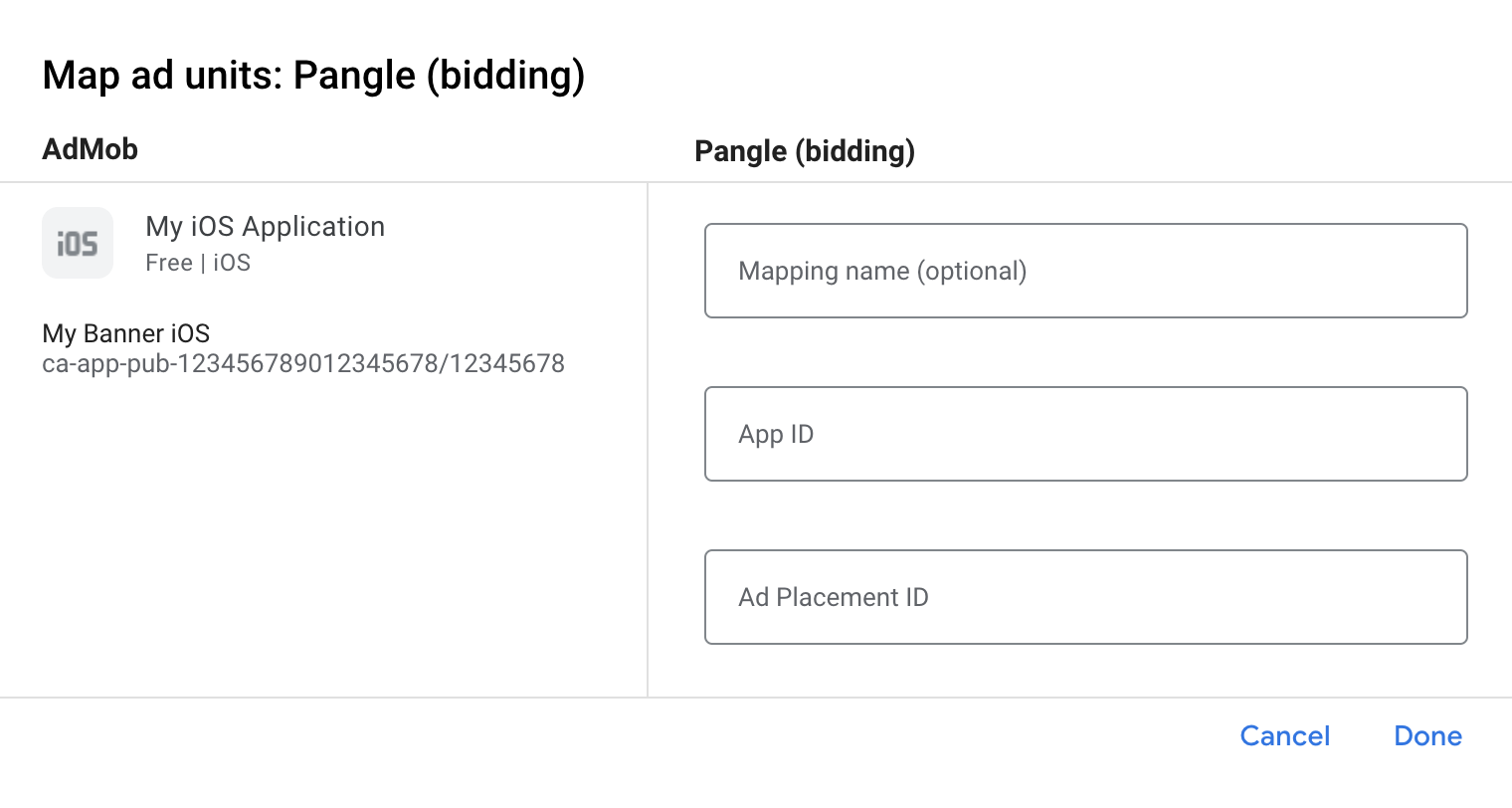

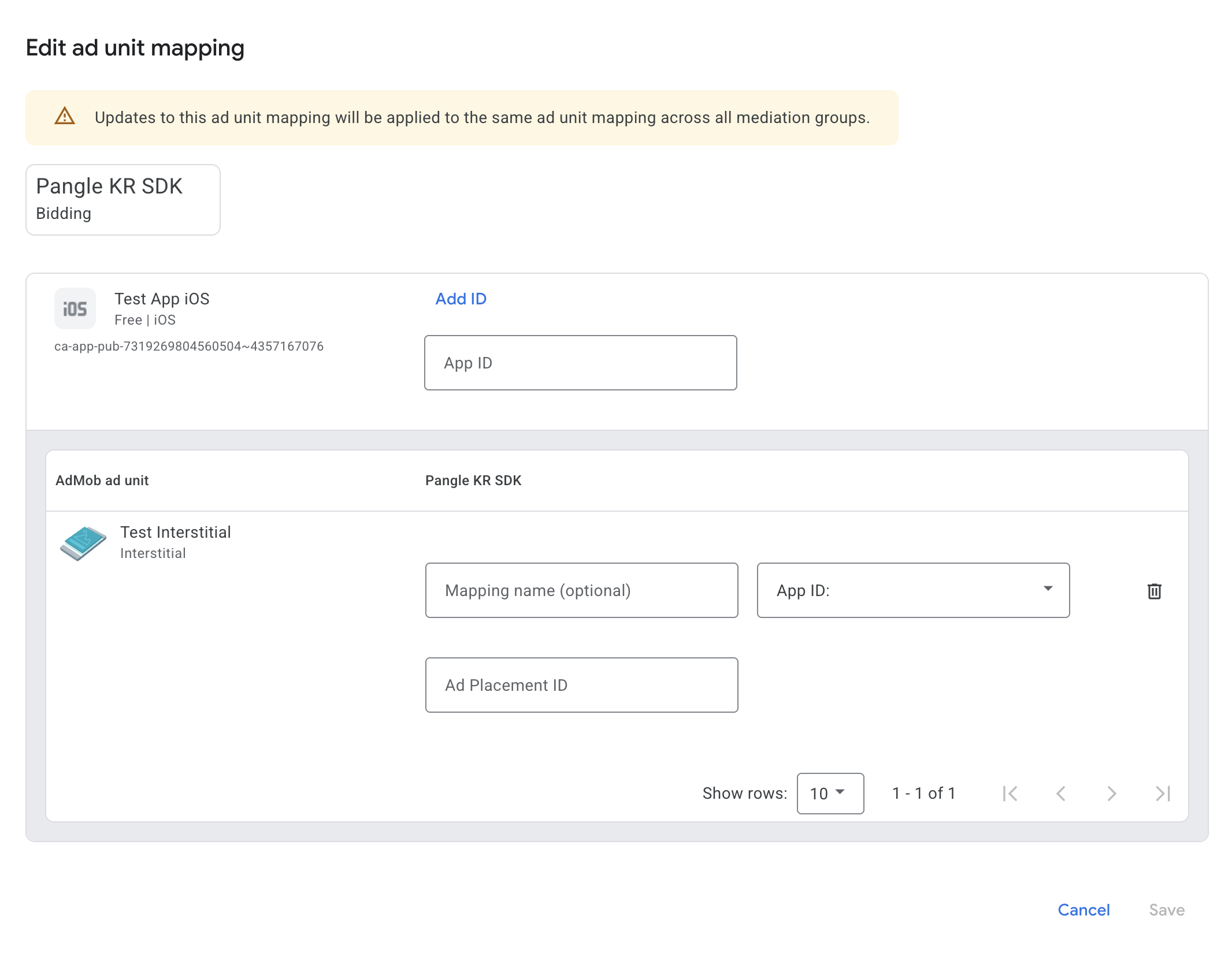

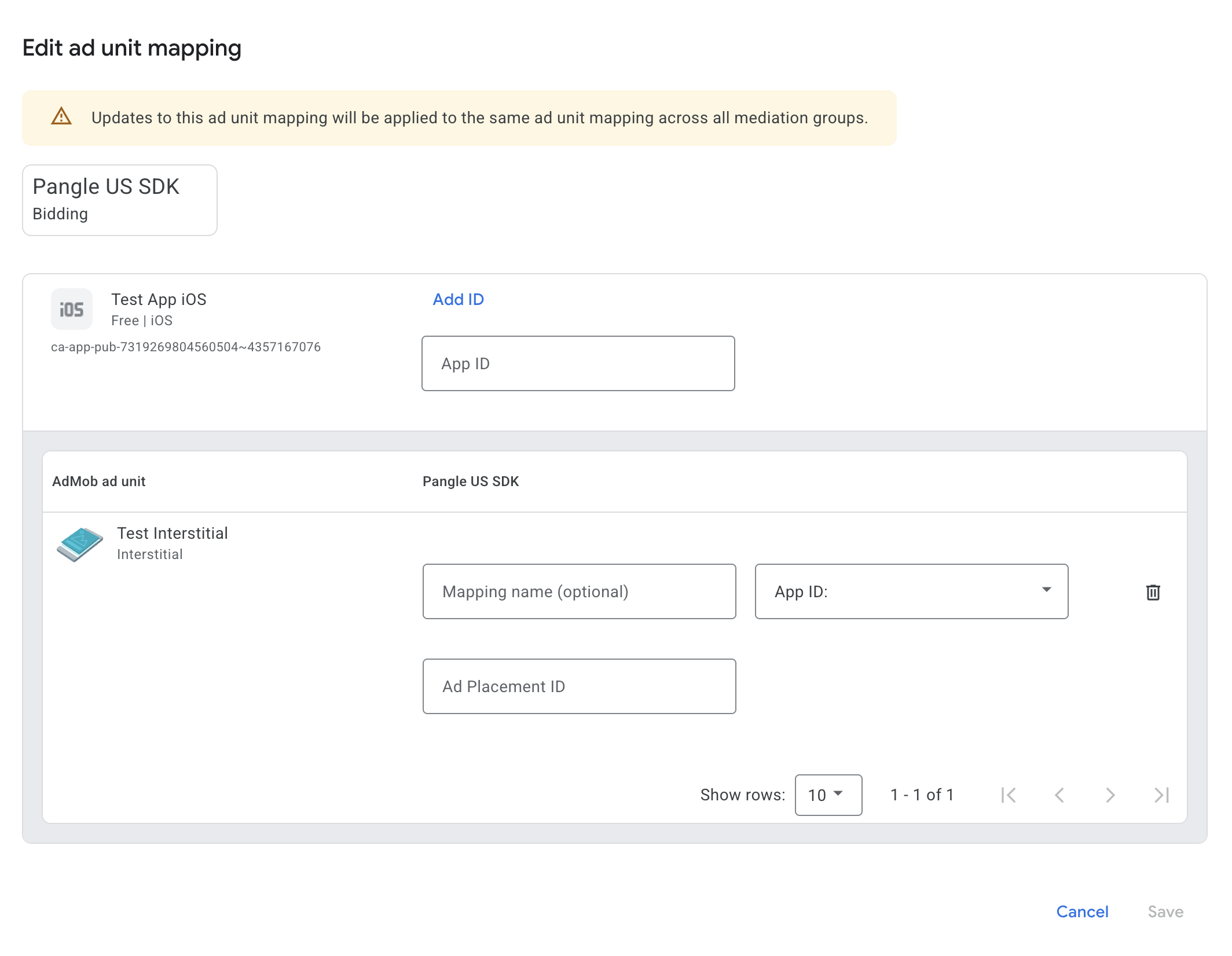

A continuación, ingresa el App ID and Ad Placement IDobtenido en la sección anterior. Luego, haga clic en Listo.

Importante: Los App ID deben estar asociados con la app de destino como en la IU dePangle .

Cascada

En la tarjeta Waterfall de la sección Fuentes del anuncio, selecciona Agregar fuente del anuncio. Luego, selecciona Pangle.

Selecciona Pangle. Luego, ingresa un valor de eCPM para Pangle y haz clic en Continuar.

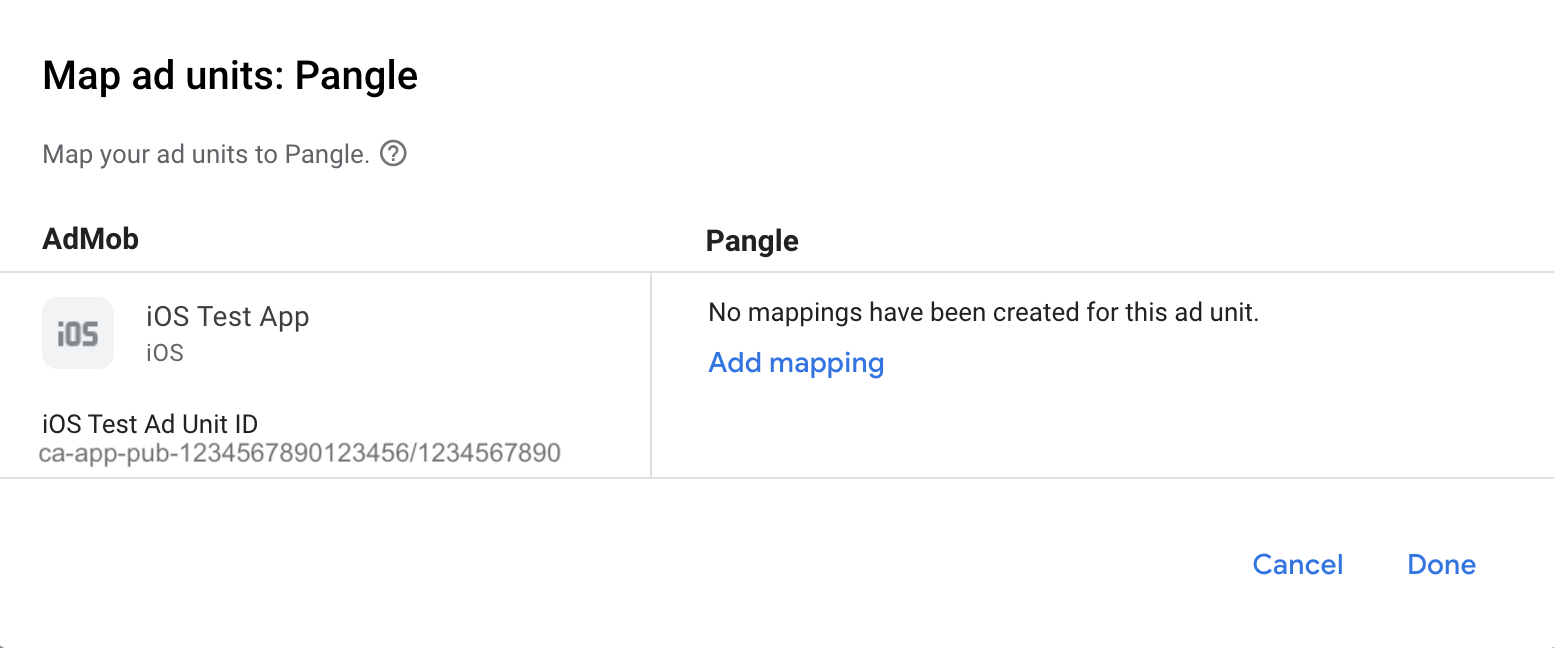

Si ya tienes una asignación para Pangle, puedes seleccionarla. De lo contrario, haz clic en Agregar asignación.

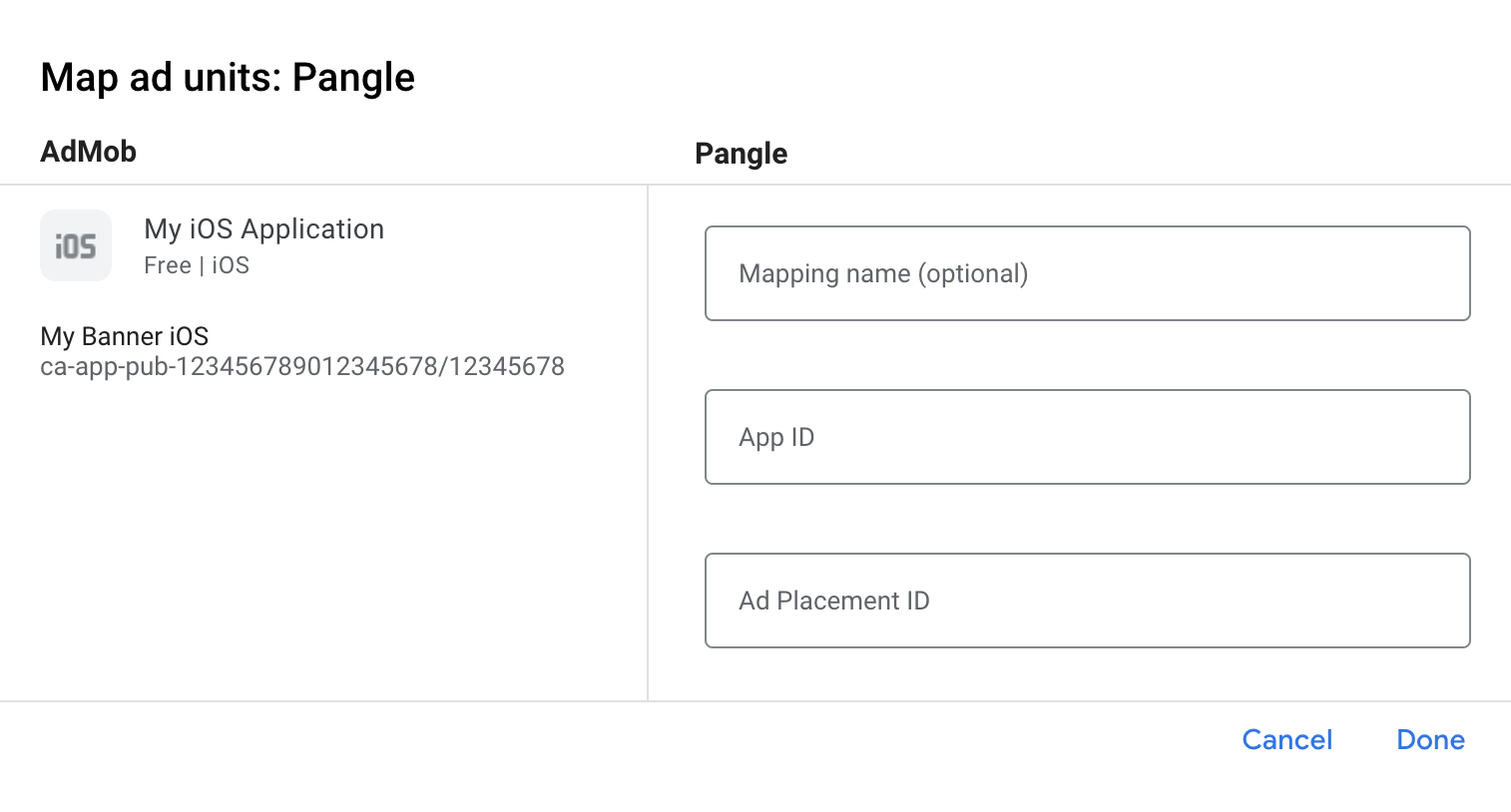

A continuación, ingresa el App ID and Ad Placement IDobtenido en la sección anterior. Luego, haga clic en Listo.

Step 3: Import the Pangle SDK and adapter

Using CocoaPods (recommended)

Add the following line to your project's Podfile:
```
pod 'GoogleMobileAdsMediationPangle'
```
From the command line run:
```
pod install --repo-update
```

Manual integration

Download the latest version of the Pangle SDK for iOS and link all the .framework files and bundles in your project.
Download the latest version of the Pangle adapter from the download link in the Changelog and link PangleAdapter.xcframework in your project.

Step 4: Add required code

SKAdNetwork integration

Follow Pangle's documentation to add the SKAdNetwork identifiers to your project's Info.plist file.

Step 5: Test your implementation

Habilitar anuncios de prueba

Asegúrate de registrar tu dispositivo de prueba en AdMob y habilitar el modo de prueba en la Pangle IU.

Cómo verificar los anuncios de prueba

Para verificar que recibes anuncios de prueba dePangle, habilita las pruebas de fuentes de anuncios individuales en el inspector de anuncios mediante la Pangle (Bidding) and Pangle (Waterfall) fuente de anuncios.

Optional Steps

Native ads

Ad rendering

The Pangle adapter returns its native ads as GADNativeAd objects. It populates the following fields for a GADNativeAd.

Field	Assets always included by Pangle adapter
Headline
Image	1
Body
Icon
Call to action
Star rating
Store
Price
Advertiser

¹ The Pangle adapter does not provide direct access to the main image asset for its native ads. Instead, the adapter populates the GADMediaView with a video or an image.

Error codes

If the adapter fails to receive an ad from Pangle, you can check the underlying error from the ad response using GADResponseInfo.adNetworkInfoArray under the following classes:

GADMediationAdapterPangle

Here are the codes and accompanying messages thrown by the Pangle adapter when an ad fails to load:

Error code	Domain	Reason
101	com.google.ads.mediation.pangle	Invalid server parameters (e.g. Missing app ID or placement ID).
102	com.google.ads.mediation.pangle	The requested ad size does not match a Pangle supported banner size.
-1-60000	Sent by Pangle SDK	Pangle SDK returned an error. See Pangle's documentation for more details.

Pangle iOS Mediation Adapter Changelog

Version 5.8.0.8.0

Verified compatibility with Pangle SDK version 5.8.0.8.
Updated adapter to use new Pangle SDK signal collection API.

Built and tested with:

Google Mobile Ads SDK version 11.2.0.
Pangle SDK version 5.8.0.8.

Version 5.8.0.7.0

Verified compatibility with Pangle SDK version 5.8.0.7.
Now requires minimum iOS version 12.0.
Now requires Google Mobile Ads SDK version 11.0 or higher.
Included Info.plist in the frameworks within PangleAdapter.xcframework.

Built and tested with:

Google Mobile Ads SDK version 11.0.1.
Pangle SDK version 5.8.0.7.

Version 5.7.0.7.0

Verified compatibility with Pangle SDK version 5.7.0.7.

Built and tested with:

Google Mobile Ads SDK version 10.14.0.
Pangle SDK version 5.7.0.7.

Version 5.7.0.6.0

Verified compatibility with Pangle SDK version 5.7.0.6.

Built and tested with:

Google Mobile Ads SDK version 10.14.0.
Pangle SDK version 5.7.0.6.

Version 5.6.0.8.0

Verified compatibility with Pangle SDK version 5.6.0.8.
Refactored the +setCOPPA method by replacing the deprecated adConfiguration.childDirectedTreatment property with the new GADMobileAds.sharedInstance.requestConfiguration.tagForChildDirectedTreatment property.

Built and tested with:

Google Mobile Ads SDK version 10.14.0.
Pangle SDK version 5.6.0.8.

Version 5.5.0.9.0

Verified compatibility with Pangle SDK version 5.5.0.9.

Built and tested with:

Google Mobile Ads SDK version 10.13.0.
Pangle SDK version 5.5.0.9.

Version 5.5.0.7.0

Verified compatibility with Pangle SDK version 5.5.0.7.

Built and tested with:

Google Mobile Ads SDK version 10.12.0.
Pangle SDK version 5.5.0.7.

Version 5.5.0.5.0

Verified compatibility with Pangle SDK version 5.5.0.5.

Built and tested with:

Google Mobile Ads SDK version 10.11.0.
Pangle SDK version 5.5.0.5.

Version 5.4.1.1.0

Added bidding support for app open ad format.
Verified compatibility with Pangle SDK version 5.4.1.1.

Built and tested with:

Google Mobile Ads SDK version 10.10.0.
Pangle SDK version 5.4.1.1.

Version 5.4.0.9.0

Verified compatibility with Pangle SDK version 5.4.0.9.

Built and tested with:

Google Mobile Ads SDK version 10.9.0.
Pangle SDK version 5.4.0.9.

Version 5.4.0.8.0

Fixed an issue where GADPangleNetworkExtras did not conform to GADAdNetworkExtras protocol.
Implemented adDidShowFail protocol method in interstitial, rewarded, and app open ads.
Verified compatibility with Pangle SDK version 5.4.0.8.

Built and tested with:

Google Mobile Ads SDK version 10.9.0.
Pangle SDK version 5.4.0.8.

Version 5.3.1.2.0

Verified compatibility with Pangle SDK version 5.3.1.2.

Built and tested with:

Google Mobile Ads SDK version 10.8.0.
Pangle SDK version 5.3.1.2.

Version 5.3.1.0.0

Verified compatibility with Pangle SDK version 5.3.1.0.

Built and tested with:

Google Mobile Ads SDK version 10.8.0.
Pangle SDK version 5.3.1.0.

Version 5.2.1.1.0

Verified compatibility with Pangle SDK version 5.2.1.1.

Built and tested with:

Google Mobile Ads SDK version 10.7.0.
Pangle SDK version 5.2.1.1.

Version 5.2.0.9.0

Verified compatibility with Pangle SDK version 5.2.0.9.

Built and tested with:

Google Mobile Ads SDK version 10.5.0.
Pangle SDK version 5.2.0.9.

Version 5.2.0.8.0

Verified compatibility with Pangle SDK version 5.2.0.8.

Built and tested with:

Google Mobile Ads SDK version 10.5.0.
Pangle SDK version 5.2.0.8.

Version 5.2.0.7.0

Added waterfall support for app open, banner (includes MREC), interstitial, rewarded and native ad formats.
Verified compatibility with Pangle SDK version 5.2.0.7.

Built and tested with:

Google Mobile Ads SDK version 10.5.0.
Pangle SDK version 5.2.0.7.

Version 5.2.0.6.0

Verified compatibility with Pangle SDK version 5.2.0.6.

Built and tested with:

Google Mobile Ads SDK version 10.5.0.
Pangle SDK version 5.2.0.6.

Version 5.1.1.0.0

Verified compatibility with Pangle SDK version 5.1.1.0.
Added support for the arm64 simulator architecture.
Now requires Google Mobile Ads SDK version 10.4.0 or higher.

Built and tested with:

Google Mobile Ads SDK version 10.4.0.
Pangle SDK version 5.1.1.0.

Version 5.1.0.6.0

Verified compatibility with Pangle SDK version 5.1.0.6.

Built and tested with:

Google Mobile Ads SDK version 10.3.0.
Pangle SDK version 5.1.0.6.

Version 5.0.1.0.0

Verified compatibility with Pangle SDK version 5.0.1.0.

Built and tested with:

Google Mobile Ads SDK version 10.2.0.
Pangle SDK version 5.0.1.0.

Version 5.0.0.8.0

Verified compatibility with Pangle SDK version 5.0.0.8.

Built and tested with:

Google Mobile Ads SDK version 10.2.0.
Pangle SDK version 5.0.0.8.

Version 5.0.0.7.0

Verified compatibility with Pangle SDK version 5.0.0.7.

Built and tested with:

Google Mobile Ads SDK version 10.1.0.
Pangle SDK version 5.0.0.7.

Version 5.0.0.6.0

Verified compatibility with Pangle SDK version 5.0.0.6.

Built and tested with:

Google Mobile Ads SDK version 10.1.0.
Pangle SDK version 5.0.0.6.

Version 4.9.1.0.0

Removed support for the armv7 architecture.
Verified compatibility with Pangle SDK version 4.9.1.0.
Now requires minimum iOS version of 12.0.
Now requires Google Mobile Ads SDK version 10.0.0 or higher.

Built and tested with:

Google Mobile Ads SDK version 10.0.0.
Pangle SDK version 4.9.1.0.

Version 4.9.0.8.0

Verified compatibility with Pangle SDK version 4.9.0.8.

Built and tested with:

Google Mobile Ads SDK version 9.14.0.
Pangle SDK version 4.9.0.8.

Version 4.9.0.7.0

Verified compatibility with Pangle SDK version 4.9.0.7.

Built and tested with:

Google Mobile Ads SDK version 9.14.0.
Pangle SDK version 4.9.0.7.

Version 4.9.0.6.0

Verified compatibility with Pangle SDK version 4.9.0.6.

Built and tested with:

Google Mobile Ads SDK version 9.14.0.
Pangle SDK version 4.9.0.6.

Version 4.8.1.0.0

Verified compatibility with Pangle SDK version 4.8.1.0.

Built and tested with:

Google Mobile Ads SDK version 9.14.0.
Pangle SDK version 4.8.1.0.

Version 4.8.0.9.0

Verified compatibility with Pangle SDK version 4.8.0.9.

Built and tested with:

Google Mobile Ads SDK version 9.13.0.
Pangle SDK version 4.8.0.9.

Version 4.8.0.7.0

Verified compatibility with Pangle SDK version 4.8.0.7.

Built and tested with:

Google Mobile Ads SDK version 9.13.0.
Pangle SDK version 4.8.0.7.

Version 4.8.0.6.0

Verified compatibility with Pangle SDK version 4.8.0.6.
Fixed an issue where the main thread was blocked when loading native ad icon image.

Built and tested with:

Google Mobile Ads SDK version 9.13.0.
Pangle SDK version 4.8.0.6.

Version 4.7.0.7.0

Verified compatibility with Pangle SDK version 4.7.0.7.

Built and tested with:

Google Mobile Ads SDK version 9.11.0.
Pangle SDK version 4.7.0.7.

Version 4.7.0.6.0

Verified compatibility with Pangle SDK version 4.7.0.6.

Built and tested with:

Google Mobile Ads SDK version 9.11.0.
Pangle SDK version 4.7.0.6.

Version 4.7.0.5.0

Verified compatibility with Pangle SDK version 4.7.0.5.

Built and tested with:

Google Mobile Ads SDK version 9.11.0.
Pangle SDK version 4.7.0.5.

Version 4.7.0.4.0

Verified compatibility with Pangle SDK version 4.7.0.4.

Built and tested with:

Google Mobile Ads SDK version 9.10.0.
Pangle SDK version 4.7.0.4.

Version 4.6.2.2.0

Renamed the setGDPR() and setCCPA() methods from the GADMediationAdapterPangle class to setGDPRConsent() and setDoNotSell respectively.
Verified compatibility with Pangle SDK version 4.6.2.2.

Built and tested with:
