Integrating InMobi with Mediation

This guide is intended for publishers who want to use the Google Mobile Ads SDK to load and display ads from InMobi via mediation.

It covers how to add InMobi to an ad unit's mediation configuration, how to set up Ad Network Optimization (ANO), and how to integrate the InMobi SDK and adapter into an Android app.

Supported formats and features

The Google AdMob mediation adapter for InMobi has the following capabilities:

Formats
Banners
Interstitials
Rewarded Video
Rewarded Video (new APIs)
Native Advanced
Features
Smart Banners
Ad Network Optimization (ANO)
Native Video

Requirements

• Android API level 16 or higher

• Latest Google Mobile Ads SDK

Step 1: Set up InMobi

Sign up or log in to your InMobi account.

Add an app

Click the Add an App button to add your app to InMobi.

Enter your app's URL and click the Look Up button. Otherwise click Have an app that isn't yet published?

Enter the name of your app and choose Android as the Platform. Select whether or not your app is COPPA compliant and click Add App when done.

Placements

InMobi requires you to create a placement before you finish adding your app.

Note: To add a placement to an existing app, open your app details page by clicking on your app's name in the InMobi dashboard and navigate to the Placements tab located in the left navigation bar. Then click the Add Placement button.

Banner

Select BANNER as the type and enter a Placement Name. Click the Create Placement button when done.

Once the placement is created, its details are shown. Take note of the Placement ID, which will be used for setting up your AdMob ad unit.

Interstitial

Select INTERSTITIAL as the type and enter a Placement Name for your placement. Click the Create Placement button when done.

Once the placement is created, the placement details are are shown. Take note of the Placement ID, which will be used for setting up your AdMob ad unit.

Rewarded Video

Select REWARDED VIDEO as the type and enter a Placement Name for your placement. Click the Create Placement button when done.

Once the placement is created, its details are are shown. Take note of the Placement ID, which will be used later to set up your AdMob ad unit. Enter values for Key and Value for the reward details.

Note: The reward value specified here is forwarded by the adapter unless reward values are overridden on the AdMob UI.

Native

Select NATIVE CONTENT as the type and enter a Placement Name for your placement. Click the Create Placement button when done.

Once the placement is created, its details are are shown. Take note of the Placement ID, which will be used later to set up your AdMob ad unit. Select either PREROLL, STREAM, or SPLASH as the Native Ad Layout style and click Customize.

The FEED Native Ad Layout does not contain some of the assets that are required by Google Mobile Ads SDK and the adapter would fail the ad request if one of the required assets is missing.

Note: The Native Ad Layout styles displayed here are just suggestions. You can still customize the layout of your native ad in code.

Select the desired size for Screenshots (main image), then click Save.

---

Account ID

Now that the placement has been created, click Proceed to Integration, then click Done.

Next, you will get your Account ID, which can be found by clicking on your email address (located in the top-right corner of your InMobi dashboard).

In addition to your Account ID and Placement ID you need a secret key provided by InMobi. Contact the InMobi support team to obtain your key.

Step 2: Configure mediation settings for your AdMob ad unit

You need to add InMobi to the mediation configuration for your ad unit. First, sign in to your AdMob account.

Navigate to the Mediation tab. If you have an existing mediation group you'd like to modify, click the name of that mediation group to edit it, and skip ahead to Add inMobi as an ad source.

To create a new mediation group, select Create Mediation Group.

Select your ad format and platform, then click Continue.

Give your mediation group a name, and select locations to target. Next, set the mediation group status to Enabled. Then click Add Ad Units.

Associate this mediation group with one or more of your existing AdMob ad units. Then click Done.

You should now see the ad units card populated with the ad units you selected, as shown below:

Add InMobi as an ad source

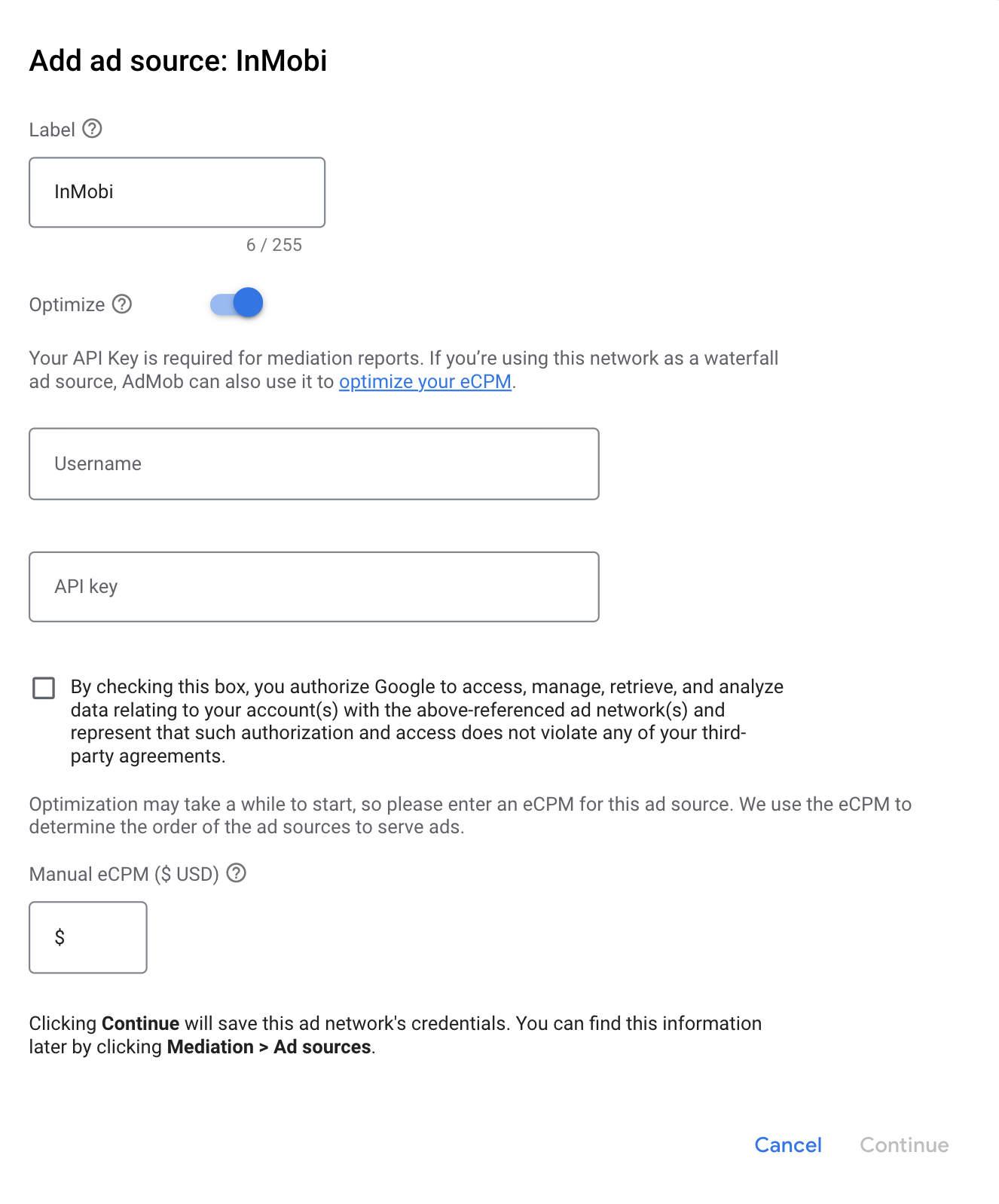

In the Ad Sources card, select Add Ad Network.

Select InMobi and enable the Optimize switch. Enter your Login name and the Secret key obtained in the previous section to set up ANO for InMobi. Then enter an eCPM value for inmobi and click Continue.

Note: You only need to set up ANO once per network.

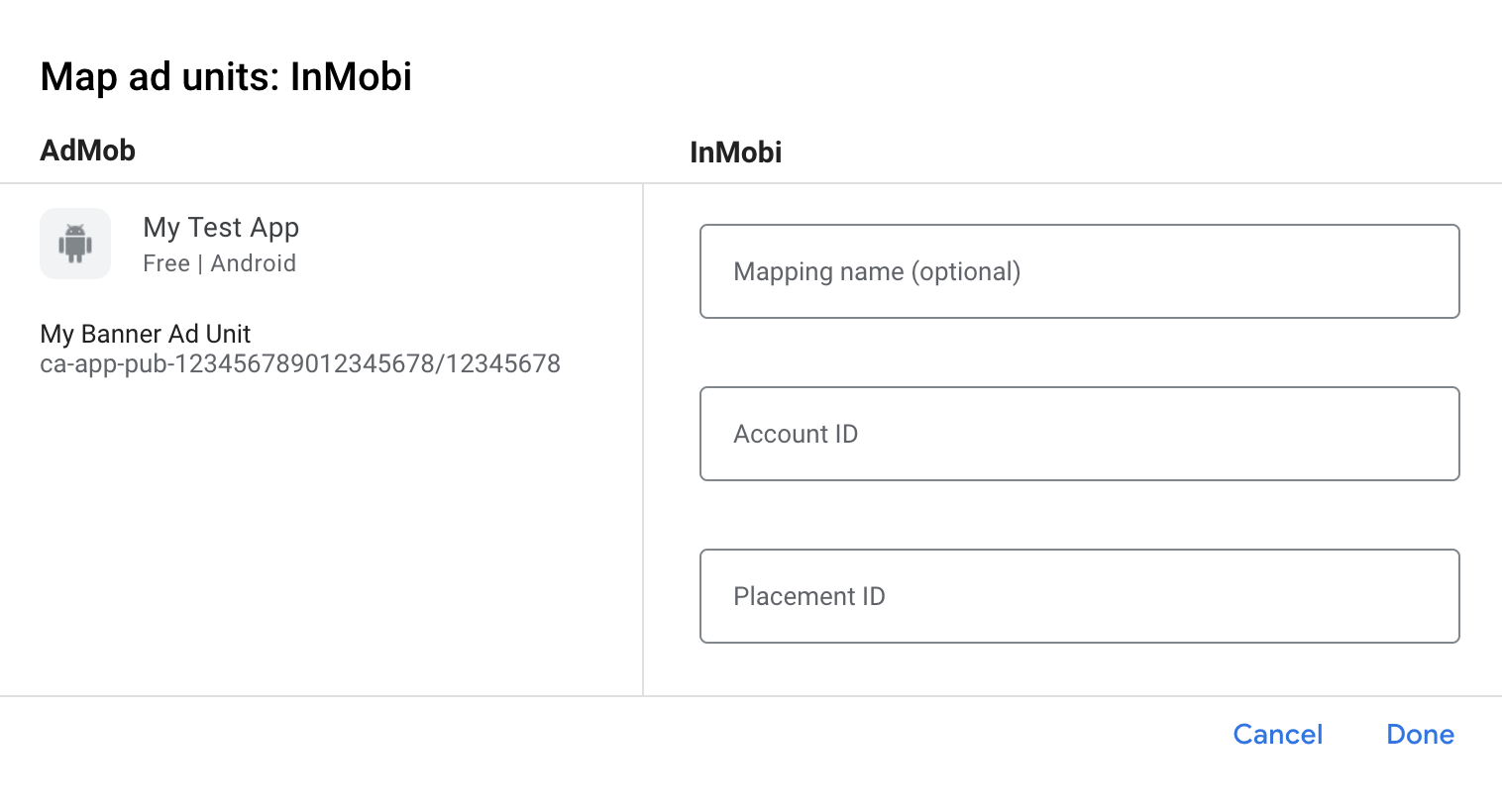

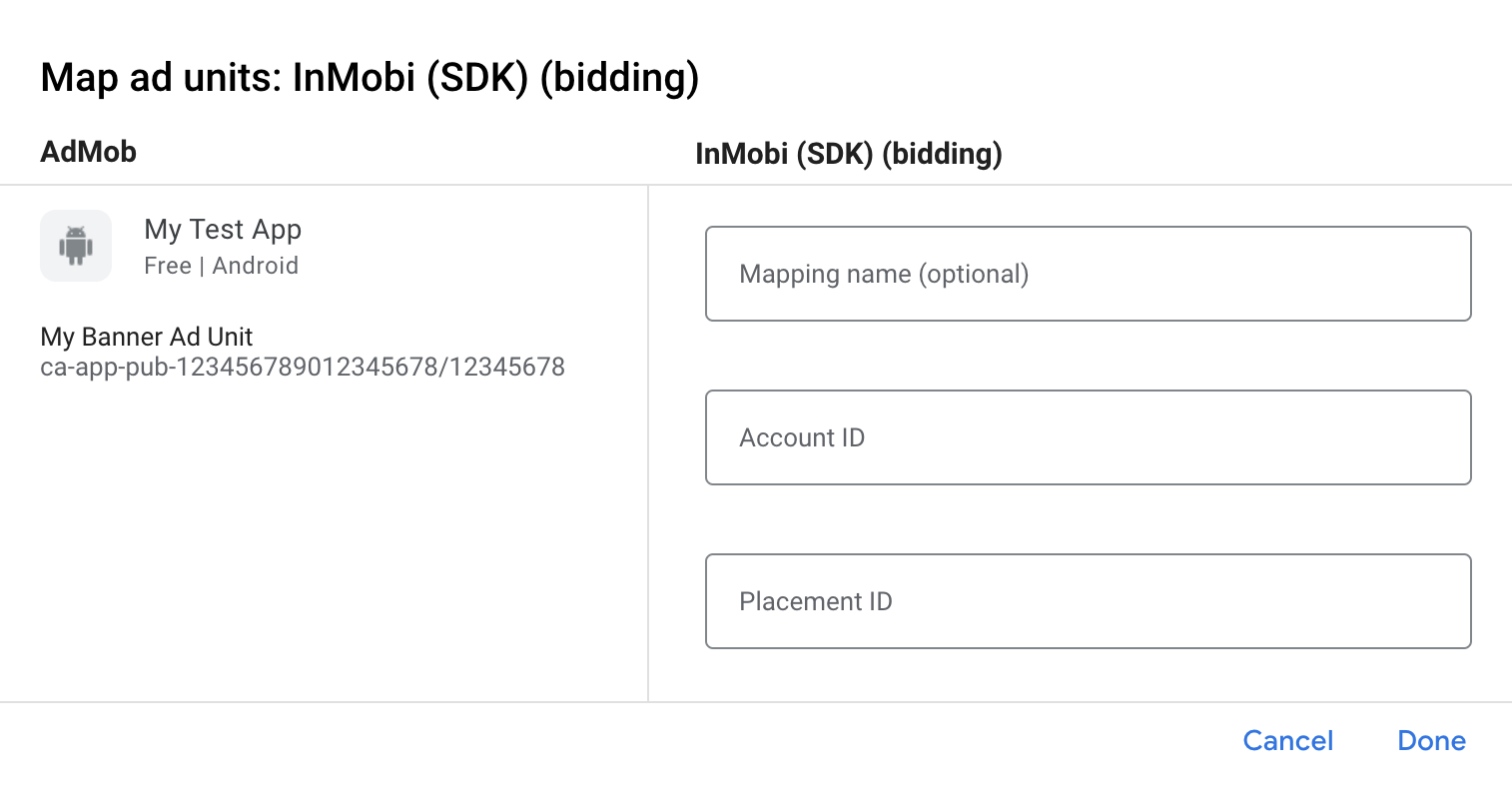

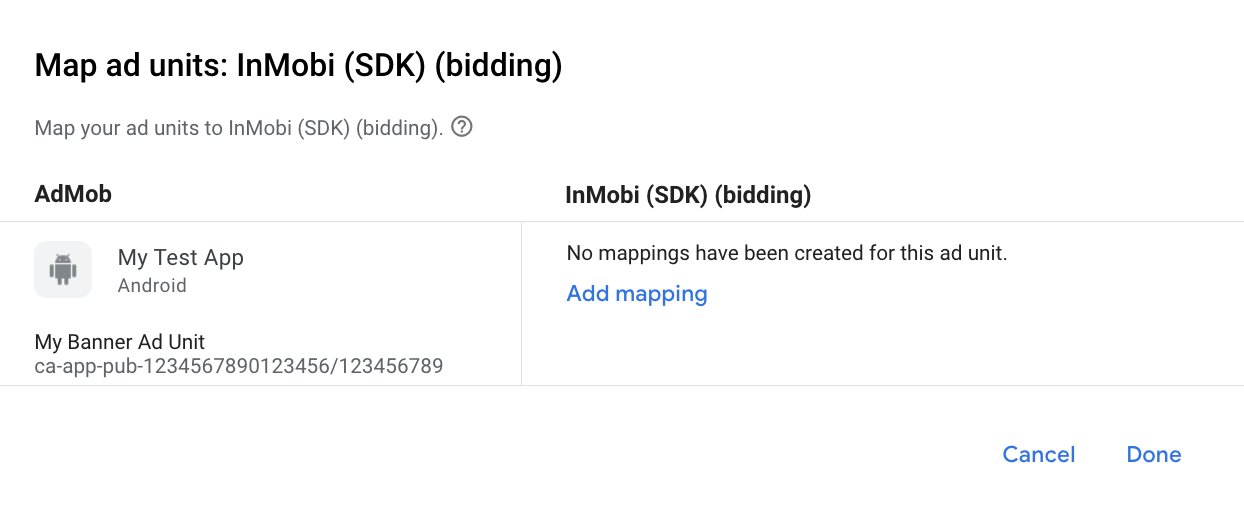

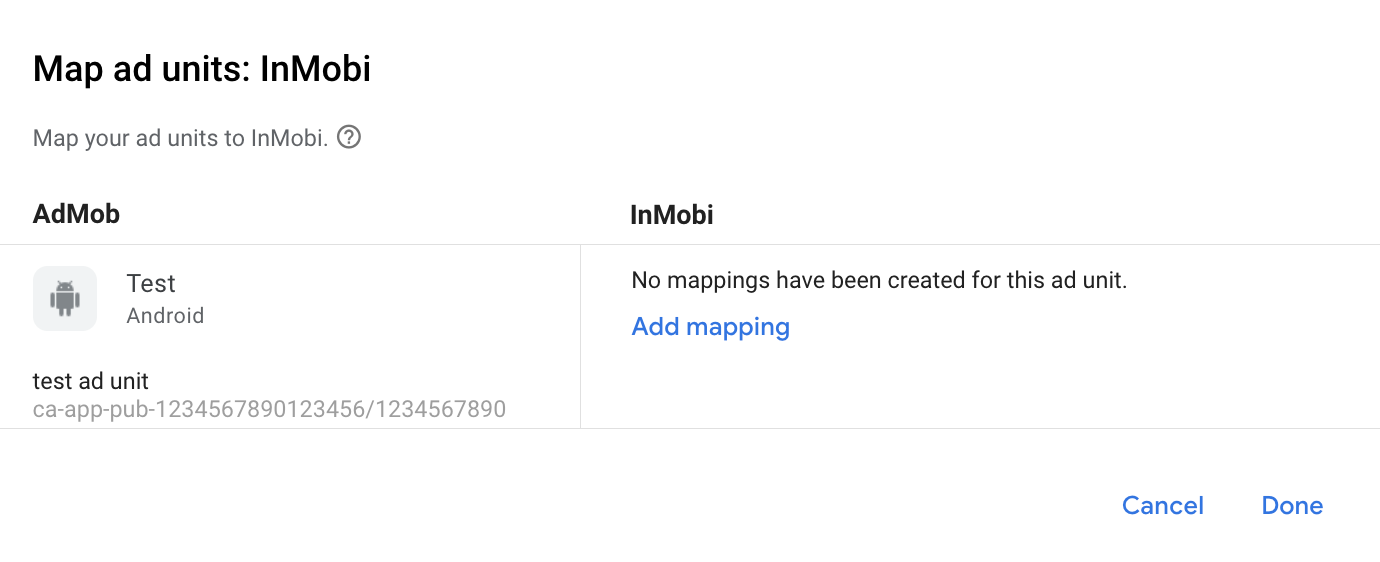

Enter the Account ID and the Placement ID obtained in the previous section.

• For InMobi SDK 5.0 and later - Use Account ID and Placement ID.

Note: Ad network optimization takes a few days to gather data to accurately calculate eCPM for a mediation network. In the meantime, the ANO status will be PENDING, so you must manually set an eCPM value for the network. Once the eCPM can be calculated, ANO will automatically start updating the eCPM on your behalf.

Using rewarded video ads

In the settings for your rewarded video ad unit, provide values for the reward amount and reward type. Then, to ensure you provide the same reward to the user no matter which ad network is served, check the Apply to all networks in Mediation groups box.

If you don't apply this setting, the InMobi adapter passes back the reward specified in the InMobi dashboard when creating the placement. For more information on setting reward values for AdMob ad units, see Create an ad unit.

Step 3: Import the InMobi SDK and adapter

Android Studio integration (recommended)

Add the following implementation dependencies with the latest version of the InMobi SDK and adapter in the app-level build.gradle file:

repositories {
    jcenter()
}

...
dependencies {
    implementation fileTree(dir: 'libs', include: ['*.jar'])
    implementation 'androidx.appcompat:appcompat:1.0.2'
    implementation 'com.google.android.gms:play-services-ads:19.5.0'
    implementation 'com.google.ads.mediation:inmobi:9.1.0.0'
}
...

Migrate project to AndroidX

The InMobi SDK depends on Android support libraries but the latest Google Mobile Ads SDK uses Jetpack libraries.

To ensure the InMobi SDK and the Google Mobile Ads SDK are compatible, create a gradle.properties file in the top-level of your project, and add the following code:

android.useAndroidX=true
android.enableJetifier=true

This will rewrite the InMobi SDK binary to use use Jetpack libraries. See AndroidX migration guide for more information about these settings.

Manual integration

• Download the InMobi Android SDK and extract the InMobiSDK.aar file under the libs folder and add it to your project.

• Download the latest InMobi adapter .aar file from Bintray, and add it to your project.

• Download the latest version of Picasso Android library and add the picasso-version.jar file to your project.

Android RecyclerView library is part of the v7 Support Libraries and can be located under your Android SDK directory. Extract the android-support-v7-recyclerview.jar file from android-sdk-dir/extras/android/support/v7/recyclerview/libs/ and add it to your project.

Step 4: Additional code required

No additional code is required for InMobi integration.

Step 5: Test your implementation

To enable test ads for a placement, go to your app's details page by clicking on your app's name in the InMobi dashboard and navigate to the Placements tab located in the left navigation bar. Select the placement for which you want to enable test ads and click on the Diagnostics section to expand it.

You can choose either Global ON or Selective ON as the Test Mode. If you select Selective ON, you need to add a test device. Make sure that InMobi Test Ad is selected as the Test ad.

Optional steps

EU Consent and GDPR

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

The section below shows you how to enable or disable personalized ads for InMobi.

In version 7.1.0.0, the InMobi adapter added the InMobiConsent class that allows you to pass consent information to InMobi. The following sample code calls updateGDPRConsent() on the InMobiConsent class. If you choose to call this method, it is recommended that you do so prior to requesting ads via the Google Mobile Ads SDK.

Note: Your app must reference both the InMobi adapter 7.1.0.0 or higher and the InMobi SDK 7.1.0 or higher to use the code below.

import com.inmobi.sdk.InMobiSdk;
import com.google.ads.mediation.inmobi.InMobiConsent;
// ...

JSONObject consentObject = new JSONObject();
try {
  consentObject.put(InMobiSdk.IM_GDPR_CONSENT_AVAILABLE, true);
  consentObject.put("gdpr", "1");
} catch (JSONException exception) {
  exception.printStackTrace();
}

InMobiConsent.updateGDPRConsent(consentObject);

See InMobi's GDPR implementation details for more information about the possible keys and values that InMobi accepts in this consent object.

Permissions

For optimal performance, InMobi recommends adding the following optional permissions to your app's AndroidManifest.xml file.

<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />

Network-specific parameters

The InMobi adapter supports additional request parameters that can be passed to the adapter as an Android Bundle. The adapter looks for the following keys in the bundle:

Request parameters and values
InMobiNetworkKeys.AGE_GROUP The user's age group.	InMobiNetworkValues.BELOW_18 InMobiNetworkValues.BETWEEN_18_AND_24 InMobiNetworkValues.BETWEEN_25_AND_29 InMobiNetworkValues.BETWEEN_30_AND_34 InMobiNetworkValues.BETWEEN_35_AND_44 InMobiNetworkValues.BETWEEN_45_AND_54 InMobiNetworkValues.BETWEEN_55_AND_65 InMobiNetworkValues.ABOVE_65
InMobiNetworkKeys.EDUCATION The user's education level.	InMobiNetworkValues.EDUCATION_HIGHSCHOOLORLESS InMobiNetworkValues.EDUCATION_COLLEGEORGRADUATE InMobiNetworkValues.EDUCATION_POSTGRADUATEORABOVE
InMobiNetworkKeys.AGE	String. The age of the user
InMobiNetworkKeys.POSTAL_CODE	String. The user's postal code (usually a five-digit number)
InMobiNetworkKeys.AREA_CODE	String. The user's area code (part of the telephone number)
InMobiNetworkKeys.LANGUAGE	String. The user's native language (if known).
InMobiNetworkKeys.CITY	String. The user's city
InMobiNetworkKeys.STATE	String. The user's state
InMobiNetworkKeys.COUNTRY	String. The user's country
InMobiNetworkKeys.LOGLEVEL Sets the Log level for InMobi SDK.	InMobiNetworkValues.LOGLEVEL_NONE InMobiNetworkValues.LOGLEVEL_DEBUG InMobiNetworkValues.LOGLEVEL_ERROR

Here's a code example of how to set these ad request parameters:

JAVA

Bundle extras = new Bundle();
extras.putString(InMobiNetworkKeys.AGE_GROUP, InMobiNetworkValues.BETWEEN_35_AND_54);
extras.putString(InMobiNetworkKeys.AREA_CODE, "12345");
...
AdRequest request = new AdRequest.Builder()
        .addNetworkExtrasBundle(InMobiAdapter.class, extras)
        .build();

KOTLIN

val extras = Bundle()
extras.putString(InMobiNetworkKeys.AGE_GROUP, InMobiNetworkValues.BETWEEN_35_AND_54)
extras.putString(InMobiNetworkKeys.AREA_CODE, "12345")
...
val request = AdRequest.Builder()
        .addNetworkExtrasBundle(InMobiAdapter.class, extras)
        .build()

Using native ads

Ad rendering

The InMobi adapter returns its native ads as UnifiedNativeAd objects. It populates the fields described in Native ads field descriptions for a UnifiedNativeAd.

Field	Assets always included by InMobi adapter
Headline
Body
App icon
Call to action
Star rating
Store
Price

Impression and click tracking

The Google Mobile Ads SDK uses the InMobi SDK's callbacks for impression and click tracking, so the reports on both dashboards should match up with few to no discrepancies.

Media views

InMobi does not provide an image asset for any native ads (video or static). For non-video ads, InMobi's SDK populates its media view with an image asset instead. To avoid potential null pointer errors, the InMobi adapter automatically creates a blank NativeAd.Image and includes it in the images asset array that's part of the ad object received by the app.

Publishers mediating to InMobi are encouraged to avoid using the image assets directly, and instead use MediaView in their UI. Ads loaded via the InMobi adapter will always provide a media view, which will automatically display video assets for ads that contain them and an image asset for ads that don't.

InMobi Android Mediation Adapter Changelog

Version 9.1.0.0

• Verified compatibility with InMobi SDK version 9.1.0.
• Updated the minimum required Google Mobile Ads SDK version to 19.4.0.

Built and test with:

• Google Mobile Ads SDK version 19.4.0.
• InMobi SDK version 9.1.0.

Version 9.0.9.0

• Verified compatibility with InMobi SDK version 9.0.9.

Built and test with:

• Google Mobile Ads SDK version 19.3.0.
• InMobi SDK version 9.0.9.

Version 9.0.8.0

• Removed support for the deprecated NativeAppInstallAd format. Apps should request unified native ads.
• Updated the minimum required Google Mobile Ads SDK version to 19.3.0.
• Verified compatibility with InMobi SDK version 9.0.8.

Built and test with:

• Google Mobile Ads SDK version 19.3.0.
• InMobi SDK version 9.0.8.

Version 9.0.7.1

• Fixed an issue where the adapter did not keep InMobi SDK's initialization state properly.
• Updated the minimum required Google Mobile Ads SDK version to 19.2.0.

Built and test with:

• Google Mobile Ads SDK version 19.2.0.
• InMobi SDK version 9.0.7.

Version 9.0.7.0

• Verified compatibility with InMobi SDK version 9.0.7.
• Updated the adapter to support inline adaptive banner requests.
• Adapter now includes proguard configuration as suggested by InMobi's guidelines.

Built and test with:

• Google Mobile Ads SDK version 19.1.0.
• InMobi SDK version 9.0.7.

Version 9.0.6.0

• Verified compatibility with InMobi SDK version 9.0.6.
• Native ads: Fixed a bug that causes the primaryView of InMobi to disappear while scrolling in native feed integration.
• Native ads: Fixed a bug that causes the primaryView of InMobi not being positioned center inside the mediaView.

Built and test with:

• Google Mobile Ads SDK version 19.1.0.
• InMobi SDK version 9.0.6.

Version 9.0.5.0

• Verified compatibility with InMobi SDK version 9.0.5.

Built and test with:

• Google Mobile Ads SDK version 19.1.0.
• InMobi SDK version 9.0.5.

Version 9.0.4.0

• Updated the minimum required Google Mobile Ads SDK version to 19.1.0.

Built and test with:

• Google Mobile Ads SDK version 19.1.0.
• InMobi SDK version 9.0.4.

Version 9.0.2.0

• Verified compatibility with InMobi SDK version 9.0.2.
• Updated the minimum required Google Mobile Ads SDK version to 18.3.0.
• Removed open bidding capability for banner, interstitial, and rewarded formats.
• Fixed a bug that causes a crash when trying to render a native ad.

Built and tested with

• Google Mobile Ads SDK version 18.3.0.
• InMobi SDK version 9.0.2.

Version 7.3.0.1

• Native ads now leverage the unified native ads mediation API.

Built and tested with

• Google Mobile Ads SDK version 18.2.0.
• InMobi SDK version 7.3.0.

Version 7.3.0.0

• Verified compatibility with InMobi SDK version 7.3.0.
• Updated the minimum required Google Mobile Ads SDK version to 18.2.0.

Version 7.2.9.0

• Added open bidding capability to the adapter for banner, interstitial and rewarded ads.
• Verified compatibility with InMobi SDK version 7.2.9.
• Updated the minimum required Google Mobile Ads SDK version to 18.1.1.

Version 7.2.7.0

• Verified compatibility with InMobi SDK version 7.2.7.

Version 7.2.2.2

• Added support for flexible banner ad sizes.

Version 7.2.2.1

• Updated adapter to support new open-beta Rewarded API.
• Updated the minimum required Google Mobile Ads SDK version to 17.2.0.

Version 7.2.2.0

• Verified compatibility with InMobi SDK version 7.2.2.

Version 7.2.1.0

• Verified compatibility with InMobi SDK version 7.2.1.

Version 7.2.0.0

• Verified compatibility with InMobi SDK version 7.2.0.

Version 7.1.1.1

• Updated the adapter to invoke the onRewardedVideoComplete ad event.

Version 7.1.1.0

• Verified compatibility with InMobi SDK version 7.1.1.

Version 7.1.0.0

• Added InMobiConsent class which provides updateGDPRConsent() and getConsentObj() methods.
• Verified compatibility with InMobi SDK version 7.1.0.

Version 7.0.4.0

• Verified compatibility with InMobi SDK version 7.0.4.

Version 7.0.2.0

• Verified compatibility with InMobi SDK version 7.0.2.

Version 7.0.1.0

• Updated the adapter to make it compatible with InMobi SDK version 7.0.1.
• Added support for native video ads.
• For native ads, a media view is always returned by the adapter. The adapter no longer returns an image asset, instead the media view will display an image for static native ads.
• Updated the adapter project for Android Studio 3.0.

Version 6.2.4.0

• Verified compatibility with InMobi SDK version 6.2.4.

Version 6.2.3.0

• Changed the version naming system to [InMobi SDK version].[adapter patch version].

Earlier versions

• Adds support for banners, interstitials, rewarded video and native ad formats.
