Deploy a Spring Boot Java app to Kubernetes on Google Kubernetes Engine

Kubernetes is an open source project, which can run in many different environments, from laptops to high-availability multi-node clusters, from public clouds to on-premise deployments, and from virtual machine (VM) instances to bare metal.

In this codelab, you'll deploy a simple Spring Boot Java web app to Kubernetes on GKE, with the goal being for you to run your web app as a replicated app on Kubernetes. You'll take code that you develop on your machine, turn it into a Docker container image, and run the image on GKE.

You'll use GKE, a fully managed Kubernetes service on Google Cloud, to allow you to focus more on experiencing Kubernetes, rather than setting up the underlying infrastructure.

If you're interested in running Kubernetes on your local machine, such as a development laptop, then look into Minikube, which offers a simple setup of a single-node Kubernetes cluster for development and testing purposes. You can use Minikube to go through the codelab if you wish.

The codelab will use the sample code from the guide about Building an App with Spring Boot.

Prerequisites

• Familiarity with Java programming language and tools
• Knowledge of standard Linux text editors, such as Vim, Emacs, and nano

What you'll do

• Package a simple Java app as a Docker container.
• Create your Kubernetes cluster on GKE.
• Deploy your Java app to Kubernetes on GKE.
• Scale up your service and roll out an upgrade.
• Access Dashboard, a web-based Kubernetes user interface.

What you'll need

• A Google Cloud project
• A browser, such Google Chrome

Self-paced environment setup

1. Sign in to Cloud Console and create a new project or reuse an existing one. (If you don't already have a Gmail or G Suite account, you must create one.)

Note: You can easily access Cloud Console by memorizing its URL, which is console.cloud.google.com.

Remember the project ID, a unique name across all Google Cloud projects (the name above has already been taken and will not work for you, sorry!). It will be referred to later in this codelab as PROJECT_ID.

Note: If you're using a Gmail account, you can leave the default location set to No organization. If you're using a G Suite account, then choose a location that makes sense for your organization.

2. Next, you'll need to enable billing in Cloud Console in order to use Google Cloud resources.

Running through this codelab shouldn't cost you more than a few dollars, but it could be more if you decide to use more resources or if you leave them running.

New users of Google Cloud are eligible for a $300 free trial.

Activate Cloud Shell

1. From the Cloud Console, click Activate Cloud Shell .

If you've never started Cloud Shell before, you'll be presented with an intermediate screen (below the fold) describing what it is. If that's the case, click Continue (and you won't ever see it again). Here's what that one-time screen looks like:

It should only take a few moments to provision and connect to Cloud Shell.

This virtual machine is loaded with all the development tools you'll need. It offers a persistent 5GB home directory and runs in Google Cloud, greatly enhancing network performance and authentication. Much, if not all, of your work in this codelab can be done with simply a browser or your Chromebook.

Once connected to Cloud Shell, you should see that you are already authenticated and that the project is already set to your project ID.

2. Run the following command in Cloud Shell to confirm that you are authenticated:

gcloud auth list

Command output

 Credentialed Accounts
ACTIVE  ACCOUNT
*       <my_account>@<my_domain.com>

To set the active account, run:
    $ gcloud config set account `ACCOUNT`

Note: The gcloud command-line tool is the powerful and unified command-line tool in Google Cloud. It comes preinstalled in Cloud Shell. You will notice its support for tab completion. For more information, see gcloud command-line tool overview.

gcloud config list project

Command output

[core]
project = <PROJECT_ID>

If it is not, you can set it with this command:

gcloud config set project <PROJECT_ID>

Command output

Updated property [core/project].

After Cloud Shell launches, you can use the command line to clone the example source code in the home directory.

$ git clone https://github.com/spring-guides/gs-spring-boot.git
$ cd gs-spring-boot/complete

1. You can start the Spring Boot app normally with the Spring Boot plugin.

$ ./mvnw -DskipTests spring-boot:run

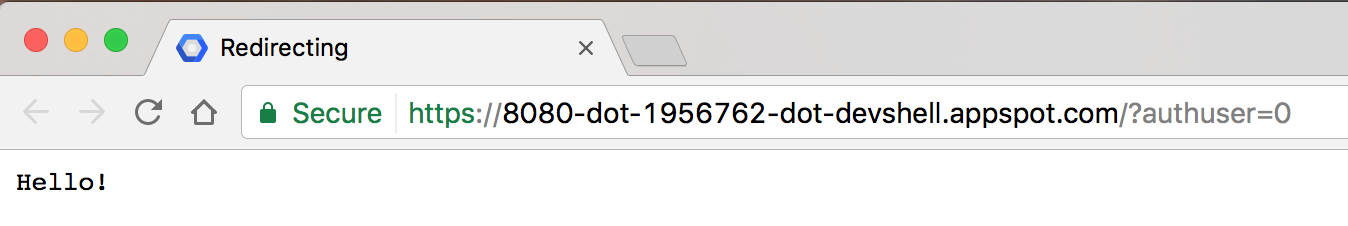

2. After the app starts, click on Web Preview in the Cloud Shell toolbar and select Preview on port 8080.

A tab in your browser opens and connects to the server you just started.

Next, you need to prepare your app to run on Kubernetes. The first step is to define the container and its contents.

1. Create the JAR deployable for the app.

$ ./mvnw -DskipTests package

2. Enable Container Registry to store the container image that you'll create.

$ gcloud services enable containerregistry.googleapis.com

3. Use Jib to create the container image and push it to the Container Registry.

$ ./mvnw -DskipTests com.google.cloud.tools:jib-maven-plugin:build \
  -Dimage=gcr.io/$GOOGLE_CLOUD_PROJECT/hello-java:v1

4. If all goes well, then you should be able to see the container image listed in the console by navigating to Container Registry > Images. You now have a project-wide Docker image available, which Kubernetes can access and orchestrate as you'll see in a few minutes.

Note: While you used a generic domain for the registry (gcr.io), you can also be more specific about which zone and bucket to use. For more information, see Container Registry documentation.

5. After that completes (it'll take some time to download and extract everything), you can locally test the image with the following command, which will run a Docker container as a daemon on port 8080 from your newly created container image:

$ docker run -ti --rm -p 8080:8080 \
  gcr.io/$GOOGLE_CLOUD_PROJECT/hello-java:v1

6. Again, take advantage of the web preview feature of Cloud Shell.

7. You should see the default page in a new tab. After you verify that the app is locally running in a Docker container, you can stop the running container by pressing Control+C.

You're ready to create your GKE cluster. A cluster consists of a Kubernetes API server managed by Google and a set of worker nodes. The worker nodes are Compute Engine VMs.

1. First, make sure that the related API features are enabled.

$ gcloud services enable compute.googleapis.com container.googleapis.com
Operation "operations/..." finished successfully

2. Create a cluster with two n1-standard-1 nodes (it will take a few minutes to complete).

$ gcloud container clusters create hello-java-cluster \
  --num-nodes 2 \
  --machine-type n1-standard-1 \
  --zone us-central1-c

In the end, you should see the cluster created.

Creating cluster hello-java-cluster...done.
Created [https://container.googleapis.com/v1/projects/...].
kubeconfig entry generated for hello-dotnet-cluster.
NAME                  ZONE            MASTER_VERSION
hello-java-cluster  us-central1-c  ...

Note: Alternatively, you could create the cluster in the Cloud Console. To get there, click Navigation menu > Kubernetes Engine > Clusters > Create cluster. You can create a cluster in another zone, but it is recommended to stay in the same region as the storage bucket used by Container Registry.

You should now have a fully functioning Kubernetes cluster powered by GKE.

It's now time to deploy your containerized app to the Kubernetes cluster! From now on, you'll use the kubectl command line (already set up in your Cloud Shell environment). The rest of the codelab requires the Kubernetes client and server version to be 1.2 or higher. kubectl version will show you the current version of the command.

1. A Kubernetes deployment can create, manage, and scale multiple instances of your app using the container image that you created. Deploy one instance of your app to Kubernetes using the kubectl run command.

$ kubectl create deployment hello-java \
  --image=gcr.io/$GOOGLE_CLOUD_PROJECT/hello-java:v1

2. To view the deployment that you created, simply run the following command:

$ kubectl get deployments
NAME         DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
hello-java   1         1         1            1           37s

3. To view the app instances created by the deployment, run the following command:

$ kubectl get pods
NAME                         READY     STATUS    RESTARTS   AGE
hello-java-714049816-ztzrb   1/1       Running   0          57s

At this point, you should have your container running under the control of Kubernetes, but you still have to make it accessible to the outside world.

By default, the Pod is only accessible by its internal IP within the cluster. In order to make the hello-java container accessible from outside the Kubernetes virtual network, you have to expose the Pod as a Kubernetes service.

1. In Cloud Shell, you can expose the Pod to the public internet with the kubectl expose command combined with the --type=LoadBalancer flag. The flag is required for the creation of an externally accessible IP.

$ kubectl create service loadbalancer hello-java --tcp=8080:8080

The flag used in the command specifies that you'll be using the load balancer provided by the underlying infrastructure. Note that you directly expose the deployment, not the Pod. That will cause the resulting service to load balance traffic across all Pods managed by the deployment (in this case, only one Pod, but you'll add more replicas later).

The Kubernetes Master creates the load balancer and related Compute Engine forwarding rules, target pools, and firewall rules to make the service fully accessible from outside of Google Cloud.

2. To find the publicly accessible IP address of the service, simply request kubectl to list all the cluster services.

$ kubectl get services
NAME         CLUSTER-IP     EXTERNAL-IP      PORT(S)    AGE
Hello-java   10.3.253.62    aaa.bbb.ccc.ddd  8080/TCP    1m
kubernetes   10.3.240.1     <none>           443/TCP    5m

Note: The EXTERNAL-IP may take several minutes to become available and visible. If the EXTERNAL-IP is missing, then wait a few minutes and try again.

3. Notice that there are two IP addresses listed for your service, both serving port 8080. One is the internal IP address that is only visible inside your Virtual Private Cloud. The other is the external load-balanced IP address. In the example, the external IP address is aaa.bbb.ccc.ddd. You should now be able to reach the service by pointing your browser to http://<EXTERNAL_IP>:8080.

One of the powerful features offered by Kubernetes is how easy it is to scale your app. Suppose that you suddenly need more capacity for your app. You can simply tell the replication controller to manage a new number of replicas for your app instances.

$ kubectl scale deployment hello-java --replicas=3
deployment "hello-java" scaled

$ kubectl get deployment
NAME         DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
hello-java   3         3         3            3           22m

Notice the declarative approach. Rather than starting or stopping new instances, you declare how many instances should be running at all times. Kubernetes reconciliation loops simply make sure that the reality matches what you requested and takes action, if needed.

At some point, the app that you deployed to production will require bug fixes or additional features. Kubernetes can help you deploy a new version to production without impacting your users.

1. Open the code editor by clicking Launch editor in the Cloud Shell menu.
2. Navigate to src/main/java/hello/HelloController.java and update the value of the response.

package hello;

import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.bind.annotation.RequestMapping;

@RestController
public class HelloController {
    @RequestMapping("/")
    public String index() {
        return "Greetings from Google Kubernetes Engine!";
    }
}

3. Use Jib to build and push a new version of the container image.

$ ./mvnw -DskipTests package \
  com.google.cloud.tools:jib-maven-plugin:build \
  -Dimage=gcr.io/$GOOGLE_CLOUD_PROJECT/hello-java:v2

Note: Building and pushing the updated image should be much quicker as you take full advantage of caching.

You're ready for Kubernetes to smoothly update your replication controller to the new version of the app!

4. In order to change the image label for your running container, you need to edit the existing hello-java deployment and change the image from gcr.io/PROJECT_ID/hello-java:v1 to gcr.io/PROJECT_ID/hello-java:v2.

5. You can use the kubectl set image command to ask Kubernetes to deploy the new version of your app across the entire cluster one instance at a time with rolling updates.

$ kubectl set image deployment/hello-java \
  hello-java=gcr.io/$GOOGLE_CLOUD_PROJECT/hello-java:v2

deployment "hello-java" image updated

Note: While that's happening, the users of the services might experience interruptions, but that's because there was no health check configured. That's a slightly more advanced configuration that's beyond the scope of the codelab.

6. Check http://EXTERNAL_IP:8080 again to see that it's returning the new response.

Oops! Did you make a mistake with a new version of the app? Perhaps the new version contained an error and you need to quickly roll it back. With Kubernetes, you can roll it back to the previous state easily. Roll back the app by running the following command:

$ kubectl rollout undo deployment/hello-java

You learned to build and deploy a new Java-based web app to Kubernetes on GKE.
