Build reservations

This guide walks you through the process of developing an Actions project that uses the Orders API to place reservations.

Transaction flow

When your Actions project handles reservations, it uses the following flow:

  1. Validate transaction requirements (optional) - Use the transactions requirements helper at the start of the conversation to make sure the user is capable of carrying out a transaction.
  2. Build the order - Walk the user through a "cart assembly" where they build the details of their reservation.
  3. Propose the order - Once the "cart" is complete, propose the reservation "order" to the user, so they can confirm it's correct. If the reservation is confirmed, you receive a response with reservation details.
  4. Finalize the order and send a receipt - With the order confirmed, update your reservation system and send a receipt to the user.
  5. Send order updates - Over the course of the reservation's lifespan, give the user reservation status updates by sending PATCH requests to the Orders API.

Restrictions and review guidelines

Keep in mind that additional policies apply to Actions that use the transactions and Orders API. It can take us up to six weeks to review Actions with transactions, so factor that time in when planning your release schedule. To ease the review process, make sure you comply with the policies and guidelines for transactions before submitting your Action for review.

You can only deploy Actions that use the Orders API in the following countries:

Australia
Brazil
Canada
Denmark
France
Germany
Indonesia
Italy
Japan
Mexico
Netherlands
Norway
Poland
Russia
Singapore
Spain
Sweden
Thailand
Turkey
United Kingdom
United States

Build your project

For an extensive example of transactional conversations, view our Transactions sample in Node.js.

Setup

When creating your Action, you must specify that you want to perform transactions in the Actions console.

To set up your project and fulfillment, do the following:

  1. Create a new project or import an existing project.
  2. Navigate to Deploy > Directory information.
  3. Under Additional information > Transactions > check the box that says "Do your Actions use the Transactions API to perform transactions of physical goods?".

Validate transaction requirements (optional)

As soon as the user has indicated they wish to set up a reservation, you should check that they are able to request a reservation. For example, when invoked, your Action might ask, "Would you like to reserve a seat?" If the user says "yes", you should ensure that they can proceed and give them an opportunity to fix any settings preventing them from continuing with the transaction. To do so, you should transition to a scene that performs a transaction requirements check.

Create Transaction Requirements Check scene

  1. From the Scenes tab, add a new scene with the name TransactionRequirementsCheck.
  2. Under Slot filling, click + to add a new slot.
  3. Under Select type, select actions.type.TransactionRequirementsCheckResult as the slot type.
  4. In the slot name field, give the slot the name TransactionRequirementsCheck.
  5. Enable the Customize slot value writeback checkbox (enabled by default).
  6. Click Save.

A transaction requirements check results in one of the following outcomes:

  • If the requirements are met, the session parameter is set with a success condition and you can proceed with building the user's order.
  • If one or more of the requirements cannot be met, the session parameter is set with a failure condition. In this case, you should pivot the conversation away from the transactional experience, or end the conversation.
    • If any errors resulting in the failure state can be fixed by the user, they will be prompted to resolve those issues on their device. If the conversation is taking place on a voice-only surface, a handoff will be initiated to the user's phone.

Handle Transaction Requirements Check result

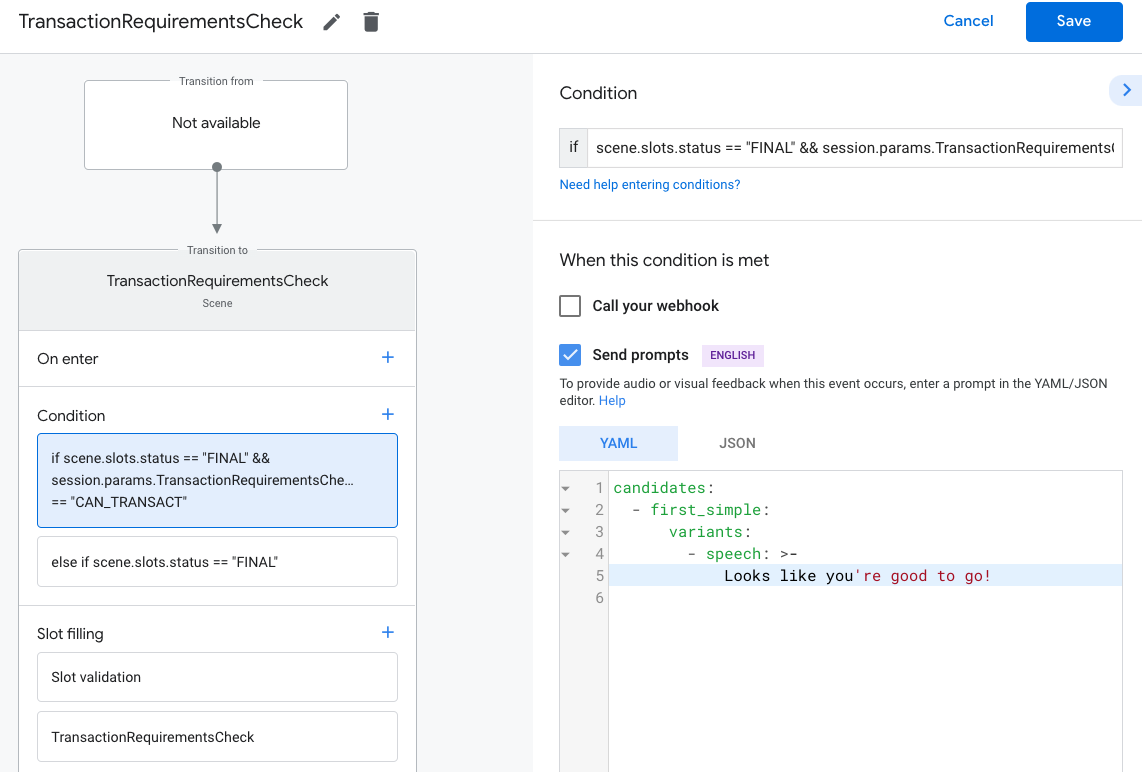

  1. From the Scenes tab, select your newly created TransactionRequirementsCheck scene.
  2. Under Condition, click + to add a new condition.
  3. In the text field, enter the following condition syntax to check for the success condition:

    scene.slots.status == "FINAL" && session.params.TransactionRequirementsCheck.resultType == "CAN_TRANSACT"

  4. Hover your cursor over the condition you just added and click the up arrow to place it before if scene.slots.status == "FINAL".

  5. Enable Send prompts and provide a simple prompt letting the user know they are ready to make a transaction:

    candidates:
      - first_simple:
          variants:
            - speech: >-
                Looks like you're good to go!.

  6. Under Transition select another scene, allowing the user to continue the conversation and proceed with making a transaction.

  7. Select the condition else if scene.slots.status == "FINAL".

  8. Enable Send prompts and provide a simple prompt letting the user know they are unable to make a transaction:

    candidates:
      - first_simple:
          variants:
            - speech: Transaction requirements check failed.

  9. Under Transition, select End conversation to end the conversation if a user is unable to make transactions.

Build the order

Once you have the user information you need, build a "cart assembly" experience that guides the user to build their reservation. Every Action will have a slightly different cart assembly flow as appropriate for their service.

In a basic cart assembly experience, a user selects options from a list to add to their reservation, though you can design the conversation to simplify the user experience. For example, build a cart assembly experience that enables the user to schedule a monthly reservation with a simple yes or no question. You can also present the user a carousel or list card of "recommended" reservations.

We recommend using rich responses to present the user's options visually, but also design the conversation so the user can build their cart using only their voice. For some best practices and examples of cart assembly experiences, see the Design guidelines.

Create an order

Throughout your conversation, gather the user's reservation details and then construct an Order object.

At minimum, your Order must contain the following:

  • buyerInfo - Information about the user making the purchase.
  • transactionMerchant - Information about the merchant that facilitated the order.
  • contents - The actual contents of the order listed as lineItems.

Refer to the Order response documentation to construct your cart. Note that you may need to include different fields depending on the reservation.

The sample code below shows a complete reservation order, including optional fields:

const order = {
   createTime: '2019-09-24T18:00:00.877Z',
   lastUpdateTime: '2019-09-24T18:00:00.877Z',
   merchantOrderId: orderId, // A unique ID String for the order
   userVisibleOrderId: orderId,
   transactionMerchant: {
     id: 'http://www.example.com',
     name: 'Example Merchant',
   },
   contents: {
     lineItems: [
       {
         id: 'LINE_ITEM_ID',
         name: 'Dinner reservation',
         description: 'A world of flavors all in one destination.',
         reservation: {
           status: 'PENDING',
           userVisibleStatusLabel: 'Reservation is pending.',
           type: 'RESTAURANT',
           reservationTime: {
             timeIso8601: '2020-01-16T01:30:15.01Z',
           },
           userAcceptableTimeRange: {
             timeIso8601: '2020-01-15/2020-01-17',
           },
           partySize: 6,
           staffFacilitators: [
             {
               name: 'John Smith',
             },
           ],
           location: {
             zipCode: '94086',
             city: 'Sunnyvale',
             postalAddress: {
               regionCode: 'US',
               postalCode: '94086',
               administrativeArea: 'CA',
               locality: 'Sunnyvale',
               addressLines: [
                 '222, Some other Street',
               ],
             },
           },
         },
       },
     ],
   },
   buyerInfo: {
     email: 'janedoe@gmail.com',
     firstName: 'Jane',
     lastName: 'Doe',
     displayName: 'Jane Doe',
   },
   followUpActions: [
     {
       type: 'VIEW_DETAILS',
       title: 'View details',
       openUrlAction: {
         url: 'http://example.com',
       },
     },
     {
       type: 'CALL',
       title: 'Call us',
       openUrlAction: {
         url: 'tel:+16501112222',
       },
     },
     {
       type: 'EMAIL',
       title: 'Email us',
       openUrlAction: {
         url: 'mailto:person@example.com',
       },
     },
   ],
   termsOfServiceUrl: 'http://www.example.com'
 };

Create order and presentation options

const orderOptions = {
      'requestDeliveryAddress': false,
    };

const presentationOptions = {
      'actionDisplayName': 'RESERVE'
    };

Save order data in session parameter

From your fulfillment, save the order data to a session parameter. The order object will be used across scenes for the same session.

conv.session.params.order = {
    '@type': 'type.googleapis.com/google.actions.transactions.v3.TransactionDecisionValueSpec',
    order: order,
    orderOptions: orderOptions,
    presentationOptions: presentationOptions
};

Propose the order

Once you've built a reservation order, you must present it to the user to confirm or reject. To do so, you should transition to a scene that performs a transaction decision.

Create Transaction Decision scene

  1. From the Scenes tab, add a new scene with the name TransactionDecision.
  2. Under Slot filling, click + to add a new slot.
  3. Under Select type, select actions.type.TransactionDecisionValue as the slot type.
  4. In the slot name field, give the slot the name TransactionDecision.
  5. Enable the Customize slot value writeback checkbox (enabled by default).
  6. Under Configure slot, select Use session parameter from the dropdown.
  7. Under Configure slot, enter the name of the session parameter used to store the order into the text field (i.e. $session.params.order).
  8. Click Save.

In an attempt to fill a TransactionDecisionValue slot, the Assistant initiates a built-in experience in which the Order you passed is rendered directly onto a "cart preview card". The user can say "schedule reservation", decline the transaction, or request to change the reservation details.

The user may also request changes to the order at this point. In this case, you should make sure your fulfillment can handle order change requests after finishing the cart assembly experience.

Handle Transaction Decision result

When a TransactionDecisionValue slot is filled, the user's answer to the transaction decision will be stored in a session parameter. This value contains the following:

  • ORDER_ACCEPTED,
  • ORDER_REJECTED,
  • CART_CHANGE_REQUESTED
  • USER_CANNOT_TRANSACT.

To handle a transaction decision result:

  1. From the Scenes tab, select your newly created TransactionDecision scene.
  2. Under Condition, click + to add a new condition.
  3. In the text field, enter the following condition syntax to check for the success condition:

    scene.slots.status == "FINAL" && session.params.TransactionDecision.transactionDecision == "ORDER_ACCEPTED"

  4. Hover your cursor over the condition you just added and click the up arrow to place it before if scene.slots.status == "FINAL".

  5. Enable Send prompts and provide a simple prompt letting the user know their reservation is completed:

    candidates:
      - first_simple:
          variants:
            - speech: >-
                Transaction completed! Your reservation
                $session.params.TransactionDecision.order.merchantOrderId is all
                set!

  6. Under Transition select End conversation to end the conversation.

  7. Under Condition, click + to add a new condition.

  8. In the text field, enter the following condition syntax to check for the failure conditions:

      scene.slots.status == "FINAL" && session.params.TransactionDecision.transactionDecision == "ORDER_REJECTED"

  9. Hover your cursor over the condition you just added and click the up arrow to place it before if scene.slots.status == "FINAL".

  10. Enable Send prompts and provide a simple prompt letting the user know the order has been rejected:

    candidates:
      - first_simple:
          variants:
            - speech: Looks like you don't want to set up a reservation. Goodbye.

  11. Under Transition select End conversation to end the conversation.

  12. Select the condition else if scene.slots.status == "FINAL".

  13. Enable Send prompts and provide a simple prompt letting the user know they are unable to make a transaction:

    candidates:
      - first_simple:
          variants:
            - speech: >-
                Transaction failed with status
                $session.params.TransactionDecision.transactionDecision

  14. Under Transition, select End conversation to end the conversation if a user is unable to make transactions.

Finalize the reservation and send a receipt

When the TransactionDecisionValue slot returns a result of ORDER_ACCEPTED, you must immediately perform whatever processing is required to schedule the reservation (like persisting it in your own database).

Send a simple response to keep the conversation moving. The user receives a "collapsed receipt card" along with your response.

To send an initial order update:

  1. From the Scenes tab, select your TransactionDecision scene.
  2. Under Condition, select the condition that checks for the success result, ORDER_ACCEPTED:

    scene.slots.status == "FINAL" && session.params.TransactionDecision.transactionDecision == "ORDER_ACCEPTED"

  3. For this condition, enable Call your webhook, and provide an intent handler name, such as update_order.

  4. In your webhook code, add an intent handler for sending an initial order update:

    app.handle('update_order', conv => {
      const currentTime = new Date().toISOString();
      let order = conv.session.params.TransactionDecision.order;
      conv.add(new OrderUpdate({
        'updateMask': {
          'paths': [
            'reservation.status',
            'reservation.user_visible_status_label',
            'reservation.confirmation_code'
          ]
        },
        'order': {
          'merchantOrderId': order.merchantOrderId,
          'lastUpdateTime': currentTime,
          'reservation': {
            'status': 'CONFIRMED',
            'userVisibleStatusLabel': 'Reservation confirmed',
            'confirmationCode': '123ABCDEFGXYZ',
          },
        },
        'reason': 'Reason string'
      }));
    });


Send order updates

The reservation status changes over the course of its lifetime. Send the user reservation order updates with HTTP PATCH requests to the Orders API, containing the order status and details.

Set up asynchronous requests to the Orders API

Order update requests to the Orders API are authorized by an access token. To PATCH an order update to the Orders API, download a JSON service account key associated with your Actions Console project, then exchange the service account key for a bearer token that can be passed into the Authorization header of the HTTP request.

To retrieve your service account key, perform the following steps:

  1. In the Google Cloud console, go to Menu ☰ > APIs & Services > Credentials > Create credentials > Service account key.
  2. Under Service Account, select New Service Account.
  3. Set the service account to service-account.
  4. Set Role to Project > Owner.
  5. Set key type to JSON.
  6. Select Create.
  7. A private JSON service account key will be downloaded to your local machine.

In your order updates code, exchange your service key for a bearer token using the Google APIs client library and the "https://www.googleapis.com/auth/actions.order.developer" scope. You can find installation steps and examples on the API client library GitHub page.

Reference order-update.js in our Node.js sample for an example key exchange.

Send order updates

Once you've exchanged your service account key for an OAuth bearer token, send order updates as authorized PATCH requests to the Orders API.

Orders API URL: PATCH https://actions.googleapis.com/v3/orders/${orderId}

Provide the following headers in your request:

  • "Authorization: Bearer token" with the OAuth bearer token you exchanged your service account key for.
  • "Content-Type: application/json".

The PATCH request should take a JSON body of the following format:

{ "orderUpdate": OrderUpdate }

The OrderUpdate object consists of the following top-level fields:

  • updateMask - The fields of the order that you're updating. To update the reservation status, set the value to reservation.status, reservation.userVisibleStatusLabel.
  • order - The contents of the update. If you're updating the contents of the reservation, set the value to the updated Order object. If you're just updating the status of the reservation (for example, from "PENDING" to "FULFILLED"), the object contains the following fields:

    • merchantOrderId - The same ID you set in your Order object.
    • lastUpdateTime - The timestamp of this update.
    • purchase - An object containing the following:
      • status - The status of the order as a ReservationStatus, such as "CONFIRMED" or "CANCELLED".
      • userVisibleStatusLabel - A user-facing label providing details on the order status, such as "Your reservation is confirmed".
  • userNotification (optional) - A userNotification object that can display on the user's device when this update is sent. Note that including this object doesn't guarantee that a notification appears on the user's device.

The following sample code shows an example OrderUpdate that updates the status of the reservation order to FULFILLED:

// Import the 'googleapis' module for authorizing the request.
const {google} = require('googleapis');
// Import the 'request-promise' module for sending an HTTP POST request.
const request = require('request-promise');
// Import the OrderUpdate class from the client library.
const {OrderUpdate} = require('@assistant/conversation');

// Import the service account key used to authorize the request.
// Replacing the string path with a path to your service account key.
// i.e. const serviceAccountKey = require('./service-account.json')

// Create a new JWT client for the Actions API using credentials
// from the service account key.
let jwtClient = new google.auth.JWT(
   serviceAccountKey.client_email,
   null,
   serviceAccountKey.private_key,
   ['https://www.googleapis.com/auth/actions.order.developer'],
   null,
);

// Authorize the client
let tokens = await jwtClient.authorize();

// Declare the ID of the order to update.
const orderId = '<UNIQUE_MERCHANT_ORDER_ID>';

// Declare order update
const orderUpdate = new OrderUpdate({
   updateMask: {
     paths: [
       'contents.lineItems.reservation.status',
       'contents.lineItems.reservation.userVisibleStatusLabel'
     ]
   },
   order: {
     merchantOrderId: orderId, // Specify the ID of the order to update
     lastUpdateTime: new Date().toISOString(),
     contents: {
       lineItems: [
         {
           reservation: {
             status: 'FULFILLED',
             userVisibleStatusLabel: 'Reservation fulfilled',
           },
         }
       ]
     },
   },
   reason: 'Reservation status was updated to fulfilled.',
});

// Set up the PATCH request header and body,
// including the authorized token and order update.
let options = {
 method: 'PATCH',
 uri: `https://actions.googleapis.com/v3/orders/${orderId}`,
 auth: {
   bearer: tokens.access_token,
 },
 body: {
   header: {
     isInSandbox: true,
   },
   orderUpdate,
 },
 json: true,
};

// Send the PATCH request to the Orders API.
try {
 await request(options);
} catch (e) {
 console.log(`Error: ${e}`);
}

Set the reservation status

An order update's ReservationStatus must be descriptive of the current state of the order. In your update's order.ReservationStatus field, use one of the following values:

  • PENDING - The reservation has been "created" by your Action but requires additional processing on your back-end.
  • CONFIRMED - The reservation is confirmed in your scheduling back-end.
  • CANCELLED - The user cancelled their reservation.
  • FULFILLED - The user's reservation was fulfilled by the service.
  • CHANGE_REQUESTED - The user requested a change to the reservation, and the change is being processed.
  • REJECTED - If you were unable to process or otherwise confirm the reservation.

Send order updates for each status that is relevant to your reservation. For example, if your reservation requires manual processing to confirm the reservation after it's requested, send a PENDING order update until that additional processing is done. Not every reservation requires every status value.

Test your project

When testing your project, you can enable the sandbox mode in the Actions console to test your Action without charging a payment method. To enable the sandbox mode, follow these steps:

  1. In the Actions console, click Test in the navigation.
  2. Click Settings.
  3. Enable the Development Sandbox option.

For physical transactions, you can also set the field isInSandbox to true in your sample. This action is equivalent to enabling the sandbox mode setting in the Actions console. To see a code snippet that uses isInSandbox, see the Send order updates section.

Troubleshooting

If you run into any issues during testing, read our troubleshooting steps for transactions.
