Unity 광고와 미디에이션 통합

This guide shows you how to use the Google Mobile Ads SDK to load and display ads from Unity Ads using mediation, covering waterfall integrations. It covers how to add Unity Ads to an ad unit's mediation configuration, and how to integrate the Unity Ads SDK and adapter into an Android app.

Supported integrations and ad formats

The AdMob mediation adapter for Unity Ads has the following capabilities:

Integration
Bidding
Waterfall
Formats
Banner
Interstitial
Rewarded
Native

Requirements

Android API level 21 or higher

Latest Google Mobile Ads SDK
Complete the mediation Get started guide

Step 1: Set up configurations in Unity Ads UI

Create a project

On Unity Ads Dashboard, navigate to Projects and click Create Project.

Fill out the form and click Create Project to add your project.

Navigate to Monetization > Get started, then click Get started.

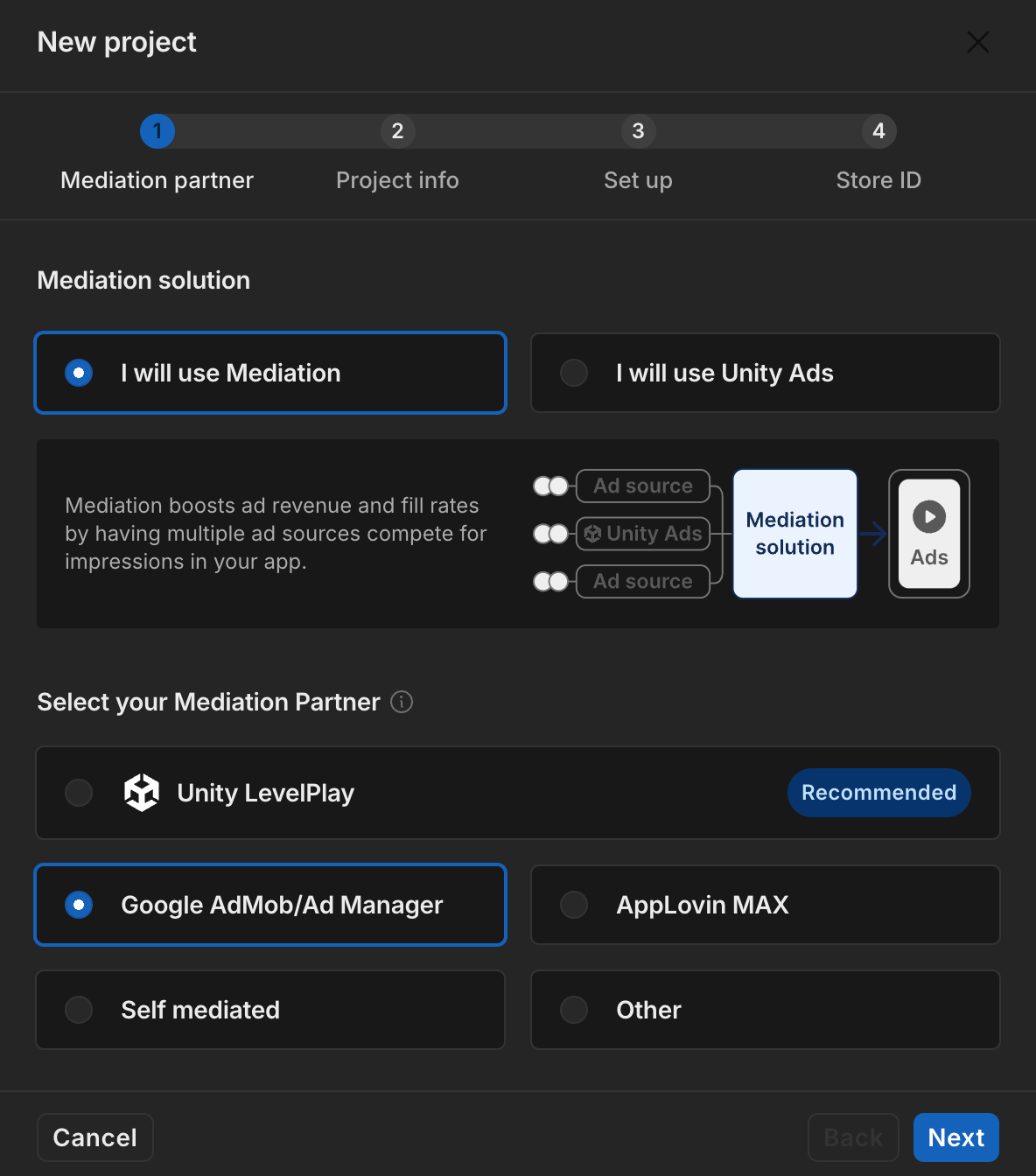

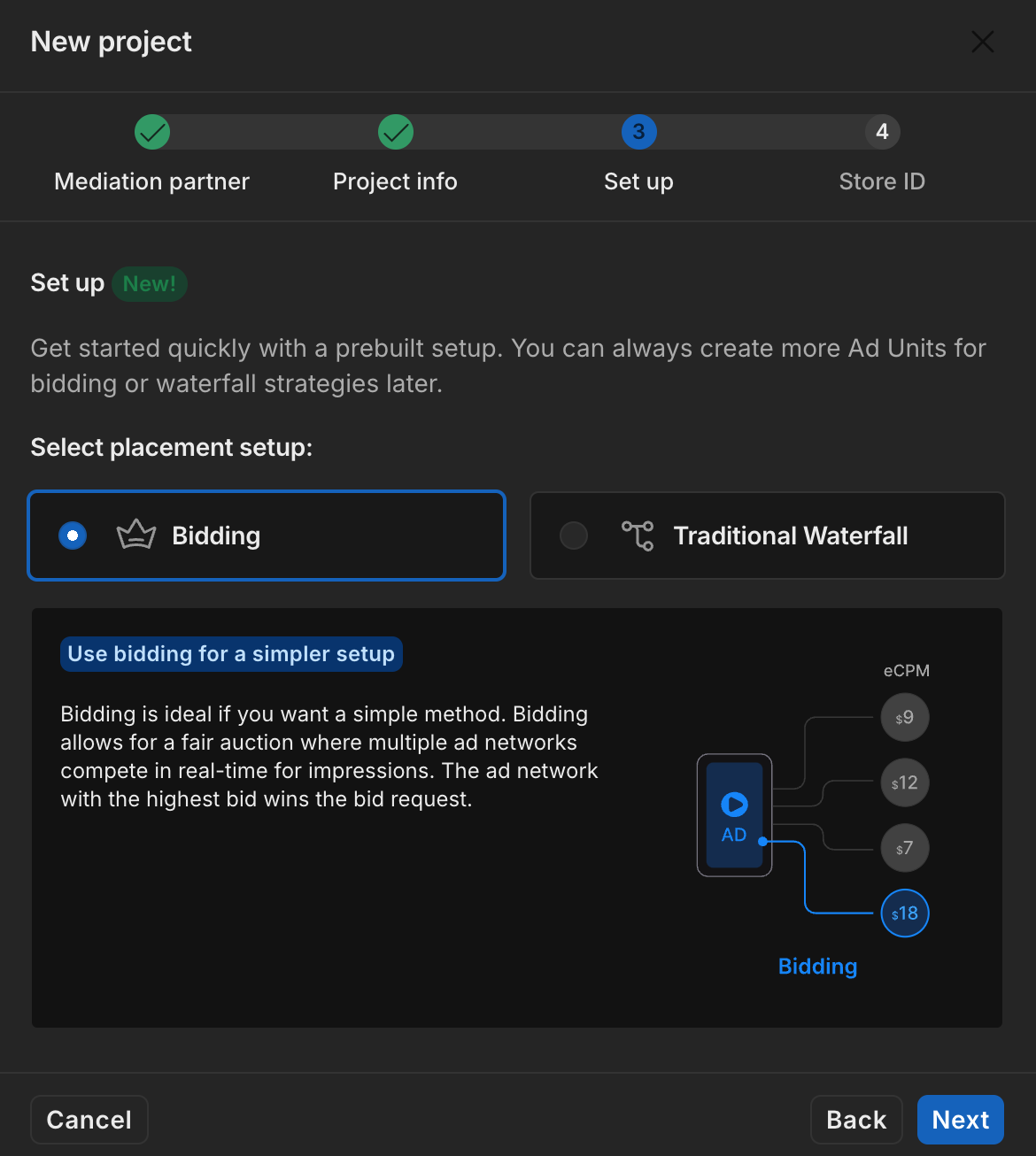

In the Project Setup modal, select I plan to use Mediation and Google Admob for Mediation Partner, then click Next.

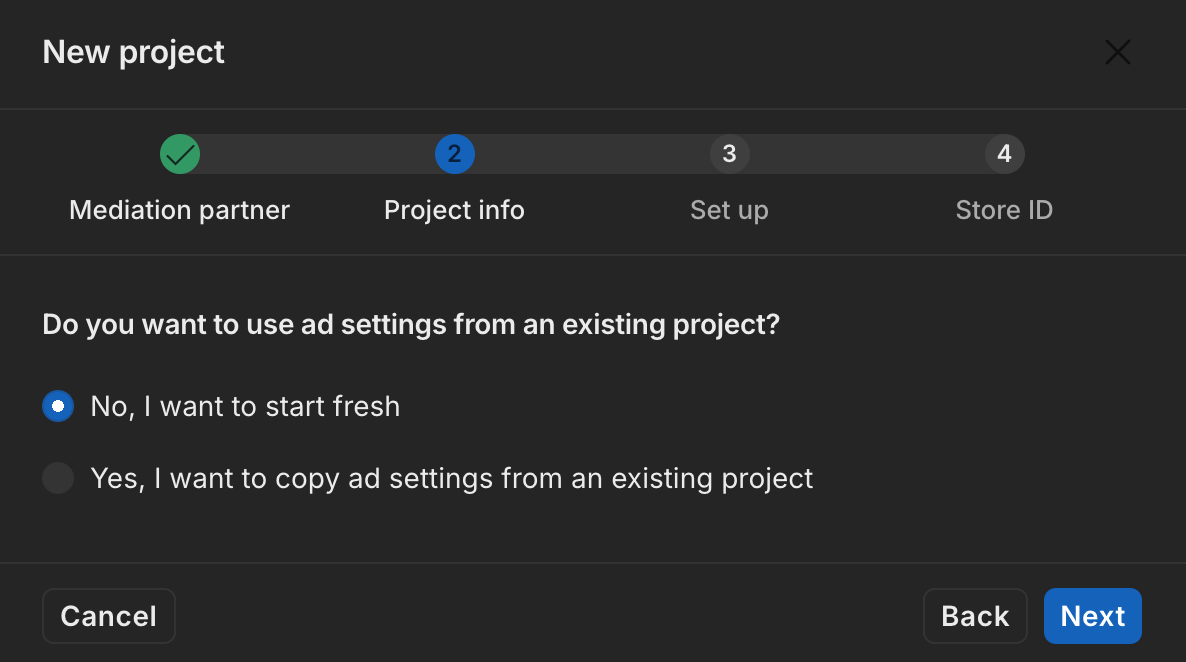

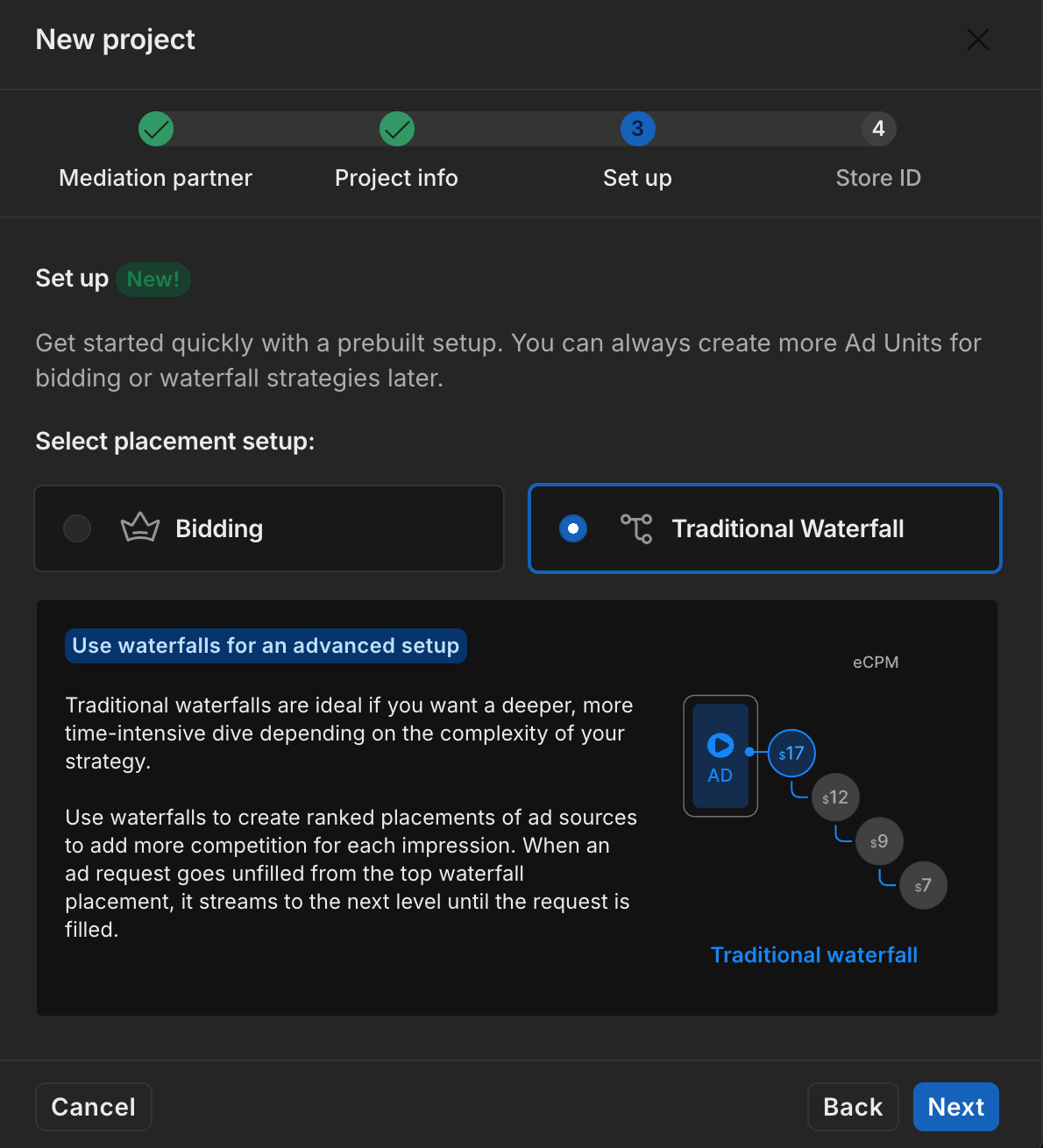

Select your ad settings, then click Next.

Fill out the form, then click Add Project.

Take note of the Game ID.

Create an Ad Unit

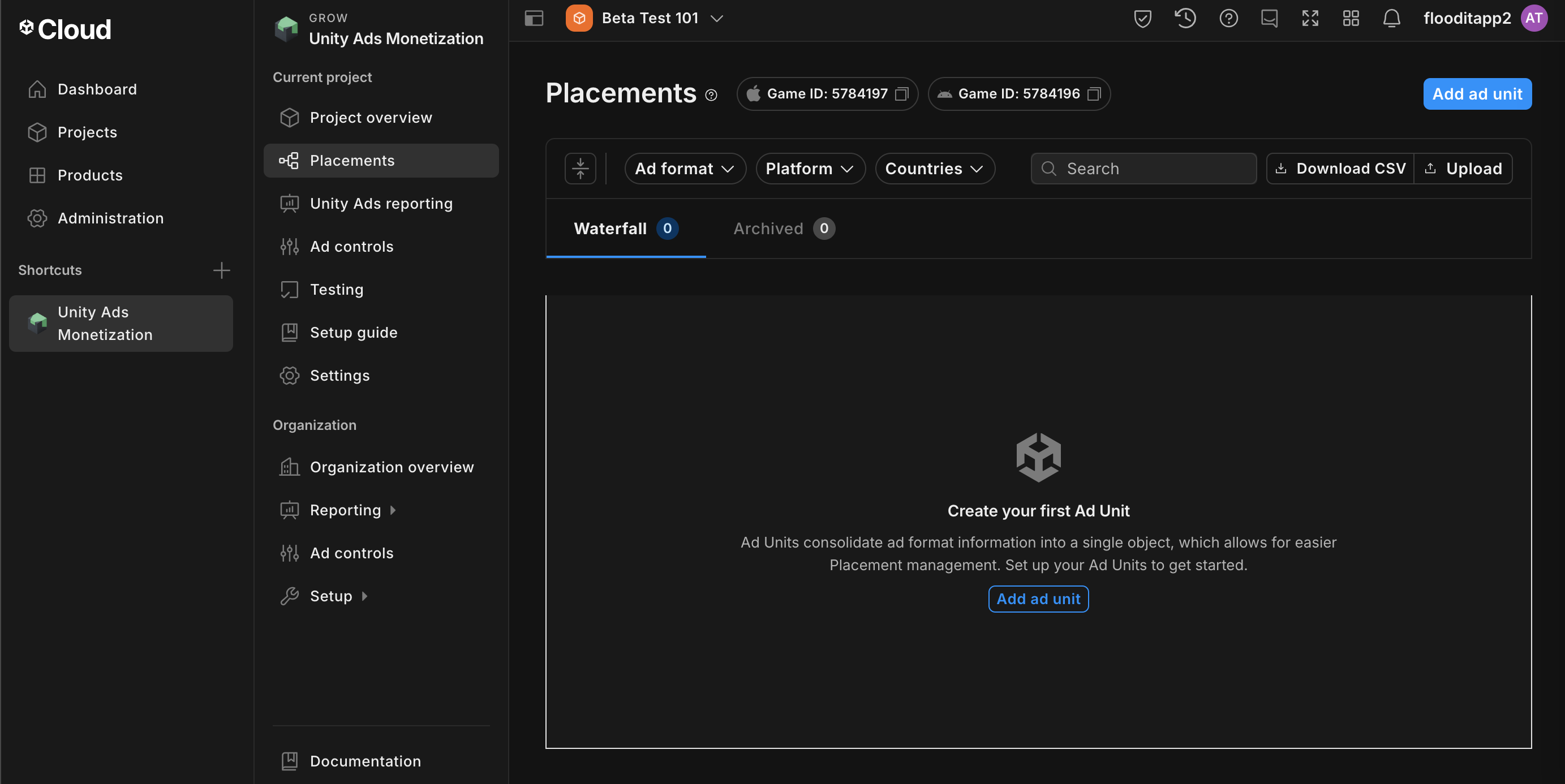

Navigate to Monetization > Ad Units, then click Add Ad Unit.

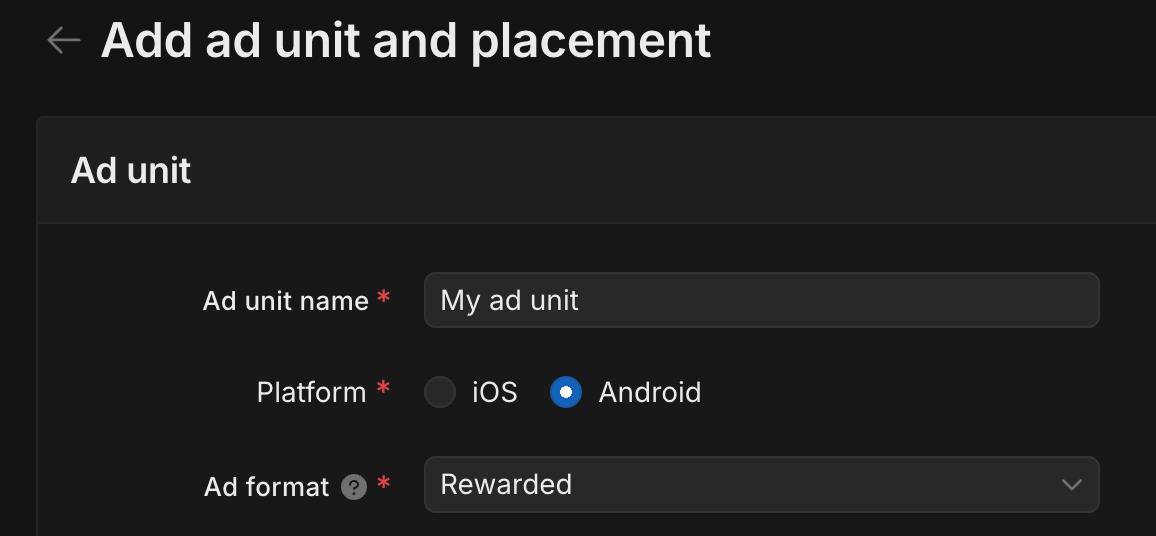

Enter an Ad Unit Name, then select your Platform and Ad Format.

Finally, click Create to save your ad unit.

Add a Placement

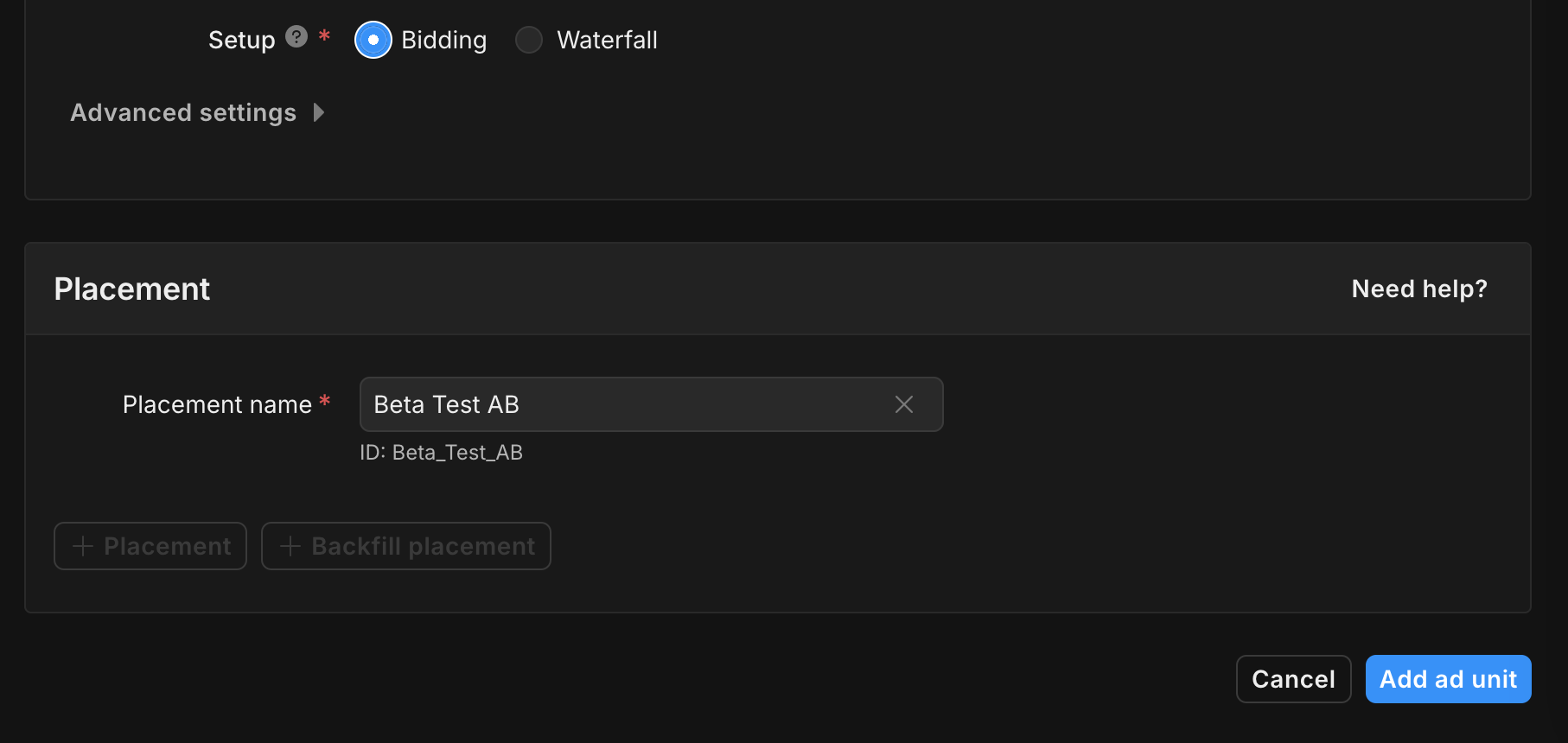

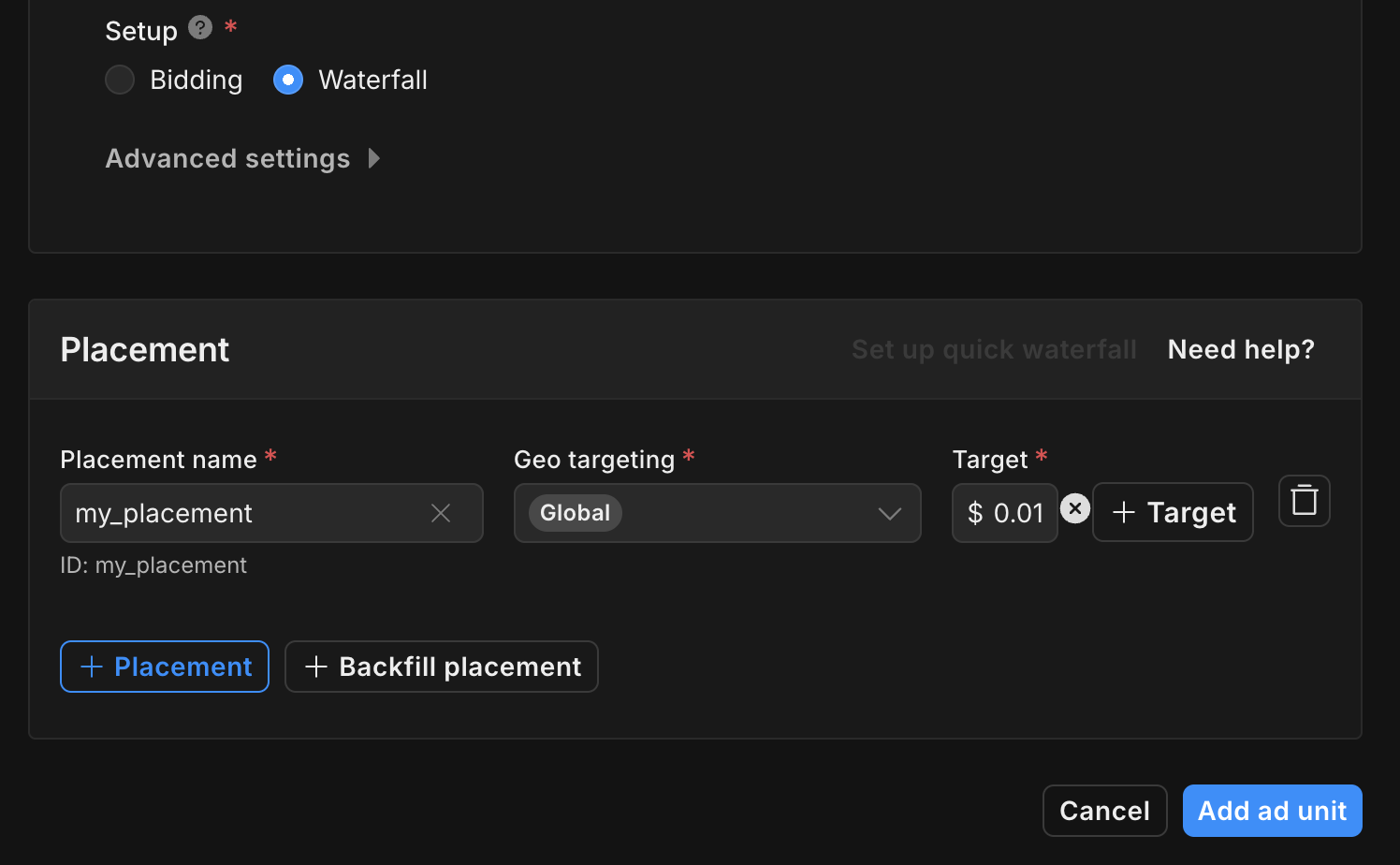

Once the project is created, navigate to Monetization > Placements. To create a new placement, click Add Placement for your ad unit.

Fill out the necessary details and click Add Placement.

Take note of the Placement ID.

Retrieve your credentials

In addition to the Game ID and Placement ID, you will also need your Unity Ads API Key and Organization core ID for setting up your AdMob ad unit ID.

Navigate to the Monetization > Setup > API Management and take note of the Monetization Stats API Access Key.

Then, navigate to the Monetization > Organization Settings and take note of the Organization core ID.

Turn on test mode

Test mode can be enabled from the Unity Ads dashboard. Under your project's settings, select the Testing tab.

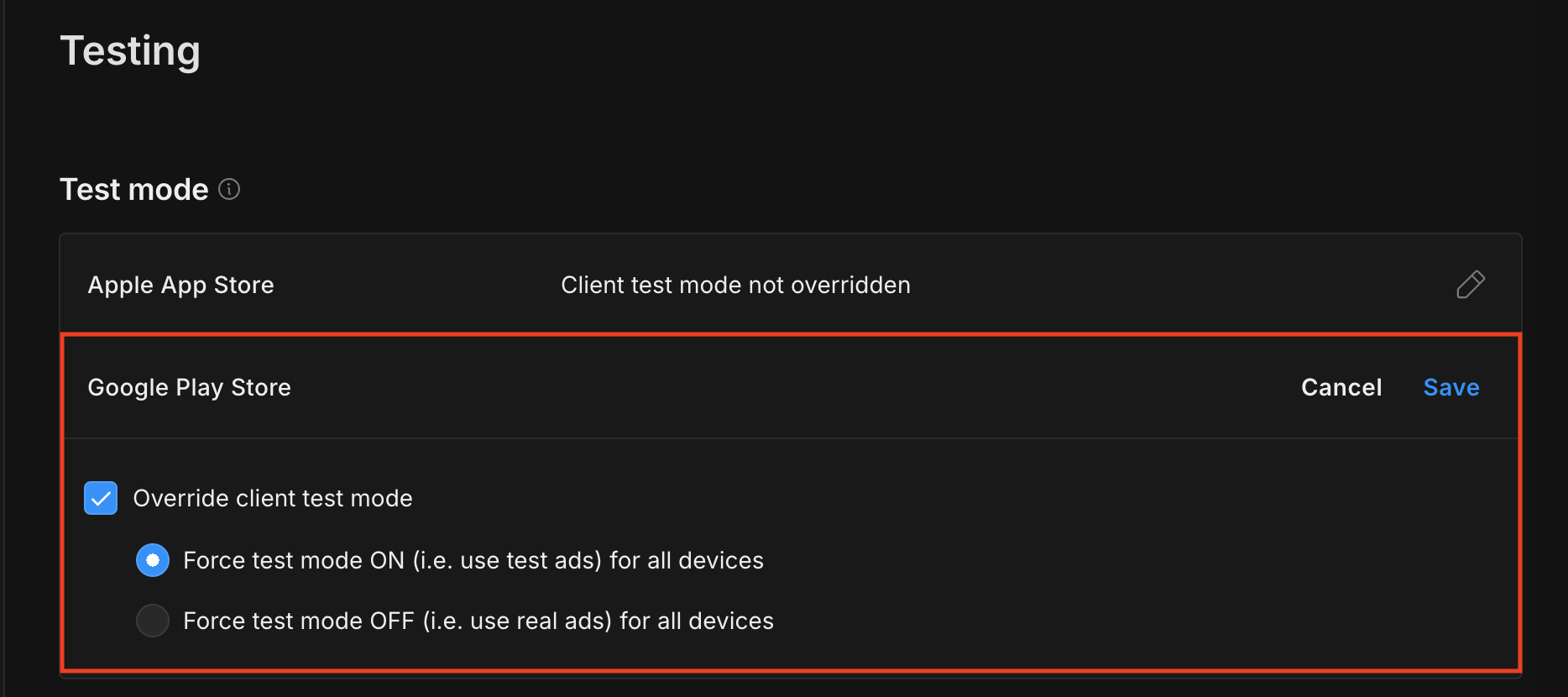

You can force test mode for your app by clicking the edit button beside Google Play Store , checking Override client test mode and selecting Force test mode ON (i.e. use test ads) for all devices.

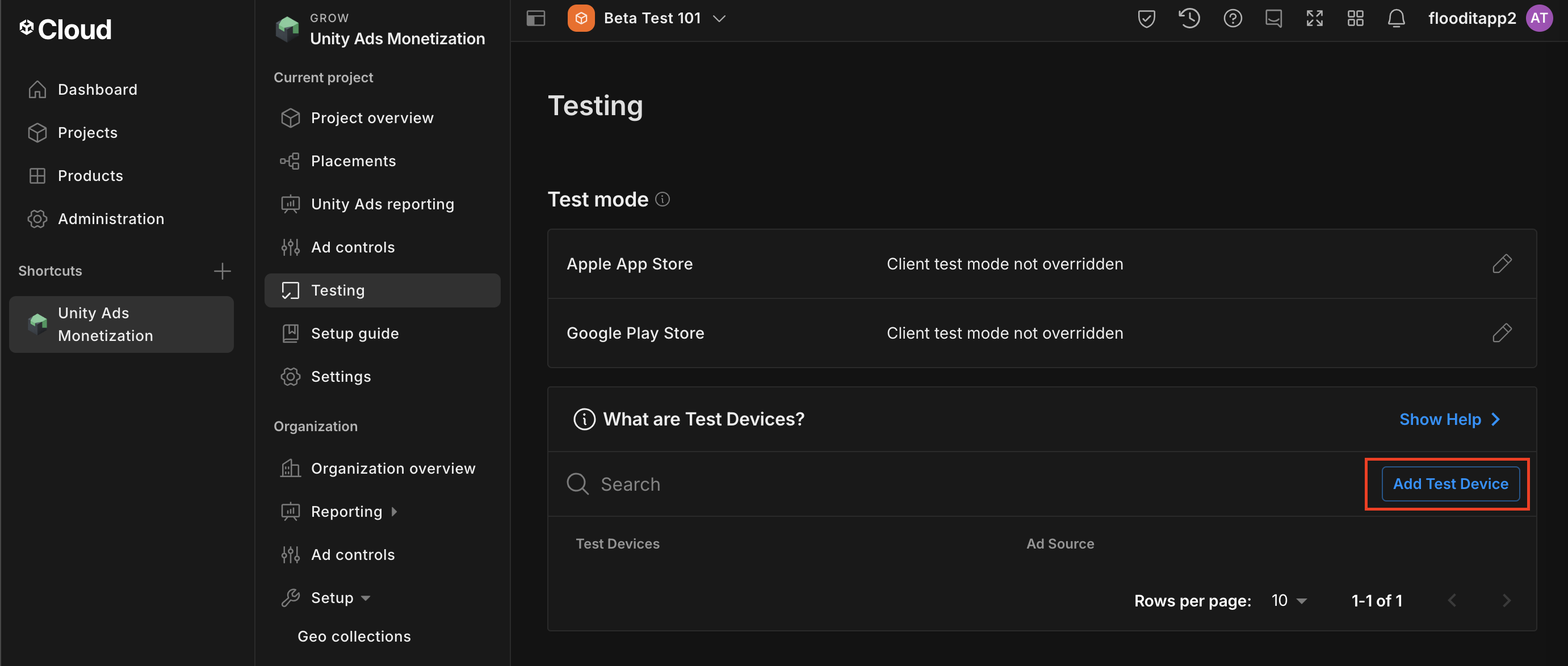

Alternatively, you can enable test mode for specific devices by clicking the Add Test Device button.

Fill out the form and click Save.

Step 2: Set up Unity Ads demand in AdMob UI

광고 단위에 대한 미디에이션 설정 구성

Unity Ads 를 광고 단위의 미디에이션 구성에 추가해야 합니다.

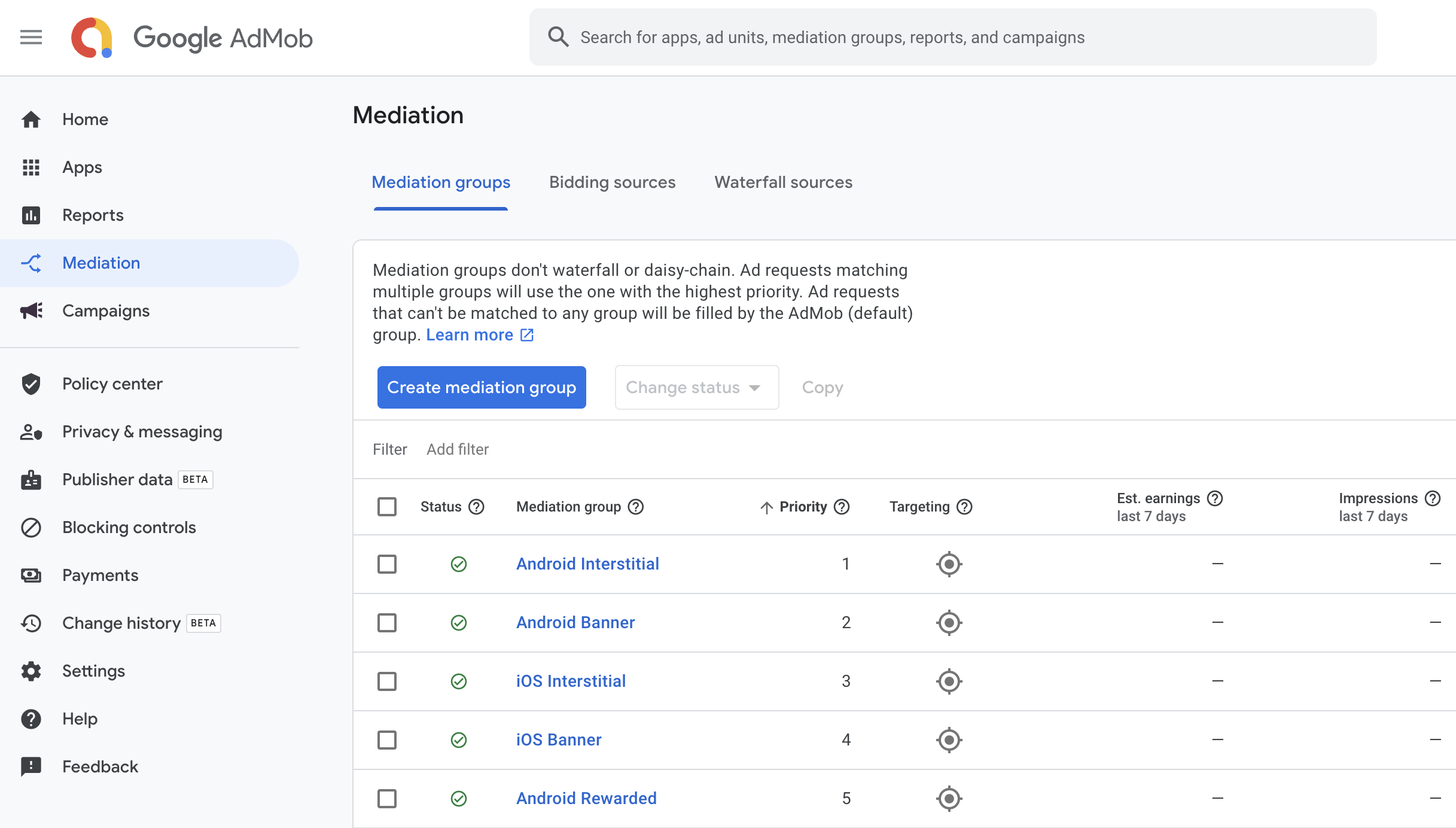

먼저 AdMob 계정에 로그인합니다. 그런 다음 미디에이션 탭으로 이동합니다. 수정할 기존 미디에이션 그룹이 있는 경우 해당 미디에이션 그룹의 이름을 클릭하여 수정한 후 Unity Ads 광고 소스로 추가로 건너뜁니다.

새 미디에이션 그룹을 만들려면 미디에이션 그룹 만들기를 선택합니다.

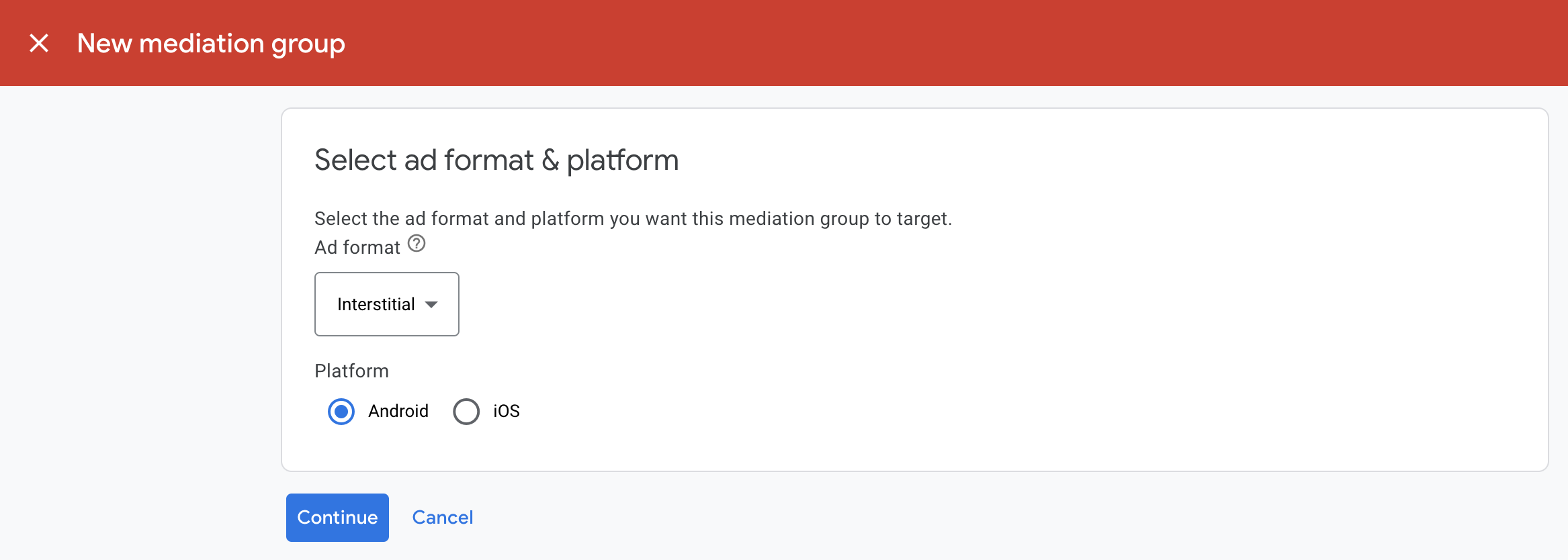

광고 형식과 플랫폼을 입력하고 계속을 클릭합니다.

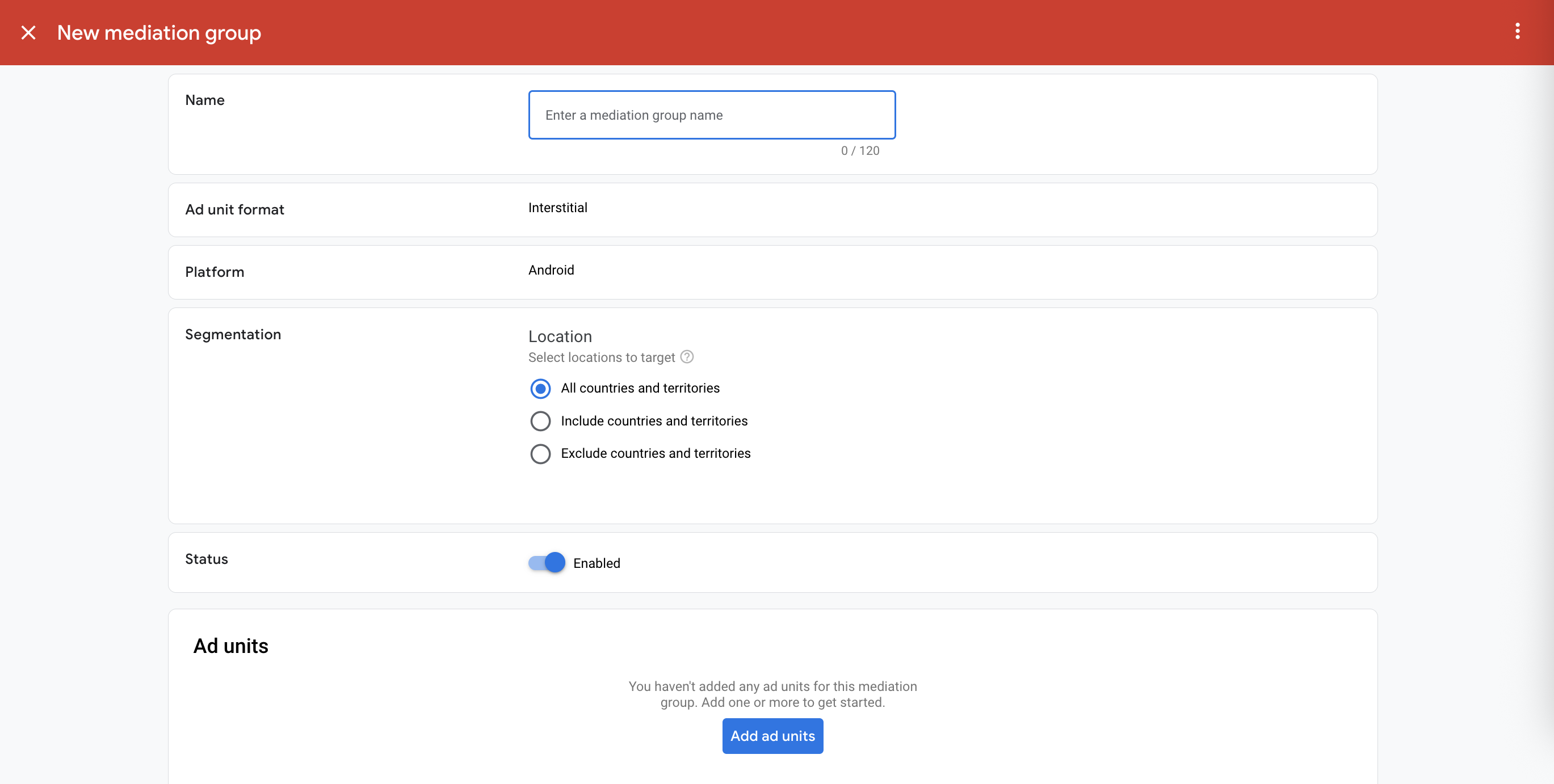

미디에이션 그룹에 이름을 지정하고 타겟팅할 위치를 선택합니다. 미디에이션 그룹 상태를 사용으로 설정한 다음 광고 단위 추가를 클릭합니다.

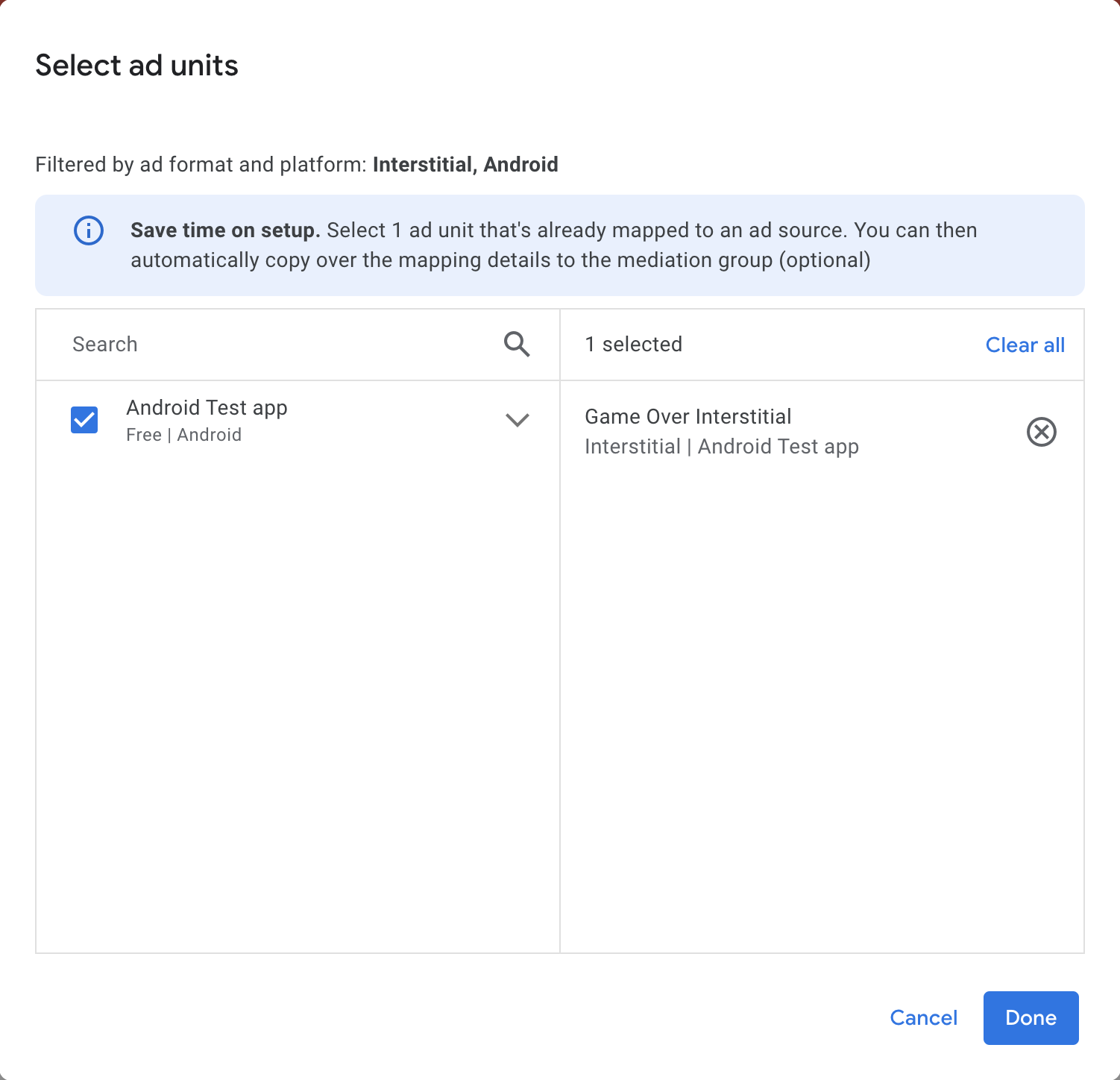

이 미디에이션 그룹을 하나 이상의 기존AdMob 광고 단위와 연결합니다. 그런 다음 완료를 클릭합니다.

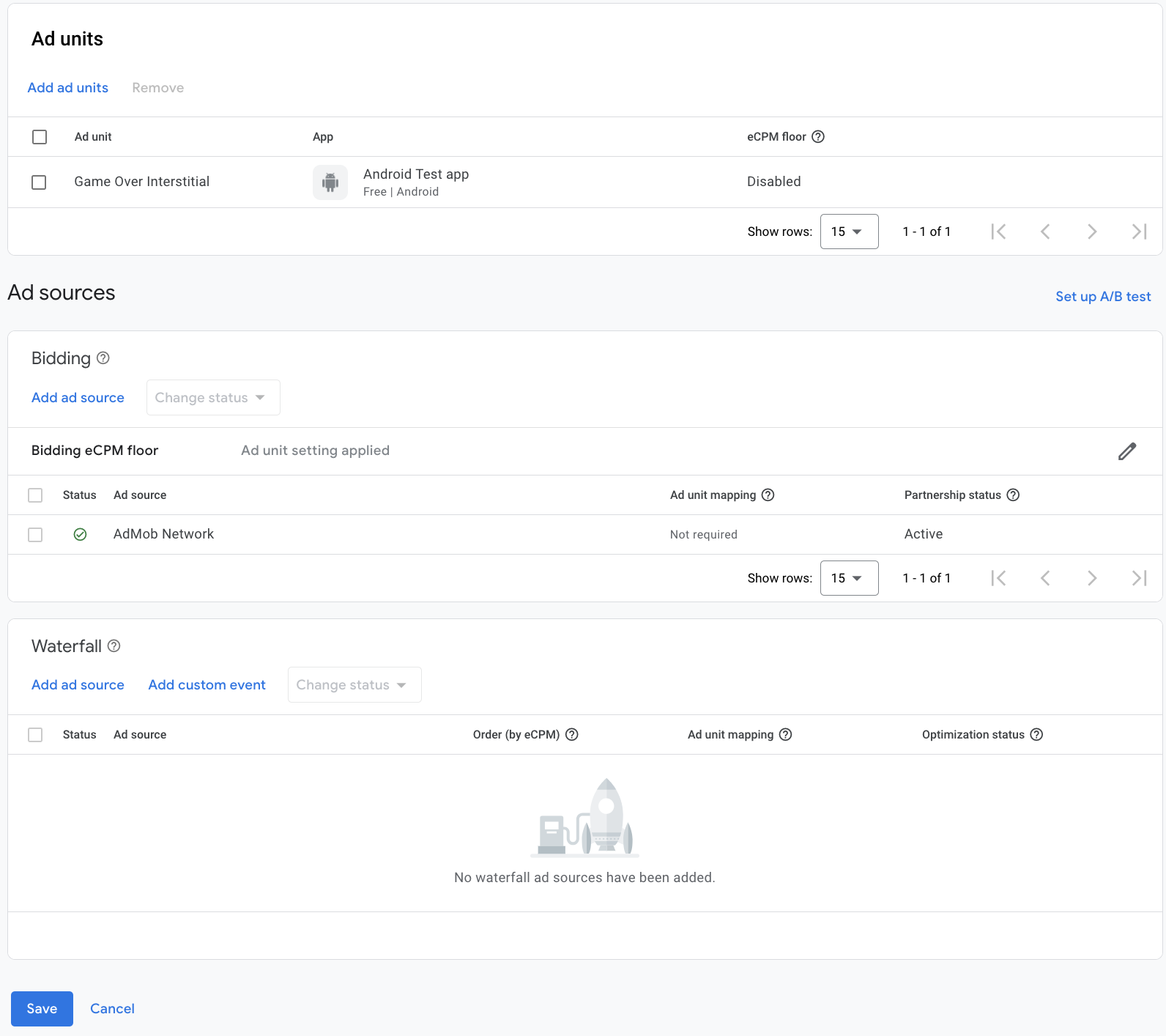

이제 광고 단위 카드가 선택한 광고 단위로 채워진 것을 볼 수 있습니다.

광고 소스로 Unity Ads 추가

광고 소스 섹션의 폭포식 구조 카드에서 광고 소스 추가를 선택합니다. 그런 다음 Unity Ads을 선택합니다.

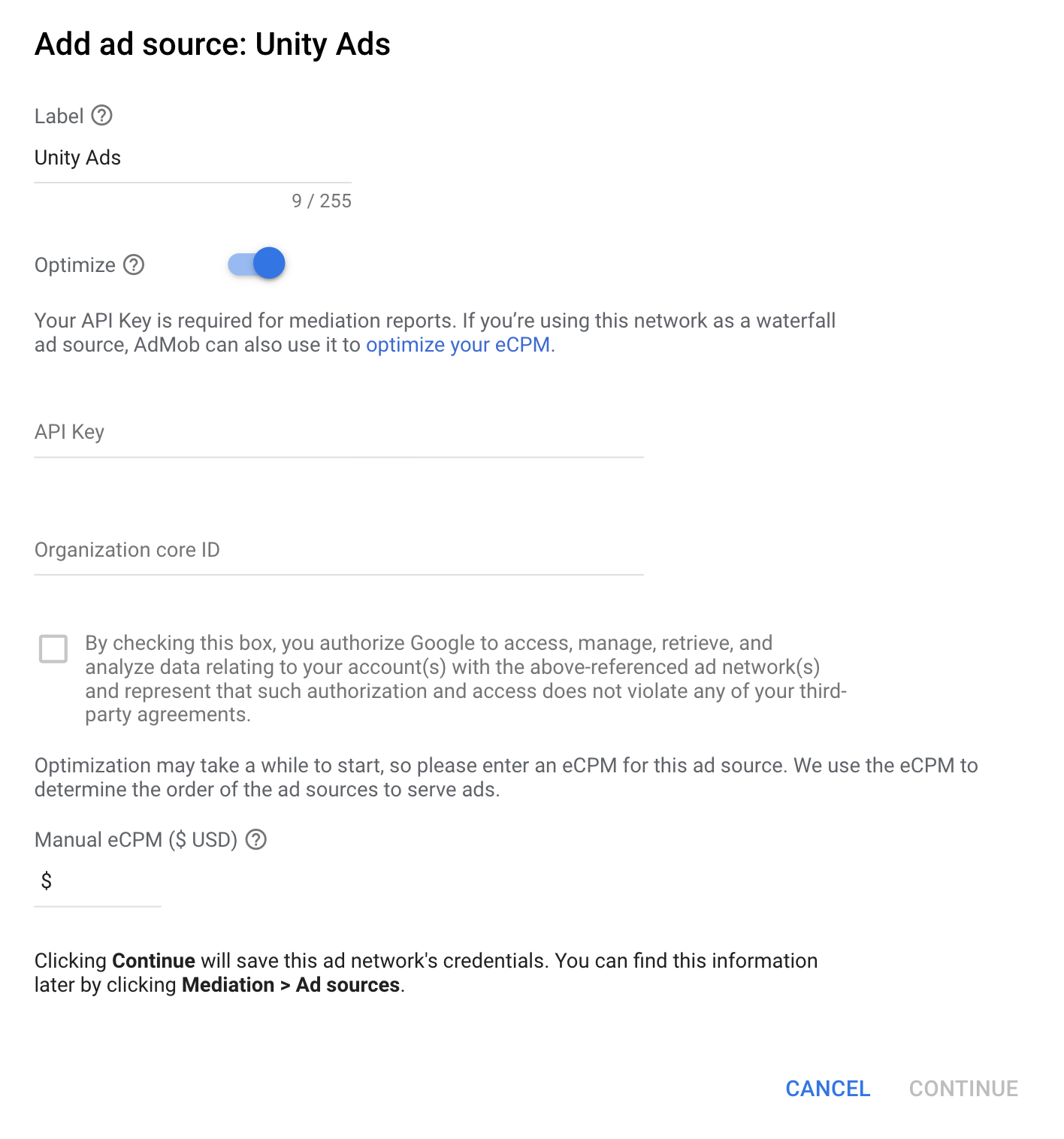

Unity Ads를 선택하고 최적화 스위치를 사용 설정합니다. 이전 섹션에서 가져온 API Key and Organization core ID을 입력하여Unity Ads에 대해 광고 소스 최적화를 설정합니다. 그런 다음Unity Ads 에 eCPM 값을 입력하고 계속을 클릭합니다.

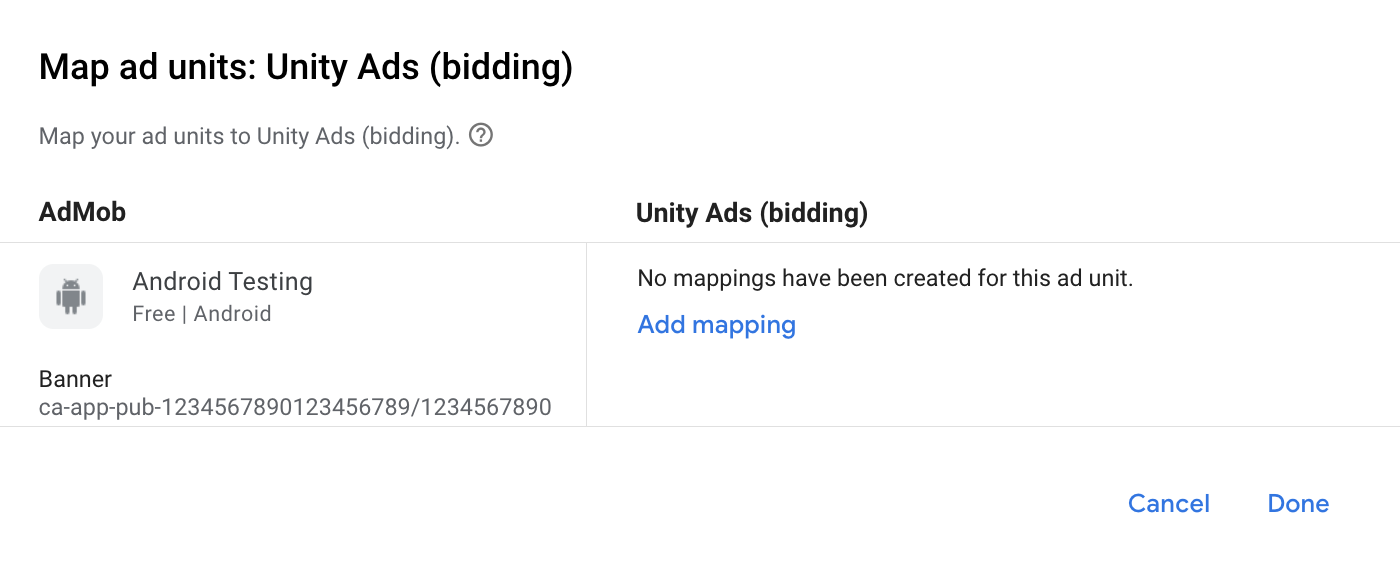

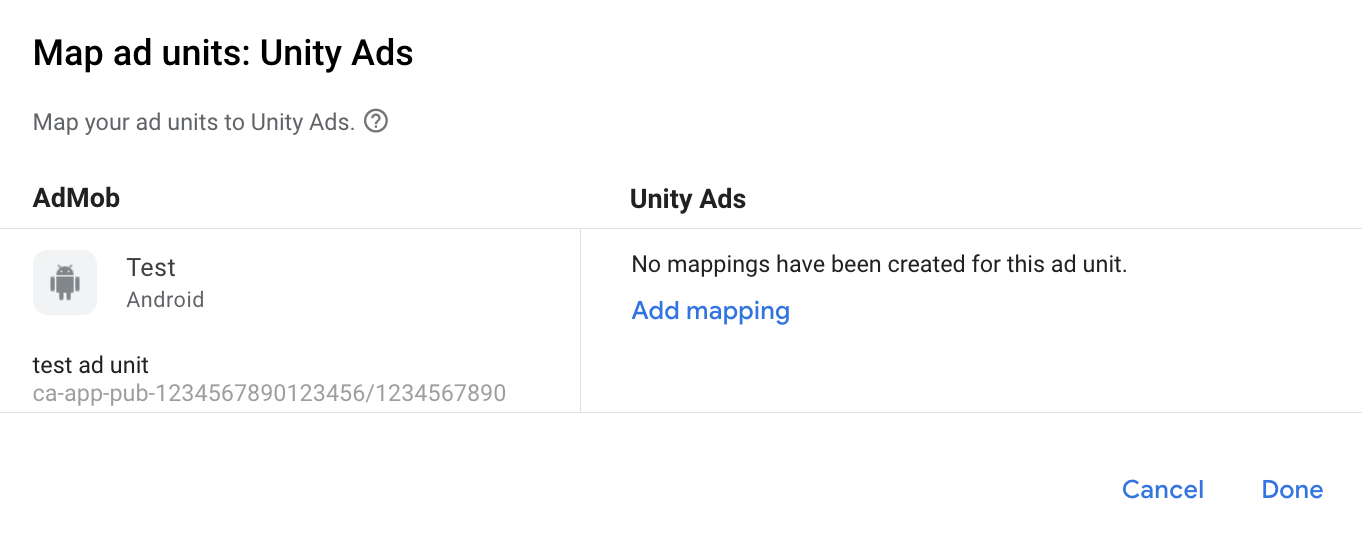

이미 Unity Ads에 대한 매핑이 있는 경우 해당 매핑을 선택할 수 있습니다. 그렇지 않으면 매핑 추가를 클릭합니다.

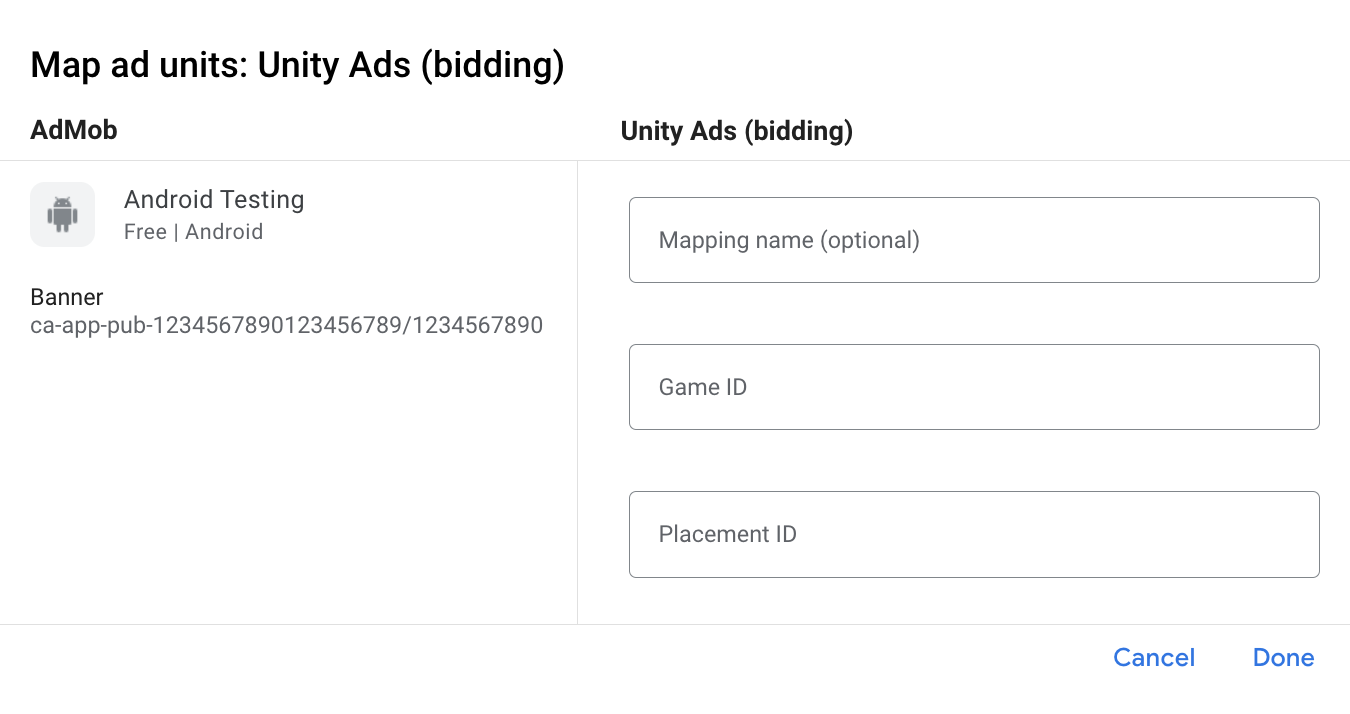

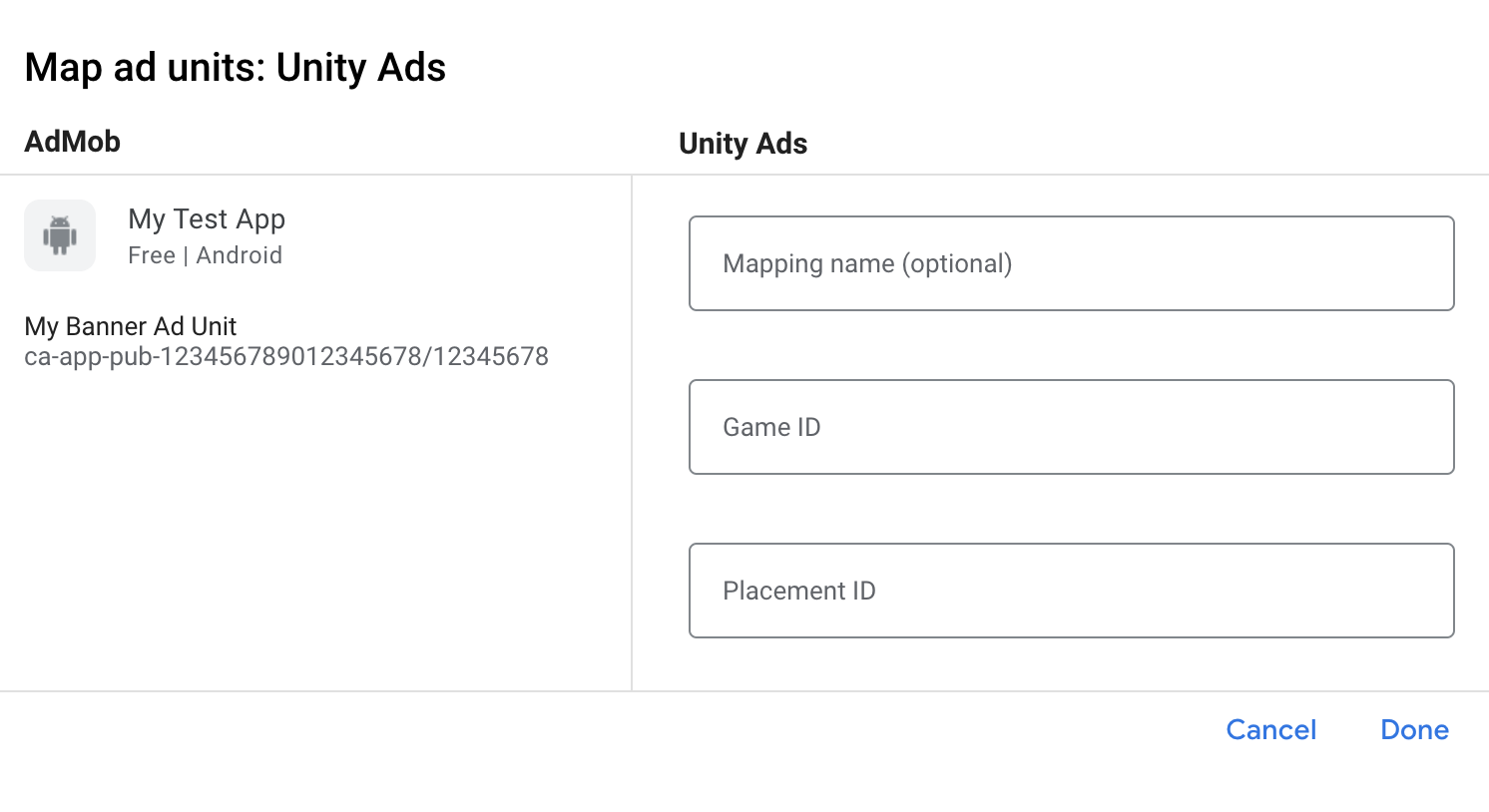

그런 다음 이전 섹션에서 얻은 Game ID and Placement ID를 입력합니다. 그런 다음 완료를 클릭합니다.

Add Unity Ads to GDPR and US state regulations ad partners list

GDPR 설정 및 미국 주 규정 설정 Unity Ads 를 AdMob UI의 GDPR 및 미국 주 규정 광고 파트너 목록에 추가합니다.

Step 3: Import the Unity Ads SDK and adapter

Android Studio integration (recommended)

In your app-level build.gradle.kts file, add the following implementation dependencies and configurations. Use the latest versions of the Unity Ads SDK and adapter:

dependencies {
    implementation("com.google.android.gms:play-services-ads:23.0.0")
    implementation("com.unity3d.ads:unity-ads:4.10.0")
    implementation("com.google.ads.mediation:unity:4.10.0.0")
}

Manual integration

Download the latest Unity Ads SDK (unity-ads.aar) from their GitHub repository and add it to your project.
Navigate to the Unity Ads adapter artifacts on Google's Maven Repository. Select the latest version, download the Unity Ads adapter's .aar file, and add it to your project.

Step 4: Implement privacy settings on Unity Ads SDK

EU consent and GDPR

Under the Google EU User Consent Policy, you must ensure that certain disclosures are given to, and consents obtained from, users in the European Economic Area (EEA) regarding the use of device identifiers and personal data. This policy reflects the requirements of the EU ePrivacy Directive and the General Data Protection Regulation (GDPR). When seeking consent, you must identify each ad network in your mediation chain that may collect, receive, or use personal data and provide information about each network's use. Google currently is unable to pass the user's consent choice to such networks automatically.

In SDK version 2.0.0, Unity Ads added an API to support privacy settings. The following sample code shows how to pass this consent information to the Unity Ads SDK. Should you choose to pass consent information to the Unity Ads SDK manually, it is recommended that this code is called prior to requesting ads through the Google Mobile Ads SDK.

Java

import com.unity3d.ads.metadata.MetaData;
// ...

MetaData gdprMetaData = new MetaData(this);
gdprMetaData.set("gdpr.consent", true);
gdprMetaData.commit();

Kotlin

import com.unity3d.ads.metadata.MetaData
// ...

val gdprMetaData = MetaData(this)
gdprMetaData["gdpr.consent"] = true
gdprMetaData.commit()

See Unity Ads' Privacy Consent and data APIs and Complying with GDPR guides for more details and the values that can be provided in each method.

US states privacy laws

U.S. states privacy laws require giving users the right to opt out of the "sale" of their "personal information" (as the law defines those terms), with the opt-out offered via a prominent "Do Not Sell My Personal Information" link on the "selling" party's homepage. The U.S. states privacy laws compliance guide offers the ability to enable restricted data processing for Google ad serving, but Google is unable to apply this setting to each ad network in your mediation chain. Therefore, you must identify each ad network in your mediation chain that may participate in the sale of personal information and follow guidance from each of those networks to ensure compliance.

Java

import com.unity3d.ads.metadata.MetaData;
// ...

MetaData ccpaMetaData = new MetaData(this);
ccpaMetaData.set("privacy.consent", true);
ccpaMetaData.commit();

Kotlin

import com.unity3d.ads.metadata.MetaData
// ...

val ccpaMetaData = MetaData(this)
ccpaMetaData["privacy.consent"] = true
ccpaMetaData.commit()

See Unity Ads' Privacy Consent and data APIs and Complying with CCPA guides for more details and the values that can be provided in each method.

Step 5: Add required code

No additional code is required for Unity Ads integrations.

Step 6: Test your implementation

테스트 광고 사용 설정

AdMob 용 테스트 기기를 등록하고 Unity Ads UI에서 테스트 모드를 사용 설정해야 합니다.

테스트 광고 확인

Unity Ads에서 테스트 광고를 수신하고 있는지 확인하려면 광고 검사기에서 Unity Ads (Waterfall) 광고 소스를 사용하여 단일 광고 소스 테스트를 사용 설정하세요.

Error codes

If the adapter fails to receive an ad from Unity Ads, publishers can check the underlying error from the ad response using ResponseInfo.getAdapterResponse() under the following classes:

com.google.ads.mediation.unity.UnityAdapter
com.google.ads.mediation.unity.UnityMediationAdapter

Here are the codes and accompanying messages thrown by the UnityAds adapter when an ad fails to load:

Error code	Reason
0-10	UnityAds SDK returned an error. See code for more details.
101	UnityAds server parameters configured in the AdMob UI are missing/invalid.
102	UnityAds returned a placement with a NO_FILL state.
103	UnityAds returned a placement with a DISABLED state.
104	UnityAds tried to show an ad with a null context.
105	Context used to initialize, load and/or show ads from Unity Ads is not an Activity instance.
106	UnityAds tried to show an ad that's not ready to be shown.
107	UnityAds is not supported on the device.
108	UnityAds can only load 1 ad per placement at a time.
109	UnityAds finished with an ERROR state.
200-204	UnityAds Banner specific error. See code for more details.

Unity Ads Android Mediation Adapter Changelog

Version 4.10.0.0

Updated the minimum required Google Mobile Ads SDK version to 23.0.0.
Verified compatibility with Unity Ads SDK 4.10.0.

Built and tested with:

Google Mobile Ads SDK version 23.0.0.
Unity Ads SDK version 4.10.0.

Version 4.9.3.0

Verified compatibility with Unity Ads SDK 4.9.3.

Built and tested with:

Google Mobile Ads SDK version 22.6.0.
Unity Ads SDK version 4.9.3.

Version 4.9.2.0

Verified compatibility with Unity Ads SDK 4.9.2.

Built and tested with:

Google Mobile Ads SDK version 22.3.0.
Unity Ads SDK version 4.9.2.

Version 4.9.1.0

Updated the minimum required Google Mobile Ads SDK version to 22.3.0.
Verified compatibility with Unity Ads SDK 4.9.1.

Built and tested with:

Google Mobile Ads SDK version 22.3.0.
Unity Ads SDK version 4.9.1.

Version 4.8.0.0

Reports ad impression when Unity Ads SDK invokes its new onBannerShown() callback method.
Verified compatibility with Unity Ads SDK 4.8.0.

Built and tested with:

Google Mobile Ads SDK version 22.2.0.
Unity Ads SDK version 4.8.0.

Version 4.7.1.0

Verified compatibility with Unity Ads SDK 4.7.1.

Built and tested with:

Google Mobile Ads SDK version 22.1.0.
Unity Ads SDK version 4.7.1.

Version 4.7.0.0

Verified compatibility with Unity Ads SDK 4.7.0.

Built and tested with:

Google Mobile Ads SDK version 22.0.0.
Unity Ads SDK version 4.7.0.

Version 4.6.1.1

Updated adapter to use new VersionInfo class.
Updated the minimum required Google Mobile Ads SDK version to 22.0.0.

Built and tested with:

Google Mobile Ads SDK version 22.0.0.
Unity Ads SDK version 4.6.1.

Version 4.6.1.0

Verified compatibility with Unity Ads SDK 4.6.1.

Built and tested with:

Google Mobile Ads SDK version 21.5.0
Unity Ads SDK version 4.6.1.

Version 4.6.0.0

Added support for forwarding COPPA information to the Unity Ads SDK.
Verified compatibility with Unity Ads SDK 4.6.0.
Updated the minimum required Google Mobile Ads SDK version to 21.5.0.

Built and tested with:

Google Mobile Ads SDK version 21.5.0
Unity Ads SDK version 4.6.0.

Version 4.5.0.0

Verified compatibility with Unity Ads SDK 4.5.0.
Updated the minimum required Google Mobile Ads SDK version to 21.4.0.

Built and tested with:

Google Mobile Ads SDK version 21.4.0
Unity Ads SDK version 4.5.0.

Version 4.4.1.0

Verified compatibility with Unity Ads SDK 4.4.1.

Built and tested with:

Google Mobile Ads SDK version 21.2.0
Unity Ads SDK version 4.4.1.

Version 4.4.0.0

Verified compatibility with Unity Ads SDK 4.4.0.
Updated the minimum required Google Mobile Ads SDK version to 21.2.0.

Built and tested with:

Google Mobile Ads SDK version 21.2.0
Unity Ads SDK version 4.4.0.

Version 4.3.0.0

Verified compatibility with Unity Ads SDK 4.3.0.
The onAdOpened() callback is now forwarded when interstitial and rewarded ads start playing.

Built and tested with:

Google Mobile Ads SDK version 21.1.0
Unity Ads SDK version 4.3.0.

Version 4.2.1.1

Updated compileSdkVersion and targetSdkVersion to API 31.
Updated the minimum required Google Mobile Ads SDK version to 21.0.0.

Built and tested with:

Google Mobile Ads SDK version 21.0.0.
Unity Ads SDK version 4.2.1.

Version 4.2.1.0

Verified compatibility with Unity Ads SDK 4.2.1.

Built and tested with:

Google Mobile Ads SDK version 20.6.0.
Unity Ads SDK version 4.2.1.

Version 4.1.0.0

Verified compatibility with Unity Ads SDK 4.1.0.

Built and tested with:

Google Mobile Ads SDK version 20.6.0.
Unity Ads SDK version 4.1.0.

Version 4.0.1.0

Verified compatibility with Unity Ads SDK 4.0.1.
Updated the minimum required Google Mobile Ads SDK version to 20.6.0.

Built and tested with:

Google Mobile Ads SDK version 20.6.0.
Unity Ads SDK version 4.0.1.

Version 4.0.0.0

Verified compatibility with Unity Ads SDK 4.0.0.
Updated the minimum required Google Mobile Ads SDK version to 20.5.0.

Built and tested with:

Google Mobile Ads SDK version 20.5.0.
Unity Ads SDK version 4.0.0.

Version 3.7.5.0

Verified compatibility with Unity Ads SDK 3.7.5.

Built and tested with:

Google Mobile Ads SDK version 20.2.0.
Unity Ads SDK version 3.7.5.

Version 3.7.4.0

Verified compatibility with Unity Ads SDK 3.7.4.

Built and tested with:

Google Mobile Ads SDK version 20.2.0.
Unity Ads SDK version 3.7.4.

Version 3.7.2.0

Verified compatibility with Unity Ads SDK 3.7.2.
Updated the minimum required Google Mobile Ads SDK version to 20.2.0.

Built and tested with:

Google Mobile Ads SDK version 20.2.0.
Unity Ads SDK version 3.7.2.

Version 3.7.1.0

Verified compatibility with Unity Ads SDK 3.7.1.
Updated the minimum required Google Mobile Ads SDK version to 20.1.0.

Built and tested with:

Google Mobile Ads SDK version 20.1.0.
Unity Ads SDK version 3.7.1.

Version 3.6.2.0

Verified compatibility with Unity Ads SDK 3.6.2.
Fixed an issue where rewarded ads were not forwarding click callbacks.
The UnityAds SDK has been removed from the bundled adapter build. Publishers are now required to manually include the UnityAds SDK as an additional dependency.
Updated the minimum required Google Mobile Ads SDK version to 19.8.0.

Built and tested with:

Google Mobile Ads SDK version 19.8.0.
Unity Ads SDK version 3.6.2.

Version 3.6.0.0

Verified compatibility with Unity Ads SDK 3.6.0.
Updated the minimum required Google Mobile Ads SDK version to 19.6.0.

Built and tested with:

Google Mobile Ads SDK version 19.6.0.
Unity Ads SDK version 3.6.0.

Version 3.5.1.1

Fixed an issue where when trying to request for multiple interstitial and rewarded ads.

Built and tested with:

Google Mobile Ads SDK version 19.5.0.
Unity Ads SDK version 3.5.1.

Version 3.5.1.0

Verified compatibility with Unity Ads SDK 3.5.1.
Fixed an issue that causes smart banner ad requests to fail.

Built and tested with:

Google Mobile Ads SDK version 19.5.0.
Unity Ads SDK version 3.5.1.

Version 3.5.0.0

Verified compatibility with Unity Ads SDK 3.5.0.
Added adaptive banner support.
Updated the minimum required Google Mobile Ads SDK version to 19.5.0.

Built and tested with:

Google Mobile Ads SDK version 19.5.0.
Unity Ads SDK version 3.5.0.

Version 3.4.8.0

Fixed a NullPointerException error that occurs when a banner ad is destroyed.
Updated the minimum required Google Mobile Ads SDK version to 19.3.0.

Built and tested with:

Google Mobile Ads SDK version 19.3.0.
Unity Ads SDK version 3.4.8.

Version 3.4.6.1

Created an adapter build that does not include the Unity Ads SDK bundled in. This gives publishers an option to use the Unity Ads Services when mediating on Unity to avoid conflicting dependency issues.
- Publishers may opt to use this by including the com.google.ads.mediation:unity-adapter-only:x.y.z.p dependency on their app-level build.gradle file.

Built and tested with:

Google Mobile Ads SDK version 19.1.0.
Unity Ads SDK version 3.4.6.

Version 3.4.6.0

Verified compatibility with Unity Ads SDK 3.4.6.
Adapter now forwards the onAdOpened() callback when a banner ad is clicked.

Built and tested with:

Google Mobile Ads SDK version 19.1.0.
Unity Ads SDK version 3.4.6.

Version 3.4.2.3

Added descriptive error codes and reasons for adapter load/show failures.
Updated the minimum required Google Mobile Ads SDK version to 19.1.0.

Built and tested with:

Google Mobile Ads SDK version 19.1.0.
Unity Ads SDK version 3.4.2.

Version 3.4.2.2

Fixed a ConcurrentModificationException crash that occurred when Unity Ads returns an error.

Built and tested with:

Google Mobile Ads SDK version 19.0.1.
Unity Ads SDK version 3.4.2.

Version 3.4.2.1

Improved forwarding of Unity's errors to recognize initialization and ad load failures earlier and reduce timeouts.
Updated the minimum required Google Mobile Ads SDK version to 19.0.1.

Built and tested with:

Google Mobile Ads SDK version 19.0.1.
Unity Ads SDK version 3.4.2.

Version 3.4.2.0

Verified compatibility with Unity Ads SDK 3.4.2.
Updated the minimum required Google Mobile Ads SDK version to 18.3.0.

Built and tested with:

Google Mobile Ads SDK version 18.3.0.
Unity Ads SDK version 3.4.2.

Version 3.4.0.0

Verified compatibility with Unity Ads SDK 3.4.0.
Updated the minimum required Google Mobile Ads SDK version to 18.3.0.

Built and tested with:

Google Mobile Ads SDK version 18.3.0.
Unity Ads SDK version 3.4.0.

Version 3.3.0.0

Verified compatibility with Unity Ads SDK 3.3.0.

Built and tested with:

Google Mobile Ads SDK version 18.2.0.
Unity Ads SDK version 3.3.0.

Version 3.2.0.1

Fixed a null pointer exception crash that occurred when calling loadAd() before calling UnityAds.initialize().
Updated the minimum required Google Mobile Ads SDK version to 18.2.0.

Version 3.2.0.0

Fixed an issue that caused Banner Ad requests to fail.
Verified compatibility with Unity Ads SDK 3.2.0.
Migrated the adapter to AndroidX.
Updated the minimum required Google Mobile Ads SDK version to 18.1.1.

Version 3.1.0.0

Added support for flexible banner ad sizes.
Adapter fails the ad request if the requested size isn't compatible with any Unity Ads banner sizes
Verified compatibility with Unity Ads SDK 3.1.0.

Version 3.0.1.0

Verified compatibility with Unity Ads SDK 3.0.1.
Fixed a bug that caused 'NPE' while showing an interstitial ad.

Version 3.0.0.2

Updated adapter to support new open-beta Rewarded API.
Updated the minimum required Google Mobile Ads SDK version to 17.2.0.

Version 3.0.0.1

Added support for Unity Ads Banner.

Version 3.0.0.0

Verified compatibility with Unity Ads SDK 3.0.0.

Version 2.3.0.0

Verified compatibility with Unity Ads SDK 2.3.0.

Version 2.2.1.1

Updated the adapter to invoke the onRewardedVideoComplete() ad event.

Version 2.2.1.0

Verified compatibility with Unity Ads SDK 2.2.1.

Version 2.2.0.0

Verified compatibility with Unity Ads SDK 2.2.0.

Version 2.1.2.0

Verified compatibility with Unity Ads SDK 2.1.2.

Version 2.1.1.0

Verified compatibility with Unity Ads SDK 2.1.1.

Version 2.1.0.0

Updated the adapter to make it compatible with Unity Ads SDK 2.1.0.

Version 2.0.8.0

Verified compatibility with Unity Ads SDK 2.0.8.

Version 2.0.7.0

Using Unity Ads's click reporting (AdMob and Unity Ads click statistics will match up).
Added onAdLeftApplication callback support.

Version 2.0.6.0

Verified compatibility with Unity Ads SDK 2.0.6.

Version 2.0.5.0

The adapters can now be added as a compile dependency by adding the following to the build.gradle file's dependencies tag: compile 'com.google.ads.mediation:unity:2.0.5.0'
Moved to distributing the adapter as an aar instead of a jar file (see README for additional instructions).

Version 2.0.4.0

Fixed a bug that caused rewarded video ads to fail to load when an interstitial ad was loaded first.

Version 2.0.2.0

Changed the version naming system to [Unity Ads SDK version].[adapter patch version].
Updated the minimum required Unity Ads SDK to v2.0.2.
Updated the minimum required Google Mobile Ads SDK to v9.0.0.
Apps are no longer required to call UnityAds.changeActivity(this).

Version 1.0.0

Initial release. Supports reward-based video ads and interstitial ads.
