Creative preview & delivery tools

This guide shows how to debug ad serving using in-app preview and the Ad Manager delivery tools.

In-app preview lets you inspect your own creatives rendered within your mobile app. This preview is especially useful if you have creatives that interact with the app, have unique behavior, or rely on the app for some rendering (including native creatives and MRAID).

The Ad Manager delivery tools give information on which ads were delivered; so when unexpected ads deliver, use the delivery tools to find out why.

Prerequisites

Prepare your app

Debugging requires interaction with the SDK's debug options menu. The recommended way to open the menu is to include the following function in your app, and trigger it based on a user action:

Kotlin

// Opens a debug menu. Call this method based on a user action.
// Pass any Ad Manager ad unit ID associated with the app that you want to debug.
MobileAds.openDebugMenu(activity, "AD_UNIT_ID")

Java

// Opens a debug menu. Call this method based on a user action.
// Pass any Ad Manager ad unit ID associated with the app that you want to debug.
MobileAds.openDebugMenu(activity, "AD_UNIT_ID");

Any valid ad unit from your Ad Manager account is sufficient to open the debug options menu.

Another way to open the menu is to do a long two-finger press on the creative, but this doesn't work for all ad formats, such as native ads, and you must be careful not to click the ad when attempting to swipe. Calling the previous method is much more robust.

After adding the capability to open the debug options menu, run your app and trigger the function. The following menu opens:

Select Creative Preview to link your device. A browser opens and automatically navigates you to a browser to sign in to Ad Manager. After signing in, name your device to register it with your Ad Manager account. Then click Verify.

At this point, you can verify that your device has been linked in the Ad Manager UI. You can also let others access your devices.

In-app preview

Follow the steps to push a creative to your linked device. Make sure that the pushed creative is part of an active line item targeted to the ad slot where you want the creative.

After pushing a creative from the UI, trigger the debug options menu on your device again and select Creative Preview once more. This step lets the SDK check Ad Manager to verify that the device linking was successful and to get some information about which creative you pushed. If device linking was previously successful, the debug menu closes immediately. If it was unsuccessful, you're prompted to link your account again.

Finally, load an ad for the slot you want to preview to see your creative.

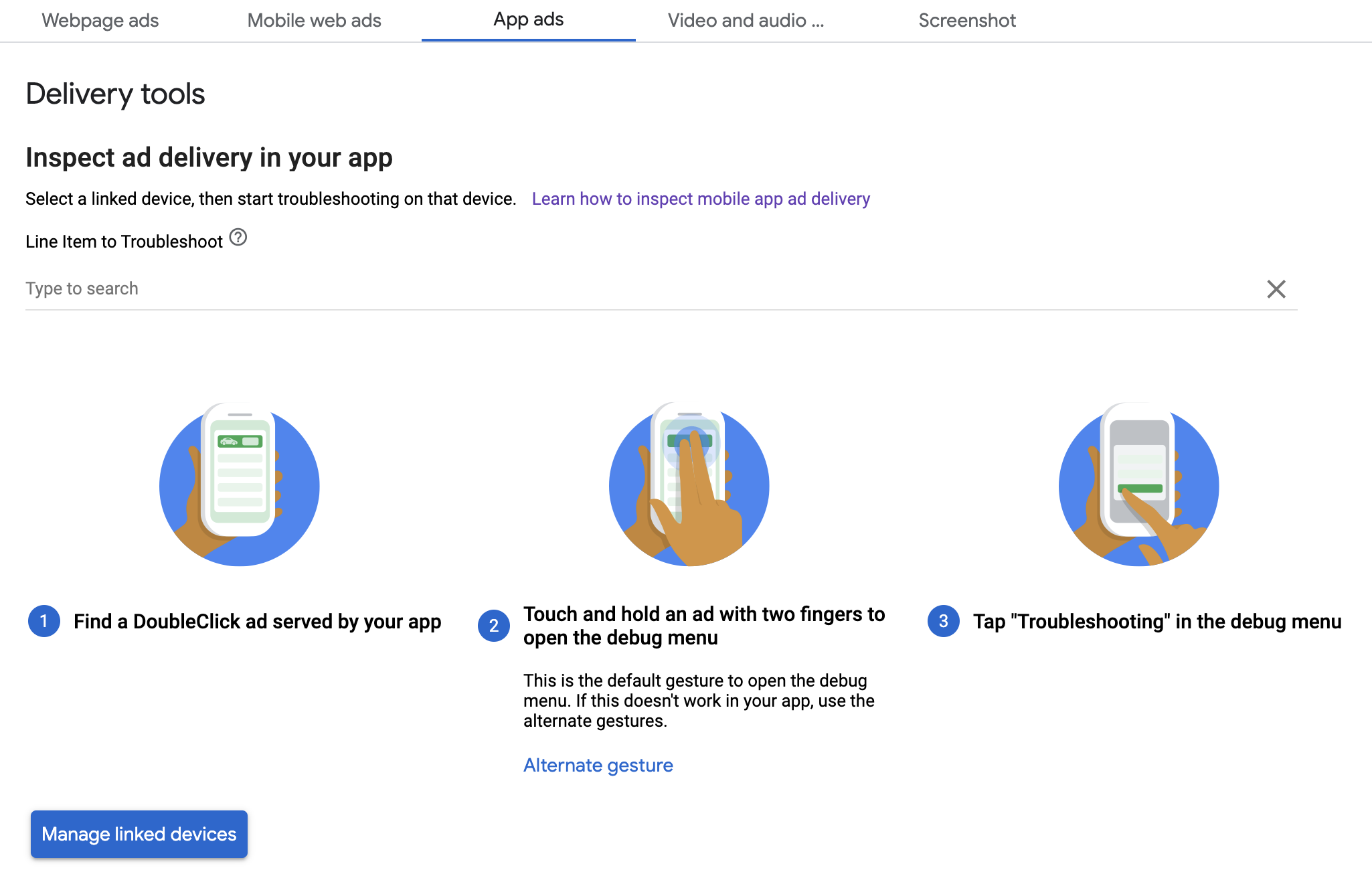

Delivery tools

Follow the steps in Inspect delivery in Ad Manager to troubleshoot your ad delivery. If you've completed the steps successfully, the request shows up in the Ad Manager UI and you can view more info about the ad that served.
