Quickstart guide for Brazilian issuers

This page is specific to Brazilian issuers and highlights the most important local requirements that must be met before launching Google Pay in Brazil. It can also be used to improve existing integrations in order to make the most of Google Pay features.

Local requirements

Currently, there are two ways of provisioning a card on Google Pay:

Manual Provisioning (MP) refers to tokenizations initiated from the Google Pay app. Android Push Provisioning (PP) refers to tokenizations that are initiated within the banking app. Further details of both forms will be covered in the next sections.

Below are the current local requirements to launch your Google Pay integration in Brazil:

  1. Android Push Provisioning is mandatory.
  2. Manual Provisioning with, at least, one of the following Identity & Verification (ID&V) methods: OTP SMS, OTP Email or App-to-App, is also mandatory.
  3. Meet the exit criteria for both Android Push Provisioning and Manual Provisioning with a special attention to:
    • Tokenization success rate of 90%
    • Transaction success rate of 90%
  4. No current issues as depicted in sections MP Common Issues and PP Common Issues

Examples of valid integrations:

  • PP + MP with OTP SMS
  • PP + MP with App-to-App
  • PP + MP with OTP SMS, Call center

Examples of invalid integrations:

  • MP only, with OTP SMS and App-to-App as ID&V methods (PP is missing)
  • PP + MP with Callcenter as ID&V method (OTP SMS, OTP Email or App-to-App is missing)
  • PP only (MP missing)

Manual Provisioning (MP)

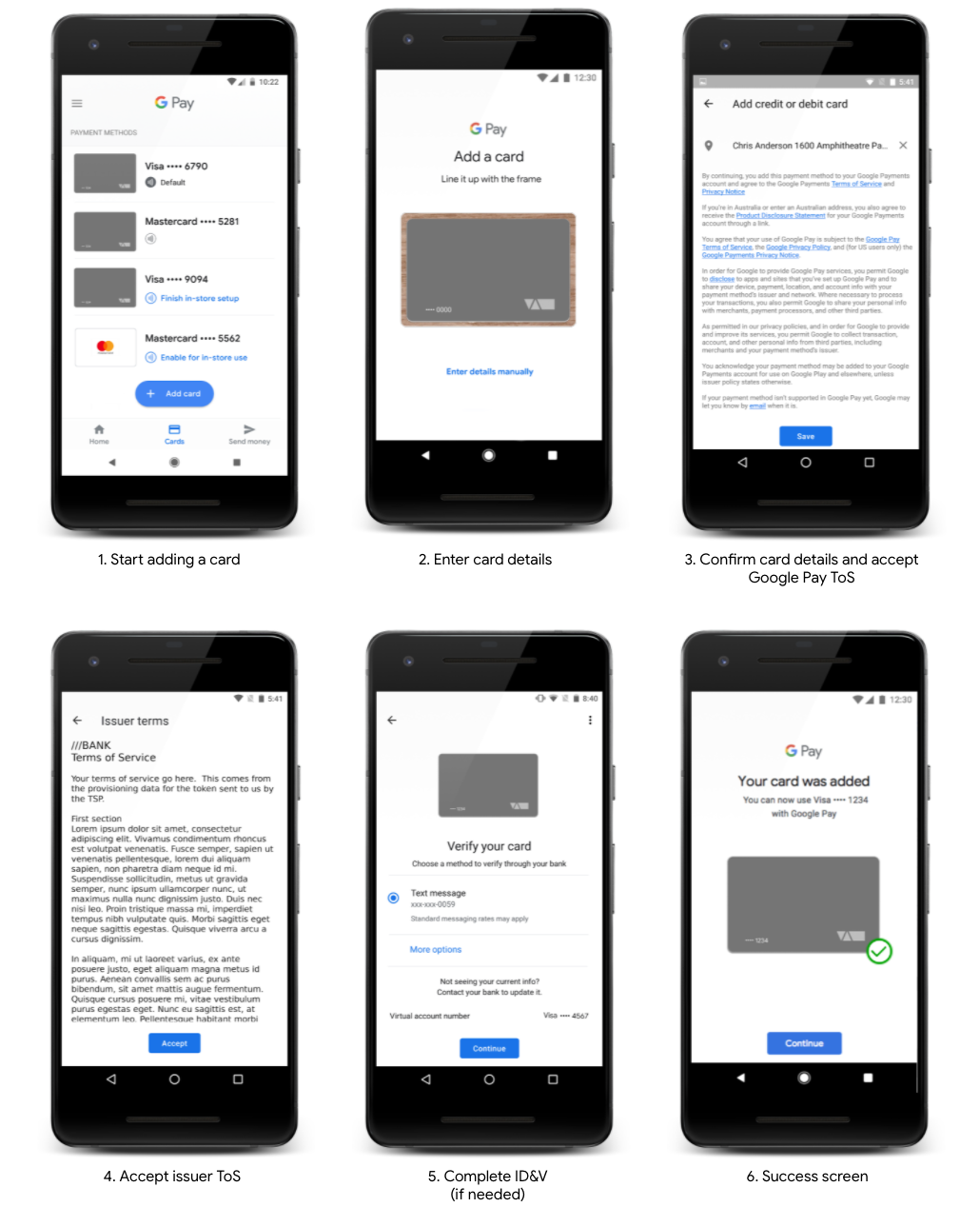

Manual Provisioning refers to tokenizations that are, normally, initiated from Google Pay app. The screens below show a common user flow for adding a card to Google Pay:

In Brazil it's very common, during the MP tokenization flow, to ask for an extra step of verification (ID&V, shown in screen 5 above), leading to the Yellow authentication path. However, other paths also exist such as Green and Red and, if used wisely, could improve significantly cardholders experience.

Which authentication path should I assign to my cardholder?

Whenever a tokenization takes place, Google Pay will send risk scores to both Network and Issuer. We recommend Issuers to evaluate both Google Pay risk scores along with its internal signals in order to determine which authentication path must be taken. High Google Pay account and device scores, for instance, could lead to the Green path.

If the Yellow authentication path is chosen, a robust Identity & Verification (ID&V) method should be provided and, in Brazil, at least one of the following methods should be implemented: OTP SMS, OTP Email or App-to-App in order to have the launch approved.

Integration process

Below is the integration process for Manual Provisioning. Networks in Brazil are fully capable of guiding Issuers in this type of integration. Reach out to your Network for further details.

Step Teams Involved Details
1. Onboard Issuer & Google Issuers sign the NDA / CTA agreements and obtain access to Issuer documentation.
2. Integrate Issuer & Network Networks and Issuers work together to develop two-party integration. Further details in this link.
3. Test Issuer & Network Issuers successfully complete all end to end Google Pay test cases, working with Networks as needed.
4. Launch Issuer & Network Issuers complete pre-launch requirements, and confirm readiness with Network; Network notifies Google of launch date. Notice that Android Push Provisioning is mandatory in Brazil, therefore this feature must also be implemented before launching.

MP common issues

Below are the most common issues faced by Issuers during a Manual Provisioning integration:

Common Issue Details
Not meet the recommended success rates indicated in the exit criteria
  • Tokenizations success rate must be greater than 90% Yellow path success rate.
  • Transactions success rate must be greater than 90% success rate.
Issuer name in token data incorrect or inconsistent Issuer names are required to be consistent across all portfolios and Networks and must clearly identify the Issuer by name. ISO Latin characters are preferred but other types are allowed as long as they are consistent.
Terms of Service, Privacy Policy and Website link issues Issuers must use HTTPS links and cannot use links that use Apple Pay/Samsung Pay/other wallets in URL. Issuers may use one page for multiple wallets as long as the page and url do not reference one wallet.
Issuer package name missing or incorrect Issuers with an Android app are expected to set their Android package name to their production app. This is required for Issuers who support App-to-App ID&V.

Android Push Provisioning (PP)

Android Push Provisioning refers to tokenizations that are initiated within the banking app. The screens below illustrate the user flow:

Optimal push provisioning flow

During a PP tokenization, since the cardholder is already within the Issuer app, the provisioning normally goes through the Green authentication path, not requiring, therefore, the Identity & Verification (ID&V) step which leads to a better user experience.

Sample app, API reference and flow diagrams

Google Pay provides a Sample app that can be used, along with the PP API reference and flow diagrams, to have a solid understanding on how to integrate the banking app to PP API. We recommend both UX and developers teams to check the Sample app features and code in order to accelerate the development and launch.

Integration process

Below is the integration process for Android Push Provisioning. Networks in Brazil are fully capable of guiding Issuers in this type of integration. Reach out to your Network for further details.

Step Teams Involved Details
1. Onboard Issuer & Google
2. Design Issuer & Google
3. Test Issuer & Network
4. Launch Issuer & Google

PP common issues

Below are the most common issues faced by Issuers during an Android Push Provisioning integration:

Common Issue Details
Opaque Payment Card (OPC) Troubleshooting Google is not able to troubleshoot OPC issues since it's a encrypted object and only Networks know how to build it and are able to decrypt it. Nonetheless, Google Pay provides Issuer developers with a way to capture the error message during a Push Provisioning tokenization. The returned errors message can be sent to the Network POC in order to identify what is wrong. All the steps to check the OPC error can be seen in this link.
Not displaying GPay buttons prominently on high-traffic screens To ensure users see the Google Pay button, add it to screens within your existing user flows. Make sure there is a clear connection between the button and the user’s credit or debit card. Do not display Google Pay buttons on screens that don’t show their cards.
Only display Google Pay button if the smartphone has NFC That's not correct because Google Pay can also be used for secure online payments. NFC is only required for contactless payments.
Banking app not able to resolve "yellow-pathed" tokens leading to errors during tokenization Details of the scenario and how to handle it in this link.
Banking app not always in sync with the wallet Details of the scenario and how to handle it in this link.
