UCP checkout service sandbox testing

After Google converts your service provider accounts to advanced accounts and enables UCP checkout service management for your test accounts, proceed to configuring and testing the merchant account linking flow in sandbox mode.

Important: Perform all sandbox testing steps using the test service provider account and test merchant account that you created in Test accounts setup.

Validate the UCP integration in the sandbox test environment

Verify your capability endpoints before onboarding merchants:

1. Exchange Test Credentials:
   • Generate a Test Checkout API Secret Key and reply to the support case you opened during your enablement request to request to share it securely with Google.
   • Receive your Order Webhook API Key from Google to authenticate incoming test events.
2. Execute End-to-End Test Transactions:
   • Complete sample checkout transactions in sandbox mode to verify payload validation, error responses, and webhook acknowledgments.

Implement the merchant account linking dialog flow

Merchants link their existing Google Merchant Center accounts to your platform through a secure, Google-hosted dialog window opened from your merchant portal.

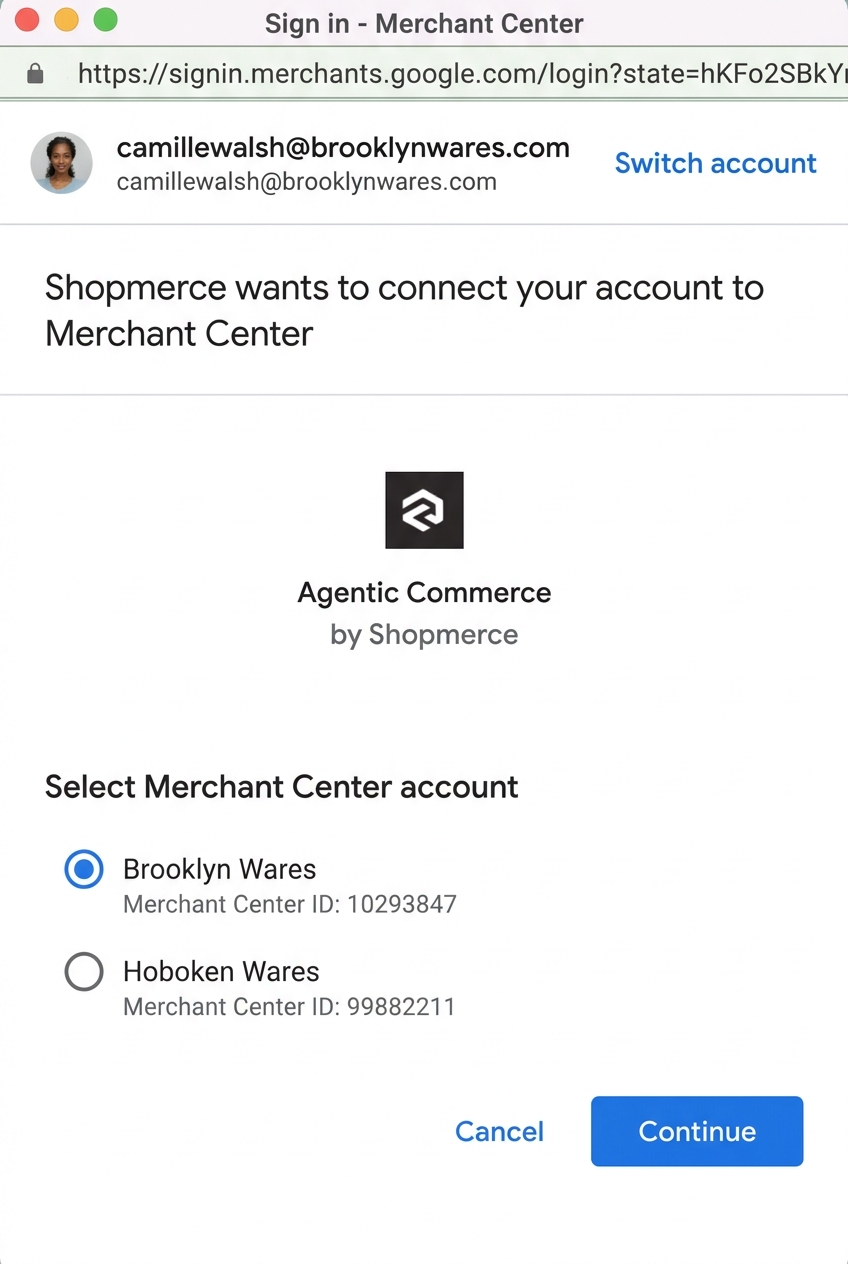

Dialog launch

Your portal opens a secure dialog window targeting the Google Merchant Center linking URL with your advanced Merchant Center account ID ({PROVIDER_ID}), internal merchant identifier ({PROVIDER_MERCHANT_ID}), and callback URL ({PROVIDER_CALLBACK_URL}).

We recommend configuring the dialog window with the following display properties:

• Height: 850px
• Width: 440px
• Location: Centered on screen

Alternatively, use the maximum dimensions allowed by the user's device if it is smaller.

Dialog URL specification

GET https://merchants.google.com/mc/linkedaccounts/linking/serviceprovider/link?provider={PROVIDER_ID}&provider_merchant_id={PROVIDER_MERCHANT_ID}&redirect_uri={PROVIDER_CALLBACK_URL}

URL query parameters

Parameter	Type	Required	Description
provider	Integer	Yes	Your unique numeric advanced Merchant Center account ID ({PROVIDER_ID}) assigned to your service provider account in Merchant Center.
provider_merchant_id	String	Yes	Your platform's internal unique identifier for the merchant account.
redirect_uri	String	Optional	The callback URL ({PROVIDER_CALLBACK_URL}) where Google returns the proposal ID upon merchant approval.

If you don't provide a redirect_uri callback URL, a success dialog displays the confirmation message Connection initiated. To retrieve service relationships with a pending approval, and approve the open proposal without a callback URL, monitor your ACCOUNT_SERVICE_CHANGE notifications from the Merchant API or call accounts.services.list.

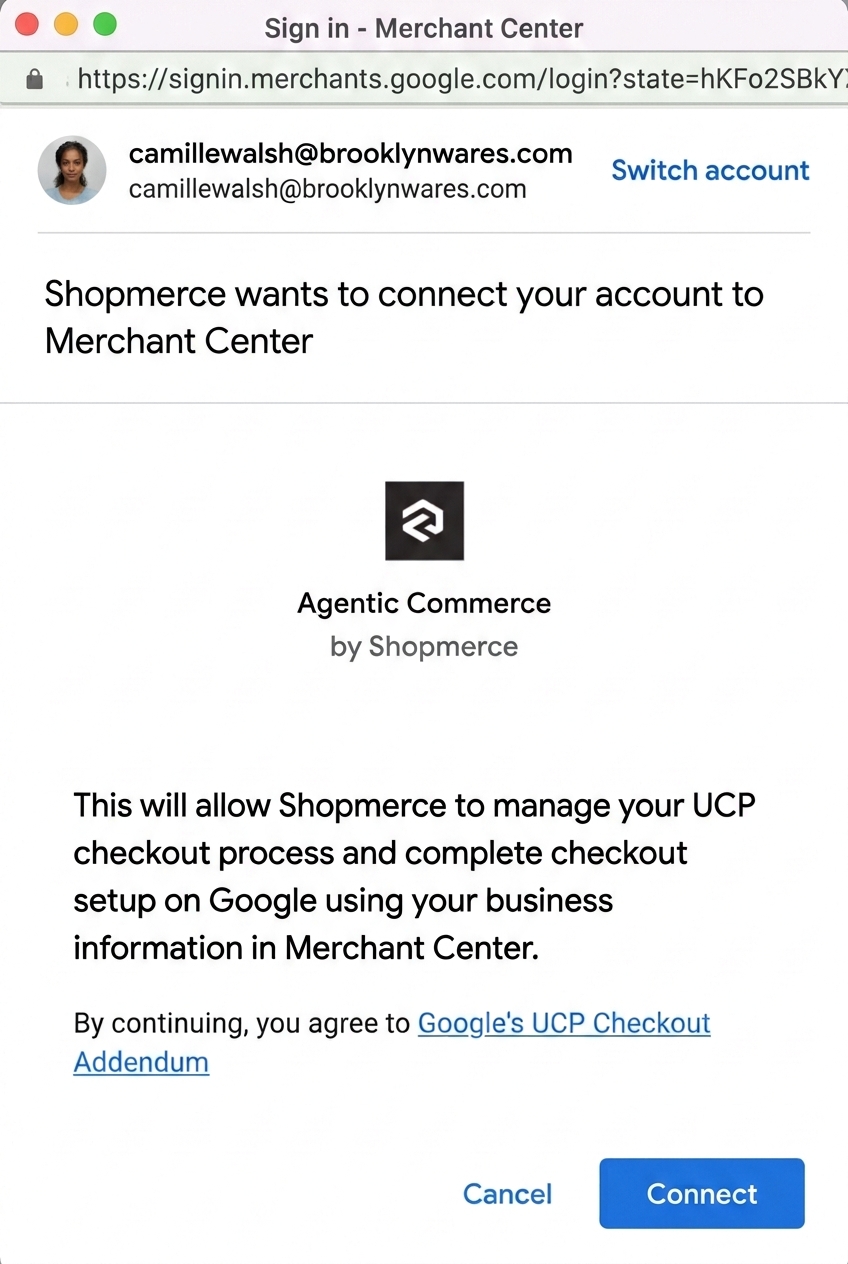

Merchant consent

Within the dialog in your website, the merchant signs in, selects their Merchant Center account, reviews permissions, and accepts the Terms of Service .

Redirect callback

We highly recommend that you provide a callback URI (redirect_uri) to automatically receive the proposal information needed to send the proposal approval call to the Merchant API, and display a confirmation page after approval completes. This creates an instantaneous, seamless connection experience for the merchant.

When you provide a redirect_uri, Google passes parameters back to the service provider through query parameters:

Parameter	Type	Description
status	Integer	Status of the linking request. See Possible status values.
proposal_names	Array of strings	Identifier of the account linking proposal to be used in MAPI approve method to accept the linking request.
google_merchant_id	Integer (64-bit)	Identifier of the merchant's Merchant Center account.
provider_merchant_id	String	Identifier of the merchant's account in the service provider's system.
timestamp	Timestamp in ISO 8601 / RFC 3339 format	Timestamp when the linking proposal was sent.

Possible status values

The status query parameter returns one of the following values:

Status code	Description
200	Success.
500	General error caused by a failure to issue the linking proposal between the merchant's account and the service provider account.

Handshake (proposal delivery and approval)

• Proposal Delivery: Google generates a service proposal (accounts.services.propose) and delivers the proposal details to one of the following:
  • Your callback redirect URI
  • Through an ACCOUNT_SERVICE_CHANGE notification callback. To learn how to decode the notification payload and interpret its contents, see Decode account service change payloads.
• Backend Approval: Your backend server receives the proposal ID and sends an approval request (accounts.services.approve) to Google Merchant API on behalf of the merchant. Approving the proposal establishes the service link.
• To learn more about the handshake process, see the Account Relationships Handshake Guide.

Service proposal approval API call

POST https://merchantapi.googleapis.com/accounts/v1/accounts/{MERCHANT_ID}/services/{SERVICE_ID}:approve
Content-Type: application/json
Authorization: Bearer {SERVICE_TOKEN}

{}

• {MERCHANT_ID}: The numeric Google Merchant Center ID of the merchant.
• {SERVICE_ID}: The composite service identifier delivered during proposal creation, in the format {PROVIDER_ID}~{PROPOSAL_ID}.

Successful response (200 OK)

{
  "name": "accounts/{MERCHANT_ID}/services/{PROVIDER_ID}~{PROPOSAL_ID}",
  "provider": "providers/{PROVIDER_ID}",
  "providerDisplayName": "Acme Commerce Platform",
  "handshake": {
    "approvalState": "ESTABLISHED",
    "actor": "ACCOUNT"
  },
  "ucpCheckoutManagement": {}
}

State established

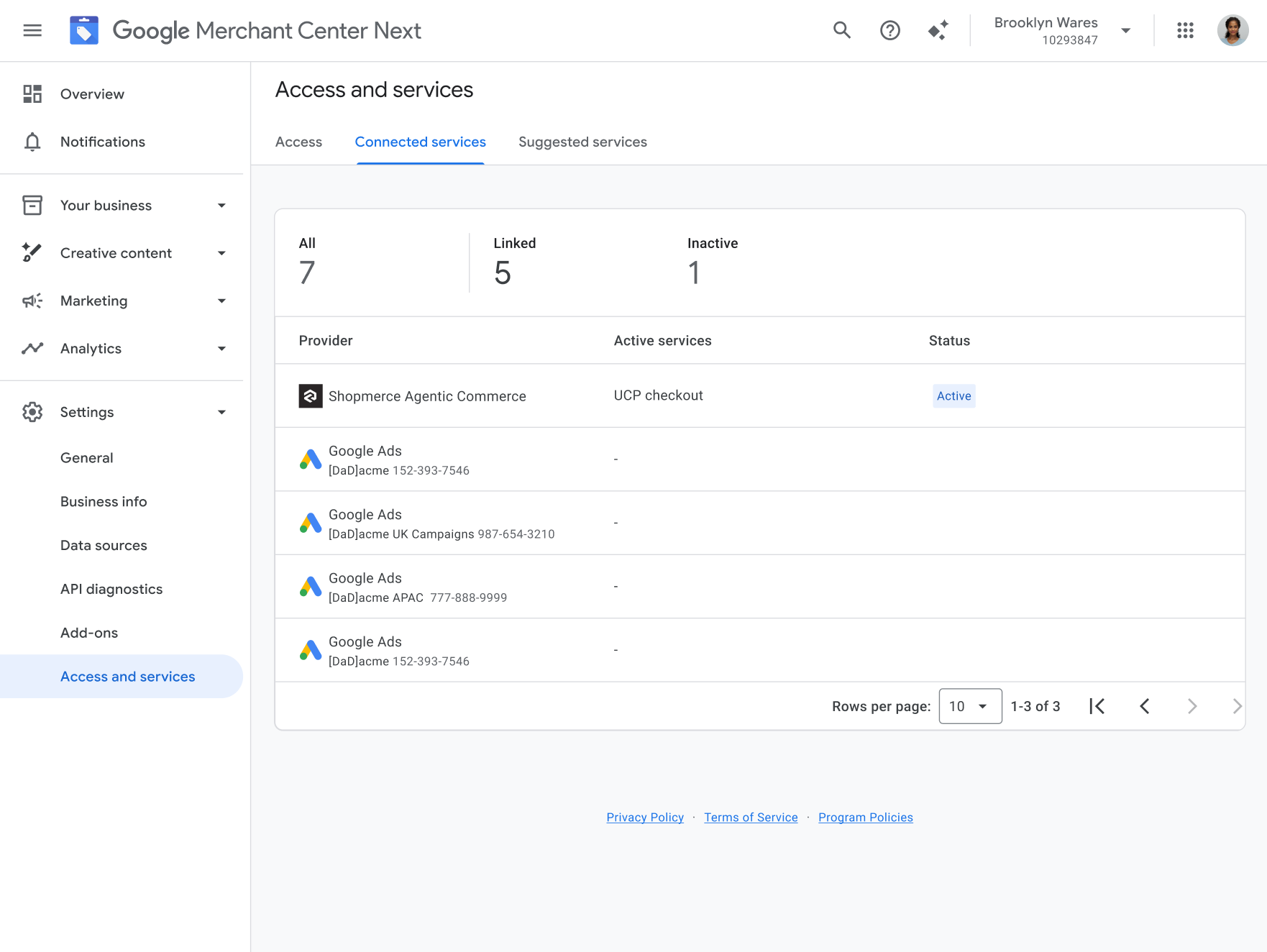

Once the accounts.services.approve call has been made, Google marks the service relationship as ESTABLISHED. You can view the status of requested service links by calling accounts.services.list. The merchant can view the established service by logging in to Merchant Center and navigating to Settings > Access and services > Connected services.

Complete post-linking activation and technical profile setup

Once the service link reaches the ESTABLISHED state, activate UCP capabilities for the merchant:

1. Enable UCP Integration Program:

   • Call accounts.programs.enable to activate the ucp-integration program for the merchant account. This can only be done using the Merchant API:

   POST https://merchantapi.googleapis.com/accounts/v1alpha/accounts/{MERCHANT_ID}/programs/ucp-integration:enable
   Authorization: Bearer {SERVICE_TOKEN}


2. Configure Merchant UCP Settings:

   • Call accounts.programs.ucpSettings.updateUcpSettings to register the merchant's hosted well-known UCP profile URI that you created in the previous step Create a well-known UCP profile URI. For example: https://{MERCHANT_DOMAIN}/.well-known/ucp

   PATCH https://merchantapi.googleapis.com/accounts/v1alpha/accounts/{MERCHANT_ID}/programs/ucp-integration/ucpSettings?updateMask=well_known_uri
   Content-Type: application/json
   Authorization: Bearer {SERVICE_TOKEN}

   {
     "wellKnownUri": "https://{MERCHANT_DOMAIN}/.well-known/ucp"
   }


3. Configure Order Webhook Ingestion:

   • Stream real-time order lifecycle events to Google's central webhook endpoint:

   POST https://shoppingdataintegration.googleapis.com/v1/webhooks/partners/{PARTNER_ID}/events/order?key={API_KEY}


   • {PARTNER_ID}: Your assigned UCP order event partner ID.
   • {API_KEY}: Your production Order Webhook API key.
   Note: Your UCP order event partner ID ({PARTNER_ID}) is distinct from the {PROVIDER_ID} assigned to your service provider account.

   For more information about how to create UCP checkout endpoints and order webhooks, see Implement UCP checkout endpoints and order webhooks.

Handle merchant-initiated un-linking and disconnects

Service providers must support merchant-initiated disconnect workflows across both their portal and Merchant Center:

• Disconnect from Merchant Center UI: When a merchant disconnects your platform from the Merchant Center UI, Google sends an ACCOUNT_SERVICE_CHANGE push notification to your backend. Decode the notification payload using the Account service change notifications guide to identify the disconnected merchant account.
• Disconnect from your portal: If a merchant disconnects their account directly within your platform's portal, call accounts.services.reject to terminate the established service link in Merchant Center.
• Graceful decommissioning and in-flight orders: Upon disconnect, update your internal merchant status to stop accepting new UCP checkout sessions, but continue streaming order lifecycle events for any in-flight orders until they reach a terminal state (such as delivered, canceled, or refunded).

Note: Automated API workflows for clearing .well-known/ucp profile settings and transitioning merchants between service providers are under active development. Additional API decommissioning guidance will be provided in an upcoming release. During the pilot program, contact your Google partner engineering representative if you need assistance decommissioning a merchant.

Next steps

After completing sandbox validation, proceed to Perform final validation.
