Configure a map

Select platform: Android iOS

This overview describes how to configure a map that was added to an iOS app using the Maps SDK for iOS.

Overview

After you add a map to your app, you can configure initial options and runtime settings of the map. For details about adding a map container, see the Add a map.

The initial map settings include the following:

At runtime you can configure these settings and some addition settings by updating the GMSMapView object.

Map options

When initializing your map view, configuration options are set with GMSMapViewOptions. Option properties include the frame, camera, mapID or backgroundColor.

Map Options
frame
Value: CGRect
The map frame. Defaults to CGRectZero.
camera
Value: GMSCameraPosition
The default map camera position.
mapID
Value: GMSMapID
Google mapID. Optional parameter.
backgroundColor
Value: UIColor
Defaults to UIColor.lightGray

Configure map options

You can either set your own option properties, or pass an instantiated GMSMapViewOptions with default values directly to GMSMapView.

Swift

let options = GMSMapViewOptions()
options.camera = GMSCameraPosition.camera(withLatitude: -33.8683, longitude: 151.2086, zoom: 6)
let mapView = GMSMapView(options:options)

Objective-C

GMSMapViewOptions *options = [[GMSMapViewOptions alloc] init];
options.camera = [GMSCameraPosition cameraWithLatitude:-33.8683
                                                        longitude:151.2086
                                                             zoom:6];
GMSMapView *mapView = [[GMSMapView alloc] initWithOptions:options];

Here's an example of passing a GMSMapViewOptions object with default values directly to GMSMapView.

Swift

let options = GMSMapViewOptions()
let mapView = GMSMapView(options:options) //initialized with default values

Objective-C

GMSMapViewOptions *options = [[GMSMapViewOptions alloc] init];
GMSMapView *mapView = [[GMSMapView alloc] initWithOptions:options]; //initialized with default values

Configure background color

When working in dark mode or switching between map views, it may be useful to override the default map background color. This can be achieved by setting the map options backgroundColor property.

Swift

let options = GMSMapViewOptions()
options.backgroundColor = UIColor.yellowColor
let mapView = GMSMapView(options:options)

Objective-C

GMSMapViewOptions *options = [[GMSMapViewOptions alloc] init];
options.backgroundColor = UIColor.yellowColor;
GMSMapView *mapView = [[GMSMapView alloc] initWithOptions:options];

Map types

You can customize your map with one of several map types. A map's type governs the overall representation of the map. For example, an atlas usually contains political maps that focus on showing boundaries, and road maps that show all of the roads for a city or region. The Maps SDK for iOS offers the following types of maps:

Map Type
Normal
Value: kGMSTypeNormal
Typical road map. Shows roads, some features built by humans, and important natural features like rivers. Road and feature labels are also visible. Supports setting the map color scheme to dark, light, or to follow system settings.
Hybrid
Value: kGMSTypeHybrid
Satellite photograph data with road maps added. Road and feature labels are also visible.
Satellite
Value: kGMSTypeSatellite
Satellite photograph data. Road and feature labels are not visible.
Terrain
Value: kGMSTypeTerrain
Topographic data. The map includes colors, contour lines and labels, and perspective shading. Some roads and labels are also visible. Supports setting the map color scheme to dark, light, or to follow system settings.
None
Value: kGMSTypeNone
No map tiles. The base map tiles will not be rendered. This mode is useful in conjunction with tile layers. The display of traffic data is disabled when the map type is set to none.

Changing the map type

To set the type of a map, assign a new value to the GMSMapView.mapType property. For example, to display a satellite map type:

Swift

let options = GMSMapViewOptions()
options.camera = GMSCameraPosition.camera(withLatitude: -33.8683, longitude: 151.2086, zoom: 6)
let mapView = GMSMapView(options:options)
mapView.mapType = .satellite

Objective-C

GMSMapViewOptions *options = [[GMSMapViewOptions alloc] init];
options.camera = [GMSCameraPosition cameraWithLatitude:-33.8683
                                                  longitude:151.2086
                                                        zoom:6];
GMSMapView *mapView = [[GMSMapView alloc] initWithOptions:options];
mapView.mapType = kGMSTypeSatellite;

The chooser below shows a comparison of terrain, normal and hybrid maps for the same location:

Indoor maps

At high zoom levels, the Maps SDK for iOS will show floor plans for indoor spaces such as airports, shopping malls, large retail stores, and transit stations. Indoor floor plans are integrated into the default map tiles for the 'normal' map type (kGMSTypeNormal), and are automatically enabled when the user zooms in, and fade away when the map is zoomed out.

You can disable indoor maps by setting the indoorEnabled property of GMSMapView to NO.

Swift

mapView.isIndoorEnabled = false


Objective-C

mapView.indoorEnabled = NO;


Alternatively, you can disable just the Floor Picker control.

Adding floor plans

Floor plans are available in select locations. If floor plan data is not available for a building that you would like to highlight in your application, you can:

  • Add floor plans to Google Maps directly. This makes your plans are available to all users of Google Maps.
  • Display a floor plan as a Ground Overlay. This enables only users of your application to view your floor plans.

The traffic layer

You can give your users the ability to view the map with traffic density information superimposed on top of it. This provides a visual summary of their local traffic situation. You can turn the traffic layer on and off by calling the trafficEnabled method. The following example shows how the traffic layer might appear on a map.

A Google map showing the traffic
layer

Accessibility

By default, accessibility elements on the map are hidden. You may enable accessibility by setting the accessibilityElementsHidden property of GMSMapView to NO. This causes accessibility elements to be generated for overlay objects (such as GMSMarker and info windows, GMSPolyline etc).

Swift

mapView.accessibilityElementsHidden = false


Objective-C

mapView.accessibilityElementsHidden = NO;


This property is as per the informal UIAccessibility protocol, except that the default value in the Maps SDK for iOS is YES.

My location

By default, no location data is shown on the map. You may enable the blue "My Location" dot and compass direction by setting myLocationEnabled on GMSMapView.

Swift

mapView.isMyLocationEnabled = true


Objective-C

mapView.myLocationEnabled = YES;


Enabling this feature provides the user's current location through the myLocation property. This property may not be immediately available - for example, if the user is prompted by iOS to allow access to this data. It is nil in this case.

Swift

print("User's location: \(String(describing: mapView.myLocation))")


Objective-C

NSLog(@"User's location: %@", mapView.myLocation);


3D buildings

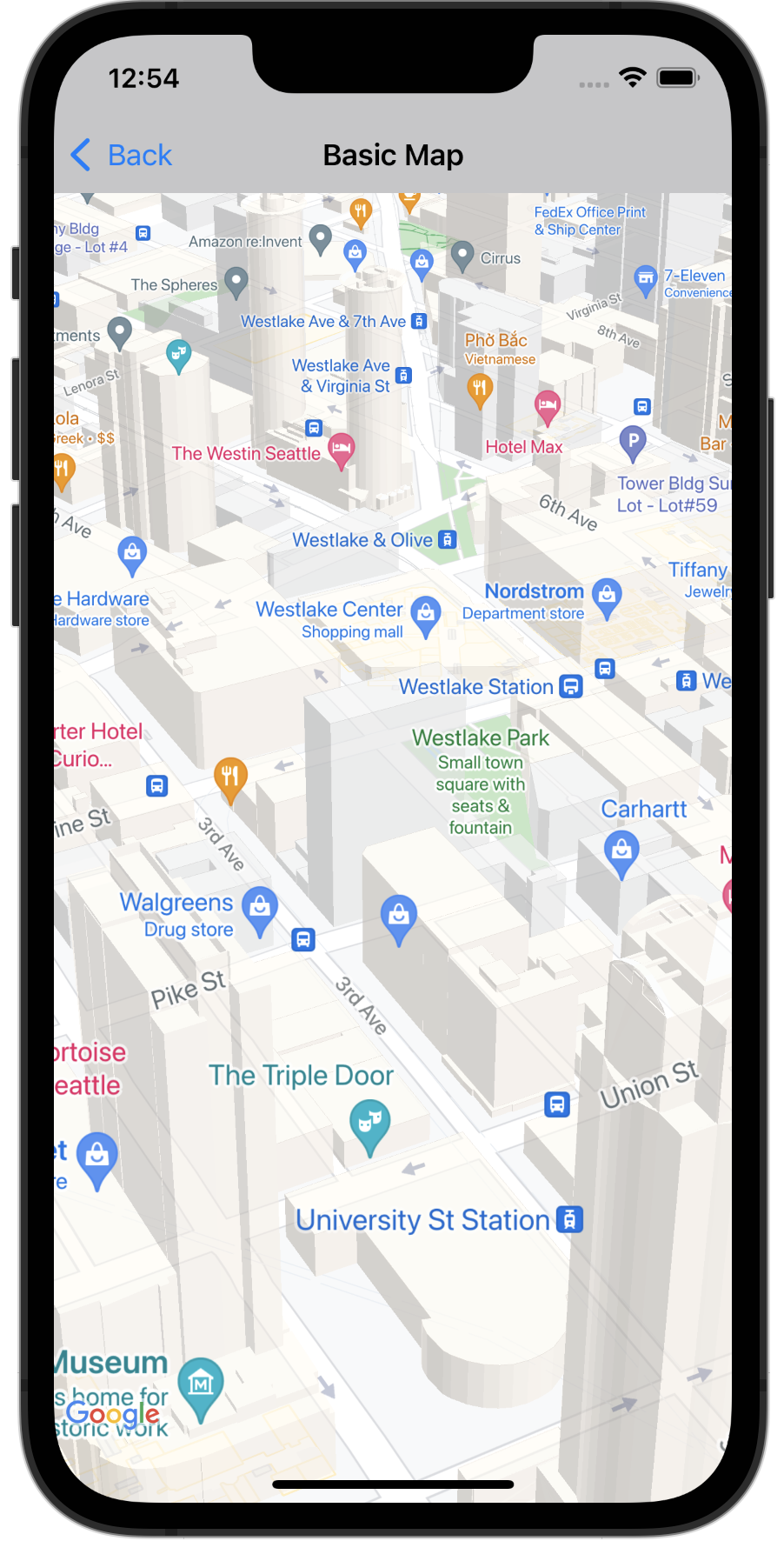

Many cities, when viewed close up, will have 3D buildings visible, as viewable in the image of Seattle, Washington below.

A 3D map of buildings in Seattle, Washington.

You can disable the 3D buildings by setting the corresponding GMSMapView property in Swift or Objective-C, as shown below:

Swift

mapView.isBuildingsEnabled = false


Objective-C

[mapView setBuildingsEnabled:NO];


Map padding

A Google Map is designed to fill the entire region defined by the GMSMapView. Several aspects of how the map appears and behaves are defined by the dimensions of the view:

  • The camera's target reflects the center of the padded region.
  • Map controls are positioned relative to the edges of the map.
  • Legal information, such as copyright statements or the Google logo appear along the bottom edge of the map.

You can add padding around the edges of the map using the GMSMapView.padding property. The map continues to fill the entire container, but text and control positioning, map gestures, and camera movements behave as if it has been placed in a smaller space. This results in the following changes:

  • Camera movements using API calls or button presses (e.g., compass, my location) are relative to the padded region.
  • GMSMapView.projection returns a projection that includes only the padded region.
  • UI controls are offset from the edge of the container by the specified number of points.

Padding can be helpful when designing UIs that overlap some portion of the map. For example, in the image, the map is padded along the top and right edges. Visible map controls and legal text is displayed along the edges of the padded region, shown in green, while the map continues to fill the entire container, shown in blue. In this example, you could float a menu over the right side of the map without obscuring map controls.

Map Padding

To add padding to your map, create a UIEdgeInsets object and pass it to the GMSMapView.padding property.

Swift

// Insets are specified in this order: top, left, bottom, right
let mapInsets = UIEdgeInsets(top: 100.0, left: 0.0, bottom: 0.0, right: 300.0)
mapView.padding = mapInsets


Objective-C

// Insets are specified in this order: top, left, bottom, right
UIEdgeInsets mapInsets = UIEdgeInsetsMake(100.0, 0.0, 0.0, 300.0);
mapView.padding = mapInsets;


Map color scheme

For maps of type normal and terrain, you can set the map color scheme to dark, light, or to use the current system settings. For example, you can darken or lighten the map color scheme based on the time of day or indoor or outdoor use of the device.

Use GMSMapView overrideUserInterfaceStyle: to set and update the map color scheme.

Swift

let options = GMSMapViewOptions()
// Map is init to use light mode by default.
let mapView = GMSMapView(options: options)
// Set map to use dark mode.
mapView.overrideUserInterfaceStyle = .dark
// Set map to use light mode.
mapView.overrideUserInterfaceStyle = .light
// Set map to use dark/light mode based on the value of traitCollection.userInterfaceStyle
mapView.overrideUserInterfaceStyle = .unspecified

Objective-C

GMSMapViewOptions *options = [[GMSMapViewOptions alloc] init];
// Map is init to always use light mode.
GMSMapView *mapView = [[GMSMapView alloc] initWithOptions:options];
// Set map to use dark mode.
mapView.overrideUserInterfaceStyle = UIUserInterfaceStyleDark;
// Set map to use light mode.
mapView.overrideUserInterfaceStyle = UIUserInterfaceStyleLight;
// Set map to use dark/light mode based on the value of traitCollection.userInterfaceStyle
mapView.overrideUserInterfaceStyle = UIUserInterfaceStyleUnspecified;
