इकाई प्रकारों के बीच संबंध बताना

कुछ इकाई टाइप के लिए, आपको अपने फ़ीड में मौजूद कॉन्टेंट के बीच संबंध तय करना होगा. इस जानकारी की मदद से, Google आपके कॉन्टेंट को उपयोगकर्ताओं को सही क्रम और स्ट्रक्चर में दिखा पाता है. साथ ही, जब उपयोगकर्ता की क्वेरी साफ़ तौर पर नहीं बताई गई हो, तब सही कॉन्टेंट की पहचान कर पाता है.

चुनें कि आपका कॉन्टेंट किस तरह का है:

टीवी शो

If you're a TV show provider, you need to add the TVEpisode, TVSeason, and TVSeries entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

Identify the relationships

Ensure the following relationships are established among them:

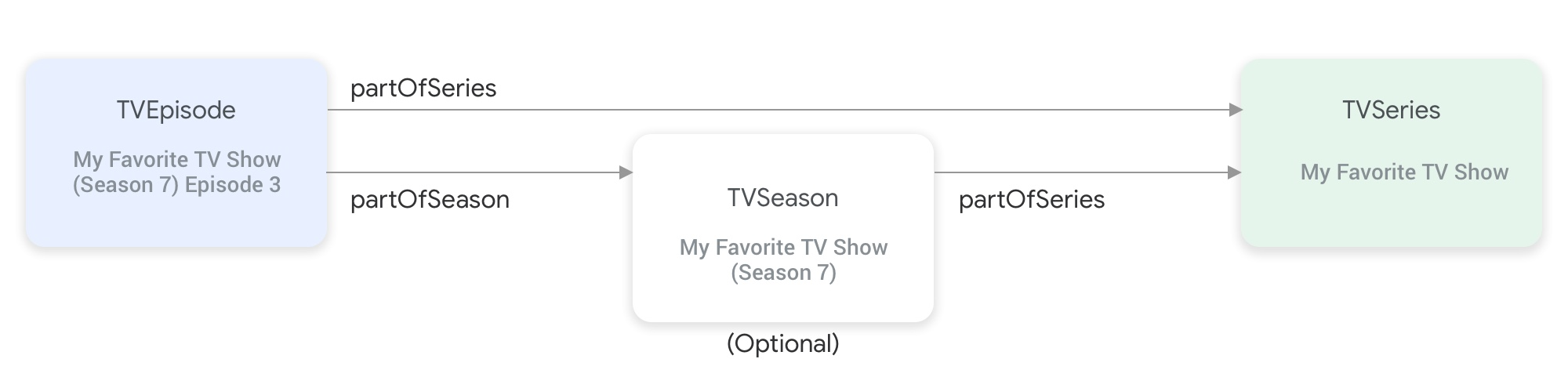

Figure: The partOfSeries and partOfSeason properties connect the TV show entity types together.

• A TVEpisode entity requires you to provide the partOfSeries property, which specifies the @id and name of the episode's TVSeries entity.

  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },


• If your feed contains TV seasons, a TVSeason entity also requires you to specify its TVSeries entity in the partOfSeries property.

  Note: Providing TVSeason as a top level entity is optional. However, if you choose to provide TVSeason entities for a TV show, those TVSeason entities must cover all the episodes of the TV series in your catalog. For instance, if My Favorite TV Show has 8 seasons and each season has 5 episodes. Your feed should contain all 40 episodes of My Favorite TV Show. If you provide TVSeason entities for the show, then your feed must include all 8 TVSeason entities.

• A TVEpisode entity requires you to provide the partOfSeason property, which specifies the @id and seasonNumber of the episode's TVSeason entity.

  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },


  If a TVEpisode entity doesn't have a corresponding TVSeason entity in the feed, take the following steps to provide the partOfSeason.@id and partOfSeason.seasonNumber properties for the TVEpisode entity:

  • Take its partofSeries.@id and attach a placeholder query field (for example, ?season1) to create a unique partOfSeason.@id (for example, http://www.example.com/my_favorite_tv_show?season1).
  • Set partOfSeason.seasonNumber to 1.
  Later, if you decide to provide TV seasons in the feed, you can either reuse the existing partOfSeason.@id for the corresponding TVSeason entity or replace this placeholder partOfSeason.@id with the actual @id of the TVSeason entity.

Example

TVSeries

My Favorite TV Show

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

Episode 3 of My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

रेडियो

अगर आप रेडियो सेवा देने वाली कंपनी हैं, तो आपको अपने मीडिया कैटलॉग फ़ीड में RadioBroadcastService इकाई टाइप जोड़ना होगा. इन इकाइयों की परिभाषाएं देखने के लिए, इकाई के उपलब्ध टाइप के बारे में जानें सेक्शन में जाकर, इस टाइप के लिए फ़िल्टर करें.

संबंधों की पहचान करना

इस तरह के इंटिग्रेशन के लिए, इकाई का सिर्फ़ एक टाइप होता है. साथ ही, ऐसे कोई संबंध नहीं होते जिन्हें सेट अप करना ज़रूरी हो. इसलिए, पक्का करें कि आपने RadioBroadcastService इकाइयों के लिए यह जानकारी इकट्ठा की हो:

• description: रेडियो स्टेशन की जानकारी.
• broadcastDisplayName: रेडियो स्टेशन का डिसप्ले नेम.
• areaServed: वह इलाका जहां रेडियो स्टेशन उपलब्ध है.
• callSign: रेडियो स्टेशन का आधिकारिक कॉलसाइन, जिसे सरकार ने जारी किया है. उत्तरी अमेरिका के रेडियो स्टेशनों के लिए, यह प्रॉपर्टी ज़रूरी है.
• broadcastFrequency: रेडियो स्टेशन की फ़्रीक्वेंसी की जानकारी.
  • टेरेस्ट्रियल AM/FM रेडियो स्टेशन के लिए, इस प्रॉपर्टी की ज़रूरत होती है.
  • सिर्फ़ ऑनलाइन स्ट्रीमिंग वाले कॉन्टेंट के लिए, वैल्यू INTERNET_STREAM पर सेट होती है.
• broadcastAffiliateOf: वह नेटवर्क जिसका यह रेडियो स्टेशन प्रोग्रामिंग उपलब्ध कराता है. अगर रेडियो स्टेशन किसी अफ़िलिएशन का हिस्सा नहीं है, तो इस प्रॉपर्टी की ज़रूरत नहीं है.
• broadcaster: वह संगठन जिसके पास रेडियो स्टेशन का मालिकाना हक है और जिसकी ओर से उसे चलाया जाता है.
• parentService: पैरंट रेडियो स्टेशन. अगर रेडियो स्टेशन किसी दूसरे रेडियो स्टेशन का रीपीटर या ट्रांसलेटर है, तो इस प्रॉपर्टी की वैल्यू देना ज़रूरी है.

उदाहरण

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

संगीत

If you're a music provider, you need to add the MusicGroup, MusicAlbum, and MusicRecording entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

MusicGroup, MusicAlbum, and MusicRecording let your app or platform play more content from a playlist (MusicPlaylist) once all the content from the seed entity is played. Check out the following scenario:

• A MusicAlbum entity contains a list of songs from Album XYZ (a seed entity).
• A MusicPlaylist entity contains a playlist of songs that are similar to the songs from Album XYZ.
• The MusicAlbum entity includes the MusicPlaylist entity as an Entity-seeded Action.

In this setup, once all the songs from Album XYZ are played, your app can continue to play songs from the playlist provided by the MusicPlaylist entity.

Entity Action and Entity-seeded Action

Listen Actions support two types of Actions:

• Entity Action: Plays a specific artist, album, or song (a seed entity). It includes MusicGroup, MusicAlbum, MusicRecording.
• Entity-seeded Action: Plays content similar to the seed entity. It includes MusicPlaylist.
  • After completing an Entity Action, your app or platform may initiate an Entity-seeded Action.
  • An Entity-seeded Action can include playback of the content from the seed entity.

We recommend you include an Entity-seeded Action in every Entity Action.

Identify the relationships

• For MusicGroup, if you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
• For MusicAlbum and MusicRecording, you need to identify which MusicGroup they belong to.
  • Identify @id and name of its MusicGroup.
  • If you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
• For MusicPlaylist,
  • If applicable, identify genre that best represents the content in the playlist.
  • If the playlist is hand curated, identify numTracks.
    • The absence of numTracks tells Google that the playlist is an auto-generated, endless playlist.

Example

MusicGroup

• Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

• Album: My Favorite Album
• Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

• Song: My Favorite Song
• Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

• A custom playlist: "Top Pop Songs of the 2010s"

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

लाइव टीवी

अगर आप लाइव टीवी की सेवा देने वाली कंपनी हैं, तो आपको अपने मीडिया कैटलॉग फ़ीड में Organization, BroadcastService, CableOrSatelliteService, और TelevisionChannel इकाई के टाइप जोड़ने होंगे. इससे आपके चैनल लाइनअप की जानकारी दिखेगी. आपको EPG (इलेक्ट्रॉनिक प्रोग्रामिंग गाइड) से जुड़ी जानकारी दिखाने के लिए, BroadcastEvent, TVSeries, TVEpisode, Movie, और SportsEvent इकाइयां भी देनी पड़ सकती हैं. इन इकाइयों की परिभाषाएं, उपलब्ध इकाई के टाइप के बारे में जानें सेक्शन में मिल सकती हैं. इसके लिए, इन टाइप के हिसाब से फ़िल्टर करें. ज़्यादा जानकारी के लिए, लाइव टीवी चैनल पेज पर जाएं.

ध्यान दें: लाइव टीवी फ़ीड में TVEpisode, TVSeason, और TVSeries इकाइयां भी होती हैं. इसलिए, ऊपर दिया गया TV show के बारे में सेक्शन भी पढ़ें.

लाइव टीवी चैनलों की जानकारी देने वाली इकाइयों के बीच संबंध

नीचे दी गई इमेज में दिखाया गया है कि Organization, BroadcastService, CableOrSatelliteService, और TelevisionChannel इकाइयां आपस में कैसे जुड़ी हैं:

इमेज: लाइव टीवी चैनल की इकाई के टाइप के बीच लिंक.

• फ़ीड उपलब्ध कराने वाली कंपनी और CableOrSatelliteService सेवा के पैरंट संगठन की जानकारी देने वाली Organization (ऑपरेटर) इकाई, CableOrSatelliteService इकाई पर मौजूद provider प्रॉपर्टी का इस्तेमाल करके कनेक्ट होती है.
• BroadcastService इकाइयों से जुड़ी Organization इकाइयां, BroadcastService इकाई पर मौजूद broadcastAffiliateOf प्रॉपर्टी का इस्तेमाल करके कनेक्ट होती हैं.
• TelevisionChannel इकाइयां, CableOrSatelliteService इकाई से कनेक्ट होती हैं. यह इकाई, उन चैनलों के लाइनअप की जानकारी देती है जिनसे ये इकाइयां जुड़ी होती हैं. इसके लिए, inBroadcastLineup प्रॉपर्टी का इस्तेमाल किया जाता है.
• TelevisionChannel इकाइयां, BroadcastService इकाई से कनेक्ट होती हैं. यह इकाई, उन चैनलों के प्रोग्रामिंग की जानकारी देती है जिनसे ये इकाइयां जुड़ी होती हैं. इसके लिए, providesBroadcastService प्रॉपर्टी का इस्तेमाल किया जाता है.

हमारा सुझाव है कि आप लाइव टीवी चैनलों के कॉन्सेप्ट वाले पेज पर जाएं. इससे आपको यह समझने में मदद मिलेगी कि BroadcastService और Organization इकाइयों के बीच संबंध कैसे बनाया जाता है. इस पेज पर, इसके ठोस उदाहरण दिए गए हैं.

चैनलों और उनकी प्रोग्रामिंग गाइड (EPG) के बीच संबंध

नीचे दी गई इमेज में दिखाया गया है कि BroadcastEvent इकाई, फ़ीड में मौजूद बाकी इकाइयों से कैसे लिंक होती है.

इमेज: लाइव टीवी इवेंट की इकाई के टाइप के बीच लिंक.

• BroadcastService की प्रोग्रामिंग गाइड (EPG) की जानकारी देने वाली BroadcastEvent इकाइयां, BroadcastService इकाइयों से कनेक्ट होती हैं. इसके लिए, BroadcastEvent इकाई पर मौजूद publishedOn प्रॉपर्टी का इस्तेमाल किया जाता है.
• BroadcastEvent इकाइयों को, टॉप लेवल की TVEpisode, TVSeries, Movie इकाइयों से भी कनेक्ट किया जा सकता है. इसके लिए, workPerformed प्रॉपर्टी का इस्तेमाल करें.
• BroadcastEvent इकाइयों को, टॉप लेवल की SportsEvent इकाइयों से भी कनेक्ट किया जा सकता है. इसके लिए, broadcastOfEvent प्रॉपर्टी का इस्तेमाल करें.
• ऑनलाइन स्ट्रीम किए जाने वाले ऐसे इवेंट जिनके लिए कोई चैनल नहीं है, उनकी BroadcastEvent इकाइयां, लाइव इवेंट की जानकारी देने वाली इकाई से कनेक्ट होती हैं. इसके लिए, workPerformed या broadcastOfEvent प्रॉपर्टी का इस्तेमाल किया जाता है. यह इस बात पर निर्भर करता है कि लाइव स्ट्रीम क्या किया जा रहा है. ऐसे मामलों में, publishedOn प्रॉपर्टी की ज़रूरत नहीं होती, क्योंकि चैनल से कनेक्ट करने की ज़रूरत नहीं होती.

उदाहरण

इस सेक्शन में, 'देखें' ऐक्शन के अलग-अलग इस्तेमाल के उदाहरण और स्निपेट दिए गए हैं.

इंटरनेट पर राष्ट्रीय टीवी सेवा देने वाली कंपनी

संगठन

इंटरनेट प्रोटोकॉल टेलीविज़न सेवा देने वाली एक काल्पनिक कंपनी, ExampleTV Digital Service (Organization), इंटरनेट पर लाइव टीवी की सेवा देती है. इसमें ये दो चैनल शामिल हैं: ExampleTV-Movie (Organization) और ExampleTV-Comedy (Organization):

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

ये दो BroadcastService इकाइयां, काल्पनिक चैनल ExampleTV-Movie और ExampleTV-Comedy के डीप लिंक और ऐक्सेस की ज़रूरी शर्तों के बारे में जानकारी देती हैं:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

CableOrSatelliteService इकाई, सेवा देने वाली कंपनी ExampleTV Digital Service के बारे में जानकारी देती है. इसकी सेवाएं पूरे देश में उपलब्ध हैं:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

इन TelevisionChannel इकाइयों से पता चलता है कि ExampleTV Digital Service IPTV पर, चैनल ExTV-Movie पर ExampleTV Movie प्रोग्रामिंग और चैनल ExTV-Comedy पर ExampleTV Comedy प्रोग्रामिंग उपलब्ध है:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

ज़्यादा उदाहरणों के लिए, लाइव टीवी के उदाहरण सेक्शन देखें.

टीवी चैनल पर किसी फ़िल्म का ब्रॉडकास्ट

12 जुलाई, 2019 को शाम 5 बजे से 7 बजे के बीच, Example TV (BroadcastService) टेलीविज़न नेटवर्क पर एक फ़िल्म ब्रॉडकास्ट की गई.

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

मूवी

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

ज़्यादा उदाहरणों के लिए, लाइव टीवी इवेंट के उदाहरण सेक्शन देखें.

ऑनलाइन स्ट्रीम किया गया लाइव स्पोर्ट्स गेम

ब्रॉडकास्ट इवेंट

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

स्पोर्ट्स इवेंट

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

ज़्यादा उदाहरणों के लिए, स्पोर्ट्स के उदाहरण सेक्शन देखें.
