快速入門導覽課程：使用 Google Apps Script 建構計算機步驟

本快速入門導覽課程說明如何使用 Google Apps Script，為 Workspace Flows 建立自訂步驟。這個自訂步驟會接收兩個數字和一個算術運算做為輸入內容，執行計算並輸出結果。

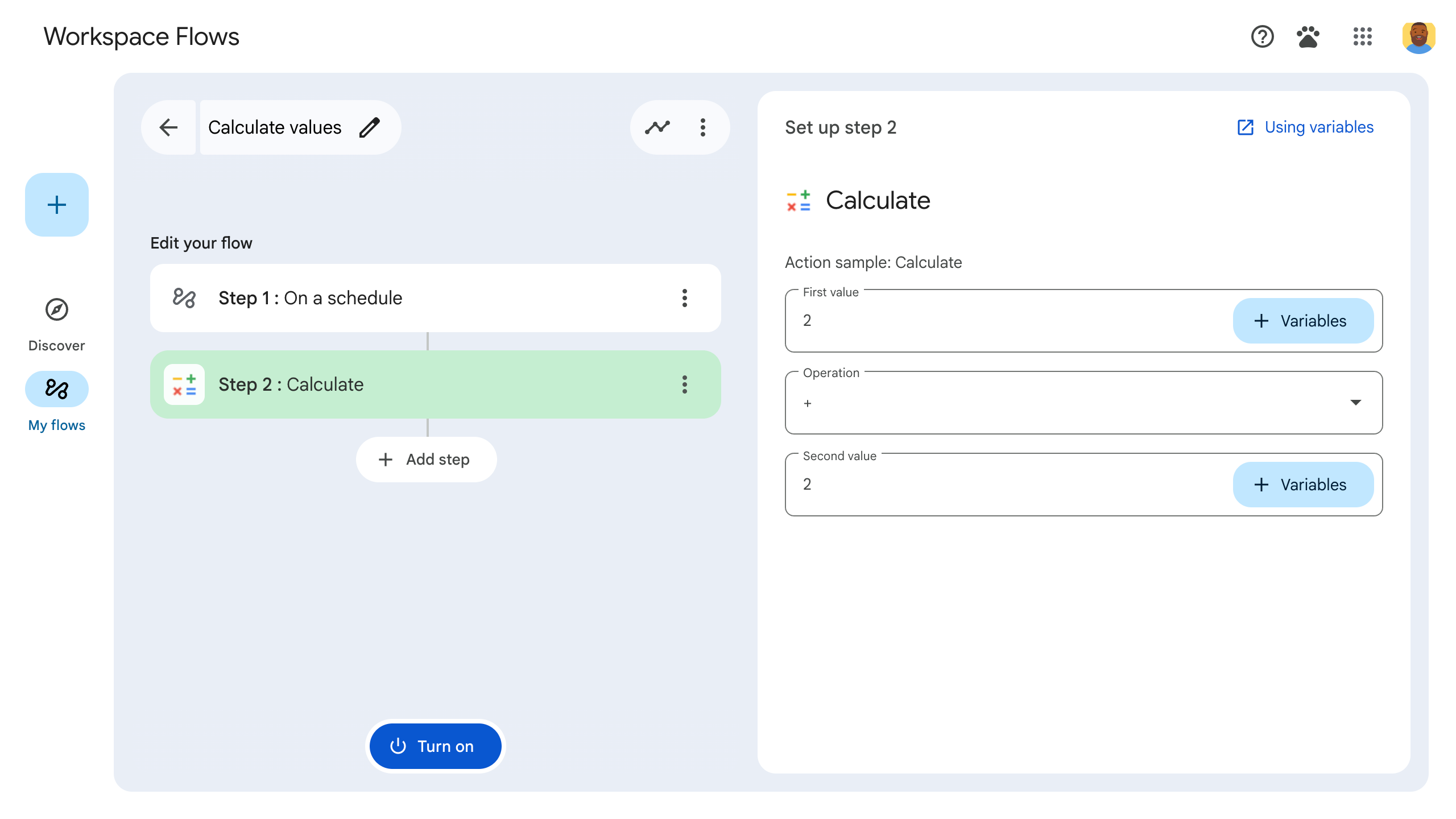

使用者在流程中設定計算機步驟。

圖 1：使用者在流程中設定計算機步驟。

目標

  • 使用 Google Apps Script 為 Workspace Flows 建立自訂步驟。
  • 將自訂步驟部署至您自己的 Google Workspace 機構。
  • 在 Workspace Flows 中測試自訂流程步驟。

必要條件

設定指令碼

如要設定指令碼，請建立新的 Apps Script 專案，然後連結至 Cloud 專案。

  1. 按一下下列按鈕，開啟流程計算機快速入門 Apps Script 專案。

    開啟專案

  2. 按一下「總覽」。

  3. 在總覽頁面中，按一下 建立副本的圖示「建立副本」。

  4. 為複製的 Apps Script 專案命名：

    1. 按一下「Copy of Flows calculator quickstart」(流程計算機快速入門導覽課程副本)。

    2. 在「專案標題」中輸入 Flows calculator quickstart。

    3. 按一下 [重新命名]。

選用：查看快速入門程式碼

在上一節中，您已複製整個 Apps Script 專案，其中包含流程自訂步驟的所有必要應用程式程式碼，因此不必複製及貼上每個檔案。

您也可以在這裡查看先前複製的每個檔案：

appsscript.json

資訊清單檔案。這個特殊的 JSON 檔案會指定 Apps Script 執行指令碼時所需的基本專案資訊。

查看 appsscript.json 程式碼

{
  "timeZone": "America/Los_Angeles",
  "exceptionLogging": "STACKDRIVER",
  "runtimeVersion": "V8",
  "addOns": {
    "common": {
      "name": "Calculator",
      "logoUrl": "https://www.gstatic.com/images/branding/productlogos/calculator_search/v1/web-24dp/logo_calculator_search_color_1x_web_24dp.png",
      "useLocaleFromApp": true
    },
    "flows": {
      "workflowElements": [
        {
          "id": "actionElement",
          "state": "ACTIVE",
          "name": "Calculate",
          "description": "Asks the user for two values and a math operation, then performs the math operation on the values and outputs the result.",
          "workflowAction": {
            "inputs": [
              {
                "id": "value1",
                "description": "value1",
                "cardinality": "SINGLE",
                "dataType": {
                  "basicType": "INTEGER"
                }
              },
              {
                "id": "value2",
                "description": "value2",
                "cardinality": "SINGLE",
                "dataType": {
                  "basicType": "INTEGER"
                }
              },
              {
                "id": "operation",
                "description": "operation",
                "cardinality": "SINGLE",
                "dataType": {
                  "basicType": "STRING"
                }
              }
            ],
            "outputs": [
              {
                "id": "result",
                "description": "Calculated result",
                "cardinality": "SINGLE",
                "dataType": {
                  "basicType": "INTEGER"
                }
              },
              {
                "id": "log",
                "description": "Logged result of flow event.",
                "cardinality": "SINGLE",
                "dataType": {
                  "basicType": "STRING"
                }
              }
            ],
            "onConfigFunction": "onConfigCalculateFunction",
            "onExecuteFunction": "onExecuteCalculateFunction"
          }
        }
      ]
    }
  }
}
Calculator.gs

定義 Google Workspace Flows 的自訂步驟。這個步驟名為「Calculate」，會將兩個數字和一項運算做為輸入內容，並傳回計算結果。

查看 Calculator.gs 程式碼

/**
 * This script defines a custom step for Google Workspace Flows.
 * The step, named "Calculate", takes two numbers and an operation as input
 * and returns the result of the calculation.
 *
 * The script includes functions to:
 *
 * 1.  Define the configuration UI for the step using Card objects:
 *
 *     - `onConfigCalculateFunction()`: Generates the main configuration card.
 *     - Helper functions like `pushCard()`, `saveButton()` to build card components.
 *
 * 2.  Handle the execution of the step.
 *
 *     - `onExecuteCalculateFunction()`: Retrieves inputs, performs the calculation,
 *       and returns outputs.
 *
 * To learn more, see the following quickstart guide:
 * https://developers.google.com/workspace/add-ons/workflows/quickstart
 */

/**
 * Creates an action response to push a new card onto the card stack.
 *
 * This function generates an action object that, when returned, causes the
 * provided card to be pushed onto the card stack, making it the currently
 * displayed card in the configuration UI.
 * @param {Object} card The Card object to push.
 * @return {Object} The action response object.
 */
function pushCard(card) {
  return {

      "action": {
        "navigations": [{
            "push_card": card
          }
        ]
      }  };
}

/**
 * Creates an action response to update the currently displayed card.
 *
 * This function generates an action object that, when returned, causes the
 * currently displayed card to be replaced with the provided card in the
 * configuration UI.
 * @param {Object} card The Card object to update.
 * @return {Object} The render actions object.
 */
function updateCard(card) {
  return {
    "render_actions": {
      "action": {
        "navigations": [{
            "update_card": card
          }
        ]
      }
    }
  };
}

/**
 * Creates a button configuration object for saving the workflow.
 *
 * This function generates a button definition that, when clicked, triggers
 * a save action for the current workflow configuration.
 * @return {Object} The button widget object.
 */
function saveButton() {
  return {
      "text": "Save",
      "onClick": {
        "hostAppAction" : {
          "workflowAction" : {
            "saveWorkflowAction" : {}
          }
        }
      },
    };
}

/**
 * Creates a button configuration object for a refresh action.
 *
 * This function generates a button definition that, when clicked, triggers
 * a function to refresh the current card.
 * @param {string} functionName The name of the Apps Script function to call on click.
 * @return {Object} The button widget object.
 */
function refreshButton(functionName) {
  return {
      "text": "Refresh",
      "onClick": {
        "action" : {
          "function" : functionName
        }
      },
    };
}


/**
 * Generates and displays a configuration card for the sample calculation action.
 *
 * This function creates a card with input fields for two values and a dropdown
 * for selecting an arithmetic operation. The card also includes a "Save"
 * button to save the action configuration for the workflow.
 *
 * The input fields are configured to let the user select outputs from previous
 * workflow steps as input values using the `hostAppDataSource` property.
 * This function is called when the user adds or edits the "Calculate" step in the Flows UI.
 * @return {Object} The action response object containing the card to display.
 */
function onConfigCalculateFunction() {
  var card = {
    "sections": [
      {
        "header": "Action sample: Calculate",
        "widgets": [
          {
            "textInput": {
              "name": "value1",
              "label": "First value",
              "hostAppDataSource" : {
                "workflowDataSource" : {
                  "includeVariables" : true
                }
              }
            }
          },
          {
            "selectionInput": {
              "name": "operation",
              "label": "Operation",
              "type": "DROPDOWN",
              "items": [
                {
                  "text": "+",
                  "value": "+",
                },
                {
                  "text": "-",
                  "value": "-",
                },
                {
                  "text": "x",
                  "value": "x",
                },
                {
                  "text": "/",
                  "value": "/",
                }
              ]
            }
          },
          {
            "textInput": {
              "name": "value2",
              "label": "Second value",
              "hostAppDataSource" : {
                "workflowDataSource" : {
                  "includeVariables" : true
                }
              }
            }
          }
        ]
      }
    ]
  };
  return pushCard(card);
}

/**
 * Gets an integer value from variable data, handling both string and integer formats.
 *
 * This function attempts to extract an integer value from the provided variable data.
 * It checks if the data contains string values and, if so, parses the first string
 * as an integer. If integer values are present, it returns the first integer.
 * @param {Object} variableData The variable data object from the event.
 * @return {number} The extracted integer value.
 */
function getIntValue(variableData) {
  if (variableData.stringValues) {
    return parseInt(variableData.stringValues[0]);
  }
  return variableData.integerValues[0];
}

/**
 * Executes the calculation action based on the inputs from a workflow event.
 *
 * This function retrieves input values ("value1", "value2") and the "operation"
 * from the workflow event, performs the calculation, and returns the "result" and
 * "log" as output variables.
 * This function is called when the workflow execution reaches this custom step.
 * @param {Object} event The event object passed by the Flows runtime.
 * @return {Object} The output variables object.
 */
function onExecuteCalculateFunction(event) {
  console.log("output: " + JSON.stringify(event));
  var calculatedValue = 0;
  var value1 = getIntValue(event.workflow.actionInvocation.inputs["value1"]);
  var value2 = getIntValue(event.workflow.actionInvocation.inputs["value2"]);
  var operation = event.workflow.actionInvocation.inputs["operation"].stringValues[0];

  if (operation == "+") {
    calculatedValue = value1 + value2;
  } else if (operation == "-") {
    calculatedValue = value1 - value2;
  } else if (operation == "x") {
    calculatedValue = value1 * value2;
  } else if (operation == "/") {
    calculatedValue = value1 / value2;
  }
  var renderAction = {
    "hostAppAction" : {
      "workflowAction" : {
        "returnOutputVariablesAction" : {
          "variableValues" : [
            {
              "variableId": "result",
              "integerValues": [
                calculatedValue
              ]
            }
          ]
        }
      }
    }
  };
}

部署及測試步驟

如要測試步驟，請為外掛程式設定測試部署作業，將步驟新增至流程，然後執行流程。

  1. 為外掛程式設定測試部署作業：

    1. 在 Apps Script 編輯器中開啟指令碼專案。
    2. 依序點選「部署」>「測試部署作業」。
    3. 按一下 [安裝]。
    4. 按一下底部的「完成」。

    您可以與其他使用者的帳戶共用 Apps Script 專案 (必須具備編輯權限)，讓他們測試外掛程式。然後提示使用者按照先前的步驟操作。

    安裝完畢後，外掛程式會立即顯示在 Flows 中。您可能需要重新整理 Flows，外掛程式才會顯示。您也必須先授權外掛程式，才能使用。

    如要進一步瞭解測試部署，請參閱「安裝未發布的外掛程式」。

  2. 開啟「流程」。

  3. 建立包含步驟的流程：

    1. 按一下 「新流程」。
    2. 選取流程的啟動方式。測試步驟時，請選擇可自行觸發的啟動條件，例如傳送電子郵件給自己。如果步驟需要輸入變數，請將輸入變數設定為啟動器的輸出內容。
    3. 按一下「新增步驟」。選取您建立或更新的步驟，稱為「計算」。
    4. 設定步驟。在計算步驟中，選擇兩個值和數學運算。系統會自動儲存步驟。
    5. 如要測試步驟的輸出內容，請新增另一個步驟。舉例來說，如要在電子郵件中新增輸出內容，可以新增 Gmail 的「傳送郵件」步驟。在「訊息」中，按一下「變數」，然後選取步驟的輸出內容。在計算步驟中，依序選取「變數」 >「步驟 2：計算結果」 >「計算結果」。變數會以方塊形式顯示在「訊息」欄位中。
    6. 按一下「開啟」。流程已可執行。

  4. 如要執行流程，請啟動流程的啟動條件。舉例來說，如果流程會在收到電子郵件時啟動，請傳送電子郵件給自己。

  5. 確認流程是否正常運作。前往流程建構工具的「活動」分頁，即可查看記錄。如要瞭解如何在「活動」分頁中建立自訂記錄，請參閱活動記錄。

後續步驟

您已成功建立及測試 Workspace Flows 的自訂流程步驟。您現在可以進行下列操作：
