이 가이드에서는 입력 변수를 만드는 방법을 설명합니다.
단계를 실행하려면 특정 정보가 필요합니다. 예를 들어 이메일을 보내려면 이메일 주소가 필요합니다. 이 필수 정보를 제공하는 단계를 정의하려면 입력 변수를 정의하세요. 정의되면 사용자가 단계를 설정하는 동안 단계의 구성 카드에서 입력 변수를 설정하는 것이 일반적입니다.
입력 변수를 두 곳에 정의합니다. 하나는 부가기능의 매니페스트 파일이고 다른 하나는 사용자가 입력 변수의 값을 입력할 수 있는 구성 카드가 있는 코드입니다.
매니페스트 파일에서 입력 변수 정의
매니페스트 파일에서 inputs[] 배열을 사용하여 입력 변수를 지정합니다. inputs[] 배열의 각 항목에는 다음 속성이 있습니다.
id: 입력 변수의 고유 식별자입니다. 흐름에서 구성 카드 입력 요소를 이 입력 변수와 연결하도록 하려면 해당 카드 요소의 이름과 일치해야 합니다.description: 최종 사용자에게 표시할 입력 변수에 대한 설명입니다.cardinality: 허용되는 값의 수입니다. 가능한 값은 다음과 같습니다.SINGLE: 값은 하나만 허용됩니다.
dataType: 허용되는 값의 유형입니다.dataType에는 데이터 유형을 정의하는basicType속성이 있습니다. 유효한 값으로 다음이 포함되어 있습니다.STRING: 영숫자 문자열입니다.INTEGER: 숫자TIMESTAMP: 'Unix 에포크 이후 밀리초' 형식의 타임스탬프입니다. 예를 들어 2025년 11월 27일 16시 49분 2초(UTC)는1764262142988로 표시됩니다.BOOLEAN: true 또는 false입니다.EMAIL_ADDRESS:dana@example.com형식의 이메일 주소입니다.
다음 예에서는 계산기 단계의 입력 변수 3개를 정의합니다. 처음 두 입력 변수는 정수이고 세 번째는 산술 연산입니다.
JSON
{
"timeZone": "America/Los_Angeles",
"exceptionLogging": "STACKDRIVER",
"runtimeVersion": "V8",
"addOns": {
"common": {
"name": "Calculator",
"logoUrl": "https://www.gstatic.com/images/branding/productlogos/calculator_search/v1/web-24dp/logo_calculator_search_color_1x_web_24dp.png",
"useLocaleFromApp": true
},
"flows": {
"workflowElements": [
{
"id": "calculatorDemo",
"state": "ACTIVE",
"name": "Calculate",
"description": "Asks the user for two values and a math operation, then performs the math operation on the values and outputs the result.",
"workflowAction": {
"inputs": [
{
"id": "value1",
"description": "value1",
"cardinality": "SINGLE",
"dataType": {
"basicType": "INTEGER"
}
},
{
"id": "value2",
"description": "value2",
"cardinality": "SINGLE",
"dataType": {
"basicType": "INTEGER"
}
},
{
"id": "operation",
"description": "operation",
"cardinality": "SINGLE",
"dataType": {
"basicType": "STRING"
}
}
],
"outputs": [
{
"id": "result",
"description": "Calculated result",
"cardinality": "SINGLE",
"dataType": {
"basicType": "INTEGER"
}
}
],
"onConfigFunction": "onConfigCalculate",
"onExecuteFunction": "onExecuteCalculate"
}
}
]
}
}
}
코드에서 입력 변수 정의
이 단계의 코드에는 매니페스트 파일의 inputs[] 배열에 정의된 각 입력 변수에 대해 하나의 입력 카드 위젯을 정의하는 구성 카드를 반환하는 onConfigFunction()라는 함수가 포함되어 있습니다.
구성 카드에 정의된 입력 위젯에는 다음 요구사항이 있습니다.
- 각 입력 위젯의
name는 매니페스트 파일에서 해당 입력 변수의id와 일치해야 합니다. - 입력 위젯의 카디널리티는 매니페스트 파일의 입력 변수
cardinality와 일치해야 합니다. - 입력 위젯의 데이터 유형은 매니페스트 파일의 입력 변수
dataType와 일치해야 합니다. 입력 변수의dataType이 정수인 경우 문자열을 보유할 수 없습니다.
카드 인터페이스를 빌드하는 데 도움이 필요하면 다음 옵션 중 하나를 참고하세요.
- 카드 빌더: 카드를 빌드하고 정의하는 데 사용할 수 있는 대화형 도구입니다.
- 카드: Google Workspace 부가기능 API 참조 문서에 있습니다.
- 카드 서비스: 스크립트가 카드를 구성하고 빌드할 수 있도록 지원하는 Apps Script 서비스입니다.
- 카드 기반 인터페이스 개요: Google Workspace 부가기능 개발자 문서
다음 예에서는 매니페스트 파일에서 입력 변수 정의에 정의된 각 입력 위젯의 구성 카드를 반환합니다.
Apps Script
/**
* Generates and displays a configuration card for the sample calculation step.
*
* This function creates a card with input fields for two values and a drop-down
* for selecting an arithmetic operation.
*
* The input fields are configured to let the user select outputs from previous
* workflow steps as input values using the `hostAppDataSource` property.
*/
function onConfigCalculate() {
const firstInput = CardService.newTextInput()
.setFieldName("value1") // "FieldName" must match an "id" in the manifest file's inputs[] array.
.setTitle("First Value")
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
)
);
const secondInput = CardService.newTextInput()
.setFieldName("value2") // "FieldName" must match an "id" in the manifest file's inputs[] array.
.setTitle("Second Value")
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
)
);
const selectionInput = CardService.newSelectionInput()
.setTitle("operation")
.setFieldName("operation") // "FieldName" must match an "id" in the manifest file's inputs[] array.
.setType(CardService.SelectionInputType.DROPDOWN)
.addItem("+", "+", false)
.addItem("-", "-", true)
.addItem("x", "x", false)
.addItem("/", "/", false);
const sections = CardService.newCardSection()
.setHeader("Action_sample: Calculate")
.setId("section_1")
.addWidget(firstInput)
.addWidget(selectionInput)
.addWidget(secondInput)
let card = CardService.newCardBuilder()
.addSection(sections)
.build();
return card;
}
이전 단계의 출력 변수 사용
워크플로의 이전 단계에서 출력 변수를 허용하도록 입력 변수를 구성할 수 있습니다.
변수 선택 사용 설정
사용자가 이전 단계에서 변수를 선택할 수 있도록 하려면 TextInput 및 SelectionInput 위젯에서 includeVariables 속성을 사용하세요.
TextInput 및 SelectionInput 위젯에는 다음과 같은 Workspace Studio 전용 기능이 있습니다.
includeVariables: 사용자가 이전 단계에서 변수를 선택할 수 있도록 하는 불리언 속성입니다. 변수 선택기가 이후 단계에 표시되려면 시작 이벤트와 하나 이상의 해당 출력 변수가 모두 변수에 매핑되어야 합니다.type: 추천을 자동 완성하는 열거형 값입니다. 지원되는 값은 다음과 같습니다.USER: 사용자 연락처에 있는 사람에 대한 자동 완성 추천을 제공합니다.SPACE: 사용자가 회원으로 속한 Google Chat 스페이스에 대한 자동 완성 제안을 제공합니다.
includeVariables와 type이 모두 설정되면 입력 필드에서 두 환경을 결합합니다. 사용자는 드롭다운 메뉴에서 일치하는 type의 변수를 선택하고 자동 완성 추천을 확인할 수 있습니다.
-
그림 4: 사용자가 스페이스를 선택할 때 자동 완성 추천을 검토합니다. -

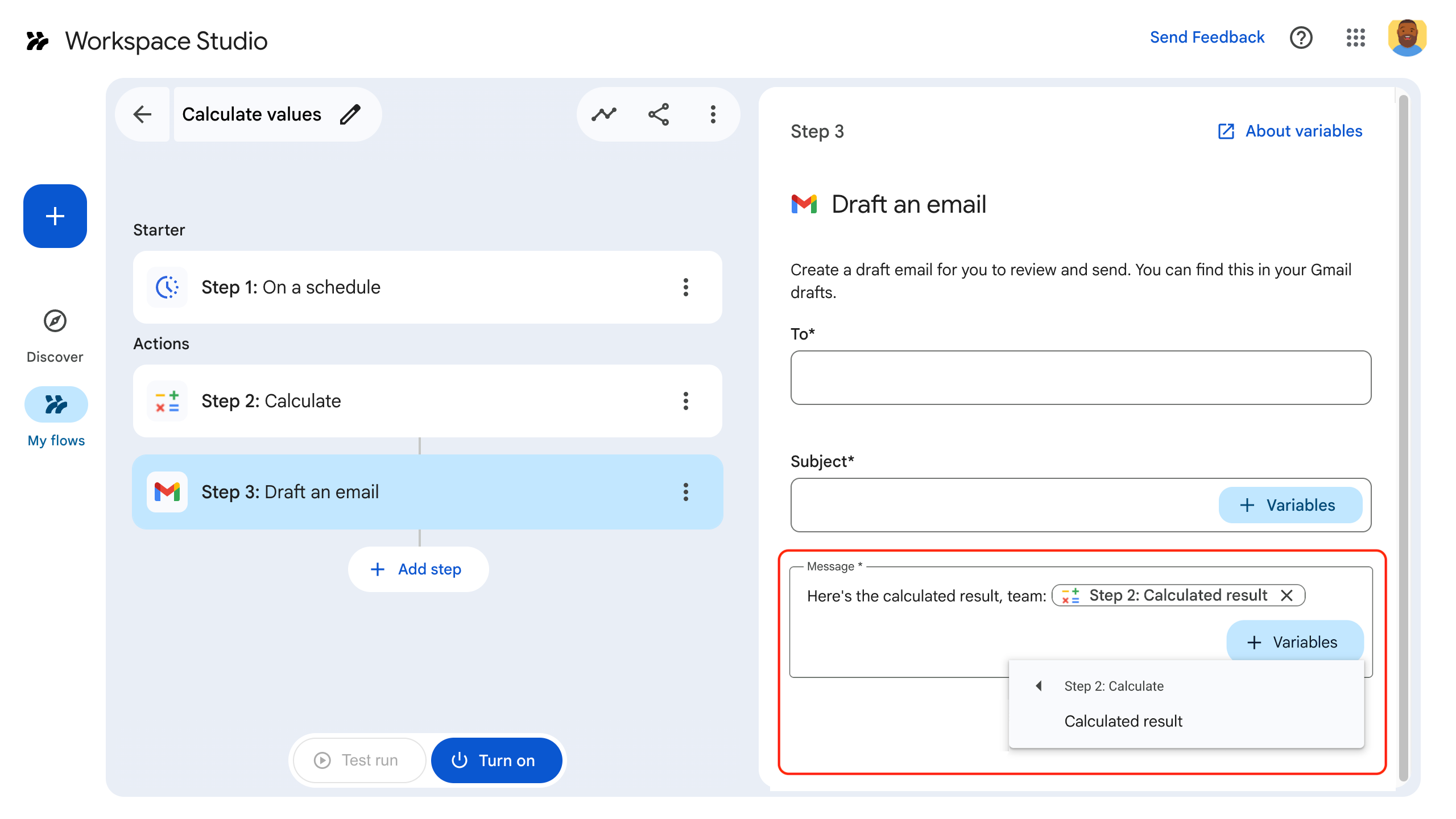

그림 5: 사용자가 ➕변수 드롭다운에서 이전 단계의 출력 변수를 선택합니다.
더보기 메뉴를 사용하여 출력 변수를 하나만 선택
사용자가 오버플로 메뉴를 사용하여 이전 단계에서 단일 출력 변수를 선택할 수 있도록 SelectionInput 위젯을 구성할 수 있습니다.
SelectionInputType를 OVERFLOW_MENU로 설정하면 위젯이 전용 변수 선택기로 작동합니다. 변수 값을 문자열로 변환하는 TextInput와 함께 includeVariables를 사용하는 것과 달리 OVERFLOW_MENU는 선택한 변수의 원래 데이터 유형을 유지합니다.
Apps Script
const selectionInput = CardService.newSelectionInput()
.setFieldName("variable_picker_1")
.setTitle("Variable Picker")
.setType(
CardService.SelectionInputType.OVERFLOW_MENU
);
사용자가 텍스트와 출력 변수를 결합하도록 허용하기
setInputMode()를 사용하여 사용자가 텍스트 및 출력 변수와 상호작용하는 방식을 제어하도록 TextInput 위젯을 구성할 수 있습니다.
RICH_TEXT: 사용자가 텍스트와 출력 변수를 결합할 수 있습니다. 결과는 연결된 단일 문자열입니다.PLAIN_TEXT: 입력을 제한합니다. 사용자는 텍스트를 입력하거나 단일 출력 변수를 선택할 수 있습니다. 변수를 선택하면 기존 텍스트가 대체됩니다. 이 모드를 사용하여 매니페스트에 정의된 특정 데이터 유형을 적용합니다.

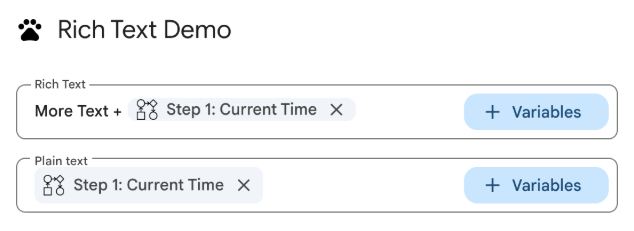

다음 이미지는 두 개의 TextInput 위젯을 보여줍니다. 첫 번째는 RICH_TEXT로 구성되며 텍스트와 출력 변수가 있습니다. 두 번째는 PLAIN_TEXT로 구성되어 있으며 출력 변수만 허용합니다.
-
그림 3: RICH_TEXT및PLAIN_TEXT로 구성된 텍스트 입력 위젯
모든 TextInput 위젯의 입력 모드를 명시적으로 설정하는 것이 좋습니다.
다음은 입력 모드가 다른 TextInput 위젯을 구성하는 매니페스트 파일입니다.
JSON
{
"timeZone": "America/Toronto",
"dependencies": {},
"exceptionLogging": "STACKDRIVER",
"runtimeVersion": "V8",
"addOns": {
"common": {
"name": "Text and output variable demo",
"logoUrl": "https://www.gstatic.com/images/icons/material/system/1x/pets_black_48dp.png",
"useLocaleFromApp": true
},
"flows": {
"workflowElements": [
{
"id": "richTextDemo",
"state": "ACTIVE",
"name": "Rich Text Demo",
"description": "Show the difference between rich text and plain text TextInput widgets",
"workflowAction": {
"inputs": [
{
"id": "value1",
"description": "First user input",
"cardinality": "SINGLE",
"dataType": {
"basicType": "STRING"
}
},
{
"id": "value2",
"description": "Second user input",
"cardinality": "SINGLE",
"dataType": {
"basicType": "STRING"
}
}
],
"onConfigFunction": "onConfiguration",
"onExecuteFunction": "onExecution"
}
}
]
}
}
}
다음은 다양한 입력 모드로 TextInput 위젯을 구성하는 코드입니다.
Apps Script
function onConfiguration() {
const input1 = CardService.newTextInput()
.setFieldName("value1")
.setId("value1")
.setTitle("Rich Text")
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
)
)
// Set input mode to RICH_TEXT to allow mixed text and variables.
.setInputMode(CardService.TextInputMode.RICH_TEXT);
const input2 = CardService.newTextInput()
.setFieldName("value2")
.setId("value2")
.setTitle("Plain text")
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
)
)
// Set input mode to PLAIN_TEXT to enforce single variable selection.
.setInputMode(CardService.TextInputMode.PLAIN_TEXT);
const section = CardService.newCardSection()
.addWidget(input1)
.addWidget(input2);
const card = CardService.newCardBuilder()
.addSection(section)
.build();
return card;
}
function onExecution(e) {
}
변수 선택기 버튼 맞춤설정
버튼 크기와 라벨을 설정하여 변수 선택기 버튼을 맞춤설정할 수 있습니다.
버튼 크기
버튼 크기를 설정하려면 다음 VariableButtonSize 열거형 중 하나와 함께 setVariableButtonSize()를 사용하세요.
UNSPECIFIED: 기본값입니다. 버튼은 측면 패널에서는 콤팩트하게 표시되고 다른 컨텍스트에서는 전체 크기로 표시됩니다.COMPACT: 버튼에 더하기 기호 (+)만 표시됩니다.FULL_SIZE: 버튼에 전체 텍스트 라벨이 표시됩니다.
버튼 라벨
버튼 텍스트를 설정하려면 setVariableButtonLabel()를 사용합니다.
예: 변수 선택기 맞춤설정
다음 예에서는 다양한 변수 선택기 버튼 크기와 맞춤 라벨을 사용하여 TextInput 위젯을 구성하는 방법을 보여줍니다.
-
그림 1: 웹의 변수 선택기 버튼 맞춤설정 -

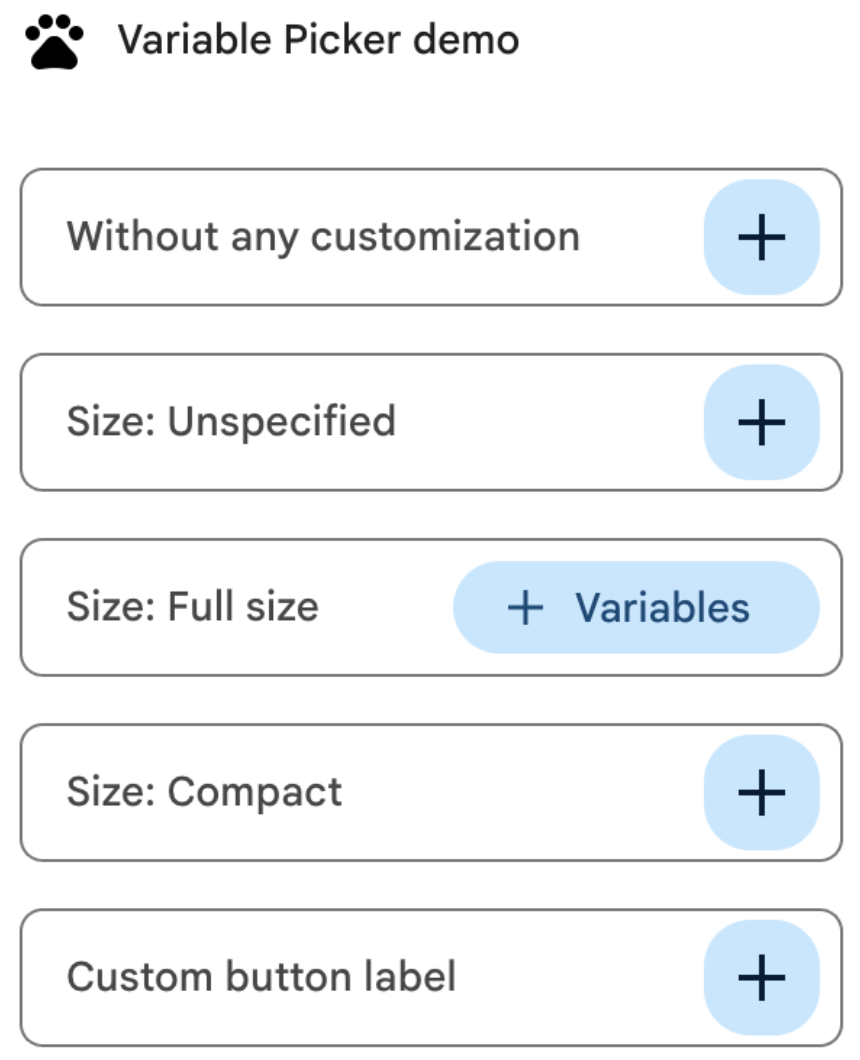

그림 2: 부가기능 측면 패널의 변수 선택기 버튼 맞춤설정
변수 선택기 버튼을 맞춤설정하기 위한 매니페스트 파일은 다음과 같습니다.
JSON
{
"timeZone": "America/Los_Angeles",
"dependencies": {},
"exceptionLogging": "STACKDRIVER",
"runtimeVersion": "V8",
"oauthScopes": [
"https://www.googleapis.com/auth/script.locale"
],
"addOns": {
"common": {
"name": "Variable button customization",
"logoUrl": "https://www.gstatic.com/images/icons/material/system/1x/pets_black_48dp.png",
"useLocaleFromApp": true
},
"flows": {
"workflowElements": [
{
"id": "variable_picker_customization",
"state": "ACTIVE",
"name": "Variable Picker demo",
"description": "List all possible variable picker customization options",
"workflowAction": {
"onConfigFunction": "onUpdateCardConfigFunction",
"onExecuteFunction": "onUpdateCardExecuteFunction"
}
}
]
}
}
}
다음은 변수 선택기 버튼을 맞춤설정하는 코드입니다.
Apps Script
function onUpdateCardConfigFunction(event) {
const textInput1 = CardService.newTextInput()
.setFieldName("value1")
.setTitle("Regular variable picker button")
.setHostAppDataSource(
CardService.newHostAppDataSource().setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setVariableButtonSize(CardService.VariableButtonSize.UNSPECIFIED)
)
);
const textInput2 = CardService.newTextInput()
.setFieldName("value2")
.setTitle("Size: Unspecified")
.setHostAppDataSource(
CardService.newHostAppDataSource().setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setVariableButtonSize(CardService.VariableButtonSize.UNSPECIFIED)
)
);
const textInput3 = CardService.newTextInput()
.setFieldName("value3")
.setTitle("Size: Full size")
.setHostAppDataSource(
CardService.newHostAppDataSource().setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setVariableButtonSize(CardService.VariableButtonSize.FULL_SIZE)
)
);
const textInput4 = CardService.newTextInput()
.setFieldName("value4")
.setTitle("Size: Compact")
.setHostAppDataSource(
CardService.newHostAppDataSource().setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setVariableButtonSize(CardService.VariableButtonSize.COMPACT)
)
);
const textInput5 = CardService.newTextInput()
.setFieldName("value5")
.setTitle("Custom button label")
.setHostAppDataSource(
CardService.newHostAppDataSource().setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setVariableButtonLabel("New button label!")
)
);
var cardSection = CardService.newCardSection()
.addWidget(textInput1)
.addWidget(textInput2)
.addWidget(textInput3)
.addWidget(textInput4)
.addWidget(textInput5)
.setId("section_1");
var card = CardService.newCardBuilder().addSection(cardSection).build();
return card;
}
function onUpdateCardExecuteFunction(event) {
}
Google Workspace 데이터 자동 완성 구성
사용자의 Google Workspace 환경 내 데이터에서 자동 완성 추천을 채울 수도 있습니다.
- Google Workspace 사용자: 동일한 Google Workspace 조직 내의 사용자를 채웁니다.
- Google Chat 스페이스: 사용자가 회원인 Google Chat 스페이스를 채웁니다.
이를 구성하려면 SelectionInput 위젯에서 PlatformDataSource를 설정하여 WorkflowDataSourceType을 USER 또는 SPACE로 지정합니다.
Apps Script
// User Autocomplete
var multiSelect2 =
CardService.newSelectionInput()
.setFieldName("value2")
.setTitle("User Autocomplete")
.setType(CardService.SelectionInputType.MULTI_SELECT)
.setMultiSelectMaxSelectedItems(3)
.setPlatformDataSource(
CardService.newPlatformDataSource()
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setType(CardService.WorkflowDataSourceType.USER)
))
);
// Chat Space Autocomplete
var multiSelect3 =
CardService.newSelectionInput()
.setFieldName("value3")
.setTitle("Chat Space Autocomplete")
.setType(CardService.SelectionInputType.MULTI_SELECT)
.setMultiSelectMaxSelectedItems(3)
.setPlatformDataSource(
CardService.newPlatformDataSource()
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setType(CardService.WorkflowDataSourceType.SPACE)
))
);
예: 자동 완성 유형 결합
다음 예에서는 서버 측, 사용자, 스페이스 자동 완성 기능을 보여주는 세 개의 SelectionInput 위젯이 있는 카드를 만드는 onConfig 함수를 보여줍니다.
JSON
{
"timeZone": "America/Los_Angeles",
"exceptionLogging": "STACKDRIVER",
"runtimeVersion": "V8",
"addOns": {
"common": {
"name": "Autocomplete Demo",
"logoUrl": "https://www.gstatic.com/images/icons/material/system/1x/pets_black_48dp.png",
"useLocaleFromApp": true
},
"flows": {
"workflowElements": [
{
"id": "autocomplete_demo",
"state": "ACTIVE",
"name": "Autocomplete Demo",
"description": "Provide autocompletion in input fields",
"workflowAction": {
"inputs": [
{
"id": "value1",
"description": "A multi-select field with autocompletion",
"cardinality": "SINGLE",
"dataType": {
"basicType": "STRING"
}
}
],
"onConfigFunction": "onConfigAutocomplete",
"onExecuteFunction": "onExecuteAutocomplete"
}
}
]
}
}
}
Apps Script
function onConfigAutocompleteTest(event) {
// Handle autocomplete request
if (event.workflow && event.workflow.elementUiAutocomplete) {
return handleAutocompleteRequest(event);
}
// Server-side autocomplete widget
var multiSelect1 =
CardService.newSelectionInput()
.setFieldName("value1")
.setTitle("Server Autocomplete")
.setType(CardService.SelectionInputType.MULTI_SELECT)
.setMultiSelectMaxSelectedItems(3)
.addDataSourceConfig(
CardService.newDataSourceConfig()
.setRemoteDataSource(
CardService.newAction().setFunctionName('getAutocompleteResults')
)
)
.addDataSourceConfig(
CardService.newDataSourceConfig()
.setPlatformDataSource(
CardService.newPlatformDataSource()
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
))
)
);
// User autocomplete widget
var multiSelect2 =
CardService.newSelectionInput()
.setFieldName("value2")
.setTitle("User Autocomplete")
.setType(CardService.SelectionInputType.MULTI_SELECT)
.setMultiSelectMaxSelectedItems(3)
.setPlatformDataSource(
CardService.newPlatformDataSource()
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setType(CardService.WorkflowDataSourceType.USER)
))
);
// Space autocomplete widget
var multiSelect3 =
CardService.newSelectionInput()
.setFieldName("value3")
.setTitle("Chat Space Autocomplete")
.setType(CardService.SelectionInputType.MULTI_SELECT)
.setMultiSelectMaxSelectedItems(3)
.setPlatformDataSource(
CardService.newPlatformDataSource()
.setHostAppDataSource(
CardService.newHostAppDataSource()
.setWorkflowDataSource(
CardService.newWorkflowDataSource()
.setIncludeVariables(true)
.setType(CardService.WorkflowDataSourceType.SPACE)
))
);
var sectionBuilder =
CardService.newCardSection()
.addWidget(multiSelect1)
.addWidget(multiSelect2)
.addWidget(multiSelect3);
var card =
CardService.newCardBuilder()
.addSection(sectionBuilder)
.build();
return card;
}
function handleAutocompleteRequest(event) {
var invokedFunction = event.workflow.elementUiAutocomplete.invokedFunction;
var query = event.workflow.elementUiAutocomplete.query;
if (invokedFunction != "getAutocompleteResults" || query == undefined || query == "") {
return {};
}
// Query your data source to get results
let autocompleteResponse = AddOnsResponseService.newUpdateWidget()
.addSuggestion(
query + " option 1",
query + "_option1",
false,
"https://developers.google.com/workspace/add-ons/images/person-icon.png",
"option 1 bottom text"
)
.addSuggestion(
query + " option 2",
query + "_option2",
false,
"https://developers.google.com/workspace/add-ons/images/person-icon.png",
"option 2 bottom text"
).addSuggestion(
query + " option 3",
query + "_option3",
false,
"https://developers.google.com/workspace/add-ons/images/person-icon.png",
"option 3 bottom text"
);
const modifyAction = AddOnsResponseService.newAction()
.addModifyCard(
AddOnsResponseService.newModifyCard()
.setUpdateWidget(autocompleteResponse)
);
return AddOnsResponseService.newRenderActionBuilder()
.setAction(modifyAction)
.build();
}
입력 변수 유효성 검사
사용자가 적절한 값을 입력했는지 확인하는 것이 좋습니다. 입력 변수 검증을 참고하세요.
