Sandbox for playing with Sparse JAX and the sparse compiler on CPU.

See colab. Currently, it is only available to googlers.

---

In particular, this runs the colab [jaxpruner] Sparse Model ViT, written by Utku Evci.

Setup

Toggle code

import functools
import jax

# This is required to get Sparse JAX (experimental for now).
from jax.experimental import sparse

import jax.numpy as jnp
import os

from colabtools import adhoc_import



CITC_CLIENT = ""

CITC_USER = ""

CL_NUMBER = "HEAD"

# Use XLA-NEXT for fast sparse ops
# --xla_cpu_use_xla_runtime enables XLA-NEXT which has fast sparse ops
# --xla_cpu_enable_mlir_tiling_and_fusion=false needed to workaround a few bugs.
#   Eventually, it should be removed
os.environ['XLA_FLAGS'] = '--xla_cpu_use_xla_runtime --xla_cpu_enable_mlir_tiling_and_fusion=false'

Importing modules from P4 HEAD.

JAXPRUNER Imports

Toggle code

import tensorflow as tf

import flax
import time

import matplotlib.pyplot as plt
import pandas as pd

JAXPRUNER: TF version =  2.15.0

JAXPRUNER Helper Methods

Toggle code

PRUNE_THRESHOLD = 0.06

def initialize_model(model, placeholder_input, rngs):
  """Initialization function to be jitted."""
  init_model_state, init_params = model.flax_model.init(
      rngs, placeholder_input, train=False, debug=False
  ).pop('params')
  return init_params, init_model_state

def filtered_bcoo_simple(key, param):
  if key[-1] == 'kernel' and 4 > param.ndim > 1:
    # Aart made this pruning up, this has no ML semantics AFAIK.
    # param = jnp.where(abs(param) < PRUNE_THRESHOLD, jnp.zeros(param.shape), param)
    return sparse.BCOO.fromdense(param)
  else:
    return param

def total(val):
  return functools.reduce((lambda x, y: x * y), val)

JAXPRUNER Model Initialization

Toggle code

config = imagenet_vit_config.get_config()

dataset_meta_data = {
        'input_dtype': jax.numpy.float32,
        'input_shape': (-1, 224, 224, 3),
        'num_classes': 1000,
        'num_eval_examples': 50000,
        'num_train_examples': 1281167,
        'target_is_onehot': False,
}

model_cls = models.get_model_cls(config.model_name)
model = model_cls(config, dataset_meta_data)
rng, init_rng = jax.random.split(jax.random.PRNGKey(8))

# Initialize model.
rng, init_rng = jax.random.split(rng)
placeholder_input = jnp.ones((1, 224, 224, 3))

init_params, init_model_state = initialize_model(
    model, placeholder_input, {'params': init_rng}
)
initial_train_state = train_utils.TrainState(
    global_step=0, params=init_params, model_state=init_model_state, rng=rng
)

# Uses hardcoded cns for testing.
init_checkpoint_path = (
    '/cns/vz-d/home/brain-sparsity/evcu/sparsevit-checkpoints/sparse_b16_80/'
)

restored_train_state = pretrain_utils.restore_pretrained_checkpoint(
        init_checkpoint_path, initial_train_state, assert_exist=True
)

res_dict = {}
for k, p in flax.traverse_util.flatten_dict(restored_train_state.params).items():
  res_dict[k] = filtered_bcoo_simple(k, p)

sparse_params = flax.traverse_util.unflatten_dict(res_dict)

i = 0
for k, v in flax.traverse_util.flatten_dict(sparse_params).items():
  if isinstance(v, sparse.BCOO):
    density = v.nse / total(v.shape)
    print('JAXPRUNER:  BCOO @', i, k[-2:], v.shape, v.nse, density)
  i = i + 1

# Get the variables.
variables = {'params': restored_train_state.params, **init_model_state}
sp_variables = {'params': sparse_params, **init_model_state}

print('JAXPRUNER: ready to run from', init_checkpoint_path)

JAXPRUNER Dense Run

Toggle code

start_time = time.time()
lowered = jax.jit(
        functools.partial(model.flax_model.apply, train=False)
).lower(variables, jnp.ones((1, 224, 224, 3)))
compiled = lowered.compile()
dense_c_time = time.time() - start_time
print('JAXPRUNER: dense compiled %s seconds ---' % (dense_c_time))

start_time = time.time()
res_dense = compiled(variables, jnp.ones((1, 224, 224, 3)))
dense_r_time = time.time() - start_time
print('JAXPRUNER: dense run %s seconds ---' % (dense_r_time))

JAXPRUNER: dense compiled 11.863374471664429 seconds ---
JAXPRUNER: dense run 58.369417905807495 seconds ---

JAXPRUNER Sparse Run (using pure JAXPR)

Toggle code

start_time = time.time()
sparse_lower = (
        jax.jit(
            sparse.sparsify(
                functools.partial(model.flax_model.apply, train=False)
            )
        )
        .lower(sp_variables, jnp.ones((1, 224, 224, 3)))
)
sparse_apply = sparse_lower.compile()
sparse_jaxpr_c_time = time.time() - start_time
print('JAXPRUNER: sparse JAXPR compiled %s seconds ---' % (sparse_jaxpr_c_time))

start_time = time.time()
res_jaxpr = sparse_apply(sp_variables, jnp.ones((1, 224, 224, 3)))
sparse_jaxpr_r_time = time.time() - start_time
print('JAXPRUNER: sparse JAXPR run %s seconds ---' % (sparse_jaxpr_r_time))

JAXPRUNER: sparse JAXPR compiled 43.14039134979248 seconds ---
JAXPRUNER: sparse JAXPR run 12.49958348274231 seconds ---

JAXPRUNER Sparse Run (using XLA-Next Sparse Compiler)

Toggle code

start_time = time.time()
sparse_lower = (
          sparse_jit(functools.partial(model.flax_model.apply, train=False)
        )
        .lower(sp_variables, jnp.ones((1, 224, 224, 3)))
)
sparse_apply = sparse_lower.compile()
sparse_xla_next_c_time = time.time() - start_time
print('JAXPRUNER: sparse XLA-NEXT compiled %s seconds ---' % (sparse_xla_next_c_time))

start_time = time.time()
res_xla_next = sparse_apply(sp_variables, jnp.ones((1, 224, 224, 3)))
sparse_xla_next_r_time = time.time() - start_time
print('JAXPRUNER: sparse XLA-NEXT run %s seconds ---' % (sparse_xla_next_r_time))

JAXPRUNER: sparse XLA-NEXT compiled 15.409374713897705 seconds ---
JAXPRUNER: sparse XLA-NEXT run 9.1929030418396 seconds ---

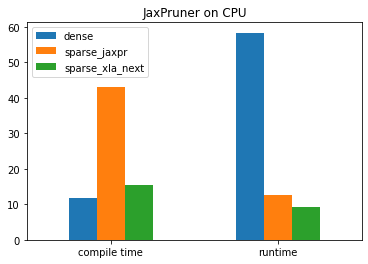

JAXPRUNER Results

Toggle code

axis  = ['dense', 'sparse_jaxpr', 'sparse_xla_next']
data1 = [dense_c_time, sparse_jaxpr_c_time, sparse_xla_next_c_time]
data2 = [dense_r_time, sparse_jaxpr_r_time, sparse_xla_next_r_time]
df = pd.DataFrame([data1, data2], index=['compile time','runtime'], columns=axis)

df.plot.bar(rot=0).set_title("JaxPruner on CPU")

Text(0.5, 1.0, 'JaxPruner on CPU')
