自訂導覽版面配置

這項產品或功能仍在實驗階段 (正式發布前)。 我們對於正式發布前的產品和功能僅提供有限度的支援。此外，這類產品和功能的變更可能與其他正式發布前版本不相容。正式發布前產品/功能受到《Google 地圖平台服務專屬條款》規範。詳情請參閱推出階段說明。

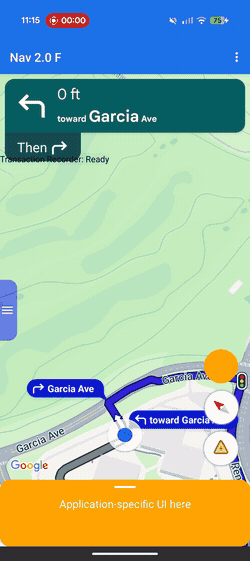

使用版面配置自訂功能，控制 Google 提供的檢視畫面和自訂業務檢視畫面的檢視區塊階層和畫面位置。

請勿將自訂檢視畫面新增至預先定義的標頭或頁尾版位，而是實作版面配置委派，管理整個畫面的版面配置。在導航狀態轉換期間，版面配置委派會收到 Google 提供的元件，例如轉彎資訊卡、預計到達時間資訊卡和按鈕。使用標準 Android 版面配置系統 (例如 ConstraintLayout、CoordinatorLayout 或 LinearLayout)，將這些元素與自訂內容並排。

使用這個架構，即可在螢幕上精確定位自訂業務資訊 (例如訂單狀態或取貨操作說明)，同時避免檢視畫面重疊。

版面配置自訂功能的運作方式

版面配置自訂功能採用委派設計模式。SDK 不會在畫面上自動繪製或定位 UI 元件，而是直接將元件傳遞至您編寫的自訂類別：版面配置委派。

如要自訂版面配置，請建立用於擴充抽象 NavigationLayoutDelegate 類別的類別，並將例項指派給 NavigationView 或 SupportNavigationFragment。每當導航狀態轉換時 (例如從基本地圖切換至即時路線指引)，SDK 就會執行委派物件的回呼方法，並提供該特定狀態可用的 UI 元件。

為提供流暢、整合的使用者體驗，這個架構明確區分應用程式和 SDK 的責任。使用版面配置委派來自訂下列項目：

• 建構檢視區塊階層：選擇要為每個 UI 狀態新增至畫面的 Google 元件和自訂業務檢視區塊。
• 定位每個元素：設定精確的螢幕錨點、邊界和版面配置位置。請避免對 Google 元件套用自訂寬度或高度限制，因為 Google 元件會自行計算內部尺寸。
• 設定基本地圖的框架：使用可視區域元件的座標，定義地圖攝影機的可視邊界。
• 分層顯示畫面：決定自訂檢視畫面要浮動顯示在 Google 內建控制項的上方、下方或旁邊。

同時，您無法使用版面配置委派來自訂下列 Google 元件：

• 元件尺寸：Google 提供的元件大小和內部尺寸，由 SDK 自動計算。
• 觸發條件：根據即時路線資料，顯示動態快訊或提示。

導入原則

編寫版面配置委派時，請遵守下列規則，避免版面配置錯誤或執行階段當機：

• 預設為空白畫面：只有在委派明確將 Google 提供的元件加入檢視區塊階層並定位時，這些元件才會顯示。
• 不支援舊版 API：系統不支援控制舊版版位版面配置模型的屬性和方法，且在自訂委派代表啟用時，可能不會正常運作。
• 請勿修改內部檢視區塊結構：請勿使用 findViewById() 等方法，周遊或修改 Google 提供元件 (例如轉彎資訊卡或預計到達時間資訊卡) 的檢視區塊階層。由於這些內部檢視區塊階層是基礎實作細節，因此可能會隨著 SDK 版本而變更。如果修改這些 ID，可能會導致版面配置在日後的 SDK 更新中中斷。

舊版 API 相容性

使用自訂版面配置委派代表時，為確保版面配置行為可靠，請避免使用下列以版位為基礎的舊版 API，這些 API 預計會淘汰。如要遷移現有應用程式，請將這些 API 的使用方式替換為自訂版面配置委派中的程式碼：

顯示舊版版位 API

舊版 API	版面配置委派代表替代
setCustomControl(View, CustomControlPosition)	直接將檢視畫面新增至 ConstraintLayout 或其他檢視畫面群組。
removeCustomControl(View)	直接從檢視區塊階層中移除檢視區塊。
setEtaCardEnabled(boolean)	在 onEnterActiveGuidance 中讀取 etaCard 檢視表。
setHeaderEnabled(boolean)	在 onEnterActiveGuidance 中讀取 turnCard 檢視表。
setReportIncidentButtonEnabled(boolean)	在 getActiveGuidanceButtons() 中找出 REPORTING 按鈕。
setTripProgressBarEnabled(boolean)	在 onEnterActiveGuidance 中讀取 tripProgressBar 檢視表。
addOnNavigationUiChangedListener(...)	請依賴 NavigationLayoutDelegate 狀態轉換回呼。
removeOnNavigationUiChangedListener(...)	直接使用委派代表管理版面配置狀態轉換。
addPromptVisibilityChangedListener(...)	依賴 NavigationLayoutDelegate 提示回呼 (例如 onShowPrompt())。
removePromptVisibilityChangedListener(...)	直接使用委派代表管理提示顯示邏輯。
setCompassEnabled(boolean)	在 getNavigationReadyButtons() 或 getActiveGuidanceButtons() 中找出指南針。

Essentials 檢查清單

請按照下列基本步驟和規定，成功導入版面配置委派：

• 在建立 UI 前初始化委派：在 SDK 初始化導覽 UI 前，呼叫 setLayoutDelegate()。請參閱下列程式碼導入範例，確認應用程式結構的確切設定時間。在建立 UI 之後初始化委派代表會觸發 ApiIllegalStateException。

  Kotlin

  // For SupportNavigationFragment
  override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      val navFragment = supportFragmentManager.findFragmentById(R.id.nav_fragment) as SupportNavigationFragment
      navFragment.setLayoutDelegate(MyLayoutDelegate())
  }

  // For a programmatic NavigationView
  val navigationView = NavigationView(context)
  navigationView.setLayoutDelegate(MyLayoutDelegate())
  navigationView.onCreate(savedInstanceState)


  Java

  // For SupportNavigationFragment
  @Override
  protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      SupportNavigationFragment navFragment = (SupportNavigationFragment) getSupportFragmentManager().findFragmentById(R.id.nav_fragment);
      navFragment.setLayoutDelegate(new MyLayoutDelegate());
  }

  // For a programmatic NavigationView
  NavigationView navigationView = new NavigationView(context);
  navigationView.setLayoutDelegate(new MyLayoutDelegate());
  navigationView.onCreate(savedInstanceState);


• 自行建構版面配置容器：建立自訂檢視區塊群組 (例如 ConstraintLayout)，用於存放自訂 UI 元素和 Google 提供的檢視區塊。

• 附加必要檢視畫面：您必須在所有導航狀態下，將 Google 標誌 (getGoogleLogo()) 和可視區域 (getViewport()) 新增至版面配置容器。如果未同時加入這兩個檢視畫面，系統會觸發執行階段 ApiIllegalStateException，導致應用程式停止運作。

• 遵循固定尺寸：SDK 會決定多個 Google 提供的元件尺寸。請勿對下列元素套用自訂寬度或高度限制：

  • 轉牌
  • 預計到達時間資訊卡
  • 傳入的提示
  • Google 標誌
  • 速度小工具

• 將版面配置附加至檢視區塊：在 onEnterNavigationReady() 和 onEnterActiveGuidance() 回呼中呼叫 navigationView.setNavigationLayout()，將容器附加至地圖檢視區塊階層。

• 在狀態結束時清除：呼叫 navigationView.removeNavigationLayout()，並移除 onLeave 回呼中的自訂檢視畫面，避免記憶體流失和重疊的使用者介面狀態。

• 避免使用舊版版面配置 API：自訂委派代表處於啟用狀態時，請勿呼叫已淘汰的版位 API，例如 setCustomControl() 或 setHeaderEnabled()。附加自訂委派代表時，SDK 可能會忽略這些舊版通話。

UI 狀態和 Google 元件

導航狀態轉換時，SDK 會將唯讀的 UiState 物件傳遞至委派回呼。這個物件會將目前的版面配置設定旗標，與轉譯畫面所需的 Google 元件 (例如 View 執行個體) 綁定。

版面配置委派代表會管理四種作業狀態的檢視區塊階層。下列狀態圖說明 SDK 如何在導航狀態之間轉換，以及在委派物件上執行的回呼方法：

提供給委派代表的特定 Google 元件，取決於導航生命週期的目前階段。

必要元件 (所有導覽狀態)

無論目前的導航階段為何，您都必須在檢視區塊階層中加入、定位及保留下列 Google 元件：

• Google 標誌 (getGoogleLogo())：這個元件會顯示必要的 Google 地圖標誌。如果啟用「重新置中」按鈕，當駕駛人捲動地圖，使車輛移出畫面時，標誌會自動轉換為這個按鈕。因此，標誌的位置會決定「重新置中」按鈕顯示的位置。建議將標誌放在版面配置的底部開頭 (左下角)，以符合標準地圖 UI 預期。

• 可視區域 (getViewport())：定義攝影機取景邊界的隱形 View。SDK 會根據可視區域的位置，精確決定車輛 V 形符號的中心點，並繪製有效路線。調整可視區域的位置，使其覆蓋螢幕上未遮蔽的開放區域，安全避開自訂底部功能表等不透明疊加層。

個導覽就緒元件

在導航就緒狀態下，UI 會保持精簡，讓使用者專注於基本地圖。NavigationReadyUiState 物件可讓您存取下列項目：

• getNavigationReadyButtons()：為基本地圖設定的懸浮動作檢視畫面清單 (通常只有「指南針」按鈕)。由於 Google 可能會在日後的 SDK 版本中新增或重新排序按鈕，因此請避免依賴固定的清單索引。請改為疊代清單，透過比較 getType() 和 ButtonKnownType.COMPASS 讀取每個按鈕的類型，並呼叫 getView() 擷取實體檢視畫面。請注意，這份清單中的按鈕與主動導引期間可用的按鈕不同。

個有效的指引元件

即時路線指引開始後，SDK 會解鎖整套導航控制項。ActiveGuidanceUiState 物件可讓您存取下列 Google 元件：

• getTurnCard()：主要標題橫幅，顯示即將進行的行車路線、距離測量和車道指引。請將其置於版面配置頂端，建立熟悉的導覽階層，並將自訂檢視畫面錨定在周圍。

• getEtaCard()：頁尾橫幅，顯示預計到達時間、剩餘行程時間，以及到目的地的剩餘距離。您可以將其放置在螢幕底部邊緣，或將其座標與自訂工作管理表整合。

• getTripProgressBar()：垂直進度列，顯示駕駛人沿著目前路線行駛的距離。與舊版版面配置不同，您不必將其固定在地圖邊緣，而是可以自由錨定在任何位置，例如自訂容器的側邊。

• getSpeedWidget()：浮動控制項，用於顯示車速表和速限。視 API 設定和資料可用性而定，這個檢視畫面會在執行階段動態調整大小，在四種視覺狀態之間切換 (不顯示任何內容、僅顯示目前速度、僅顯示速限，或同時顯示兩者)。由於小工具可能會在這些大小之間切換，且不會事先通知，因此請一律使用限制條件錨定周圍的檢視畫面，讓版面配置自動調整，避免空間重疊。

• getActiveGuidanceButtons()：主動導航狀態的懸浮動作檢視畫面展開清單 (通常包含「指南針」和「事故通報」按鈕)。就像在導航就緒狀態中一樣，您可以依 ButtonKnownType (COMPASS 或 REPORTING) 篩選清單，並使用 getView() 擷取檢視畫面，藉此找出並擷取個別按鈕檢視畫面。接著，您可以單獨放置這些元素，或使用 AutoHidingLinearLayout 等版面配置安全地堆疊陣列，避免空間衝突。

提示： 攝影機取景的最佳做法。轉彎資訊卡的高度固定為 150 dp，可透過 StyleValues.headerNominalHeightDp() 存取。為保持相機取景穩定，請勿將 getViewport() 的頂端直接限制在 getTurnCard() 的底端。請改為將可視區域限制在父項檢視畫面的頂端，並將頂端邊界設為 StyleValues.headerNominalHeightDp()，如實作範例所示。

個動態提示詞元件

在導航期間，系統會獨立觸發提示，例如事故警示或測速照相警告。

提示準備好顯示時，SDK 會呼叫委派物件的 onShowPrompt() 回呼，並傳遞 newPrompt 檢視畫面。委派代表負責將這則提示順利放置在版面配置上方 (通常錨定在地圖容器的底部邊緣)。

由於傳入的提示會覆蓋畫面下半部，因此您必須更新版面配置，以免提示與可視區域、Google 標誌或任何靠底對齊的按鈕重疊。

處理螢幕大小和寬螢幕模式

為處理地圖尺寸和螢幕方向的變更，版面配置委派會使用下列功能：

• 檢視畫面大小調整：每當地圖的實際大小變更時，調整版面配置。

• 寬模式：地圖夠寬時，切換為寬格式版面配置。

回應檢視畫面大小調整

每當地圖容器的實體尺寸變更時，SDK 都會執行 onSizeChanged() 回呼。分割畫面版面配置、版面配置滑桿和裝置旋轉通常會觸發 onSizeChanged() 回呼。請使用這個回呼，對自訂 UI 進行一般回應式調整。實作 onSizeChanged()，根據新的螢幕顯示比例重新定位自訂元素、套用自訂寬度或高度中斷點，以及偵測調整大小事件何時切換寬螢幕模式，以便安全地切換版面配置變化版本。

瞭解寬版顯示模式

如果地圖容器寬度足以並排顯示 UI 元件，就會啟用寬版模式。

從狀態物件讀取 isWideMode() 布林值，重新定位自訂 UI 元素，並確保地圖中心不會遮擋駕駛視線。由於 Google 提供的元件 (例如轉彎資訊卡和預計到達時間資訊卡) 會在寬螢幕模式下自動縮小及調整形狀，因此讀取這個布林值可確保版面配置在 Google 元件更新的同時進行調整。

請參考以下範例，瞭解如何在標準和寬螢幕模式下，安排版面配置元件的位置：

• 標準直向模式：將轉彎資訊卡置於畫面頂端，預計到達時間資訊卡置於底部。

• 寬螢幕模式：將轉彎資訊卡移至螢幕的起始側，並將預計到達時間資訊卡移至結束側。

在狀態轉換期間檢查寬版顯示模式

如果版面配置支援寬模式變化版本，請在每個狀態轉換回呼中評估 isWideMode() 布林值，而不是只依賴 onSizeChanged()。

在 onEnterNavigationReady() 和 onEnterActiveGuidance() 等回呼期間檢查狀態物件，以便處理橫向模式下的初始應用程式啟動。這種做法可保護版面配置不受 Android 系統生命週期事件 (例如預設 Activity 重新建立) 的影響，這類事件會完全略過大小調整回呼，確保在新的導覽狀態開始時，啟用正確的標準或寬版面配置。

符合 Google 樣式

為協助自訂 UI 配合 Google 的視覺節奏，SDK 提供 StyleValues 公用程式類別。您可以讀取這些值 (單位為密度獨立像素 (dp))，讓檢視畫面與 Google 元件完美對齊。

舉例來說，如要在轉彎資訊卡對面的螢幕頂角放置自訂按鈕，可以呼叫 StyleValues.headerTopPaddingDp()，並將傳回的值指派為按鈕的上邊界。這可確保自訂按鈕與轉彎資訊卡的頂端邊緣對齊，維持畫面左右對稱。

可用的樣式邊框間距和測量單位包括：

• StyleValues.headerNominalHeightDp()
• StyleValues.headerTopPaddingDp()
• StyleValues.headerFooterSidePaddingDp()
• StyleValues.mapControlSidePaddingDp()
• StyleValues.buttonMapControlSidePaddingDp()

範例：導入以限制為基礎的版面配置

以下範例示範基本的版面配置委派，使用程式輔助 ConstraintLayout 和 ConstraintSet 定義管理狀態轉換。

雖然這個範例是在程式碼中建構檢視畫面限制，但版面配置委派代表也可以加載標準 Android XML 版面配置。

Kotlin

/*
 * Copyright 2026 Google LLC
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.example.navigationapidemo.layoutdelegate

import android.content.Context
import android.util.TypedValue
import android.view.View
import android.view.ViewGroup
import androidx.constraintlayout.widget.ConstraintLayout
import androidx.constraintlayout.widget.ConstraintSet
import com.google.android.libraries.navigation.layoutcustomization.ActiveGuidanceUiState
import com.google.android.libraries.navigation.layoutcustomization.AutoHidingVerticalLayout
import com.google.android.libraries.navigation.layoutcustomization.NavigationLayoutDelegate
import com.google.android.libraries.navigation.layoutcustomization.NavigationReadyUiState
import com.google.android.libraries.navigation.layoutcustomization.NavigationUiButton.ButtonKnownType.COMPASS
import com.google.android.libraries.navigation.layoutcustomization.NavigationUiParent
import com.google.android.libraries.navigation.layoutcustomization.StyleValues.headerNominalHeightDp

/** Kotlin equivalent of StandardUiElementsLayoutDelegate. */
class StandardUiElementsLayoutDelegateKt : NavigationLayoutDelegate() {

  private val layoutId = View.generateViewId()
  private val buttonsContainerId = View.generateViewId()

  private var layout: ConstraintLayout? = null
  private var buttonsContainer: AutoHidingVerticalLayout? = null

  private var navigationReadyConstraintSet: ConstraintSet? = null
  private var activeGuidanceConstraintSet: ConstraintSet? = null
  private var activeGuidanceWithPromptConstraintSet: ConstraintSet? = null

  private var activeGuidanceUiState: ActiveGuidanceUiState? = null

  override fun onEnterNavigationReady(
    navigationUiParent: NavigationUiParent,
    newState: NavigationReadyUiState,
  ) {
    val context = navigationUiParent.viewContext

    var currentLayout = layout
    if (currentLayout == null) {
      currentLayout =
        ConstraintLayout(context).apply {
          layoutParams =
            ViewGroup.LayoutParams(
              ViewGroup.LayoutParams.MATCH_PARENT,
              ViewGroup.LayoutParams.MATCH_PARENT,
            )
          id = layoutId
        }
      layout = currentLayout
    }

    removeFromParentView(newState.viewport)
    currentLayout.addView(
      newState.viewport,
      ViewGroup.LayoutParams(
        ViewGroup.LayoutParams.MATCH_PARENT,
        ViewGroup.LayoutParams.MATCH_PARENT,
      ),
    )

    removeFromParentView(newState.googleLogo)
    currentLayout.addView(
      newState.googleLogo,
      ViewGroup.LayoutParams(
        ViewGroup.LayoutParams.MATCH_PARENT,
        ViewGroup.LayoutParams.WRAP_CONTENT,
      ),
    )

    var currentButtonsContainer = buttonsContainer
    if (currentButtonsContainer == null) {
      currentButtonsContainer = AutoHidingVerticalLayout(context).apply { id = buttonsContainerId }
      buttonsContainer = currentButtonsContainer
    }

    removeFromParentView(currentButtonsContainer)
    currentLayout.addView(
      currentButtonsContainer,
      ViewGroup.LayoutParams(
        ViewGroup.LayoutParams.WRAP_CONTENT,
        ConstraintLayout.LayoutParams.MATCH_CONSTRAINT,
      ),
    )

    for (button in newState.navigationReadyButtons) {
      removeFromParentView(button.view)
      currentButtonsContainer.addView(button.view)
    }

    if (navigationReadyConstraintSet == null) {
      navigationReadyConstraintSet = buildNavigationReadyConstraintSet(newState)
    }
    navigationReadyConstraintSet?.applyTo(currentLayout)

    navigationUiParent.removeNavigationLayout(currentLayout)
    navigationUiParent.setNavigationLayout(currentLayout)
  }

  private fun buildNavigationReadyConstraintSet(uiState: NavigationReadyUiState): ConstraintSet {
    return ConstraintSet().apply {
      clone(layout)

      connect(
        uiState.viewport.id,
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START,
      )
      connect(uiState.viewport.id, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
      connect(uiState.viewport.id, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END)
      connect(
        uiState.viewport.id,
        ConstraintSet.BOTTOM,
        ConstraintSet.PARENT_ID,
        ConstraintSet.BOTTOM,
      )

      connect(
        uiState.googleLogo.id,
        ConstraintSet.BOTTOM,
        ConstraintSet.PARENT_ID,
        ConstraintSet.BOTTOM,
      )
      connect(
        uiState.googleLogo.id,
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START,
      )

      constrainButtonsToBottomEnd()
    }
  }

  override fun onLeaveNavigationReady(
    navigationUiParent: NavigationUiParent,
    oldState: NavigationReadyUiState,
  ) {
    buttonsContainer?.removeAllViews()
    layout?.removeAllViews()
    layout?.let { navigationUiParent.removeNavigationLayout(it) }
  }

  override fun onEnterActiveGuidance(
    navigationUiParent: NavigationUiParent,
    oldState: NavigationReadyUiState,
    newState: ActiveGuidanceUiState,
  ) {
    activeGuidanceUiState = newState
    val context = navigationUiParent.viewContext
    val currentLayout = checkNotNull(layout) { "layout must be initialized" }
    val currentButtonsContainer =
      checkNotNull(buttonsContainer) { "buttonsContainer must be initialized" }

    removeFromParentView(newState.turnCard)
    currentLayout.addView(
      newState.turnCard,
      ViewGroup.LayoutParams(
        ViewGroup.LayoutParams.WRAP_CONTENT,
        ViewGroup.LayoutParams.WRAP_CONTENT,
      ),
    )

    removeFromParentView(newState.etaCard)
    currentLayout.addView(
      newState.etaCard,
      ViewGroup.LayoutParams(
        ViewGroup.LayoutParams.WRAP_CONTENT,
        ViewGroup.LayoutParams.WRAP_CONTENT,
      ),
    )

    for (button in oldState.navigationReadyButtons) {
      removeFromParentView(button.view)
    }

    for (button in newState.activeGuidanceButtons) {
      val buttonLayoutParams =
        AutoHidingVerticalLayout.LayoutParams(
          ViewGroup.LayoutParams.WRAP_CONTENT,
          ViewGroup.LayoutParams.WRAP_CONTENT,
        )
      if (button.type == COMPASS) {
        buttonLayoutParams.isHighPriority = true
      }
      removeFromParentView(button.view)
      currentButtonsContainer.addView(button.view, buttonLayoutParams)
    }

    if (activeGuidanceConstraintSet == null) {
      activeGuidanceConstraintSet = buildActiveGuidanceConstraintSet(context, newState)
    }

    activeGuidanceConstraintSet?.applyTo(currentLayout)
  }

  override fun onLeaveActiveGuidance(
    navigationUiParent: NavigationUiParent,
    oldState: ActiveGuidanceUiState,
    newState: NavigationReadyUiState,
  ) {
    removeFromParentView(oldState.etaCard)
    removeFromParentView(oldState.turnCard)
    buttonsContainer?.removeAllViews()

    val currentButtonsContainer =
      checkNotNull(buttonsContainer) { "buttonsContainer must be initialized" }
    for (button in newState.navigationReadyButtons) {
      currentButtonsContainer.addView(
        button.view,
        ViewGroup.LayoutParams(
          ViewGroup.LayoutParams.WRAP_CONTENT,
          ViewGroup.LayoutParams.WRAP_CONTENT,
        ),
      )
    }

    navigationReadyConstraintSet?.applyTo(layout)
  }

  private fun buildActiveGuidanceConstraintSet(
    context: Context,
    uiState: ActiveGuidanceUiState,
  ): ConstraintSet {
    return ConstraintSet().apply {
      clone(layout)

      connect(uiState.turnCard.id, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
      connect(
        uiState.turnCard.id,
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START,
      )

      clear(uiState.viewport.id)
      connect(
        uiState.viewport.id,
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START,
      )
      connect(uiState.viewport.id, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
      setMargin(uiState.viewport.id, ConstraintSet.TOP, dpToPx(headerNominalHeightDp(), context))
      connect(uiState.viewport.id, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END)
      connect(uiState.viewport.id, ConstraintSet.BOTTOM, uiState.etaCard.id, ConstraintSet.TOP)

      clear(uiState.googleLogo.id, ConstraintSet.BOTTOM)
      constrainLogoToTopOfEtaCard(uiState)
      constrainEtaCardToBottomStart(uiState)
      constrainButtonsToTopOfEtaCard(context, uiState)
    }
  }

  private fun ConstraintSet.constrainEtaCardToBottomStart(uiState: ActiveGuidanceUiState) {
    connect(uiState.etaCard.id, ConstraintSet.START, ConstraintSet.PARENT_ID, ConstraintSet.START)
    connect(uiState.etaCard.id, ConstraintSet.BOTTOM, ConstraintSet.PARENT_ID, ConstraintSet.BOTTOM)
  }

  private fun ConstraintSet.constrainLogoToTopOfEtaCard(uiState: ActiveGuidanceUiState) {
    connect(uiState.googleLogo.id, ConstraintSet.BOTTOM, uiState.etaCard.id, ConstraintSet.TOP)
  }

  private fun ConstraintSet.constrainButtonsToBottomEnd() {
    clear(buttonsContainerId, ConstraintSet.BOTTOM)
    clear(buttonsContainerId, ConstraintSet.TOP)
    connect(buttonsContainerId, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
    connect(buttonsContainerId, ConstraintSet.BOTTOM, ConstraintSet.PARENT_ID, ConstraintSet.BOTTOM)
    connect(buttonsContainerId, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END)
  }

  private fun ConstraintSet.constrainButtonsToTopOfEtaCard(
    context: Context,
    uiState: ActiveGuidanceUiState,
  ) {
    clear(buttonsContainerId, ConstraintSet.BOTTOM)
    clear(buttonsContainerId, ConstraintSet.TOP)
    connect(buttonsContainerId, ConstraintSet.BOTTOM, uiState.etaCard.id, ConstraintSet.TOP)
    connect(buttonsContainerId, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
    connect(buttonsContainerId, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END)
    setMargin(buttonsContainerId, ConstraintSet.TOP, dpToPx(headerNominalHeightDp(), context))
  }

  override fun onShowPrompt(navigationUiParent: NavigationUiParent, newPrompt: View) {
    val context = navigationUiParent.viewContext
    layout?.addView(newPrompt)

    if (activeGuidanceUiState != null) {
      activeGuidanceWithPromptConstraintSet =
        buildActiveGuidanceWithPromptConstraintSet(context, newPrompt)
      activeGuidanceWithPromptConstraintSet?.applyTo(layout)
    }
  }

  override fun onChangePrompt(
    navigationUiParent: NavigationUiParent,
    oldPrompt: View,
    newPrompt: View,
  ) {
    val context = navigationUiParent.viewContext
    activeGuidanceWithPromptConstraintSet?.clear(oldPrompt.id)

    val currentLayout = checkNotNull(layout) { "layout must be initialized" }
    currentLayout.removeView(oldPrompt)
    currentLayout.addView(newPrompt)

    if (activeGuidanceUiState != null) {
      activeGuidanceWithPromptConstraintSet =
        buildActiveGuidanceWithPromptConstraintSet(context, newPrompt)
      activeGuidanceWithPromptConstraintSet?.applyTo(currentLayout)
    }
  }

  override fun onHidePrompt(navigationUiParent: NavigationUiParent, oldPrompt: View) {
    activeGuidanceWithPromptConstraintSet?.clear(oldPrompt.id)
    layout?.removeView(oldPrompt)

    activeGuidanceConstraintSet?.applyTo(layout)
  }

  private fun buildActiveGuidanceWithPromptConstraintSet(
    context: Context,
    prompt: View,
  ): ConstraintSet {
    return ConstraintSet().apply {
      clone(layout)

      val state =
        checkNotNull(activeGuidanceUiState) { "activeGuidanceUiState must be initialized" }

      clear(state.viewport.id)
      connect(state.viewport.id, ConstraintSet.START, ConstraintSet.PARENT_ID, ConstraintSet.START)
      connect(state.viewport.id, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP)
      setMargin(state.viewport.id, ConstraintSet.TOP, dpToPx(headerNominalHeightDp(), context))
      connect(state.viewport.id, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END)
      connect(state.viewport.id, ConstraintSet.BOTTOM, prompt.id, ConstraintSet.TOP)

      clear(state.googleLogo.id, ConstraintSet.BOTTOM)
      connect(state.googleLogo.id, ConstraintSet.BOTTOM, prompt.id, ConstraintSet.TOP)

      connect(prompt.id, ConstraintSet.START, ConstraintSet.PARENT_ID, ConstraintSet.START)
      connect(prompt.id, ConstraintSet.BOTTOM, ConstraintSet.PARENT_ID, ConstraintSet.BOTTOM)
    }
  }

  private fun removeFromParentView(view: View?) {
    if (view?.parent != null) {
      (view.parent as ViewGroup).removeView(view)
    }
  }

  private fun dpToPx(dp: Int, context: Context): Int {
    return TypedValue.applyDimension(
        TypedValue.COMPLEX_UNIT_DIP,
        dp.toFloat(),
        context.resources.displayMetrics,
      )
      .toInt()
  }
}



Java

/*
 * Copyright 2026 Google LLC
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *     http://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.example.navigationapidemo.layoutdelegate;

import static android.view.ViewGroup.LayoutParams.MATCH_PARENT;
import static android.view.ViewGroup.LayoutParams.WRAP_CONTENT;
import static androidx.constraintlayout.widget.ConstraintLayout.LayoutParams.MATCH_CONSTRAINT;
import static com.google.android.libraries.navigation.layoutcustomization.NavigationUiButton.ButtonKnownType.COMPASS;

import android.content.Context;
import android.util.TypedValue;
import android.view.View;
import android.view.ViewGroup;
import android.view.ViewGroup.LayoutParams;
import androidx.constraintlayout.widget.ConstraintLayout;
import androidx.constraintlayout.widget.ConstraintSet;
import com.google.android.libraries.navigation.layoutcustomization.ActiveGuidanceUiState;
import com.google.android.libraries.navigation.layoutcustomization.AutoHidingVerticalLayout;
import com.google.android.libraries.navigation.layoutcustomization.NavigationLayoutDelegate;
import com.google.android.libraries.navigation.layoutcustomization.NavigationReadyUiState;
import com.google.android.libraries.navigation.layoutcustomization.NavigationUiButton;
import com.google.android.libraries.navigation.layoutcustomization.NavigationUiParent;
import com.google.android.libraries.navigation.layoutcustomization.StyleValues;

/**
 * A sample implementation of {@link NavigationLayoutDelegate} demonstrating a basic,
 * portrait-optimized layout using {@link ConstraintLayout}.
 *
 * <p><b>Understanding the Layout Delegate State Machine:</b> Navigation SDK transitions through
 * distinct states, each calling corresponding lifecycle methods on this delegate:
 *
 * <ul>
 *   <li><b>Navigation Ready:</b> Initiated by {@link #onEnterNavigationReady}. We initialize the
 *       layout here and add non-guidance views, then pass it to {@link NavigationUiParent} as the
 *       navigation layout.
 *   <li><b>Active Guidance (Turn-by-Turn Mode):</b> Initiated by {@link #onEnterActiveGuidance}. We
 *       set up the layout for Active Guidance, adding elements such as the turn card and ETA card.
 *   <li><b>Prompts:</b> Prompts (e.g., incident alerts) may be triggered during Active Guidance
 *       mode and can be added to the layout via {@link #onShowPrompt}.
 * </ul>
 *
 * This class caches its {@link ConstraintSet}s to ensure smooth transitions without needing to
 * recreate or inflate layouts continuously.
 */
public class StandardUiElementsLayoutDelegate extends NavigationLayoutDelegate {
  private final int layoutId;
  private final int buttonsContainerId;

  private ConstraintLayout layout;
  private AutoHidingVerticalLayout buttonsContainer;

  // We cache our ConstraintSet definitions to avoid cloning or rebuilding
  // constraint configurations programmatically on every transition. This optimization
  // keeps UI state switches (such as entering active guidance or popping up prompts) highly
  // performant.
  private ConstraintSet navigationReadyConstraintSet;
  private ConstraintSet activeGuidanceConstraintSet;
  private ConstraintSet activeGuidanceWithPromptConstraintSet;

  private ActiveGuidanceUiState activeGuidanceUiState;

  public StandardUiElementsLayoutDelegate() {
    layoutId = View.generateViewId();
    buttonsContainerId = View.generateViewId();
  }

  @Override
  public void onEnterNavigationReady(
      NavigationUiParent navigationUiParent, NavigationReadyUiState newState) {
    Context context = navigationUiParent.getViewContext();

    // Implementation Tip: For simplicity, this sample instantiates views and constraints
    // programmatically. In a production application, you can safely inflate standard XML
    // layout templates to build your layout hierarchies and define base UI constraints.

    // Create the root layout
    if (layout == null) {
      layout = new ConstraintLayout(context);
      LayoutParams layoutParams = new LayoutParams(MATCH_PARENT, MATCH_PARENT);
      layout.setLayoutParams(layoutParams);
      layout.setId(layoutId);
    }

    // Add the Viewport (REQUIRED):
    // The viewport is an invisible bounding box used by Nav SDK to frame the vehicle
    // chevron and the upcoming route line. We want to position this view such that it avoids
    // being obscured by fully-opaque UI elements (like the turn card or the ETA card).
    removeFromParentView(newState.getViewport());
    LayoutParams viewportLayoutParams = new LayoutParams(MATCH_PARENT, MATCH_PARENT);
    layout.addView(newState.getViewport(), viewportLayoutParams);

    // Add the Google Logo / Re-center Button (REQUIRED):
    // This view displays the Google logo during guidance and may transition into a
    // "Re-center" button if the user scrolls away from the vehicle chevron. It must
    // be added to the view hierarchy in all states.
    removeFromParentView(newState.getGoogleLogo());
    LayoutParams googleLogoLayoutParams = new LayoutParams(MATCH_PARENT, WRAP_CONTENT);
    layout.addView(newState.getGoogleLogo(), googleLogoLayoutParams);

    // Add the container for UI buttons
    if (buttonsContainer == null) {
      // We use AutoHidingVerticalLayout to create an adaptive vertical button container that
      // automatically hides or shows child views based on available screen height.
      buttonsContainer = new AutoHidingVerticalLayout(context);
      buttonsContainer.setId(buttonsContainerId);
    }
    removeFromParentView(buttonsContainer);
    LayoutParams buttonsContainerLayoutParams = new LayoutParams(WRAP_CONTENT, MATCH_CONSTRAINT);
    layout.addView(buttonsContainer, buttonsContainerLayoutParams);

    // Add UI buttons to the container
    for (NavigationUiButton button : newState.getNavigationReadyButtons()) {
      removeFromParentView(button.getView());
      buttonsContainer.addView(button.getView());
    }

    // Build constraint set for Navigation Ready state
    if (navigationReadyConstraintSet == null) {
      navigationReadyConstraintSet = buildNavigationReadyConstraintSet(newState);
    }

    // Apply the constraints
    navigationReadyConstraintSet.applyTo(layout);

    // Set the layout in NavigationUiParent
    navigationUiParent.removeNavigationLayout(layout);
    navigationUiParent.setNavigationLayout(layout);
  }

  private ConstraintSet buildNavigationReadyConstraintSet(NavigationReadyUiState uiState) {
    ConstraintSet constraintSet = new ConstraintSet();
    constraintSet.clone(layout);

    // Constrain viewport to the edges of its parent
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.TOP,
        ConstraintSet.PARENT_ID,
        ConstraintSet.TOP);
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.END,
        ConstraintSet.PARENT_ID,
        ConstraintSet.END);
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.BOTTOM,
        ConstraintSet.PARENT_ID,
        ConstraintSet.BOTTOM);

    // Constrain the logo to the bottom start corner
    constraintSet.connect(
        uiState.getGoogleLogo().getId(),
        ConstraintSet.BOTTOM,
        ConstraintSet.PARENT_ID,
        ConstraintSet.BOTTOM);
    constraintSet.connect(
        uiState.getGoogleLogo().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);

    constrainButtonsToBottomEnd(constraintSet);

    return constraintSet;
  }

  @Override
  public void onLeaveNavigationReady(
      NavigationUiParent navigationUiParent, NavigationReadyUiState oldState) {
    buttonsContainer.removeAllViews();
    layout.removeAllViews();
    navigationUiParent.removeNavigationLayout(layout);
  }

  @Override
  public void onEnterActiveGuidance(
      NavigationUiParent navigationUiParent,
      NavigationReadyUiState oldState,
      ActiveGuidanceUiState newState) {
    activeGuidanceUiState = newState;

    Context context = navigationUiParent.getViewContext();

    // Sizing Guideline: The turn card and ETA card are internally configured to adapt and size
    // themselves dynamically based on the layout width (non-wideMode vs. wideMode). Forcing fixed
    // widths or heights on these elements via layouts is unsupported. Always use WRAP_CONTENT to
    // let the elements determine their optimal proportions.

    // Add the turn card
    removeFromParentView(newState.getTurnCard());
    LayoutParams turnCardLayoutParams = new LayoutParams(WRAP_CONTENT, WRAP_CONTENT);
    layout.addView(newState.getTurnCard(), turnCardLayoutParams);

    // Add the ETA card
    removeFromParentView(newState.getEtaCard());
    LayoutParams etaCardLayoutParams = new LayoutParams(WRAP_CONTENT, WRAP_CONTENT);
    layout.addView(newState.getEtaCard(), etaCardLayoutParams);

    // Remove the Navigation Ready UI buttons
    for (NavigationUiButton button : oldState.getNavigationReadyButtons()) {
      removeFromParentView(button.getView());
    }

    // By adding all buttons to the AutoHidingVerticalLayout, we can easily incorporate the latest
    // set of buttons when upgrading without any code changes required
    for (NavigationUiButton button : newState.getActiveGuidanceButtons()) {
      AutoHidingVerticalLayout.LayoutParams buttonLayoutParams =
          new AutoHidingVerticalLayout.LayoutParams(
              ViewGroup.LayoutParams.WRAP_CONTENT, ViewGroup.LayoutParams.WRAP_CONTENT);

      // Mark critical buttons (such as the compass) as high priority so they are the last to be
      // hidden by AutoHidingVerticalLayout when layout space is limited.
      if (button.getType() == COMPASS) {
        buttonLayoutParams.isHighPriority = true;
      }

      removeFromParentView(button.getView());
      buttonsContainer.addView(button.getView(), buttonLayoutParams);
    }

    // Build constraint set for Active Guidance state
    if (activeGuidanceConstraintSet == null) {
      activeGuidanceConstraintSet = buildActiveGuidanceConstraintSet(context, newState);
    }

    // Apply the constraints
    activeGuidanceConstraintSet.applyTo(layout);
  }

  @Override
  public void onLeaveActiveGuidance(
      NavigationUiParent navigationUiParent,
      ActiveGuidanceUiState oldState,
      NavigationReadyUiState newState) {

    // Remove Active Guidance UI elements
    removeFromParentView(oldState.getEtaCard());
    removeFromParentView(oldState.getTurnCard());
    buttonsContainer.removeAllViews();

    // Add Navigation Ready UI buttons
    for (NavigationUiButton button : newState.getNavigationReadyButtons()) {
      LayoutParams buttonLayoutParams = new LayoutParams(WRAP_CONTENT, WRAP_CONTENT);
      buttonsContainer.addView(button.getView(), buttonLayoutParams);
    }

    navigationReadyConstraintSet.applyTo(layout);
  }

  private ConstraintSet buildActiveGuidanceConstraintSet(
      Context context, ActiveGuidanceUiState uiState) {
    ConstraintSet constraintSet = new ConstraintSet();
    constraintSet.clone(layout);

    // Constrain turn card to top start corner
    constraintSet.connect(
        uiState.getTurnCard().getId(),
        ConstraintSet.TOP,
        ConstraintSet.PARENT_ID,
        ConstraintSet.TOP);
    constraintSet.connect(
        uiState.getTurnCard().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);

    // Constrain viewport to top of ETA card
    constraintSet.clear(uiState.getViewport().getId());
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.TOP,
        ConstraintSet.PARENT_ID,
        ConstraintSet.TOP);

    // Instead of constraining the viewport's top directly to the bottom of the turn card
    // (which varies in height and would trigger jumpy camera framing updates), we use a fixed
    // nominal height to estimate the height of the turncard.
    constraintSet.setMargin(
        uiState.getViewport().getId(),
        ConstraintSet.TOP,
        dpToPx(StyleValues.headerNominalHeightDp(), context));

    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.END,
        ConstraintSet.PARENT_ID,
        ConstraintSet.END);
    constraintSet.connect(
        uiState.getViewport().getId(),
        ConstraintSet.BOTTOM,
        uiState.getEtaCard().getId(),
        ConstraintSet.TOP);

    constraintSet.clear(uiState.getGoogleLogo().getId(), ConstraintSet.BOTTOM);
    constrainLogoToTopOfEtaCard(uiState, constraintSet);

    constrainEtaCardToBottomStart(uiState, constraintSet);

    constrainButtonsToTopOfEtaCard(context, uiState, constraintSet);

    return constraintSet;
  }

  private static void constrainEtaCardToBottomStart(
      ActiveGuidanceUiState uiState, ConstraintSet constraintSet) {
    constraintSet.connect(
        uiState.getEtaCard().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);
    constraintSet.connect(
        uiState.getEtaCard().getId(),
        ConstraintSet.BOTTOM,
        ConstraintSet.PARENT_ID,
        ConstraintSet.BOTTOM);
  }

  private static void constrainLogoToTopOfEtaCard(
      ActiveGuidanceUiState uiState, ConstraintSet constraintSet) {
    constraintSet.connect(
        uiState.getGoogleLogo().getId(),
        ConstraintSet.BOTTOM,
        uiState.getEtaCard().getId(),
        ConstraintSet.TOP);
  }

  private void constrainButtonsToBottomEnd(ConstraintSet constraintSet) {
    constraintSet.clear(buttonsContainerId, ConstraintSet.BOTTOM);
    constraintSet.clear(buttonsContainerId, ConstraintSet.TOP);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.BOTTOM, ConstraintSet.PARENT_ID, ConstraintSet.BOTTOM);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END);
  }

  private void constrainButtonsToTopOfEtaCard(
      Context context, ActiveGuidanceUiState uiState, ConstraintSet constraintSet) {
    constraintSet.clear(buttonsContainerId, ConstraintSet.BOTTOM);
    constraintSet.clear(buttonsContainerId, ConstraintSet.TOP);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.BOTTOM, uiState.getEtaCard().getId(), ConstraintSet.TOP);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.TOP, ConstraintSet.PARENT_ID, ConstraintSet.TOP);
    constraintSet.connect(
        buttonsContainerId, ConstraintSet.END, ConstraintSet.PARENT_ID, ConstraintSet.END);
    constraintSet.setMargin(
        buttonsContainerId,
        ConstraintSet.TOP,
        dpToPx(StyleValues.headerNominalHeightDp(), context));
  }

  @Override
  public void onShowPrompt(NavigationUiParent navigationUiParent, View newPrompt) {
    Context context = navigationUiParent.getViewContext();

    layout.addView(newPrompt);

    // When a prompt is displayed at the bottom of the screen, we update our active constraints so
    // that the invisible Viewport sits entirely above the prompt. This automatically forces the
    // Nav SDK camera to adjust its zoom and framing so that the route chevron is always visible to
    // the driver.
    activeGuidanceWithPromptConstraintSet =
        buildActiveGuidanceWithPromptConstraintSet(context, newPrompt);
    activeGuidanceWithPromptConstraintSet.applyTo(layout);
  }

  @Override
  public void onChangePrompt(
      NavigationUiParent navigationUiParent, View oldPrompt, View newPrompt) {
    Context context = navigationUiParent.getViewContext();

    activeGuidanceWithPromptConstraintSet.clear(oldPrompt.getId());

    layout.removeView(oldPrompt);
    layout.addView(newPrompt);

    // When a prompt is displayed at the bottom of the screen, we update our active constraints so
    // that the invisible Viewport sits entirely above the prompt. This automatically forces the
    // Nav SDK camera to adjust its zoom and framing so that the route chevron is always visible to
    // the driver.
    activeGuidanceWithPromptConstraintSet =
        buildActiveGuidanceWithPromptConstraintSet(context, newPrompt);
    activeGuidanceWithPromptConstraintSet.applyTo(layout);
  }

  @Override
  public void onHidePrompt(NavigationUiParent navigationUiParent, View oldPrompt) {
    activeGuidanceWithPromptConstraintSet.clear(oldPrompt.getId());

    layout.removeView(oldPrompt);

    activeGuidanceConstraintSet.applyTo(layout);
  }

  private ConstraintSet buildActiveGuidanceWithPromptConstraintSet(Context context, View prompt) {
    ConstraintSet constraintSet = new ConstraintSet();
    constraintSet.clone(layout);

    // Constrain viewport to top of prompt
    constraintSet.clear(activeGuidanceUiState.getViewport().getId());
    constraintSet.connect(
        activeGuidanceUiState.getViewport().getId(),
        ConstraintSet.START,
        ConstraintSet.PARENT_ID,
        ConstraintSet.START);
    constraintSet.connect(
        activeGuidanceUiState.getViewport().getId(),
        ConstraintSet.TOP,
        ConstraintSet.PARENT_ID,
        ConstraintSet.TOP);
    constraintSet.setMargin(
        activeGuidanceUiState.getViewport().getId(),
        ConstraintSet.TOP,
        dpToPx(StyleValues.headerNominalHeightDp(), context));
    constraintSet.connect(
        activeGuidanceUiState.getViewport().getId(),
        ConstraintSet.END,
        ConstraintSet.PARENT_ID,
        ConstraintSet.END);
    constraintSet.connect(
        activeGuidanceUiState.getViewport().getId(),
        ConstraintSet.BOTTOM,
        prompt.getId(),
        ConstraintSet.TOP);

    // Constrain prompt to bottom start corner
    constraintSet.connect(
        prompt.getId(), ConstraintSet.START, ConstraintSet.PARENT_ID, ConstraintSet.START);
    constraintSet.connect(
        prompt.getId(), ConstraintSet.BOTTOM, ConstraintSet.PARENT_ID, ConstraintSet.BOTTOM);

    return constraintSet;
  }

  private void removeFromParentView(View view) {
    if (view != null && view.getParent() != null) {
      ((ViewGroup) view.getParent()).removeView(view);
    }
  }

  private static int dpToPx(int dp, Context context) {
    return (int)
        TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, dp, context.getResources().getDisplayMetrics());
  }
}



如要查看完整的程式碼範例，或探索其他版面配置委派實作，請參閱 GitHub 上的版面配置委派範例。您也可以在 GitHub 上查看這個範例的個別來源檔案：

• Kotlin：StandardUiElementsLayoutDelegateKt.kt
• Java：StandardUiElementsLayoutDelegate.java
