Identificar la relación entre los tipos de entidades

Algunos tipos de entidades requieren que establezcas la relación entre el contenido de tu feed. Esta información ayuda a Google a mostrar el orden y la estructura adecuados de tu contenido a los usuarios y a identificar el contenido correcto cuando la búsqueda de un usuario es ambigua.

Selecciona el tipo de contenido que proporcionas:

Programa de TV

If you're a TV show provider, you need to add the TVEpisode, TVSeason, and TVSeries entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

Identify the relationships

Ensure the following relationships are established among them:

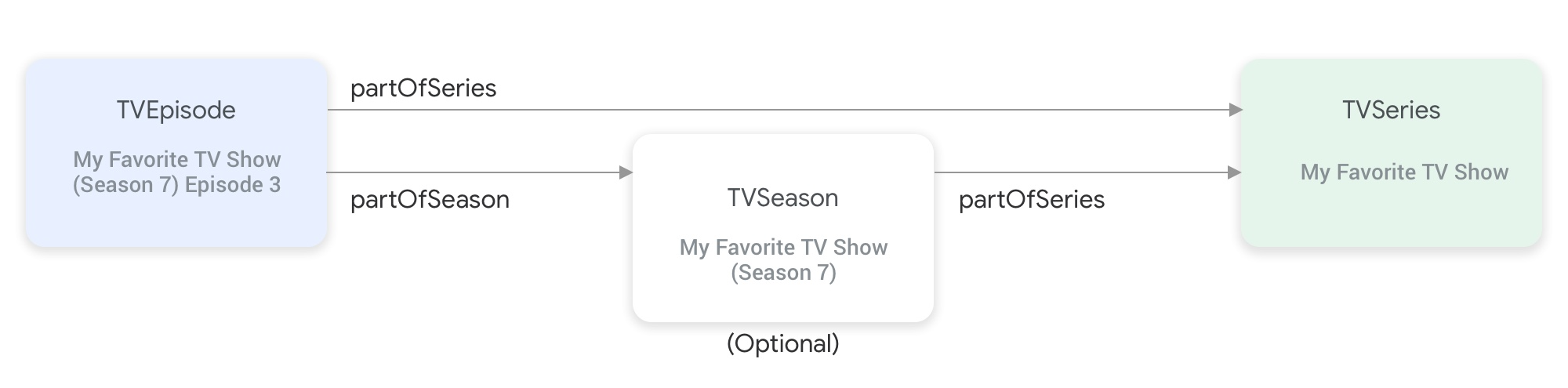

**Figure**: The `partOfSeries` and `partOfSeason` properties connect the TV show entity types together.

A TVEpisode entity requires you to provide the partOfSeries property, which specifies the @id and name of the episode's TVSeries entity.

"partOfSeries": {
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
},

If your feed contains TV seasons, a TVSeason entity also requires you to specify its TVSeries entity in the partOfSeries property.

Note: Providing TVSeason as a top level entity is optional. However, if you choose to provide TVSeason entities for a TV show, those TVSeason entities must cover all the episodes of the TV series in your catalog. For instance, if My Favorite TV Show has 8 seasons and each season has 5 episodes. Your feed should contain all 40 episodes of My Favorite TV Show. If you provide TVSeason entities for the show, then your feed must include all 8 TVSeason entities.
A TVEpisode entity requires you to provide the partOfSeason property, which specifies the @id and seasonNumber of the episode's TVSeason entity.
```
"partOfSeason": {
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "seasonNumber": 7
},
```
If a TVEpisode entity doesn't have a corresponding TVSeason entity in the feed, take the following steps to provide the partOfSeason.@id and partOfSeason.seasonNumber properties for the TVEpisode entity:
- Take its partofSeries.@id and attach a placeholder query field (for example, ?season1) to create a unique partOfSeason.@id (for example, http://www.example.com/my_favorite_tv_show?season1).
- Set partOfSeason.seasonNumber to 1.
Later, if you decide to provide TV seasons in the feed, you can either reuse the existing partOfSeason.@id for the corresponding TVSeason entity or replace this placeholder partOfSeason.@id with the actual @id of the TVSeason entity.

Example

TVSeries

My Favorite TV Show

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

Episode 3 of My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

Radio

If you're a radio provider, you need to add the RadioBroadcastService entity type in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for this type.

Identify the relationships

Since there is only one entity type for such integrations, while there are no explicit relationships that need to be established, ensure that you collect the following information for the RadioBroadcastService entities:

description: The description of the radio station.
broadcastDisplayName: The display name of the radio station.
areaServed: The area where the radio station is available.
callSign: The official government-issued callsign of the radio station. For North America radio stations, this property is required.
broadcastFrequency: The frequency specification of the radio station.
- For terrestrial AM/FM radio stations, this property is required.
- For online streaming-only content, the value is set to INTERNET_STREAM.
broadcastAffiliateOf: The network of which this radio station provides programming. If the radio station is not part of any affiliation, this property is not required.
broadcaster: The organization who owns and operates the radio station.
parentService: The parent radio station. If the radio station is a repeater or translator of another radio station, this property is required.

Example

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

Música

If you're a music provider, you need to add the MusicGroup, MusicAlbum, and MusicRecording entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

MusicGroup, MusicAlbum, and MusicRecording let your app or platform play more content from a playlist (MusicPlaylist) once all the content from the seed entity is played. Check out the following scenario:

A MusicAlbum entity contains a list of songs from Album XYZ (a seed entity).
A MusicPlaylist entity contains a playlist of songs that are similar to the songs from Album XYZ.
The MusicAlbum entity includes the MusicPlaylist entity as an Entity-seeded Action.

In this setup, once all the songs from Album XYZ are played, your app can continue to play songs from the playlist provided by the MusicPlaylist entity.

Entity Action and Entity-seeded Action

Listen Actions support two types of Actions:

Entity Action: Plays a specific artist, album, or song (a seed entity). It includes MusicGroup, MusicAlbum, MusicRecording.
Entity-seeded Action: Plays content similar to the seed entity. It includes MusicPlaylist.
- After completing an Entity Action, your app or platform may initiate an Entity-seeded Action.
- An Entity-seeded Action can include playback of the content from the seed entity.

We recommend you include an Entity-seeded Action in every Entity Action.

Identify the relationships

For MusicGroup, if you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicAlbum and MusicRecording, you need to identify which MusicGroup they belong to.
- Identify @id and name of its MusicGroup.
- If you provide an Entity-seeded Action, identify @id and name of its MusicPlaylist.
For MusicPlaylist,
- If applicable, identify genre that best represents the content in the playlist.
- If the playlist is hand curated, identify numTracks.
  - The absence of numTracks tells Google that the playlist is an auto-generated, endless playlist.

Example

MusicGroup

Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

Album: My Favorite Album
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

Song: My Favorite Song
Artist: My Favorite Artist

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

A custom playlist: "Top Pop Songs of the 2010s"

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

TV en vivo

Si eres proveedor de TV en vivo, debes agregar los tipos de entidades Organization, BroadcastService, CableOrSatelliteService y TelevisionChannel en tu feed del catálogo de medios para representar tu programación de canales. También es posible que debas proporcionar las entidades BroadcastEvent, TVSeries, TVEpisode, Movie y SportsEvent para representar la EPG (guía electrónica de programas) asociada. Puedes encontrar las definiciones de estas entidades en la sección Comprende los tipos de entidades disponibles filtrando por estos tipos. Para obtener una explicación más detallada, visita la página Canales de TV en vivo.

Relaciones entre entidades que representan canales de TV en vivo

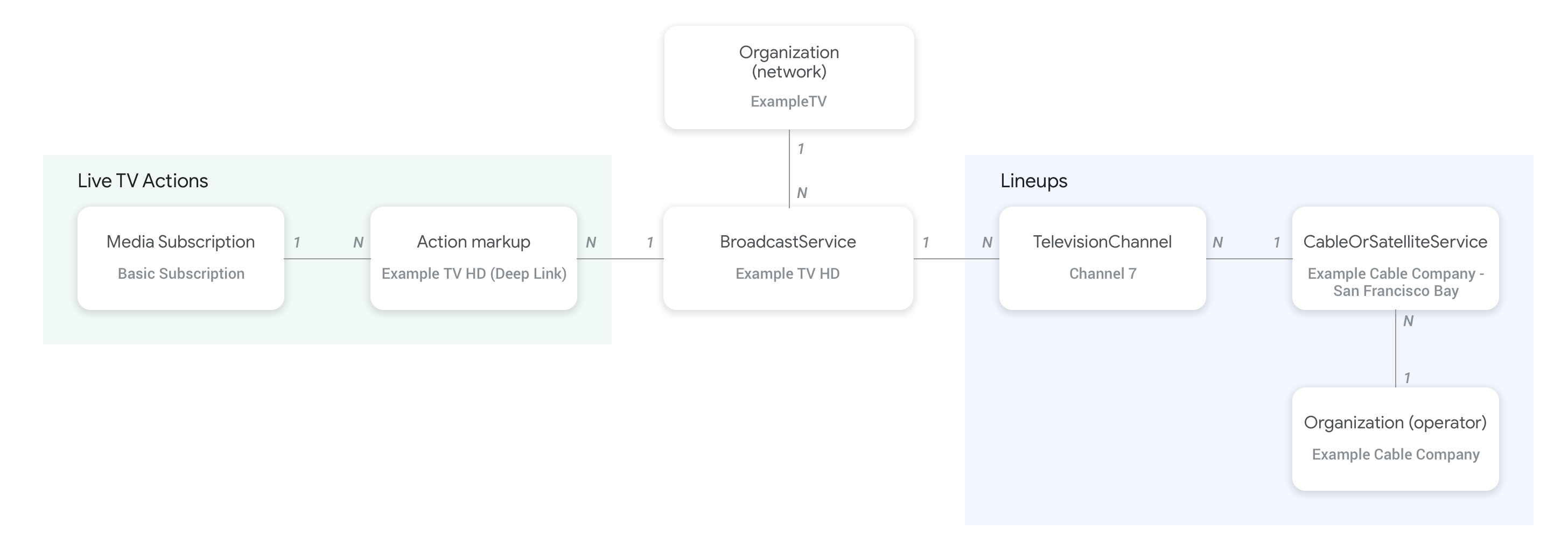

En la siguiente figura, se muestra cómo se relacionan las entidades Organization, BroadcastService, CableOrSatelliteService y TelevisionChannel:

**Figura**: Vínculos entre los tipos de entidades de canales de TV en vivo.

La entidad Organization (operador) que representa al proveedor de feeds y también a la organización principal del servicio CableOrSatelliteService se conecta a través de la propiedad provider en la entidad CableOrSatelliteService.
Las entidades Organization correspondientes a las entidades BroadcastService se conectan con la propiedad broadcastAffiliateOf en la entidad BroadcastService.
Las entidades TelevisionChannel se conectan con la entidad CableOrSatelliteService, que representa la selección de contenido a la que pertenecen, a través de la propiedad inBroadcastLineup.
Las entidades TelevisionChannel se conectan con la entidad BroadcastService, cuya programación proporciona este canal, a través de la propiedad providesBroadcastService.

Se recomienda consultar la página de conceptos básicos de los canales de TV en vivo para ver ejemplos concretos de cómo se debe establecer la relación entre las entidades BroadcastService y Organization.

Relaciones entre los canales y su guía de programación (EPG)

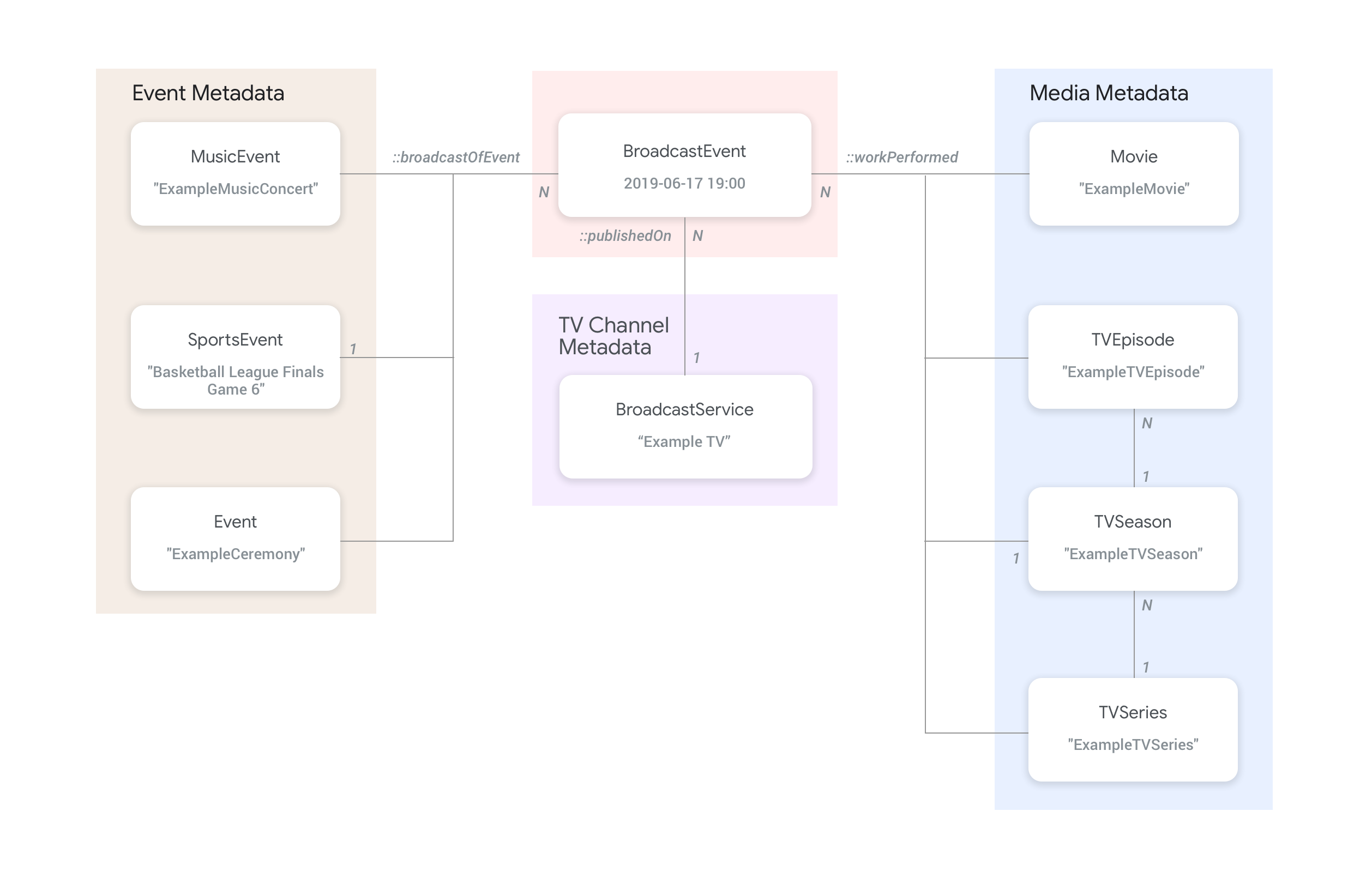

En la siguiente figura, se muestra cómo la entidad BroadcastEvent se vincula al resto de las entidades del feed.

**Figura**: Vínculos entre los tipos de entidades de eventos de TV en vivo.

Las entidades BroadcastEvent, que representan la guía de programación (EPG) de un BroadcastService, se conectan con las entidades BroadcastService a través de la propiedad publishedOn en la entidad BroadcastEvent.
Las entidades BroadcastEvent también se pueden conectar a entidades TVEpisode, TVSeries y Movie de nivel superior con la propiedad workPerformed.
Las entidades BroadcastEvent también se pueden conectar a entidades SportsEvent de nivel superior con la propiedad broadcastOfEvent.
En el caso de los eventos sin canal que se transmiten en línea, las entidadesBroadcastEvent se conectan con la entidad que representa el evento en vivo a través de la propiedad workPerformed o broadcastOfEvent, según lo que se transmita en vivo. En esos casos, no se requiere la propiedad publishedOn, ya que no se necesita la conexión a un canal.

Ejemplos

En la siguiente sección, se proporcionan ejemplos y fragmentos de código para varios casos de uso de la acción de mirar.

Proveedor nacional de servicios de TV por Internet

Organización

Un proveedor de servicios de televisión por protocolo de Internet ficticio, ExampleTV Digital Service (Organization), proporciona el servicio de TV en vivo en Internet, que contiene los siguientes dos canales: ExampleTV-Movie (Organization) y ExampleTV-Comedy (Organization):

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

Estas dos entidades BroadcastService proporcionan los detalles de los vínculos directos y los requisitos de acceso para los canales ficticios ExampleTV-Movie y ExampleTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

Este CableOrSatelliteService describe el proveedor de servicios ExampleTV Digital Service que tiene cobertura nacional:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

Estas entidades TelevisionChannel indican que el servicio de IPTV de ExampleTV Digital Service tiene la programación de ExampleTV Movie en el canal ExTV-Movie y la programación de ExampleTV Comedy en el canal ExTV-Comedy:

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

Consulta la sección Ejemplos de TV en directo para ver más ejemplos.

Transmisión de una película en un canal de TV

El 12 de julio de 2019, se transmite una película en la cadena de televisión Example TV (BroadcastService) entre las 5 pm y las 7 pm.

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

Película

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

Consulta la sección Ejemplos de eventos de TV en directo para ver más ejemplos.

Un partido deportivo en vivo transmitido en línea

Evento de transmisión


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

Evento deportivo


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

Consulta la sección Ejemplos de deportes para ver más ejemplos.

Recopila el ID, la URL y el nombre

Recopila los metadatos

Identificar la relación entre los tipos de entidades Organiza tus páginas con colecciones Guarda y categoriza el contenido según tus preferencias.

Programa de TV

Identify the relationships

Example

TVSeries

TVSeason

TVEpisode

Radio

Identify the relationships

Example

Música

Entity Action and Entity-seeded Action

Identify the relationships

Example

MusicGroup

MusicAlbum

MusicRecording

MusicPlaylist

TV en vivo

Relaciones entre entidades que representan canales de TV en vivo

Relaciones entre los canales y su guía de programación (EPG)

Ejemplos

Proveedor nacional de servicios de TV por Internet

Organización

BroadcastService

CableOrSatelliteService

TelevisionChannel

Transmisión de una película en un canal de TV

BroadcastEvent

BroadcastService

Película

Un partido deportivo en vivo transmitido en línea

Evento de transmisión

Evento deportivo

Identificar la relación entre los tipos de entidades
