识别实体类型之间的关系

对于某些实体类型，您需要在 Feed 中的内容之间建立关系。这些信息有助于 Google 向用户显示内容的正确顺序和结构，并在用户的查询含糊不清时识别正确的内容。

选择您提供的内容类型：

电视节目

If you're a TV show provider, you need to add the TVEpisode, TVSeason, and TVSeries entity types in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for these types.

Identify the relationships

Ensure the following relationships are established among them:

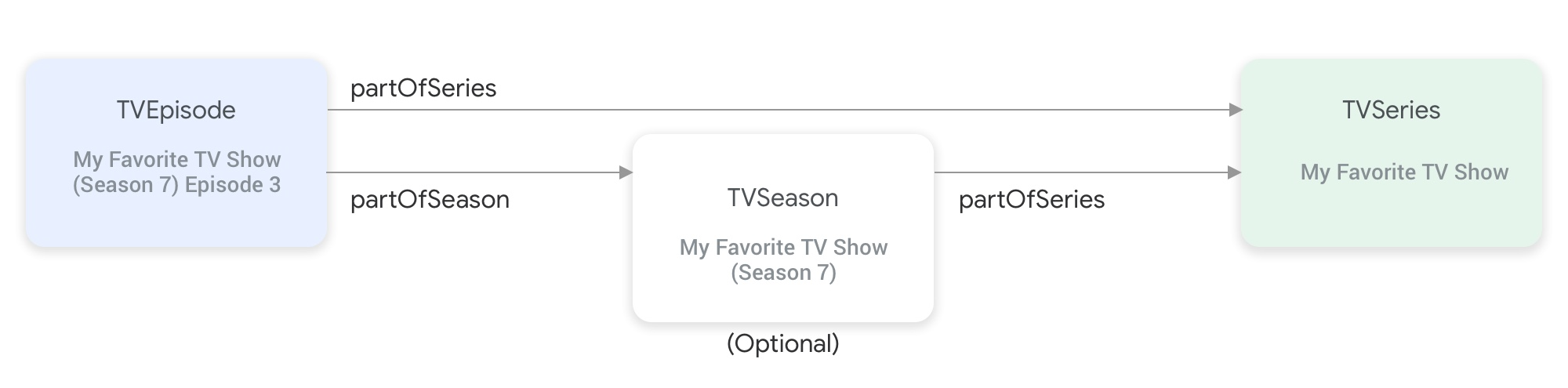

**Figure**: The `partOfSeries` and `partOfSeason` properties connect the TV show entity types together.

A TVEpisode entity requires you to provide the partOfSeries property, which specifies the @id and name of the episode's TVSeries entity.

"partOfSeries": {
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
},

If your feed contains TV seasons, a TVSeason entity also requires you to specify its TVSeries entity in the partOfSeries property.

Note: Providing TVSeason as a top level entity is optional. However, if you choose to provide TVSeason entities for a TV show, those TVSeason entities must cover all the episodes of the TV series in your catalog. For instance, if My Favorite TV Show has 8 seasons and each season has 5 episodes. Your feed should contain all 40 episodes of My Favorite TV Show. If you provide TVSeason entities for the show, then your feed must include all 8 TVSeason entities.
A TVEpisode entity requires you to provide the partOfSeason property, which specifies the @id and seasonNumber of the episode's TVSeason entity.
```
"partOfSeason": {
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "seasonNumber": 7
},
```
If a TVEpisode entity doesn't have a corresponding TVSeason entity in the feed, take the following steps to provide the partOfSeason.@id and partOfSeason.seasonNumber properties for the TVEpisode entity:
- Take its partofSeries.@id and attach a placeholder query field (for example, ?season1) to create a unique partOfSeason.@id (for example, http://www.example.com/my_favorite_tv_show?season1).
- Set partOfSeason.seasonNumber to 1.
Later, if you decide to provide TV seasons in the feed, you can either reuse the existing partOfSeason.@id for the corresponding TVSeason entity or replace this placeholder partOfSeason.@id with the actual @id of the TVSeason entity.

Example

TVSeries

My Favorite TV Show

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeries",
  "@id": "http://www.example.com/my_favorite_tv_show",
  "url": "http://www.example.com/my_favorite_tv_show",
  "name": "My Favorite TV Show",
  "potentialAction":{ … },
  ...
}

TVSeason

My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVSeason",
  "@id": "http://www.example.com/my_favorite_tv_show/s7",
  "url": "http://www.example.com/my_favorite_tv_show/s7",
  "name": "My Favorite TV Show, Season 7",
  "seasonNumber": 7,
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

TVEpisode

Episode 3 of My Favorite TV Show (season 7)

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "TVEpisode",
  "@id": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "url": "http://www.example.com/my_favorite_tv_show/s7/e3",
  "name": "John Doe returns at night",
  "episodeNumber": 3,
  "partOfSeason": {
    "@type": "TVSeason",
    "@id": "http://www.example.com/my_favorite_tv_show/s7",
    "seasonNumber": 7
  },
  "partOfSeries": {
    "@type": "TVSeries",
    "@id": "http://www.example.com/my_favorite_tv_show",
    "name": "My Favorite TV Show",
  },
  "potentialAction":{ … },
  ...
}

电台

If you're a radio provider, you need to add the RadioBroadcastService entity type in your media catalog feed. You can find the definitions for these entities in the Understand the available entity types section by filtering for this type.

Identify the relationships

Since there is only one entity type for such integrations, while there are no explicit relationships that need to be established, ensure that you collect the following information for the RadioBroadcastService entities:

description: The description of the radio station.
broadcastDisplayName: The display name of the radio station.
areaServed: The area where the radio station is available.
callSign: The official government-issued callsign of the radio station. For North America radio stations, this property is required.
broadcastFrequency: The frequency specification of the radio station.
- For terrestrial AM/FM radio stations, this property is required.
- For online streaming-only content, the value is set to INTERNET_STREAM.
broadcastAffiliateOf: The network of which this radio station provides programming. If the radio station is not part of any affiliation, this property is not required.
broadcaster: The organization who owns and operates the radio station.
parentService: The parent radio station. If the radio station is a repeater or translator of another radio station, this property is required.

Example

{
  "@context": "http://schema.googleapis.com",
  "@type": "RadioBroadcastService",
  "@id": "https://www.example.com/stations?id=1",
  "url": "https://www.example.com/stations?id=1",
  "name": "KABC",
  "callSign": "KABC-FM",
  "broadcastDisplayName": "KABC",
  "description": "Local News & Information",
  "broadcastFrequency": {
    "@type": "BroadcastFrequencySpecification",
    "broadcastFrequencyValue": "89.5",
    "broadcastSignalModulation": "FM",
    "broadcastSubChannel": "HD1"
  },
  "areaServed": {
    "@type": "City",
    "name": "San Francisco, CA"
  },
  "broadcastAffiliateOf": [
    {
      "@id": "https://www.example.com/networks/xyz",
      "@type": "Organization",
      "name": "XYZ",
      "sameAs": "https://en.wikipedia.org/wiki/XYZ"
    },
    {
      "@id": "https://www.example.com/networks/efg",
      "@type": "Organization",
      "name": "EFG",
      "sameAs": "https://www.example.com/"
    }
  ],
  "broadcaster": [
    {
      "@type": "Organization",
      "name": "California Local Public Broadcasting",
      "sameAs": "https://www.example.org/w/clpb/"
    },
    {
      "@type": "Organization",
      "sameAs": "https://www.example.org/kabc",
      "name": "KABC Inc"
    }
  ],
  "potentialAction": { … },
  …
}

音乐

如果您是音乐服务提供方，则需要在媒体目录 Feed 中添加 MusicGroup、MusicAlbum 和 MusicRecording 实体类型。您可以在了解可用的实体类型部分中找到这些实体的定义，只需按这些类型进行过滤即可。

MusicGroup、MusicAlbum 和 MusicRecording 可让应用或平台在播放完种子实体中的所有内容后，继续播放播放列表 (MusicPlaylist) 中的更多内容。请看以下场景：

MusicAlbum 实体包含 Album XYZ（种子实体）中的歌曲列表。
MusicPlaylist 实体包含与专辑 XYZ 中的歌曲类似的歌曲播放列表。
MusicAlbum 实体将 MusicPlaylist 实体作为实体种子操作包含在内。

在此设置中，当专辑 XYZ 中的所有歌曲播放完毕后，应用可以继续播放 MusicPlaylist 实体提供的播放列表中的歌曲。

实体操作和以实体为种子的操作

聆听操作支持两种类型的操作：

实体操作：播放特定音乐人、专辑或歌曲（种子实体）。它包括 MusicGroup、MusicAlbum、MusicRecording。
实体种子 Action：播放与种子实体类似的内容。它包括 MusicPlaylist。
- 完成实体操作后，应用或平台可能会启动实体种子操作。
- 实体种子操作可以包括播放种子实体中的内容。

建议您在每个实体操作中都添加一个实体种子操作。

确定关系

对于 MusicGroup，如果您提供实体种子操作，请确定其 MusicPlaylist 的 @id 和 name。
对于 MusicAlbum 和 MusicRecording，您需要确定它们属于哪个 MusicGroup。
- 确定其 MusicGroup 的 @id 和 name。
- 如果您提供实体种子操作，请确定其 MusicPlaylist 的 @id 和 name。
对于 MusicPlaylist，
- 如果适用，请确定最能代表播放列表中的内容的 genre。
- 如果播放列表是人工精选的，请标识 numTracks。
  - 如果缺少 numTracks，则表示相应播放列表是自动生成的无限播放列表。

示例

MusicGroup

音乐人：我最喜欢的音乐人

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicGroup",
  "@id":"http://www.example.com/artist/my_favorite_artist/",
  "url":"http://www.example.com/artist/my_favorite_artist/",
  "name":"My Favorite Artist",
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/artist_mix/my_favorite_artist/",
    "url":"http://www.example.com/artist_mix/my_favorite_artist/",
    "name":"My Favorite Artist Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicAlbum

相册：我的最爱相册
音乐人：我最喜欢的音乐人

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicAlbum",
  "@id":"http://www.example.com/album/my_favorite_album",
  "url":"http://www.example.com/album/my_favorite_album",
  "name":"My Favorite Album",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/album_mix/my_favorite_album",
    "url":"http://www.example.com/album_mix/my_favorite_album",
    "name":"My Favorite Album Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicRecording

歌曲：My Favorite Song
音乐人：我最喜欢的音乐人

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicRecording",
  "@id":"http://www.example.com/track/my_favorite_song",
  "url":"http://www.example.com/track/my_favorite_song",
  "name":"My Favorite Song",
  "byArtist":{
    "@type":"MusicGroup",
    "@id": "http://www.example.com/artist/my_favorite_artist/",
    "name":"My Favorite Artist"
  },
  "potentialAction":{ … },
  "subjectOf": {
    "@type":"MusicPlaylist",
    "@id":"http://www.example.com/track_mix/my_favorite_song",
    "url":"http://www.example.com/track_mix/my_favorite_song",
    "name":"My Favorite Song Mix",
    "potentialAction":{ … },
  },
  ...
}

MusicPlaylist

自定义播放列表：“2010 年代的热门流行歌曲”

{
  "@context":"http://schema.googleapis.com/",
  "@type":"MusicPlaylist",
  "@id":"http://www.example.com/playlist/top_pop_songs/",
  "url":"http://www.example.com/playlist/top_pop_songs/",
  "name":"Top Pop Songs of the 2010s",
  "genre": [
     "pop",
     "2010s"
  ],
  "numTracks":"46",
  "potentialAction":{ … },
  ...
}

电视直播

如果您是直播电视提供商，则需要在媒体目录 Feed 中添加 Organization、BroadcastService、CableOrSatelliteService 和 TelevisionChannel 实体类型，以表示您的频道阵容。您可能还需要提供 BroadcastEvent、TVSeries、TVEpisode、Movie 和 SportsEvent 实体来表示关联的 EPG（电子节目单）。您可以在了解可用的实体类型部分中找到这些实体的定义，只需按这些类型进行过滤即可。如需更详细的说明，您可以访问直播电视频道页面。

表示直播电视频道的实体之间的关系

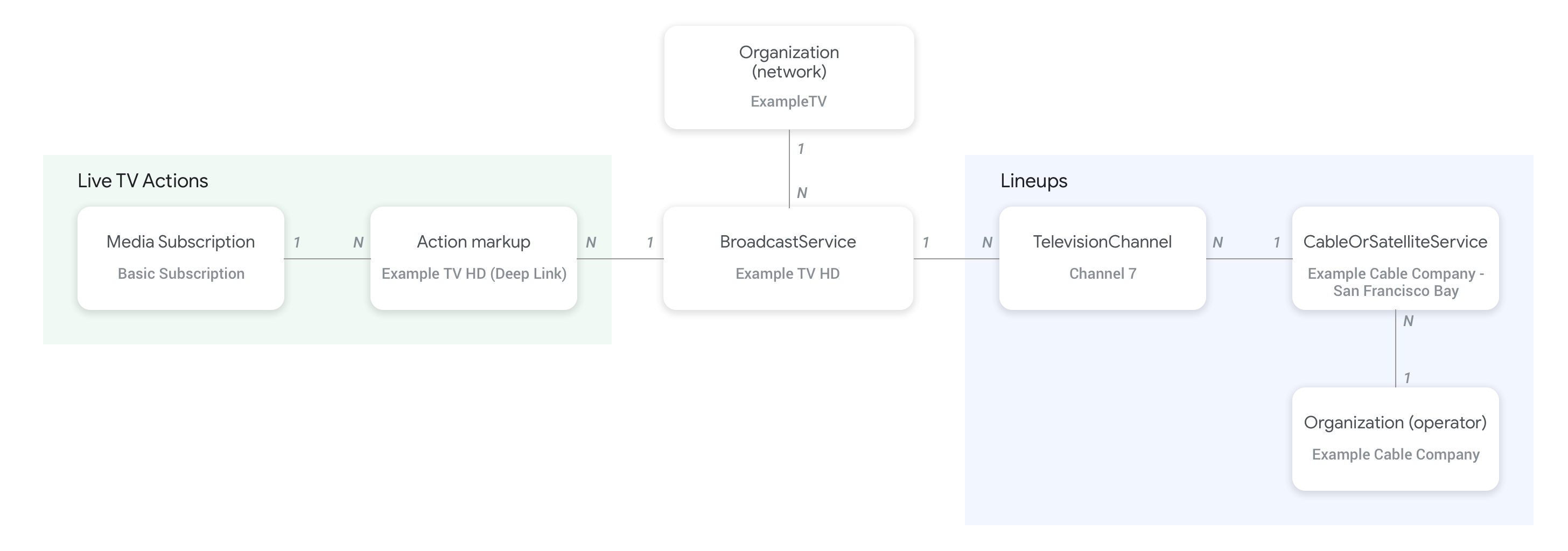

下图显示了 Organization、BroadcastService、CableOrSatelliteService 和 TelevisionChannel 实体的关系：

表示 Feed 提供方的 Organization（运营商）实体与 CableOrSatelliteService 服务的父组织通过 CableOrSatelliteService 实体上的 provider 属性相关联。
与 BroadcastService 实体对应的 Organization 实体通过 BroadcastService 实体上的 broadcastAffiliateOf 属性进行连接。
TelevisionChannel 实体使用 inBroadcastLineup 属性与 CableOrSatelliteService 实体（表示其所属的影音内容系列）相关联。
TelevisionChannel 实体通过 providesBroadcastService 属性与 BroadcastService 实体（即相应频道提供的节目）相关联。

强烈建议您浏览直播电视频道概念页面，了解如何建立 BroadcastService 与 Organization 实体之间的关系的具体示例。

频道与其节目指南 (EPG) 之间的关系

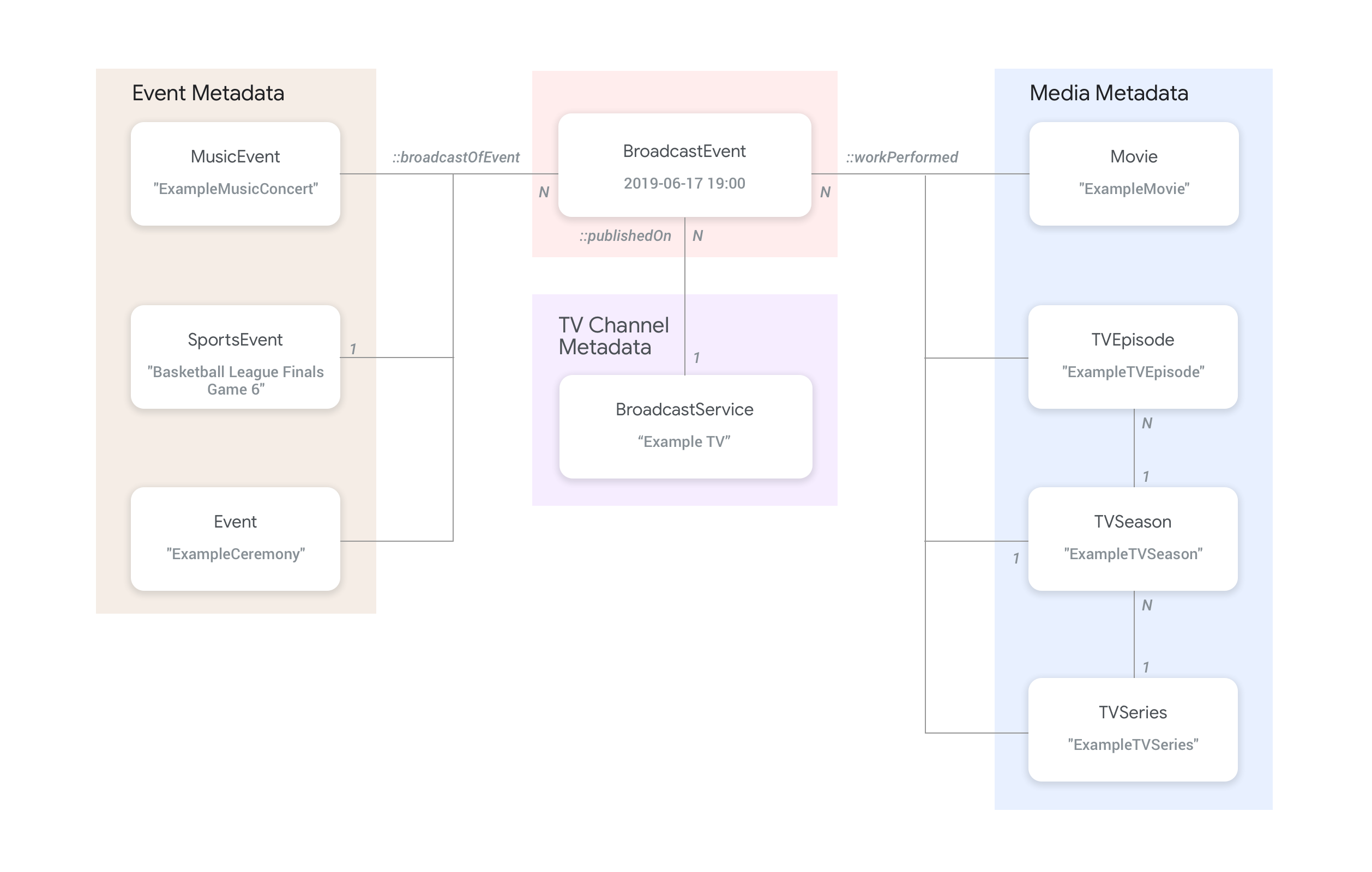

下图显示了 BroadcastEvent 实体如何与 Feed 中的其余实体相关联。

表示 BroadcastService 的节目指南 (EPG) 的 BroadcastEvent 实体通过 BroadcastEvent 实体上的 publishedOn 属性与 BroadcastService 实体相关联。
BroadcastEvent 实体还可以使用 workPerformed 属性连接到顶层 TVEpisode、TVSeries、Movie 实体。
BroadcastEvent 实体还可以使用 broadcastOfEvent 属性连接到顶级 SportsEvent 实体。
对于在线直播的无频道活动，BroadcastEvent 实体使用 workPerformed 或 broadcastOfEvent 属性（具体取决于直播内容）与表示直播活动的实体相关联。在这种情况下，由于不需要连接到频道，因此不需要 publishedOn 属性。

示例

以下部分提供了各种观看操作使用情形的示例和代码段。

互联网上的全国性电视服务提供商

组织

一家虚构的互联网协议电视服务提供商 ExampleTV Digital Service (Organization) 通过互联网提供直播电视服务，其中包含以下两个频道：ExampleTV-Movie (Organization) 和 ExampleTV-Comedy (Organization)：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/digital",
  "name":"ExampleTV Digital Service",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_digital_service"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/movie",
  "name":"ExampleTV Movie",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_movie"
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"Organization",
  "@id":"http://example.com/exampletv/comedy",
  "name":"ExampleTV Comedy",
  "sameAs": "https://en.wikipedia.org/wiki/exampletv_comedy"
}

BroadcastService

以下两个 BroadcastService 实体提供了虚构频道 ExampleTV-Movie 和 ExampleTV-Comedy 的深层链接和访问要求详情：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/movie",
  "name": "ExampleTV-Movie",
  "alternateName": [
    "Example Television Movie",
    "Example TV Movie"
  ],
  "description": "A fictional Internet Protocol TV movie channel.",
  "broadcastDisplayName":"ExampleTV-Movie",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/movie"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/movie?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "12345"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-movie-33345"
    }
  ]
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"https://www.example.com/exampletv/broadcast/comedy",
  "name": "ExampleTV-Comedy",
  "alternateName": [
    "Example Television Comedy",
    "Example TV Comedy"
  ],
  "description": "A fictional Internet Protocol TV comedy channel.",
  "broadcastDisplayName":"ExampleTV-Comedy",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://www.example.com/exampletv/comedy"
  },
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/exampletv/broadcast/comedy?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://www.example.com/exampletv/basic_subscription",
        "name": "Basic subscription",
        "identifier": "example.com:basic",
        "commonTier": true
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value": "15555"
    },
    {
      "@type": "PropertyValue",
      "propertyID": "_PARTNER_ID_",
      "value": "exampletv-comedy-12323"
    }
  ]
}

CableOrSatelliteService

此 CableOrSatelliteService 描述了覆盖范围为全国的服务提供商 ExampleTV Digital Service：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"CableOrSatelliteService",
  "@id":"http://example.com/example_iptv/us",
  "name":"Example TV Digital Service - US",
  "provider": {
    "@type": "Organization",
    "@id": "http://example.com/exampletv/digital",
  },
  "areaServed":[
    {
      "@type":"Country",
      "name": "US",
    }
  ]
}

TelevisionChannel

以下 TelevisionChannel 实体表示 ExampleTV Digital Service IPTV 在频道 ExTV-Movie 上有 ExampleTV Movie 节目，在频道 ExTV-Comedy 上有 ExampleTV Comedy 节目：

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-movie",
  "broadcastChannelId":"ExTV-Movie",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/movie"
  }
},
{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"TelevisionChannel",
  "@id":"http://example.com/exampletv/extv-comedy",
  "broadcastChannelId":"ExTV-Comedy",
  "broadcastServiceTier":"Basic",
  "inBroadcastLineup":{
    "@type":"CableOrSatelliteService",
    "@id":"http://example.com/example_iptv/us"
  },
  "providesBroadcastService":{
    "@type":"BroadcastService",
    "@id":"https://www.example.com/exampletv/broadcast/comedy"
  }
}

如需查看更多示例，请参阅直播电视示例部分。

电视频道上播放的电影

某部电影于 2019 年 7 月 12 日下午 5 点至 7 点在电视网络 Example TV (BroadcastService) 上播出。

BroadcastEvent

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live/movie/new_release",
  "name": "My Favorite Movie",
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "startDate": "2019-07-12T17:00-08:00",
  "endDate": "2019-07-12T19:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "publishedOn": {
    "@type": "BroadcastService",
    "@id": "http://example.com/stations/example_tv"
  },
  "workPerformed": {
    "@type": "Movie",
    "@id": "http://www.example.com/my_favorite_movie"
  }
}

BroadcastService

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"BroadcastService",
  "@id":"http://example.com/stations/example_tv",
  "name":"EXAMPLE-TV",
  "broadcastDisplayName":"ABCD",
  "callSign": "EXA-TV",
  "videoFormat":"SD",
  "broadcastTimezone":"America/Los_Angeles",
  "broadcastAffiliateOf":{
    "@type":"Organization",
    "@id":"http://example.com/networks/abcd-network",
  }
  "identifier": [
   {
     "@type": "PropertyValue",
     "propertyID": "TMS_ID",
     "value": "12258"
   },
   {
     "@type": "PropertyValue",
     "propertyID": "_PARTNER_ID_",
     "value": "exampletv-123456"
   }
  ],
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://example.com/livestream",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast",
        "http://schema.org/AndroidTVPlatform"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "externalsubscription",
      "availabilityStarts": "2018-07-21T10:35:29Z",
      "availabilityEnds": "2019-10-21T10:35:29Z",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "@id": "http://example.com/subscription",
        "name": "ABCD",
        "sameAs": "http://example.com/subscription",
        "authenticator": {
          "@type": "Organization",
          "name": "TVE"
        }
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  }
}

电影

{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "Movie",
  "@id": "http://www.example.com/my_favorite_movie",
  "url": "http://www.example.com/my_favorite_movie",
  "name": "My Favorite Movie",
  "sameAs": "https://en.wikipedia.org/wiki/my_favorite_movie",
  "releasedEvent": {
    "@type": "PublicationEvent",
    "startDate": "2008-01-20",
    "location": {
      "@type": "Country",
      "name": "US"
    }
  },
  "description": "John Doe spent years perfecting his survival skills in a tropical jungle.",
  "actor": [
    {
      "@type": "Person",
      "name": "John Doe",
      "sameAs": "https://en.wikipedia.org/wiki/John_Doe"
    },
    {
      "@type": "Person",
      "name": "Jane Doe",
      "sameAs": "https://en.wikipedia.org/wiki/Jane_Doe"
    }
  ],
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "IMDB_ID",
      "value":  "tt0123456"
    }
  ]
}

如需查看更多示例，请参阅直播电视活动示例部分。

在线直播的体育赛事

广播活动


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type": "BroadcastEvent",
  "@id": "http://example.com/live_eevent/basketball/professional/final_game_6",
  "name": "2019 Professional Basketball Finals, Game 6: Team A at Team B",
  "description": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B.",
  "startDate": "2018-09-16T10:00-08:00",
  "endDate": "2018-09-16T13:00-08:00",
  "videoFormat": "HD",
  "isLiveBroadcast": "False",
  "potentialAction": {
    "@type": "WatchAction",
    "target": {
      "@type": "EntryPoint",
      "urlTemplate": "http://www.example.com/pbl_semis_game?autoplay=true",
      "inLanguage": "en",
      "actionPlatform": [
        "http://schema.org/DesktopWebPlatform",
        "http://schema.org/MobileWebPlatform",
        "http://schema.org/AndroidPlatform",
        "http://schema.org/AndroidTVPlatform",
        "http://schema.org/IOSPlatform",
        "http://schema.googleapis.com/GoogleVideoCast"
      ]
    },
    "actionAccessibilityRequirement": {
      "@type": "ActionAccessSpecification",
      "category": "subscription",
      "availabilityStarts": "2018-09-16T10:00-08:00",
      "availabilityEnds": "2018-09-16T10:00-08:00",
      "requiresSubscription": {
        "@type": "MediaSubscription",
        "name": "Example Package",
        "commonTier": true,
        "@id": "http://www.example.com/example_package"
      },
      "eligibleRegion": [
        {
          "@type": "Country",
          "name": "US"
        }
      ]
    }
  },
  "broadcastOfEvent": {
    "@type": "SportsEvent",
    "@id": "http://example.com/basketball/professional/final_game_6"
  }
}

体育赛事


{
  "@context": ["http://schema.org", {"@language": "en"}],
  "@type":"SportsEvent",
  "@id": "http://example.com/basketball/professional/final_game_6",
  "name":"2019 Professional Basketball Finals, Game 6: Team A vs Team B",
  "sport":"https://en.wikipedia.org/wiki/Basketball",
  "description": {
      "@language": "en",
      "@value": "Game 6 of the 2019 Professional Basketball Finals. Team A leads the series 3-2 against Team B."
    },
  "startDate": "2019-09-16T10:00-08:00",
  "endDate": "2019-09-16T13:00-08:00",
  "homeTeam":{
    "@type":"SportsTeam",
    "name":"Team B",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "parentOrganization":{
      "@type":"SportsOrganization",
      "name":"Professional Basketball League",
      "sameAs":"http://www.example.com/professional_basketball_league"
    },
    "athlete":[
      {
        "@type":"Person",
        "name":"John doe"
      }
    ]
  },
  "awayTeam":{
    "@type":"SportsTeam",
    "name":"Team A",
    "sport":"https://en.wikipedia.org/wiki/Basketball",
    "athlete":[
      {
        "@type":"Person",
        "name":"Jane Doe"
      }
    ]
  },
  "location":{
    "@type":"Place",
    "name":"Example Stadium",
    "address":{
      "@type":"PostalAddress",
      "streetAddress":"1600 Amphitheatre Pkwy",
      "addressLocality":"Mountain View",
      "addressRegion":"CA",
      "postalCode":"94043",
      "addressCountry":"US"
    }
  },
  "identifier": [
    {
      "@type": "PropertyValue",
      "propertyID": "TMS_ID",
      "value":  "TMS ID of this game"
    }
  ]
}

如需查看更多示例，请参阅体育示例部分。

收集 ID、网址和名称

收集元数据

识别实体类型之间的关系 使用集合让一切井井有条 根据您的偏好保存内容并对其进行分类。

电视节目

Identify the relationships

Example

TVSeries

TVSeason

TVEpisode

电台

Identify the relationships

Example

音乐

实体操作和以实体为种子的操作

确定关系

示例

MusicGroup

MusicAlbum

MusicRecording

MusicPlaylist

电视直播

表示直播电视频道的实体之间的关系

频道与其节目指南 (EPG) 之间的关系

示例

互联网上的全国性电视服务提供商

组织

BroadcastService

CableOrSatelliteService

TelevisionChannel

电视频道上播放的电影

BroadcastEvent

BroadcastService

电影

在线直播的体育赛事

广播活动

体育赛事

识别实体类型之间的关系
