Defining the visualization config

Note: The Community Visualization feature is in Developer Preview. To learn more about upcoming features and improvements during this period, visit the Developer Preview page.

Data and style options for a community visualization are defined in a config JSON. The data configuration sets the number of dimensions and metrics that the visualization supports. The style configuration defines the style selectors that are available in the properties panel.

Data configuration

The data configuration defines the DIMENSION and METRIC elements that Data Studio renders in the properties panel. Each element corresponds to dimension and element fields that the user provides as inputs to the visualization.

The following shows a sample data element:

{
  "id": "twoDimensionsPlease",
  "label": "Dimension Element Heading",
  "type": "DIMENSION",
  "options": {
    "min": 2,
    "max": 2,
  }
}

The id that you define in the data element is included in the information that Data Studio responds with. The label defines the text that users see above the data section, and the type defines whether it is a dimension or metric. The options object defines the minimum and maximum number of fields that a user can add to the data element.

In a DIMENSION data element, the options object supports an optional supportedTypes key. If this key is defined, Data Studio constrains the type of dimension fields that can be added to the element. The value of supportedTypes is an array that can contain any combination of "DEFAULT", "TIME", and "GEO".

A data section groups multiple data elements. Data Studio renders the label as a heading for multiple data elements.

The following shows a sample data section:

{
  "id": "dimensionSection1",
  "label": "Dimension Section Heading",
  "elements":[
    // array of data elements
  ]
}

This image shows how Data Studio renders the data section and data element that were shown previously:

Data element section in Looker Studio properties panel.

Style configuration

The style configuration defines the style selectors that are rendered in the properties panel.

The following shows a sample style element:

{
  "id": "linkOpacity",
  "label": "Link opacity",
  "type": "OPACITY",
  "defaultValue": "0.2"
}

The label defines the text that users see as a tooltip, and the type defines the kind of style selector that Data Studio renders. Optionally, defaultValue defines a default value for each style element.

Similarly to data elements, style elements are defined inside sections, which provide headings and logical groupings. To see the full list of available selectors, see the config reference.

The following shows a sample style section:

{
  "id": "styleGroup1",
  "label": "Header for style group",
  "elements": [
    // insert Style Elements here
  ]
}

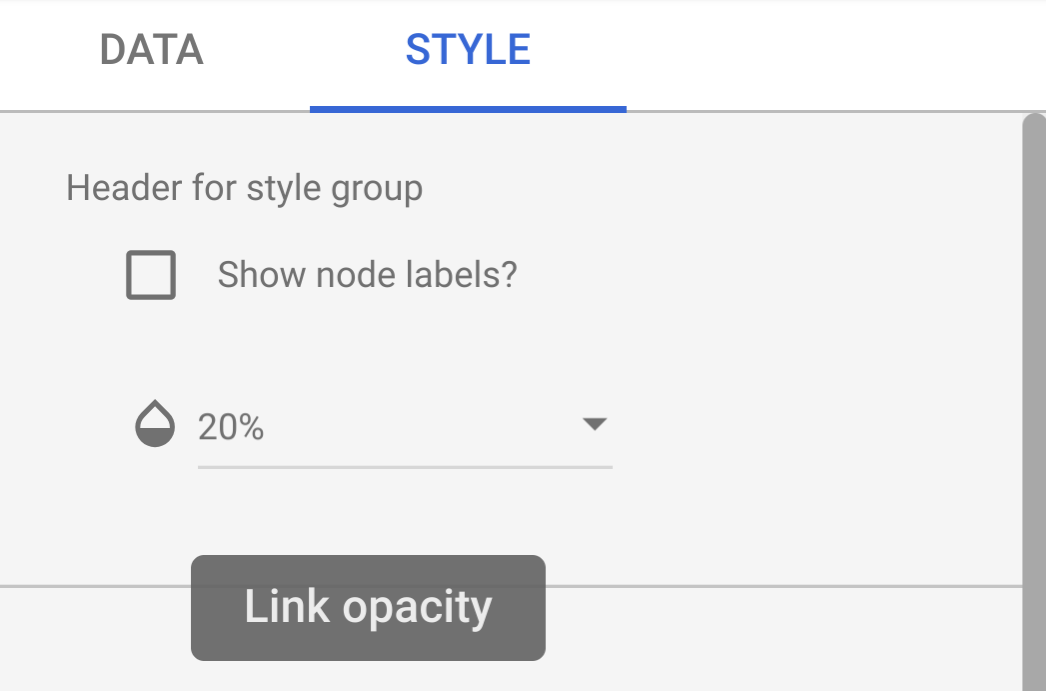

The following image shows an example of a style panel with an opacity selector, with the tooltip "Link Opacity" corresponding to the label in the style element.

Style selector with opacity option.

Interaction configuration

The interaction configuration defines how chart interactions work for a community visualization. This configuration is optional.

Example:

{
  "id": "onClick",
  "supportedActions": ["FILTER"]
}

Only FILTER is supported. If you configure interactions, a checkbox shows up in the properties panel.

Interactions checkbox in properties panel.

Features configuration

The features configuration can turn on or off various features in your community visualization. This section is optional. A list of features can be found in the config reference.

The following is an example of a features configuration:

  "features": {
    "enableComparisonDateRange": true
  }

Example

To see an example of a visualization config, see the sample config.

Next steps

Once you have defined your config, write the visualization.
